Canon R10 vs Fujifilm X-Pro3

The Canon EOS R10 and the Fujifilm X-Pro3 are two digital cameras that were revealed to the public, respectively, in May 2022 and October 2019. Both the R10 and the X-Pro3 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Fujifilm provides 26 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R10		Fujifilm X-Pro3
Mirrorless system camera		Mirrorless system camera
		Fujifilm X mount lenses
24 MP – APS-C sensor		26 MP – APS-C sensor
4k/60p Video		4K/30p Video
ISO 100-32,000 (100 - 51,200)		ISO 160-12,800 (80 - 51,200)
Electronic viewfinder (2360k dots)		Electronic viewfinder (3690k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1620k dots
Swivel touchscreen		Tilting touchscreen
15 shutter flaps per second		8 shutter flaps per second
not weather sealed		Weathersealed body
450 shots per battery charge		440 shots per battery charge
123 x 88 x 83 mm, 429 g		141 x 83 x 46 mm, 497 g

Check R10 price at
amazon.com
Check X-Pro3 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R10 and the Fujifilm X-Pro3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon R10 and the Fujifilm X-Pro3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The X-Pro3 can be obtained in two different colors (black, silver), while the R10 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-Pro3 is notably larger (8 percent) than the Canon R10. Moreover, the X-Pro3 is markedly heavier (16 percent) than the R10. It is noteworthy in this context that the X-Pro3 is splash and dust-proof, while the R10 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R10 gets 450 shots out of its Canon LP-E17 battery, while the X-Pro3 can take 440 images on a single charge of its Fujifilm NP-W126S power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
2.		Fujifilm X-Pro3	141 mm	83 mm	46 mm	497 g	440	Y	Oct 2019	US$ 1 799	amazon.com
3.		Canon 250D	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	US$ 599	amazon.com
4.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
5.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
6.		Canon R50	116 mm	86 mm	69 mm	375 g	230	n	Feb 2023	US$ 679	amazon.com
7.		Canon R100	116 mm	86 mm	69 mm	356 g	400	n	May 2023	US$ 479	amazon.com
8.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
9.		Fujifilm X-E4	121 mm	73 mm	33 mm	364 g	380	n	Jan 2021	US$ 849	amazon.com
10.		Fujifilm X-H1	140 mm	97 mm	86 mm	673 g	310	Y	Feb 2018	US$ 1 899	ebay.com
11.		Fujifilm X-Pro2	141 mm	83 mm	46 mm	495 g	350	Y	Jan 2016	US$ 1 699	ebay.com
12.		Fujifilm X-T2	133 mm	92 mm	49 mm	507 g	340	Y	Jul 2016	US$ 1 599	ebay.com
13.		Fujifilm X-T3	133 mm	93 mm	59 mm	539 g	390	Y	Sep 2018	US$ 1 499	ebay.com
14.		Fujifilm X-T4	135 mm	93 mm	64 mm	607 g	500	Y	Feb 2020	US$ 1 699	ebay.com
15.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
16.		Fujifilm X-T30 II	118 mm	83 mm	47 mm	383 g	380	n	Sep 2021	US$ 899	amazon.com
17.		Nikon Z fc	135 mm	94 mm	44 mm	445 g	300	n	Jun 2021	US$ 959	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The R10 was launched at a markedly lower price (by 46 percent) than the X-Pro3, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

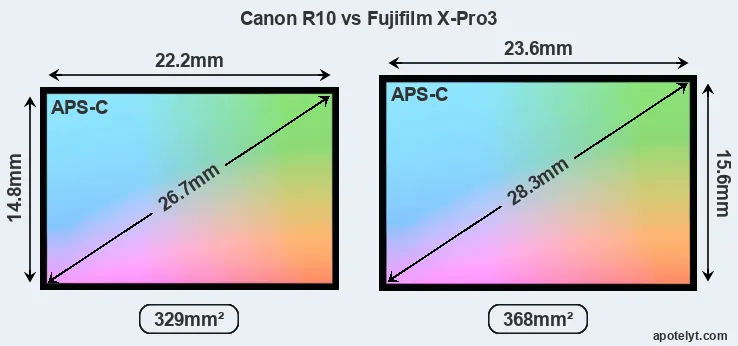

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-Pro3 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (R10) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

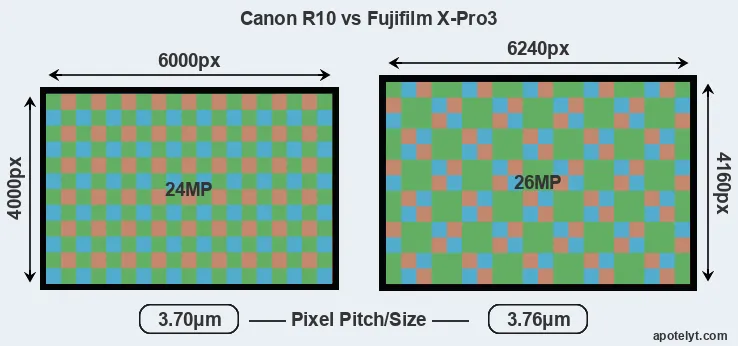

With 26MP, the X-Pro3 offers a higher resolution than the R10 (24MP), but the X-Pro3 nevertheless has marginally larger individual pixels (pixel pitch of 3.76μm versus 3.70μm for the R10) due to its larger sensor. However, the R10 is a much more recent model (by 2 years and 7 months) than the X-Pro3, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-Pro3 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS R10 has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 100-51200. The corresponding ISO settings for the Fujifilm X-Pro3 are ISO 160 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

In terms of underlying technology, the R10 is build around a CMOS sensor, while the X-Pro3 uses a BSI-CMOS imager. Like most digital cameras, the R10 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-Pro3 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
2.		Fujifilm X-Pro3	APS-C	26.0	6240	4160	4K/30p	24.1	13.6	1968	84
3.		Canon 250D	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
4.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
5.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
6.		Canon R50	APS-C	24.0	6000	4000	4K/30p	24.1	13.9	2168	84
7.		Canon R100	APS-C	24.0	6000	4000	4k/24p	24.1	13.9	2197	84
8.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
9.		Fujifilm X-E4	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2085	85
10.		Fujifilm X-H1	APS-C	24.0	6000	4000	4K/30p	24.0	13.3	1806	82
11.		Fujifilm X-Pro2	APS-C	24.0	6000	4000	1080/60p	23.7	13.0	1608	80
12.		Fujifilm X-T2	APS-C	24.0	6000	4000	4K/30p	23.8	13.1	1653	81
13.		Fujifilm X-T3	APS-C	26.0	6240	4160	4K/60p	24.0	13.4	1853	83
14.		Fujifilm X-T4	APS-C	26.0	6240	4160	4K/60p	24.1	13.6	1995	84
15.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
16.		Fujifilm X-T30 II	APS-C	26.0	6240	4160	4K/30p	24.2	13.8	2144	85
17.		Nikon Z fc	APS-C	20.7	5568	3712	4K/30p	24.2	13.8	2131	85
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R10 provides a higher frame rate than the X-Pro3. It can shoot video footage at 4k/60p, while the Fujifilm is limited to 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the X-Pro3 offers a substantially higher resolution than the one in the R10 (3690k vs 2360k dots). The following table reports on some other key feature differences and similarities of the Canon R10, the Fujifilm X-Pro3, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
2.		Fujifilm X-Pro3	3690	n	3.0 / 1620	tilting	Y	1/8000s	8.0/s	n	n
3.		Canon 250D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
5.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
6.		Canon R50	2360	n	3.0 / 1620	swivel	Y	1/4000s	12.0/s	Y	n
7.		Canon R100	2360	n	3.0 / 1040	fixed	n	1/4000s	6.5/s	Y	n
8.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
9.		Fujifilm X-E4	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	n	n
10.		Fujifilm X-H1	3690	Y	3.0 / 1040	full-flex	Y	1/8000s	14.0/s	n	Y
11.		Fujifilm X-Pro2	2360	n	3.0 / 1620	fixed	n	1/8000s	8.0/s	n	n
12.		Fujifilm X-T2	2360	n	3.0 / 1040	full-flex	n	1/8000s	8.0/s	n	n
13.		Fujifilm X-T3	3690	n	3.0 / 1040	full-flex	Y	1/8000s	11.0/s	n	n
14.		Fujifilm X-T4	3690	n	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
15.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
16.		Fujifilm X-T30 II	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	Y	n
17.		Nikon Z fc	2360	Y	3.0 / 1040	swivel	Y	1/4000s	11.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The R10 has one, while the X-Pro3 does not. While the built-in flash of the R10 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R10 and the Fujifilm X-Pro3 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the R10 and the X-Pro3 write their files to SDXC cards. The X-Pro3 features dual card slots, which can be very useful in case a memory card fails. In contrast, the R10 only has one slot. Moreover, both cameras support UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R10 and Fujifilm X-Pro3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Fujifilm X-Pro3	Y	stereo / mono	Y	-	-	3.1	Y	-	Y
3.		Canon 250D	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
4.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
6.		Canon R50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
7.		Canon R100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
9.		Fujifilm X-E4	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
10.		Fujifilm X-H1	Y	stereo / mono	Y	-	micro	3.0	Y	-	-
11.		Fujifilm X-Pro2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Fujifilm X-T2	Y	stereo / mono	Y	-	micro	3.0	Y	-	-
13.		Fujifilm X-T3	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
14.		Fujifilm X-T4	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
15.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
16.		Fujifilm X-T30 II	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
17.		Nikon Z fc	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y

Studio photographers will appreciate that the Fujifilm X-Pro3 (unlike the R10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R10 and the X-Pro3 are recent models that are part of the current product line-up. The X-Pro3 replaced the earlier Fujifilm X-Pro2, while the R10 does not have a direct predecessor. Further information on the features and operation of the R10 and X-Pro3 can be found, respectively, in the Canon R10 Manual (free pdf) or the online Fujifilm X-Pro3 Manual.

Review summary

So how do things add up? Is the Canon R10 better than the Fujifilm X-Pro3 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS R10:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher movie framerates (4k/60p versus 4K/30p).
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.52x).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (15 vs 8 flaps/sec) to capture the decisive moment.
• Less heavy: Is lighter (by 68g or 14 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
• More modern: Reflects 2 years and 7 months of technical progress since the X-Pro3 launch.

Reasons to prefer the Fujifilm X-Pro3:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More detailed viewfinder: Has higher resolution electronic viewfinder (3690k vs 2360k dots).
• More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in October 2019).

If the number of relative strengths (bullet points above) is taken as a guide, the R10 emerges as the winner of the contest (11 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R10 and the Fujifilm X-Pro3 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the R10 and the X-Pro3 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
2.		Fujifilm X-Pro3	4/5	+	4/5	85/100	4/5	..	Oct 2019	US$ 1 799	amazon.com
3.		Canon 250D	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	US$ 599	amazon.com
4.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
5.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
6.		Canon R50	4/5	+ +	4.5/5	84/100	..	4.5/5	Feb 2023	US$ 679	amazon.com
7.		Canon R100	3/5	o	4.5/5	79/100	..	3.5/5	May 2023	US$ 479	amazon.com
8.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
9.		Fujifilm X-E4	4/5	..	4/5	..	4.5/5	4/5	Jan 2021	US$ 849	amazon.com
10.		Fujifilm X-H1	..	+	5/5	86/100	4.5/5	4.5/5	Feb 2018	US$ 1 899	ebay.com
11.		Fujifilm X-Pro2	..	+	..	83/100	4.5/5	4.5/5	Jan 2016	US$ 1 699	ebay.com
12.		Fujifilm X-T2	5/5	+ +	..	86/100	4.5/5	5/5	Jul 2016	US$ 1 599	ebay.com
13.		Fujifilm X-T3	5/5	+ +	4.5/5	88/100	5/5	5/5	Sep 2018	US$ 1 499	ebay.com
14.		Fujifilm X-T4	5/5	+ +	5/5	88/100	5/5	5/5	Feb 2020	US$ 1 699	ebay.com
15.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
16.		Fujifilm X-T30 II	5/5	..	4/5	..	4.5/5	4.5/5	Sep 2021	US$ 899	amazon.com
17.		Nikon Z fc	4/5	..	4.5/5	86/100	5/5	4.5/5	Jun 2021	US$ 959	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
