Canon R vs Canon RP

The Canon EOS R and the Canon EOS RP are two digital cameras that were revealed to the public, respectively, in September 2018 and February 2019. Both the Canon R and the Canon RP are mirrorless interchangeable lens cameras that are equipped with a full frame sensor. The Canon R has a resolution of 30.1 megapixels, whereas the Canon RP provides 26.2 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.

Headline Specifications
Canon R   Canon RP
Canon R Canon RP
Mirrorless system camera Mirrorless system camera
Canon RF mount lenses Canon RF mount lenses
30.1 MP, Full Frame Sensor 26.2 MP, Full Frame Sensor
4K/30p Video 4K/30p Video
ISO 100-40000 (50-102400) ISO 100-40000 (50-102400)
Electronic viewfinder (3690k dots) Electronic viewfinder (2360k dots)
3.2" LCD, 2100k dots 3.0" LCD, 1040k dots
Swivel touchscreen Swivel touchscreen
8 shutter flaps per second 5 shutter flaps per second
Weathersealed bodyNot weather sealed
370 shots per battery charge250 shots per battery charge
136 x 98 x 84 mm, 660 g 133 x 85 x 70 mm, 485 g

Body comparison: Canon R vs Canon RP

An illustration of the physical size and weight of the Canon R and the Canon RP is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

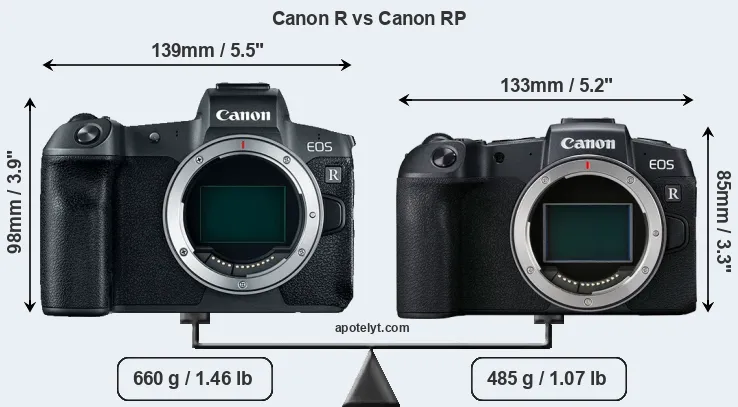

Compare Canon R and Canon RP

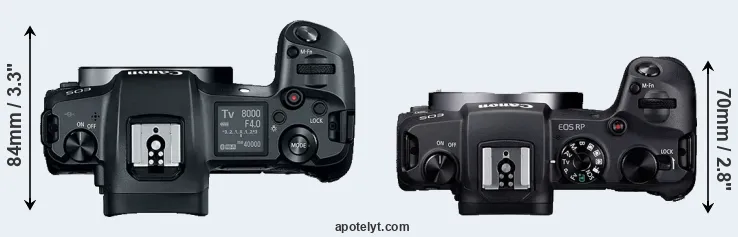

Compare Canon R versus Canon RP top

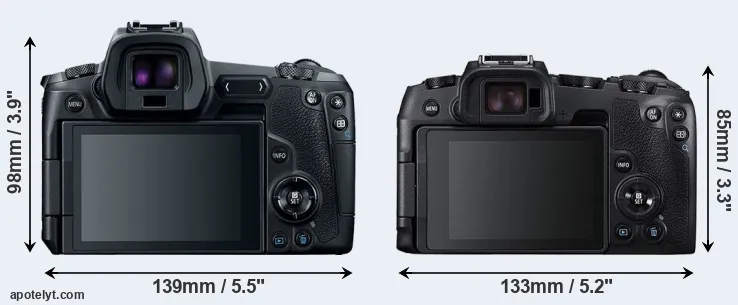

Compare Canon R or Canon RP rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon RP is notably smaller (15 percent) than the Canon R. Moreover, the Canon RP is markedly lighter (27 percent) than the Canon R. It is worth mentioning in this context that the Canon R is splash and dust resistant, while the Canon RP does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the Canon R gets 370 shots out of its LP-E6N battery, while the Canon RP can take 250 images on a single charge of its LP-E17 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon R» 136 mm 98 mm 84 mm 660 g 370 Y Sep 2018 2,299 i i Canon R
Canon RP« 133 mm 85 mm 70 mm 485 g 250 n Feb 2019 1,299 i i Canon RP
Canon 6D Mark II« » 144 mm 111 mm 75 mm 765 g 1200 Y Jun 2017 1,999 i i Canon 6D Mark II
Canon 200D« » 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549 i i Canon 200D
Canon G1 X Mark III« » 115 mm 78 mm 51 mm 399 g 200 Y Oct 2017 1,299 i i Canon G1 X Mark III
Canon 5D Mark IV« » 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Canon M5« » 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979 i i Canon M5
Canon 750D« » 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749- i Canon 750D
Canon 760D« » 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 849- i Canon 760D
Canon 6D« » 145 mm 111 mm 71 mm 770 g 1090 Y Sep 2012 2,099- i Canon 6D
Fujifilm X-H1« » 140 mm 97 mm 86 mm 673 g 310 Y Feb 2018 1,899 i i Fujifilm X-H1
Leica TL2« » 134 mm 69 mm 33 mm 399 g 250 n Jul 2017 1,950 i i Leica TL2
Nikon D7500« » 136 mm 104 mm 73 mm 720 g 950 Y Apr 2017 1,299 i i Nikon D7500
Panasonic GH5s« » 139 mm 98 mm 87 mm 660 g 440 Y Jan 2018 2,499 i i Panasonic GH5s
Panasonic GH5« » 139 mm 98 mm 87 mm 725 g 410 Y Jan 2017 1,999 i i Panasonic GH5
Pentax K-1 II« » 137 mm 110 mm 86 mm 1010 g 670 Y Feb 2018 1,999 i i Pentax K-1 II

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon RP was launched at a markedly lower price (by 43 percent) than the Canon R, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon R vs Canon RP

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

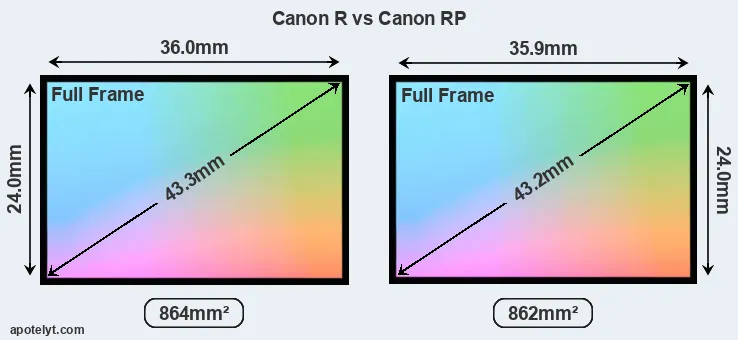

Canon R and Canon RP sensor measures

With 30.1MP, the Canon R offers a higher resolution than the Canon RP (26.2MP), but the Canon R has smaller individual pixels (pixel pitch of 5.36μm versus 5.74μm for the Canon RP). Moreover, the Canon RP is a somewhat more recent model (by 5 months) than the Canon R, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The Canon EOS R has a native sensitivity range from ISO 100 to ISO 40000, which can be extended to ISO 50-102400.. The Canon EOS RP offers exactly the same ISO settings.

Canon R versus Canon RP MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon R» Full Frame 30.1 6720 44804K/30p----Canon R
Canon RP« Full Frame 26.2 6240 41604K/30p----Canon RP
Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II
Canon 200D« » APS-C 24.0 6000 40001080/60p23.613.4104179Canon 200D
Canon G1 X Mark III« » APS-C 24.0 6000 40001080/60p----Canon G1 X Mark III
Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Canon M5« » APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5
Canon 750D« » APS-C 24.0 6000 40001080/60p22.712.091971Canon 750D
Canon 760D« » APS-C 24.0 6000 40001080/30p22.612.091570Canon 760D
Canon 6D« » Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D
Fujifilm X-H1« » APS-C 24.0 6000 40004K/30p----Fujifilm X-H1
Leica TL2« » APS-C 24.1 6014 40144K/30p----Leica TL2
Nikon D7500« » APS-C 20.7 5568 37124K/30p24.314.0148386Nikon D7500
Panasonic GH5s« » Four Thirds 9.9 3680 27004K/60p----Panasonic GH5s
Panasonic GH5« » Four Thirds 20.2 5184 38884K/60p23.913.080777Panasonic GH5
Pentax K-1 II« » Full Frame 36.2 7360 49121080/60i----Pentax K-1 II

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).



Feature comparison: Canon R vs Canon RP

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the Canon R offers a substantially higher resolution than the one in the Canon RP (3690k vs 2360k dots). The table below summarizes some of the other core capabilities of the Canon R and Canon RP in connection with corresponding information for a sample of similar cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model
Canon R»3690 Y 3.2 2100 swivel Y 8000 8.0 n n Canon R
Canon RP«2360 n 3.0 1040 swivel Y 4000 5.0 n n Canon RP
Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 4000 6.5 n n Canon 6D Mark II
Canon 200D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 200D
Canon G1 X Mark III« »2360 n 3.0 1040 swivel Y 2000 9.0 Y Y Canon G1 X Mark III
Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Canon M5« »2360 n 3.2 1620 tilting Y 4000 9.0 Y n Canon M5
Canon 750D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 750D
Canon 760D« »optical Y 3.0 1040 swivel Y 4000 5.0 Y n Canon 760D
Canon 6D« »optical Y 3.0 1040 fixed n 4000 4.5 n n Canon 6D
Fujifilm X-H1« »3690 Y 3.0 1040 full-flex Y 8000 14.0 n Y Fujifilm X-H1
Leica TL2« »- n 3.7 1230 fixed Y 4000 7.0 n n Leica TL2
Nikon D7500« »optical Y 3.2 922 tilting Y 8000 8.0 Y n Nikon D7500
Panasonic GH5s« »3680 n 3.2 1620 swivel Y 8000 12.0 n n Panasonic GH5s
Panasonic GH5« »3680 n 3.2 1620 swivel Y 8000 12.0 n Y Panasonic GH5
Pentax K-1 II« »optical Y 3.2 1037 full-flex n 8000 4.4 n Y Pentax K-1 II

One feature that is present on the Canon R, but is missing on the Canon RP is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed and shutter burst refer to the use of the mechanical shutter. In addition, the Canon R features an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

Concerning the storage of imaging data, both the Canon R and the Canon RP write their files to SDXC cards.



Connectivity comparison: Canon R vs Canon RP

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R and Canon EOS RP and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon R»YstereomonoYYmini3.1Y-YCanon R
Canon RP«YstereomonoYYmicro2.0Y-YCanon RP
Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II
Canon 200D« »YstereomonoY-mini2.0YYYCanon 200D
Canon G1 X Mark III« »Ystereomono--micro2.0YYYCanon G1 X Mark III
Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV
Canon M5« »YstereomonoY-mini2.0YYYCanon M5
Canon 750D« »YstereomonoY-mini2.0YY-Canon 750D
Canon 760D« »YstereomonoY-mini2.0YY-Canon 760D
Canon 6D« »YmonomonoY-mini2.0Y--Canon 6D
Fujifilm X-H1« »YstereomonoY-micro3.0Y--Fujifilm X-H1
Leica TL2« »Ystereomono--micro3.0Y--Leica TL2
Nikon D7500« »YstereomonoYYmini2.0Y-YNikon D7500
Panasonic GH5s« »YstereomonoYYfull3.1Y-YPanasonic GH5s
Panasonic GH5« »YstereomonoYYfull3.1Y-YPanasonic GH5
Pentax K-1 II« »YstereomonoYYmicro2.0Y--Pentax K-1 II

Both the Canon R and the Canon RP are recent models that feature in their makers' current product line-up. Neither of the two has a direct predecessor, so perhaps they will constitute the origins of new camera lines for Canon.


Review summary: Canon R vs Canon RP

So how do things add up? Is there a clear favorite between the Canon R and the Canon RP? A synthesis of the relative strong points of each of the models is listed below.


Advantages of the Canon EOS R:

  • More detail: Offers more megapixels (30.1 vs 26.2MP) with a 8% higher linear resolution.
  • More detailed viewfinder: Has higher resolution electronic viewfinder (3690k vs 2360k dots).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.70x).
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Longer lasting: Can take more shots (370 versus 250) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
  • More heavily discounted: Has been on the market for longer (launched in September 2018).


Reasons to prefer the Canon EOS RP:

  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.70x).
  • More compact: Is smaller (133x85mm vs 136x98mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 175g or 27 percent) and is thus easier to take along.
  • More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
  • More modern: Was introduced somewhat (5 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the Canon R is the clear winner of the match-up (13 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

Canon R 13:04 Canon RP

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the Canon R and the Canon RP in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews: Canon R vs Canon RP

This is where reviews by experts come in. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The detailed reviews can be accessed by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon R»rev79/1004.5/54/54/5 Sep 2018 2,299 i i Canon R
Canon RP«----- Feb 2019 1,299 i i Canon RP
Canon 6D Mark II« »Rec80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II
Canon 200D« »HiRec78/1004.5/54.5/54.5/5 Jun 2017 549 i i Canon 200D
Canon G1 X Mark III« »Rec79/1004.5/5-4.5/5 Oct 2017 1,299 i i Canon G1 X Mark III
Canon 5D Mark IV« »HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Canon M5« »Rec82/1004/54.5/54/5 Sep 2016 979 i i Canon M5
Canon 750D« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon 750D
Canon 760D« »Rec77/1004.5/54.5/54.5/5 Feb 2015 849- i Canon 760D
Canon 6D« »HiRec83/1004.5/54.5/54.5/5 Sep 2012 2,099- i Canon 6D
Fujifilm X-H1« »Rec86/1004.5/5-4.5/5 Feb 2018 1,899 i i Fujifilm X-H1
Leica TL2« »--4/5-4/5 Jul 2017 1,950 i i Leica TL2
Nikon D7500« »HiRec86/1005/54.5/54.5/5 Apr 2017 1,299 i i Nikon D7500
Panasonic GH5s« »-84/1004.5/5-4.5/5 Jan 2018 2,499 i i Panasonic GH5s
Panasonic GH5« »HiRec85/1004.5/55/55/5 Jan 2017 1,999 i i Panasonic GH5
Pentax K-1 II« »-79/1004.5/5-4.5/5 Feb 2018 1,999 i i Pentax K-1 II

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Canon R:
Check Amazon price
Canon RP:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Canon R vs Canon RP

    Camera Specifications
    Camera Model Canon R Canon RP
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon RF mount lenses Canon RF mount lenses
    Launch Date September 2018 February 2019
    Launch Price USD 2299 USD 1299
    Sensor Specs
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor Full Frame Sensor
    Sensor Size 36.0 x 24.0 mm 35.9 x 24.0 mm
    Sensor Area 864 mm2 861.6 mm2
    Sensor Diagonal 43.3 mm 43.2 mm
    Crop Factor 1.0x 1.0x
    Sensor Resolution 30.1 Megapixels 26.2 Megapixels
    Image Resolution 6720 x 4480 pixels 6240 x 4160 pixels
    Pixel Pitch 5.36 μm 5.74 μm
    Pixel Density 3.48 MP/cm2 3.01 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 4K/30p Video 4K/30p Video
    ISO Setting 100-40000 ISO 100-40000 ISO
    ISO Boost 50-102400 ISO 50-102400 ISO
    Image Processor DIGIC 8 DIGIC 8
    Screen Specs
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.76x 0.70x
    Viewfinder Resolution 3690k dots 2360k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2 inch 3.0 inch
    LCD Resolution 2100k dots 1040k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs
    Autofocus System On-Sensor Phase-detect On-Sensor Phase-detect
    Maximum Shutter Speed 1/8000s 1/4000s
    Continuous Shooting 8 shutter flaps/s 5 shutter flaps/s
    Silent ShootingElectronic Shutterno E-Shutter
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    Connectivity Specs
    External Flash Hotshoe Hotshoe
    USB Connector USB 3.1 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs
    Environmental SealingWeathersealed bodyNot weather sealed
    Battery Type LP-E6N power pack LP-E17 power pack
    Battery Life (CIPA)370 shots per charge250 shots per charge
    In-Camera Charging USB charging USB charging
    Body Dimensions 136 x 98 x 84 mm
    (5.4 x 3.9 x 3.3 in)
    133 x 85 x 70 mm
    (5.2 x 3.3 x 2.8 in)
    Camera Weight 660 g (23.3 oz) 485 g (17.1 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
