Canon M6 vs Panasonic GX80

The Canon EOS M6 and the Panasonic Lumix DMC-GX80 (labelled Panasonic GX85 in some countries) are two digital cameras that were announced, respectively, in February 2017 and April 2016. Both the M6 and the GX80 are mirrorless interchangeable lens cameras that are based on an APS-C (M6) and a Four Thirds (GX80) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M6		Panasonic GX80
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Micro Four Thirds lenses
24 MP – APS-C sensor		15.8 MP – Four Thirds sensor
1080/60p Video		4K/30p Video
ISO 100-25,600		ISO 200-25,600
Viewfinder optional		Electronic viewfinder (2765k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Tilting touchscreen
9 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
295 shots per battery charge		290 shots per battery charge
112 x 68 x 45 mm, 390 g		122 x 71 x 44 mm, 426 g

Check M6 offers at
ebay.com
Check GX80 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M6 and the Panasonic Lumix DMC-GX80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

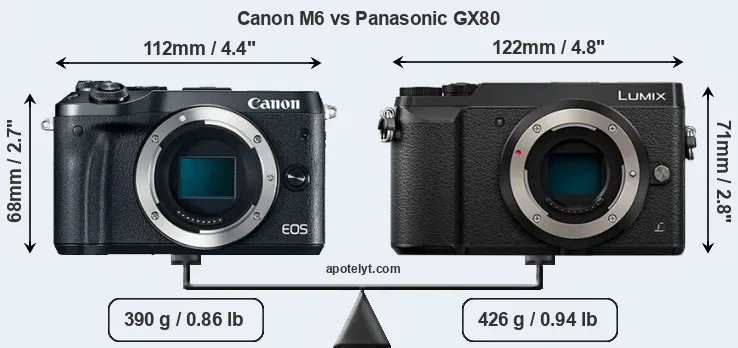

The physical size and weight of the Canon M6 and the Panasonic GX80 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX80 is notably larger (14 percent) than the Canon M6. Moreover, the GX80 is markedly heavier (9 percent) than the M6. In this context, it is worth noting that neither the M6 nor the GX80 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M6 gets 295 shots out of its LP-E17 battery, while the GX80 can take 290 images on a single charge of its DMW-BLG10 power pack. The power pack in the GX80 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
2.		Panasonic GX80	122 mm	71 mm	44 mm	426 g	290	n	Apr 2016	799	amazon.com
3.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	849	ebay.com
4.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	779	ebay.com
5.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
6.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
7.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
8.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
9.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
10.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
11.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
12.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	amazon.com
13.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
14.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
15.		Panasonic GX9	124 mm	72 mm	47 mm	407 g	260	n	Feb 2018	849	ebay.com
16.		Panasonic G80	128 mm	89 mm	74 mm	505 g	330	Y	Sep 2016	899	ebay.com
17.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M6 was somewhat cheaper (by 3 percent) than the GX80 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon M6 features an APS-C sensor and the Panasonic GX80 a Four Thirds sensor. The sensor area in the GX80 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M6 has a native 3:2 aspect ratio, while the one in the GX80 offers a 4:3 aspect.

With 24MP, the M6 offers a higher resolution than the GX80 (15.8MP), but the M6 has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.77μm for the GX80). However, the M6 is a somewhat more recent model (by 10 months) than the GX80, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the GX80 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GX80 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.

The M6 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M6 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DMC-GX80 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the M6 has a notably higher overall DXO score than the GX80 (overall score 7 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.5 bits higher color depth, and 1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
2.		Panasonic GX80	Four Thirds	15.8	4592	3448	4K/30p	22.9	12.6	662	71
3.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
4.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
5.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
6.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
7.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
8.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
9.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
10.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
11.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
12.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
13.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
14.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
15.		Panasonic GX9	Four Thirds	20.2	5184	3888	4K/30p	23.1	12.8	1163	74
16.		Panasonic G80	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.5	656	71
17.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GX80 provides a better video resolution than the M6. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the GX80 has an electronic viewfinder (2765k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M6 relies on live view and the rear LCD for framing. That said, the M6 can be equipped with an optional viewfinder – the EVF-DC2. The table below summarizes some of the other core capabilities of the Canon M6 and Panasonic GX80 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
2.		Panasonic GX80	2765	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
3.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
4.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
5.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
7.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
10.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
13.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
14.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
15.		Panasonic GX9	2760	n	3.0 / 1240	tilting	Y	1/4000s	9.0/s	Y	Y
16.		Panasonic G80	2360	n	3.0 / 1040	swivel	Y	1/4000s	9.0/s	Y	Y
17.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the GX80 and the M6 is in-body image stabilization (IBIS). The GX80 reduces the risk of handshake-induced blur with all attached lenses, while the M6 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX80 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon M6 and the Panasonic GX80 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M6 and the GX80 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M6 and Panasonic Lumix DMC-GX80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Panasonic GX80	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Panasonic GX9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Panasonic G80	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
17.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-

It is notable that the M6 has a microphone port, which is missing on the GX80. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

The GX80 is a recent model that features in the current product line-up of Panasonic. In contrast, the M6 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M6 was succeeded by the Canon M6 Mark II. Further information on the features and operation of the M6 and GX80 can be found, respectively, in the Canon M6 Manual (free pdf) or the online Panasonic GX80 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon M6 or the Panasonic GX80 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon EOS M6:

• More detail: Offers more megapixels (24 vs 15.8MP) with a 26% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Scores markedly higher (7 points) in the DXO overall assessment.
• Better low-light sensitivity: Requires less light for good images (1 stops ISO advantage).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (9 vs 8 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (112x68mm vs 122x71mm) and thus needs less room in the bag.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Is somewhat more recent (announced 10 months after the GX80).

Advantages of the Panasonic Lumix DMC-GX80:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More heavily discounted: Has been on the market for longer (launched in April 2016).

If the count of relative strengths (bullet points above) is taken as a measure, the M6 is the clear winner of the match-up (12 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M6 and the Panasonic GX80 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M6 or the GX80. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
2.		Panasonic GX80	4.5/5	+ +	..	82/100	5/5	5/5	Apr 2016	799	amazon.com
3.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	849	ebay.com
4.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	779	ebay.com
5.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
6.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
7.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
8.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
9.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
10.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
11.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
12.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	amazon.com
13.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
14.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
15.		Panasonic GX9	4/5	+	4/5	84/100	4.5/5	4.5/5	Feb 2018	849	ebay.com
16.		Panasonic G80	..	+ +	..	84/100	5/5	4.5/5	Sep 2016	899	ebay.com
17.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	999	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
