Canon M6 vs Olympus E-M10 II

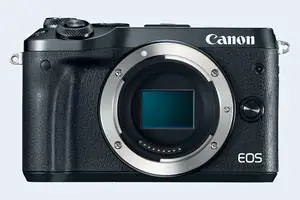

The Canon EOS M6 and the Olympus OM-D E-M10 Mark II are two digital cameras that were officially introduced, respectively, in February 2017 and August 2015. Both the M6 and the E-M10 II are mirrorless interchangeable lens cameras that are based on an APS-C (M6) and a Four Thirds (E-M10 II) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.


Headline Specifications
Canon M6   Olympus E-M10 II
Canon M6 Olympus E-M10 II
Mirrorless system camera Mirrorless system camera
Canon EF-M mount lenses Micro Four Thirds lenses
24 MP, APS-C Sensor 15.9 MP, Four Thirds Sensor
1080/60p Video 1080/60p Video
ISO 100-25600 ISO 200-25600
Viewfinder optional Electronic viewfinder (2360k dots)
3.0" LCD, 1040k dots 3.0" LCD, 1040k dots
Tilting touchscreen Tilting touchscreen
9 shutter flaps per second 8 shutter flaps per second
Lens stabilization onlyIn-body stabilization
295 shots per battery charge320 shots per battery charge
112 x 68 x 45 mm, 390 g 120 x 83 x 47 mm, 390 g

Body comparison: Canon M6 vs Olympus E-M10 II

An illustration of the physical size and weight of the Canon M6 and the Olympus E-M10 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter. You can also toggle the display to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the M6 – represents 100 percent across all the size and weight measures).

Compare Canon M6 and Olympus E-M10 II
Compare M6 versus E-M10 II top
Compare M6 or E-M10 II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 II is notably larger (31 percent) than the Canon M6. In terms of weight, the two cameras are very close. In this context, it is worth noting that neither the M6 nor the E-M10 II are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M6 gets 295 shots out of its LP-E17 battery, while the E-M10 II can take 320 images on a single charge of its BLS-50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon M6» 4.4 in 2.7 in 1.8 in 13.8 oz 295 n Feb 2017 779 i i Canon M6
Olympus E-M10 II« 4.7 in 3.3 in 1.9 in 13.8 oz 320 n Aug 2015 799- i Olympus E-M10 II
Canon M50« » 4.6 in 3.5 in 2.3 in 13.8 oz 235 n Feb 2018 779 i i Canon M50
Canon T7« » 5.1 in 4.0 in 3.1 in 16.8 oz 500 n Feb 2018 449 i i Canon T7
Canon 77D« » 5.2 in 3.9 in 3.0 in 19.0 oz 600 n Feb 2017 899 i i Canon 77D
Canon M100« » 4.3 in 2.6 in 1.4 in 10.7 oz 295 n Aug 2017 499 i i Canon M100
Canon SL2« » 4.8 in 3.7 in 2.8 in 16.0 oz 650 n Jun 2017 549 i i Canon SL2
Canon T7i« » 5.2 in 3.9 in 3.0 in 18.8 oz 600 n Feb 2017 749 i i Canon T7i
Canon G7 X Mark II« » 4.2 in 2.4 in 1.7 in 11.3 oz 265 n Feb 2016 699 i i Canon G7 X Mark II
Canon M5« » 4.6 in 3.5 in 2.4 in 15.1 oz 295 n Sep 2016 979 i i Canon M5
Canon M3« » 4.4 in 2.7 in 1.7 in 12.9 oz 250 n Feb 2015 679- i Canon M3
Fujifilm X-E3« » 4.8 in 2.9 in 1.7 in 11.9 oz 350 n Sep 2017 899 i i Fujifilm X-E3
Olympus E-M10 III« » 4.8 in 3.3 in 2.0 in 14.5 oz 330 n Aug 2017 649 i i Olympus E-M10 III
Olympus E-M5 II« » 4.9 in 3.3 in 1.8 in 16.5 oz 310 Y Feb 2015 1,099 i i Olympus E-M5 II
Olympus E-M10« » 4.7 in 3.2 in 1.8 in 14.0 oz 320 n Jan 2014 699- i Olympus E-M10
Olympus E-PL7« » 4.5 in 2.6 in 1.5 in 12.6 oz 350 n Aug 2014 599- i Olympus E-PL7
Panasonic GX85« » 4.8 in 2.8 in 1.7 in 15.0 oz 290 n Apr 2016 799 i i Panasonic GX85

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M6 was somewhat cheaper (by 3 percent) than the E-M10 II at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon M6 vs Olympus E-M10 II

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon M6 features an APS-C sensor and the Olympus E-M10 II a Four Thirds sensor. The sensor area in the E-M10 II is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M6 has a native 3:2 aspect ratio, while the one in the E-M10 II offers a 4:3 aspect.

Canon M6 and Olympus E-M10 II sensor measures

With 24MP, the M6 offers a higher resolution than the E-M10 II (15.9MP), but the M6 has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.76μm for the E-M10 II). However, the M6 is a somewhat more recent model (by 1 year and 5 months) than the E-M10 II, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The M6 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during video recording.

The Canon EOS M6 has a native sensitivity range from ISO 100 to ISO 25600 The corresponding ISO settings for the Olympus OM-D E-M10 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600..

M6 versus E-M10 II MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon M6» APS-C 24.0 6000 40001080/60p----Canon M6
Olympus E-M10 II« Four Thirds 15.9 4608 34561080/60p23.112.584273Olympus E-M10 II
Canon M50« » APS-C 24.0 6000 40004K/24p----Canon M50
Canon T7« » APS-C 24.0 6000 40001080/30p----Canon T7
Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D
Canon M100« » APS-C 24.0 6000 40001080/60p23.512.9127278Canon M100
Canon SL2« » APS-C 24.0 6000 40001080/60p23.613.4104179Canon SL2
Canon T7i« » APS-C 24.0 6000 40001080/60p----Canon T7i
Canon G7 X Mark II« » 1-inch 20.0 5472 36481080/60p----Canon G7 X Mark II
Canon M5« » APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5
Canon M3« » APS-C 24.0 6000 40001080/30p22.811.8116972Canon M3
Fujifilm X-E3« » APS-C 24.0 6000 40004K/30p----Fujifilm X-E3
Olympus E-M10 III« » Four Thirds 15.9 4608 34564K/30p----Olympus E-M10 III
Olympus E-M5 II« » Four Thirds 15.9 4608 34561080/60p23.012.584273Olympus E-M5 II
Olympus E-M10« » Four Thirds 15.9 4608 34561080/30p22.812.388472Olympus E-M10
Olympus E-PL7« » Four Thirds 15.9 4608 34561080/30p22.712.487372Olympus E-PL7
Panasonic GX85« » Four Thirds 15.8 4592 34484K/30p22.912.666271Panasonic GX85

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).



Feature comparison: Canon M6 vs Olympus E-M10 II

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M6 relies on live view and the rear LCD for framing. That said, the M6 can be equipped with an optional viewfinder – the EVF-DC2. The following table reports on some other key feature differences and similarities of the Canon M6, the Olympus E-M10 II, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model
Canon M6»- n 3.0 1040 tilting Y 4000 9.0 Y n Canon M6
Olympus E-M10 II«2360 n 3.0 1040 tilting Y 4000 8.0 Y Y Olympus E-M10 II
Canon M50« »2360 n 3.0 1040 swivel Y 4000 10.0 Y n Canon M50
Canon T7« »optical n 3.0 920 fixed n 4000 3.0 Y n Canon T7
Canon 77D« »optical Y 3.0 1040 swivel Y 4000 6.0 Y n Canon 77D
Canon M100« »- n 3.0 1040 tilting Y 4000 6.1 Y n Canon M100
Canon SL2« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon SL2
Canon T7i« »optical n 3.0 1040 swivel Y 4000 6.0 Y n Canon T7i
Canon G7 X Mark II« »- n 3.0 1040 tilting Y 2000 8.0 Y Y Canon G7 X Mark II
Canon M5« »2360 n 3.2 1620 tilting Y 4000 9.0 Y n Canon M5
Canon M3« »- n 3.0 1040 tilting Y 4000 4.2 Y n Canon M3
Fujifilm X-E3« »2360 n 3.0 1040 fixed Y 4000 8.0 n n Fujifilm X-E3
Olympus E-M10 III« »2360 n 3.0 1040 tilting Y 4000 8.6 Y Y Olympus E-M10 III
Olympus E-M5 II« »2360 n 3.0 1037 swivel Y 8000 10.0 n Y Olympus E-M5 II
Olympus E-M10« »1440 n 3.0 1037 tilting Y 4000 8.0 Y Y Olympus E-M10
Olympus E-PL7« »- n 3.0 1037 tilting Y 4000 8.0 n Y Olympus E-PL7
Panasonic GX85« »2765 n 3.0 1040 tilting Y 4000 8.0 Y Y Panasonic GX85

One feature that differentiates the E-M10 II and the M6 is in-body image stabilization (IBIS). The E-M10 II reduces the risk of handshake-induced blur with all attached lenses, while the M6 has to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.

The M6 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-M10 II does not have a selfie-screen.

Concerning the storage of imaging data, both the M6 and the E-M10 II write their files to SDXC cards.

Connectivity comparison: Canon M6 vs Olympus E-M10 II

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M6 and Olympus OM-D E-M10 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon M6»YstereomonoY-mini2.0YYYCanon M6
Olympus E-M10 II«Ystereomono--micro2.0Y--Olympus E-M10 II
Canon M50« »YstereomonoY-micro2.0YYYCanon M50
Canon T7« »Ymonomono--mini2.0YY-Canon T7
Canon 77D« »YstereomonoY-mini2.0YYYCanon 77D
Canon M100« »-stereomono--mini2.0YYYCanon M100
Canon SL2« »YstereomonoY-mini2.0YYYCanon SL2
Canon T7i« »YstereomonoY-mini2.0YYYCanon T7i
Canon G7 X Mark II« »-stereomono--micro2.0YY-Canon G7 X Mark II
Canon M5« »YstereomonoY-mini2.0YYYCanon M5
Canon M3« »YstereomonoY-mini2.0YY-Canon M3
Fujifilm X-E3« »YstereomonoY-micro2.0Y-YFujifilm X-E3
Olympus E-M10 III« »Ystereomono--micro2.0Y--Olympus E-M10 III
Olympus E-M5 II« »YstereomonoY-micro2.0Y--Olympus E-M5 II
Olympus E-M10« »Ystereomono--micro2.0Y--Olympus E-M10
Olympus E-PL7« »Ystereomono--micro2.0Y--Olympus E-PL7
Panasonic GX85« »Ystereomono--micro2.0Y--Panasonic GX85

It is notable that the M6 has a microphone port, which is missing on the E-M10 II. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

The M6 is a recent model that features in the current product line-up of Canon. In contrast, the E-M10 II has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-M10 II was succeeded by the Olympus E-M10 III.


Review summary: Canon M6 vs Olympus E-M10 II

So what is the bottom line? Is there a clear favorite between the Canon M6 and the Olympus E-M10 II? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Reasons to prefer the Canon EOS M6:

  • More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: Larger sensor generates images with better, more accurate colors.
  • More dynamic range: Capable of capturing a wider spectrum of light and dark details.
  • Better low-light sensitivity: Can be used in poorly lit environments and still produce good images.
  • Better video autofocus: Features on-sensor phase-detection for more confident movie autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (9 vs 8 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (112x68mm vs 120x83mm) and thus needs less room in the bag.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More modern: Is somewhat more recent (announced 1 year and 5 months after the E-M10 II).

ilogo

Arguments in favor of the Olympus OM-D E-M10 Mark II:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Easier framing: Has an electronic viewfinder for image framing and settings control.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More heavily discounted: Has been on the market for longer (launched in August 2015).

If the count of individual advantages (bullet points above) is taken as a guide, the M6 is the clear winner of the match-up (14 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

M6 14:04 E-M10 II

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the M6 and the E-M10 II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews: Canon M6 vs Olympus E-M10 II

This is where reviews by experts come in. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon M6»-80/1004/54.5/54/5 Feb 2017 779 i i Canon M6
Olympus E-M10 II«HiRec80/1005/55/55/5 Aug 2015 799- i Olympus E-M10 II
Canon M50« »Rec79/100--3.5/5 Feb 2018 779 i i Canon M50
Canon T7« »rev-3.5/5-3.5/5 Feb 2018 449 i i Canon T7
Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D
Canon M100« »Rec-4/5-3.5/5 Aug 2017 499 i i Canon M100
Canon SL2« »HiRec78/1004.5/54.5/54.5/5 Jun 2017 549 i i Canon SL2
Canon T7i« »-80/1004.5/54/54/5 Feb 2017 749 i i Canon T7i
Canon G7 X Mark II« »HiRec81/1004.5/54/54.5/5 Feb 2016 699 i i Canon G7 X Mark II
Canon M5« »Rec82/1004/54.5/54/5 Sep 2016 979 i i Canon M5
Canon M3« »rev75/1004.5/54.5/54/5 Feb 2015 679- i Canon M3
Fujifilm X-E3« »Rec84/1004.5/54.5/54.5/5 Sep 2017 899 i i Fujifilm X-E3
Olympus E-M10 III« »Rec80/1004.5/54/54.5/5 Aug 2017 649 i i Olympus E-M10 III
Olympus E-M5 II« »HiRec81/1005/54.5/55/5 Feb 2015 1,099 i i Olympus E-M5 II
Olympus E-M10« »-80/1005/54.5/55/5 Jan 2014 699- i Olympus E-M10
Olympus E-PL7« »Rec-5/54.5/54/5 Aug 2014 599- i Olympus E-PL7
Panasonic GX85« »HiRec82/1005/54.5/55/5 Apr 2016 799 i i Panasonic GX85

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.



Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

    Specifications: Canon M6 vs Olympus E-M10 II

    Camera Specifications
    Camera Model Canon M6 Olympus E-M10 II
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon EF-M mount lenses Micro Four Thirds lenses
    Launch Date February 2017 August 2015
    Launch Price USD 779 USD 799
    Sensor Specs
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.3 x 14.9 mm 17.3 x 14.9 mm
    Sensor Area 332.27 mm2 224.9 mm2
    Sensor Diagonal 26.8 mm 21.6 mm
    Crop Factor 1.6 2.0
    Sensor Resolution 24 Megapixels 15.9 Megapixels
    Image Resolution 6000 x 4000 pixels 4608 x 3456 pixels
    Pixel Pitch 3.72 μm 3.76 μm
    Pixel Density 7.22 MP/cm2 7.08 MP/cm2
    Movie Capability 1080/60p Video 1080/60p Video
    ISO Setting 100-25600 ISO 200-25600 ISO
    Image Processor DIGIC 7 TruePic VII
    Screen Specs
    Viewfinder Type Viewfinder optional Electronic viewfinder
    Viewfinder Resolution n/a 2360k dots
    Rear LCD Size 3.0 inch 3.0 inch
    LCD Resolution 1040k dots 1040k dots
    LCD Attachment Tilting screen Tilting screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs
    Maximum Shutter Speed 1/4000s 1/4000s
    Continuous Shooting 9 shutter flaps/s 8 shutter flaps/s
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Connectivity Specs
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs
    Battery Type LP-E17 power pack BLS-50 power pack
    Battery Life (CIPA)295 shots per charge320 shots per charge
    Body Dimensions 112 x 68 x 45 mm
    (4.4 x 2.7 x 1.8 in)
    120 x 83 x 47 mm
    (4.7 x 3.3 x 1.9 in)
    Camera Weight 390 g (13.8 oz) 390 g (13.8 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
