Canon M6 Mark II vs R100

The Canon EOS M6 Mark II and the Canon EOS R100 are two digital cameras that were officially introduced, respectively, in August 2019 and May 2023. Both the M6 Mark II and the R100 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The M6 Mark II has a resolution of 32.3 megapixels, whereas the R100 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M6 Mark II		Canon R100
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses
32.3 MP – APS-C sensor		24 MP – APS-C sensor
4K/30p Video		4k/24p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-25,600
Viewfinder optional		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
14 shutter flaps per second		6.5 shutter flaps per second
305 shots per battery charge		400 shots per battery charge
120 x 70 x 49 mm, 408 g		116 x 86 x 69 mm, 356 g

Check M6 Mark II offers at
ebay.com
Check R100 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M6 Mark II and the Canon EOS R100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

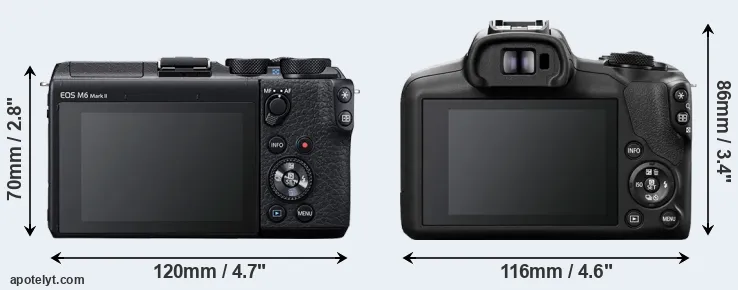

The side-by-side display below illustrates the physical size and weight of the Canon M6 Mark II and the Canon R100. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R100 is notably larger (19 percent) than the Canon M6 Mark II. However, the R100 is markedly lighter (13 percent) than the M6 Mark II. In this context, it is worth noting that neither the M6 Mark II nor the R100 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the M6 Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	US$ 849	ebay.com
2.		Canon R100	116 mm	86 mm	69 mm	356 g	400	n	May 2023	US$ 479	amazon.com
3.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	US$ 899	ebay.com
4.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
5.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
6.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
7.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
8.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	US$ 599	ebay.com
9.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
10.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	US$ 549	ebay.com
11.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
12.		Canon R50	116 mm	86 mm	69 mm	375 g	230	n	Feb 2023	US$ 679	amazon.com
13.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
14.		Canon SL3	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	US$ 599	amazon.com
15.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
16.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The R100 was launched at a markedly lower price (by 44 percent) than the M6 Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the R100 is 2 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 32.3MP, the M6 Mark II offers a higher resolution than the R100 (24MP), but the M6 Mark II has smaller individual pixels (pixel pitch of 3.23μm versus 3.72μm for the R100). Moreover, the R100 is a much more recent model (by 3 years and 8 months) than the M6 Mark II, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the R100 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M6 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 Mark II for good quality output (200 dots per inch) amounts to 34.8 x 23.2 inches or 88.4 x 58.9 cm, for very good quality (250 dpi) 27.8 x 18.6 inches or 70.7 x 47.1 cm, and for excellent quality (300 dpi) 23.2 x 15.5 inches or 58.9 x 39.3 cm. The corresponding values for the Canon R100 are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The Canon EOS M6 Mark II has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon EOS R100 are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
2.		Canon R100	APS-C	24.0	6000	4000	4k/24p	24.1	13.9	2197	84
3.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
4.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
5.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
6.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
7.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
8.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
9.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
10.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
11.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
12.		Canon R50	APS-C	24.0	6000	4000	4K/30p	24.1	13.9	2168	84
13.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
14.		Canon SL3	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
15.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
16.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M6 Mark II provides a higher frame rate than the R100. It can shoot video footage at 4K/30p, while the R100 is limited to 4k/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R100 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M6 Mark II relies on live view and the rear LCD for framing. That said, the M6 Mark II can be equipped with an optional viewfinder – the EVF-DC2. The adjacent table lists some of the other core features of the Canon M6 Mark II and Canon R100 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
2.		Canon R100	2360	n	3.0 / 1040	fixed	n	1/4000s	6.5/s	Y	n
3.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
4.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
5.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
7.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
8.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
9.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
10.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
11.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
12.		Canon R50	2360	n	3.0 / 1620	swivel	Y	1/4000s	12.0/s	Y	n
13.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
14.		Canon SL3	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
15.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
16.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M6 Mark II has a touchscreen, while the R100 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon M6 Mark II and the Canon R100 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M6 Mark II and the R100 write their files to SDXC cards. The M6 Mark II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the R100 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M6 Mark II and Canon EOS R100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Canon R100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
3.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
4.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
10.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
11.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
12.		Canon R50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
13.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
14.		Canon SL3	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
15.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
16.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-

The R100 is a recent model that features in the current product line-up of Canon. In contrast, the M6 Mark II has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the M6 Mark II from Canon. Further information on the features and operation of the M6 Mark II and R100 can be found, respectively, in the Canon M6 Mark II Manual (free pdf) or the online Canon R100 Manual.

Review summary

So what conclusions can be drawn? Is the Canon M6 Mark II better than the Canon R100 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon EOS M6 Mark II:

• More detail: Offers more megapixels (32.3 vs 24MP) with a 16% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher movie framerates (4K/30p versus 4k/24p).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (14 vs 6.5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (120x70mm vs 116x86mm) and thus needs less room in the bag.
• Easier travel charging: Can be conveniently charged via its USB port.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More heavily discounted: Has been available for much longer (launched in August 2019).

Advantages of the Canon EOS R100:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Less heavy: Has a lower weight (by 52g or 13 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (400 versus 305) out of a single battery charge.
• More affordable: Was introduced into a lower priced category (44 percent cheaper at launch).
• More modern: Reflects 3 years and 8 months of technical progress since the M6 Mark II launch.

If the count of relative strengths (bullet points above) is taken as a measure, the M6 Mark II is the clear winner of the match-up (11 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M6 Mark II and the Canon R100 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the M6 Mark II and the R100 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	US$ 849	ebay.com
2.		Canon R100	3/5	o	4.5/5	79/100	..	3.5/5	May 2023	US$ 479	amazon.com
3.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	US$ 899	ebay.com
4.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
5.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
6.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
7.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
8.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	US$ 599	ebay.com
9.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
10.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	US$ 549	ebay.com
11.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
12.		Canon R50	4/5	+ +	4.5/5	84/100	..	4.5/5	Feb 2023	US$ 679	amazon.com
13.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
14.		Canon SL3	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	US$ 599	amazon.com
15.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
16.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
