Canon M100 vs Olympus E-M1 II

The Canon EOS M100 and the Olympus OM-D E-M1 Mark II are two digital cameras that were officially introduced, respectively, in August 2017 and September 2016. Both the M100 and the E-M1 II are mirrorless interchangeable lens cameras that are based on an APS-C (M100) and a Four Thirds (E-M1 II) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

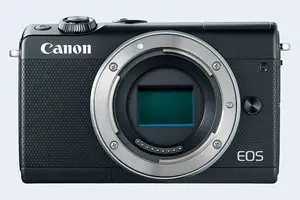

Canon M100
versus
Olympus E-M1 II
Canon M100   Olympus E-M1 II
Mirrorless system camera Mirrorless system camera
Canon EF-M mount lenses Micro Four Thirds lenses
24 MP – APS-C sensor 20.2 MP – Four Thirds sensor
1080/60p Video 4K/30p Video
ISO 100-25,600 ISO 200-25,600
No viewfinder, LCD framing Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots 3.0" LCD – 1037k dots
Tilting touchscreen Swivel touchscreen
6.1 shutter flaps per second 18 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
295 shots per battery charge440 shots per battery charge
108 x 67 x 35 mm, 302 g 134 x 91 x 67 mm, 574 g
logo
Check M100 offers at
ebay.com
logo
Check E-M1 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M100 and the Olympus OM-D E-M1 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon M100 and the Olympus E-M1 II. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The M100 can be obtained in two different colors (black, white), while the E-M1 II is only available in black.

Size Canon M100 vs Olympus E-M1 II
Compare M100 versus E-M1 II top
Comparison M100 or E-M1 II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1 II is considerably larger (69 percent) than the Canon M100. Moreover, the E-M1 II is substantially heavier (90 percent) than the M100. It is noteworthy in this context that the E-M1 II is splash and dust-proof, while the M100 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M100 gets 295 shots out of its Canon LP-E12 battery, while the E-M1 II can take 440 images on a single charge of its Olympus BLH-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon M100 108 mm 67 mm 35 mm 302 g 295 i Aug 2017 US$ 499ebay.com
2.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 i Sep 2016 US$ 1 999ebay.com
3.

Canon G9 X Mark II 98 mm 58 mm 31 mm 206 g 235 i Jan 2017 US$ 529ebay.com
4.

Canon M 109 mm 66 mm 32 mm 298 g 230 i Jul 2012 US$ 599ebay.com
5.

Canon M3 111 mm 68 mm 44 mm 366 g 250 i Feb 2015 US$ 679ebay.com
6.

Canon M5 116 mm 89 mm 61 mm 427 g 295 i Sep 2016 US$ 979ebay.com
7.

Canon M6 112 mm 68 mm 45 mm 390 g 295 i Feb 2017 US$ 779ebay.com
8.

Canon M10 108 mm 67 mm 35 mm 301 g 255 i Oct 2015 US$ 499ebay.com
9.

Canon M50 116 mm 88 mm 59 mm 390 g 235 i Feb 2018 US$ 779ebay.com
10.

Canon M200 108 mm 67 mm 35 mm 299 g 315 i Sep 2019 US$ 549ebay.com
11.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 i Jun 2017 US$ 549ebay.com
12.

Canon T7 129 mm 101 mm 78 mm 475 g 500 i Feb 2018 US$ 449 amazon.com
13.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 i Sep 2013 US$ 1 399ebay.com
14.

Olympus E-M1 III 134 mm 91 mm 69 mm 580 g 420 i Feb 2020 US$ 1 799ebay.com
15.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 i Jan 2016 US$ 1 199ebay.com
16.

Panasonic G85 128 mm 89 mm 74 mm 505 g 330 i Sep 2016 US$ 899ebay.com
17.

Panasonic GH5 139 mm 98 mm 87 mm 725 g 410 i Jan 2017 US$ 1 999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
  empty Camera
Model

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M100 was launched at a markedly lower price (by 75 percent) than the E-M1 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon M100 features an APS-C sensor and the Olympus E-M1 II a Four Thirds sensor. The sensor area in the E-M1 II is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M100 has a native 3:2 aspect ratio, while the one in the E-M1 II offers a 4:3 aspect.

Canon M100 and Olympus E-M1 II sensor measures

With 24MP, the M100 offers a higher resolution than the E-M1 II (20.2MP), but the M100 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 3.34μm for the E-M1 II) due to its larger sensor. Moreover, the M100 is a somewhat more recent model (by 11 months) than the E-M1 II, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M1 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M1 II are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

Unlike the M100, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Canon EOS M100 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus OM-D E-M1 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

M100 versus E-M1 II MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon M100 APS-C 24.0 6000 40001080/60p23.512.9127278
2.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
3.

Canon G9 X Mark II 1-inch 20.0 5472 36481080/60p21.912.552265
4.

Canon M APS-C 17.9 5184 34561080/30p22.111.282765
5.

Canon M3 APS-C 24.0 6000 40001080/30p22.811.8116972
6.

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277
7.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
8.

Canon M10 APS-C 17.9 5184 34561080/30p22.211.475365
9.

Canon M50 APS-C 24.0 6000 40004K/24p23.813.3168481
10.

Canon M200 APS-C 24.0 6000 40004k/25p24.013.5183682
11.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.4104179
12.

Canon T7 APS-C 24.0 6000 40001080/30p23.813.3168481
13.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
14.

Olympus E-M1 III Four Thirds 20.2 5184 38884K/30p23.313.1135676
15.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
16.

Panasonic G85 Four Thirds 15.8 4592 34484K/30p22.812.565671
17.

Panasonic GH5 Four Thirds 20.2 5184 38884K/60p23.913.080777
Note: DXO values in italics represent estimates based on sensor size and age.
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
  empty Camera
Model

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-M1 II provides a better video resolution than the M100. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M1 II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M100 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon M100 and Olympus E-M1 II in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon M100i i3.0 / 1040 tilting i 1/4000s 6.1/s i i
2.

Olympus E-M1 II2360 i3.0 / 1037 swivel i 1/8000s 18.0/s i i
3.

Canon G9 X Mark IIi i3.0 / 1040 fixed i 1/2000s 8.2/s i i
4.

Canon Mi i3.0 / 1040 fixed i 1/4000s 4.3/s i i
5.

Canon M3optional i3.0 / 1040 tilting i 1/4000s 4.2/s i i
6.

Canon M52360 i3.2 / 1620 tilting i 1/4000s 9.0/s i i
7.

Canon M6optional i3.0 / 1040 tilting i 1/4000s 9.0/s i i
8.

Canon M10i i3.0 / 1040 tilting i 1/4000s 4.6/s i i
9.

Canon M502360 i3.0 / 1040 swivel i 1/4000s 10.0/s i i
10.

Canon M200i i3.0 / 1040 tilting i 1/4000s 6.1/s i i
11.

Canon SL2optical i3.0 / 1040 swivel i 1/4000s 5.0/s i i
12.

Canon T7optical i3.0 / 920 fixed i 1/4000s 3.0/s i i
13.

Olympus E-M12360 i3.0 / 1037 tilting i 1/8000s 10.0/s i i
14.

Olympus E-M1 III2360 i3.0 / 1037 swivel i 1/8000s 18.0/s i i
15.

Olympus PEN-F2360 i3.0 / 1037 swivel i 1/8000s 10.0/s i i
16.

Panasonic G852360 i3.0 / 1040 swivel i 1/4000s 9.0/s i i
17.

Panasonic GH53680 i3.2 / 1620 swivel i 1/8000s 12.0/s i i
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
  empty Camera
Model

One difference between the cameras concerns the presence of an on-board flash. The M100 has one, while the E-M1 II does not. While the built-in flash of the M100 is not very powerful, it can at times be useful as a fill-in light.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M1 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M100 and the E-M1 II write their files to SDXC cards. The E-M1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the M100 only has one slot. The E-M1 II supports UHS-II cards (on its first slot), while the M100 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M100 and Olympus OM-D E-M1 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon M100istereo / monoiimicro2.0iii
2.

Olympus E-M1 IIistereo / monoiimicro3.0iii
3.

Canon G9 X Mark IIistereo / monoiimicro2.0iii
4.

Canon Mistereo / monoiimini2.0iii
5.

Canon M3istereo / monoiimini2.0iii
6.

Canon M5istereo / monoiimini2.0iii
7.

Canon M6istereo / monoiimini2.0iii
8.

Canon M10istereo / monoiimini2.0iii
9.

Canon M50istereo / monoiimicro2.0iii
10.

Canon M200istereo / monoiimicro2.0iii
11.

Canon SL2istereo / monoiimini2.0iii
12.

Canon T7imono / monoiimini2.0iii
13.

Olympus E-M1istereo / monoiimicro2.0iii
14.

Olympus E-M1 IIIistereo / monoiimicro3.1iii
15.

Olympus PEN-Fistereo / monoiimicro2.0iii
16.

Panasonic G85istereo / monoiimicro2.0iii
17.

Panasonic GH5istereo / monoiifull3.1iii
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
  empty Camera
Model

It is notable that the E-M1 II has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The M100 lacks such a headphone port.

Studio photographers will appreciate that the Olympus E-M1 II (unlike the M100) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the M100 and the E-M1 II have been discontinued, but can regularly be found used on ebay. The E-M1 II was replaced by the Olympus E-M1 III, while the M100 was followed by the Canon M200. Further information on the features and operation of the M100 and E-M1 II can be found, respectively, in the Canon M100 Manual (free pdf) or the online Olympus E-M1 II Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon M100 and the Olympus E-M1 II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Advantages of the Canon EOS M100:

  • More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • More compact: Is smaller (108x67mm vs 134x91mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 272g or 47 percent) and hence easier to carry around.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced category (75 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 11 months after the E-M1 II).

ilogo

Arguments in favor of the Olympus OM-D E-M1 Mark II:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (18 vs 6.1 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Gets more shots (440 versus 295) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More heavily discounted: Has been on the market for longer (launched in September 2016).

If the count of individual advantages (bullet points above) is taken as a guide, the E-M1 II is the clear winner of the contest (20 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

M100 09:20 E-M1 II

How about other alternatives? Do the specifications of the Canon M100 and the Olympus E-M1 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M100 and the E-M1 II in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon M1003/5+....4/53.5/5 Aug 2017 US$ 499ebay.com
2.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 US$ 1 999ebay.com
3.

Canon G9 X Mark II4/5..4/575/1004.5/54.5/5 Jan 2017 US$ 529ebay.com
4.

Canon M3/5+....4/54/5 Jul 2012 US$ 599ebay.com
5.

Canon M34/5o..75/1004.5/54/5 Feb 2015 US$ 679ebay.com
6.

Canon M54/5+4/582/1004/54/5 Sep 2016 US$ 979ebay.com
7.

Canon M6......80/1004/54/5 Feb 2017 US$ 779ebay.com
8.

Canon M10..........4/5 Oct 2015 US$ 499ebay.com
9.

Canon M50..+4/579/100..3.5/5 Feb 2018 US$ 779ebay.com
10.

Canon M200..+3/579/1004/54/5 Sep 2019 US$ 549ebay.com
11.

Canon SL24/5+ +4/578/1004.5/54.5/5 Jun 2017 US$ 549ebay.com
12.

Canon T7..o3.5/5..3.5/53.5/5 Feb 2018 US$ 449 amazon.com
13.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 US$ 1 399ebay.com
14.

Olympus E-M1 III5/5..5/583/1004.5/54/5 Feb 2020 US$ 1 799ebay.com
15.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 US$ 1 199ebay.com
16.

Panasonic G85..+ +..84/1005/54.5/5 Sep 2016 US$ 899ebay.com
17.

Panasonic GH54.5/5+ +..85/1004.5/55/5 Jan 2017 US$ 1 999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
  empty  Camera
 Model

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check M100 offers at
ebay.com
logo
Check E-M1 II offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
  • Credit Card
  • Canon 1D
  • Canon 1D Mark II
  • Canon 1D Mark II N
  • Canon 1D Mark III
  • Canon 1D Mark IV
  • Canon 1Ds
  • Canon 1Ds Mark II
  • Canon 1Ds Mark III
  • Canon 1D C
  • Canon 1D X
  • Canon 1D X Mark II
  • Canon 1D X Mark III
  • Canon 5D
  • Canon 5D Mark II
  • Canon 5D Mark III
  • Canon 5D Mark IV
  • Canon 5DS
  • Canon 5DS R
  • Canon 6D
  • Canon 6D Mark II
  • Canon 7D
  • Canon 7D II
  • Canon 10D
  • Canon 20D
  • Canon 30D
  • Canon 40D
  • Canon 50D
  • Canon 60D
  • Canon 70D
  • Canon 77D
  • Canon 80D
  • Canon 90D
  • Canon D30
  • Canon D60
  • Canon G1 X
  • Canon G1 X Mark II
  • Canon G1 X Mark III
  • Canon G3 X
  • Canon G5 X
  • Canon G5 X Mark II
  • Canon G7 X
  • Canon G7 X Mark II
  • Canon G7 X Mark III
  • Canon G9 X
  • Canon G9 X Mark II
  • Canon G12
  • Canon G15
  • Canon G16
  • Canon M
  • Canon M3
  • Canon M5
  • Canon M6
  • Canon M6 Mark II
  • Canon M10
  • Canon M50
  • Canon M50 Mark II
  • Canon M100
  • Canon M200
  • Canon R
  • Canon R1
  • Canon R3
  • Canon R5
  • Canon R5 Mark II
  • Canon R5 C
  • Canon R6
  • Canon R6 Mark II
  • Canon R7
  • Canon R8
  • Canon R10
  • Canon R50
  • Canon R50 V
  • Canon R100
  • Canon RP
  • Canon S120
  • Canon SL1
  • Canon SL2
  • Canon SL3
  • Canon SX1
  • Canon SX10
  • Canon SX20
  • Canon SX30
  • Canon SX40
  • Canon SX50
  • Canon SX60
  • Canon SX70
  • Canon SX400
  • Canon SX410
  • Canon SX420
  • Canon SX430
  • Canon SX500
  • Canon SX510
  • Canon SX520
  • Canon SX530
  • Canon SX540
  • Canon SX600
  • Canon SX610
  • Canon SX620
  • Canon SX700
  • Canon SX710
  • Canon SX720
  • Canon SX730
  • Canon SX740
  • Canon Rebel
  • Canon T1i
  • Canon T2i
  • Canon T3
  • Canon T3i
  • Canon T4i
  • Canon T5
  • Canon T5i
  • Canon T6
  • Canon T6i
  • Canon T6s
  • Canon T7
  • Canon T7i
  • Canon T8i
  • Canon T100
  • Canon V1
  • Canon XC10
  • Canon XS
  • Canon XSi
  • Canon XT
  • Canon XTi
  • Contax N Digital
  • Epson R-D1
  • Fujifilm GFX 50R
  • Fujifilm GFX 50S
  • Fujifilm GFX 50S II
  • Fujifilm GFX 100
  • Fujifilm GFX 100 II
  • Fujifilm GFX 100RF
  • Fujifilm GFX 100S
  • Fujifilm GFX 100S II
  • Fujifilm X-A1
  • Fujifilm X-A2
  • Fujifilm X-A3
  • Fujifilm X-A5
  • Fujifilm X-A7
  • Fujifilm X-A10
  • Fujifilm X-E1
  • Fujifilm X-E2
  • Fujifilm X-E2S
  • Fujifilm X-E3
  • Fujifilm X-E4
  • Fujifilm X-E5
  • Fujifilm X-H1
  • Fujifilm X-H2
  • Fujifilm X-H2S
  • Fujifilm X-M1
  • Fujifilm X-M5
  • Fujifilm X-Pro1
  • Fujifilm X-Pro2
  • Fujifilm X-Pro3
  • Fujifilm X-S10
  • Fujifilm X-S20
  • Fujifilm X-T1
  • Fujifilm X-T2
  • Fujifilm X-T3
  • Fujifilm X-T4
  • Fujifilm X-T5
  • Fujifilm X-T10
  • Fujifilm X-T20
  • Fujifilm X-T30
  • Fujifilm X-T30 II
  • Fujifilm X-T50
  • Fujifilm X-T100
  • Fujifilm X-T200
  • Fujifilm X10
  • Fujifilm X20
  • Fujifilm X30
  • Fujifilm X70
  • Fujifilm X100
  • Fujifilm X100S
  • Fujifilm X100T
  • Fujifilm X100F
  • Fujifilm X100V
  • Fujifilm X100VI
  • Fujifilm XF10
  • Fujifilm XQ1
  • Fujifilm XQ2
  • Fujifilm XP120
  • Fujifilm XP130
  • Fujifilm XP140
  • Hasselblad X1D
  • Hasselblad X1D II
  • Hasselblad X2D 100C
  • Kodak AZ901
  • Kodak S-1
  • Leica C-LUX
  • Leica CL
  • Leica D-LUX Typ 109
  • Leica D-LUX 5
  • Leica D-LUX 6
  • Leica D-LUX 7
  • Leica D-LUX 8
  • Leica Digilux 3
  • Leica M Typ 240
  • Leica M-E Typ 240
  • Leica M Typ 262
  • Leica M8
  • Leica M9
  • Leica M10
  • Leica M10-P
  • Leica M10-R
  • Leica M11
  • Leica Q Typ 116
  • Leica Q2
  • Leica Q3
  • Leica S1
  • Leica S2
  • Leica S3
  • Leica S Typ 006
  • Leica S-E Typ 006
  • Leica S Typ 007
  • Leica SL
  • Leica SL2
  • Leica SL2-S
  • Leica SL3
  • Leica SL3-S
  • Leica T
  • Leica TL
  • Leica TL2
  • Leica V-LUX 1
  • Leica V-LUX 2
  • Leica V-LUX 3
  • Leica V-LUX 4
  • Leica V-LUX Typ 114
  • Leica V-LUX 5
  • Leica X1
  • Leica X2
  • Leica X Vario
  • Leica X Typ 113
  • Leica X-U Typ 113
  • Leitz Ur-Leica
  • Nikon 1 J4
  • Nikon 1 J5
  • Nikon 1 V1
  • Nikon 1 V2
  • Nikon 1 V3
  • Nikon Coolpix A
  • Nikon A1000
  • Nikon B500
  • Nikon B600
  • Nikon B700
  • Nikon D1
  • Nikon D1H
  • Nikon D1X
  • Nikon D2H
  • Nikon D2X
  • Nikon D2Xs
  • Nikon D3
  • Nikon D3S
  • Nikon D3X
  • Nikon D4
  • Nikon D4S
  • Nikon D5
  • Nikon D6
  • Nikon D40
  • Nikon D40X
  • Nikon D50
  • Nikon D60
  • Nikon D70
  • Nikon D70s
  • Nikon D80
  • Nikon D90
  • Nikon D100
  • Nikon D200
  • Nikon D300
  • Nikon D300S
  • Nikon D500
  • Nikon D600
  • Nikon D610
  • Nikon D700
  • Nikon D750
  • Nikon D780
  • Nikon D800
  • Nikon D800E
  • Nikon D810
  • Nikon D850
  • Nikon D3000
  • Nikon D3100
  • Nikon D3200
  • Nikon D3300
  • Nikon D3400
  • Nikon D3500
  • Nikon D5000
  • Nikon D5100
  • Nikon D5200
  • Nikon D5300
  • Nikon D5500
  • Nikon D5600
  • Nikon D7000
  • Nikon D7100
  • Nikon D7200
  • Nikon D7500
  • Nikon Df
  • Nikon L840
  • Nikon P900
  • Nikon P950
  • Nikon P1000
  • Nikon P1100
  • Nikon P7800
  • Nikon W150
  • Nikon W300
  • Nikon Z5
  • Nikon Z5 II
  • Nikon Z6
  • Nikon Z6 II
  • Nikon Z6 III
  • Nikon Z7
  • Nikon Z7 II
  • Nikon Z8
  • Nikon Z9
  • Nikon Z30
  • Nikon Z50
  • Nikon Z50 II
  • Nikon Zf
  • Nikon Z fc
  • Olympus E-1
  • Olympus E-3
  • Olympus E-5
  • Olympus E-30
  • Olympus E-300
  • Olympus E-330
  • Olympus E-400
  • Olympus E-410
  • Olympus E-420
  • Olympus E-450
  • Olympus E-500
  • Olympus E-510
  • Olympus E-520
  • Olympus E-600
  • Olympus E-620
  • Olympus E-M1
  • Olympus E-M1 II
  • Olympus E-M1 III
  • Olympus E-M1X
  • Olympus E-M5
  • Olympus E-M5 II
  • Olympus E-M5 III
  • Olympus E-M10
  • Olympus E-M10 II
  • Olympus E-M10 III
  • Olympus E-M10 IV
  • Olympus E-P1
  • Olympus E-P2
  • Olympus E-P3
  • Olympus E-P5
  • Olympus E-P7
  • Olympus E-PL1
  • Olympus E-PL2
  • Olympus E-PL3
  • Olympus E-PL5
  • Olympus E-PL6
  • Olympus E-PL7
  • Olympus E-PL8
  • Olympus E-PL9
  • Olympus E-PL10
  • Olympus E-PM1
  • Olympus E-PM2
  • Olympus PEN-F
  • Olympus Stylus 1
  • Olympus Stylus 1s
  • Olympus TG-4
  • Olympus TG-5
  • Olympus TG-6
  • Olympus XZ-1
  • Olympus XZ-2
  • OM System OM-1
  • OM System OM-1 II
  • OM System OM-3
  • OM System OM-5
  • OM System OM-5 II
  • OM System TG-7
  • Panasonic FZ80
  • Panasonic FZ80D
  • Panasonic FZ100
  • Panasonic FZ150
  • Panasonic FZ200
  • Panasonic FZ300
  • Panasonic FZ1000
  • Panasonic FZ1000 II
  • Panasonic FZ2500
  • Panasonic G1
  • Panasonic G2
  • Panasonic G3
  • Panasonic G5
  • Panasonic G6
  • Panasonic G7
  • Panasonic G9
  • Panasonic G9 II
  • Panasonic G10
  • Panasonic G85
  • Panasonic G97
  • Panasonic G95
  • Panasonic G100
  • Panasonic GF1
  • Panasonic GF2
  • Panasonic GF3
  • Panasonic GF5
  • Panasonic GF6
  • Panasonic GF7
  • Panasonic GH1
  • Panasonic GH2
  • Panasonic GH3
  • Panasonic GH4
  • Panasonic GH5
  • Panasonic GH5 II
  • Panasonic GH5s
  • Panasonic GH6
  • Panasonic GH7
  • Panasonic GM1
  • Panasonic GM5
  • Panasonic GX1
  • Panasonic GX7
  • Panasonic GX8
  • Panasonic GX9
  • Panasonic GX85
  • Panasonic GX850
  • Panasonic L1
  • Panasonic L10
  • Panasonic LF1
  • Panasonic LX5
  • Panasonic LX7
  • Panasonic LX10
  • Panasonic LX100
  • Panasonic LX100 II
  • Panasonic S1
  • Panasonic S1 II
  • Panasonic S1H
  • Panasonic S1R
  • Panasonic S1R II
  • Panasonic S5
  • Panasonic S5 II
  • Panasonic S9
  • Panasonic TS7
  • Panasonic ZS70
  • Panasonic ZS80
  • Panasonic ZS100
  • Panasonic ZS200
  • Pentax 645D
  • Pentax 645Z
  • Pentax K-1
  • Pentax K-1 II
  • Pentax K-3
  • Pentax K-3 II
  • Pentax K-3 III
  • Pentax K-5
  • Pentax K-5 II
  • Pentax K-30
  • Pentax K-50
  • Pentax K-70
  • Pentax K-500
  • Pentax KP
  • Pentax K-S1
  • Pentax K-S2
  • Pentax MX-1
  • Pentax Q
  • Pentax WG-8
  • Pentax WG-90
  • Pentax WG-1000
  • Ricoh GR
  • Ricoh GR II
  • Ricoh GR III
  • Ricoh GR IIIx
  • Ricoh WG-6
  • Ricoh WG-60
  • Samsung NX1
  • Samsung NX30
  • Samsung NX500
  • Sigma fp
  • Sigma fp L
  • Sony A1
  • Sony A1 II
  • Sony A7
  • Sony A7 II
  • Sony A7 III
  • Sony A7 IV
  • Sony A7C
  • Sony A7C II
  • Sony A7C R
  • Sony A7R
  • Sony A7R II
  • Sony A7R III
  • Sony A7R IIIA
  • Sony A7R IV
  • Sony A7R IVA
  • Sony A7R V
  • Sony A7S
  • Sony A7S II
  • Sony A7S III
  • Sony A9
  • Sony A9 II
  • Sony A9 III
  • Sony A58
  • Sony A68
  • Sony A77
  • Sony A77 II
  • Sony A99
  • Sony A99 II
  • Sony A850
  • Sony A900
  • Sony A3000
  • Sony A5000
  • Sony A5100
  • Sony A6000
  • Sony A6100
  • Sony A6300
  • Sony A6400
  • Sony A6500
  • Sony A6600
  • Sony A6700
  • Sony H200
  • Sony H300
  • Sony H400
  • Sony HX80
  • Sony HX90V
  • Sony HX95
  • Sony HX99
  • Sony HX350
  • Sony HX400V
  • Sony NEX-3
  • Sony NEX-3N
  • Sony NEX-5
  • Sony NEX-5N
  • Sony NEX-5R
  • Sony NEX-5T
  • Sony NEX-6
  • Sony NEX-7
  • Sony NEX-C3
  • Sony NEX-F3
  • Sony RX0
  • Sony RX0 II
  • Sony RX1
  • Sony RX1R
  • Sony RX1R II
  • Sony RX1R III
  • Sony RX10
  • Sony RX10 II
  • Sony RX10 III
  • Sony RX10 IV
  • Sony RX100
  • Sony RX100 II
  • Sony RX100 III
  • Sony RX100 IV
  • Sony RX100 V
  • Sony RX100 VI
  • Sony RX100 VII
  • Sony WX800
  • Sony ZV-1
  • Sony ZV-1 II
  • Sony ZV-1F
  • Sony ZV-E1
  • Sony ZV-E10
  • Sony ZV-E10 II
  • YI M1
  • Zeiss ZX1
loader
ad

Specifications: Canon M100 vs Olympus E-M1 II

Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

Camera Specifications
Camera Model Canon M100 Olympus E-M1 II
Camera Type Mirrorless system camera Mirrorless system camera
Camera Lens Canon EF-M mount lenses Micro Four Thirds lenses
Launch Date August 2017 September 2016
Launch Price USD 499 USD 1,999
Sensor Specs Canon M100 Olympus E-M1 II
Sensor Technology CMOS CMOS
Sensor Format APS-C Sensor Four Thirds Sensor
Sensor Size 22.3 x 14.9 mm 17.3 x 13.0 mm
Sensor Area 332.27 mm2 224.9 mm2
Sensor Diagonal 26.8 mm 21.6 mm
Crop Factor 1.6x 2.0x
Sensor Resolution 24 Megapixels 20.2 Megapixels
Image Resolution 6000 x 4000 pixels 5184 x 3888 pixels
Pixel Pitch 3.72 μm 3.34 μm
Pixel Density 7.22 MP/cm2 8.96 MP/cm2
Moiré control Anti-Alias filter no AA filter
Movie Capability 1080/60p Video 4K/30p Video
ISO Setting 100 - 25,600 ISO 200 - 25,600 ISO
ISO Boost no Enhancement 64 - 25,600 ISO
Image Processor DIGIC 7 TruePic VIII
DXO Sensor Quality (score) 78 80
DXO Color Depth (bits) 23.5 23.7
DXO Dynamic Range (EV) 12.9 12.8
DXO Low Light (ISO) 1272 1312
Screen Specs Canon M100 Olympus E-M1 II
Viewfinder Type no viewfinder Electronic viewfinder
Viewfinder Field of View 100%
Viewfinder Magnification 0.74x
Viewfinder Resolution 2360k dots
LCD Framing Live View Live View
Rear LCD Size 3.0inch 3.0inch
LCD Resolution 1040k dots 1037k dots
LCD Attachment Tilting screen Swivel screen
Touch Input Touchscreen Touchscreen
Shooting Specs Canon M100 Olympus E-M1 II
Focus System On-Sensor Phase-detect On-Sensor Phase-detect
Manual Focusing AidFocus PeakingFocus Peaking
Max Shutter Speed (mechanical) 1/4000s 1/8000s
Continuous Shooting 6.1 shutter flaps/s 18 shutter flaps/s
Shutter Life Expectancy100 000 actuations200 000 actuations
Electronic Shutterno E-Shutterup to 1/32000s
Time-Lapse Photographyno IntervalometerIntervalometer built-in
Image StabilizationLens stabilization onlyIn-body stabilization
Fill Flash Built-in Flash no On-Board Flash
Storage Medium SDXC cards SDXC cards
Single or Dual Card Slots Single card slot Dual card slots
UHS card support UHS-I Single UHS-II
Connectivity Specs Canon M100 Olympus E-M1 II
External Flash no Hotshoe Hotshoe
Studio Flash no PC Sync PC Sync socket
USB Connector USB 2.0 USB 3.0
HDMI Port micro HDMI micro HDMI
Microphone Port no MIC socket External MIC port
Headphone Socket no Headphone port Headphone port
Wifi Support Wifi built-in Wifi built-in
Near-Field Communication NFC built-in no NFC
Bluetooth Support Bluetooth built-in no Bluetooth
Body Specs Canon M100 Olympus E-M1 II
Environmental Sealingnot weather sealedWeathersealed body
Battery Type Canon LP-E12 Olympus BLH-1
Battery Life (CIPA)295 shots per charge440 shots per charge
Body Dimensions 108 x 67 x 35 mm
(4.3 x 2.6 x 1.4 in)
134 x 91 x 67 mm
(5.3 x 3.6 x 2.6 in)
Camera Weight 302 g (10.7 oz) 574 g (20.2 oz)
logo
Check M100 offers at
ebay.com
logo
Check E-M1 II offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

You are here Home  »  CAM-parator  »  Canon M100 vs Olympus E-M1 II
