Canon M10 vs Olympus E-5
The Canon EOS M10 and the Olympus E-5 are two digital cameras that were officially introduced, respectively, in October 2015 and September 2010. The M10 is a mirrorless interchangeable lens camera, while the E-5 is a DSLR. The cameras are based on an APS-C (M10) and a Four Thirds (E-5) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M10 and the Olympus E-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

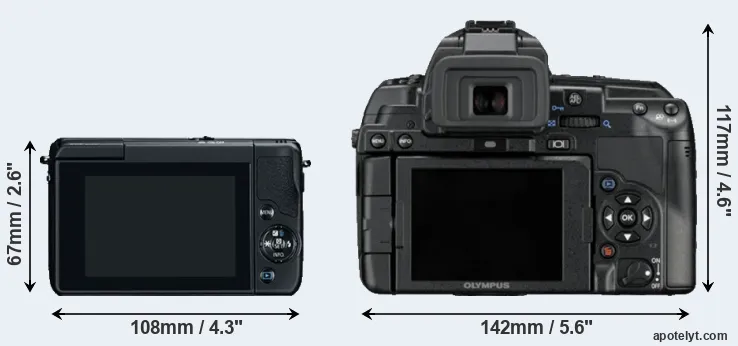

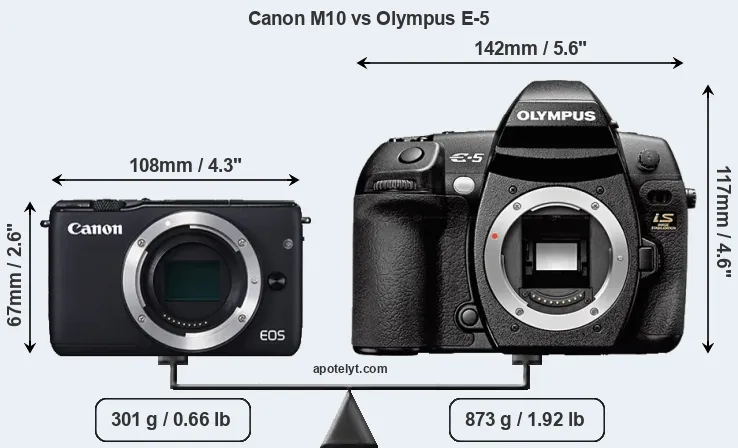

The side-by-side display below illustrates the physical size and weight of the Canon M10 and the Olympus E-5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The M10 can be obtained in two different colors (black, white), while the E-5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-5 is considerably larger (130 percent) than the Canon M10. Moreover, the E-5 is substantially heavier (190 percent) than the M10. It is noteworthy in this context that the E-5 is splash and dust-proof, while the M10 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the M10 gets 255 shots out of its Canon LP-E12 battery, while the E-5 can take 750 images on a single charge of its Olympus BLM-5 power pack.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon M10 | 108 mm | 67 mm | 35 mm | 301 g | 255 | n | Oct 2015 | EUR 499 | ebay.com | |
2. | Olympus E-5 | 142 mm | 117 mm | 75 mm | 873 g | 750 | Y | Sep 2010 | EUR 1 499 | ebay.com | |
3. | Canon 1200D | 130 mm | 100 mm | 78 mm | 480 g | 500 | n | Feb 2014 | EUR 399 | ebay.com | |
4. | Canon 1300D | 129 mm | 101 mm | 78 mm | 485 g | 500 | n | Mar 2016 | EUR 449 | ebay.com | |
5. | Canon G5 X | 112 mm | 76 mm | 44 mm | 353 g | 210 | n | Oct 2015 | EUR 789 | ebay.com | |
6. | Canon G7 X | 103 mm | 60 mm | 40 mm | 304 g | 210 | n | Sep 2014 | EUR 649 | ebay.com | |
7. | Canon G9 X | 98 mm | 58 mm | 31 mm | 209 g | 220 | n | Oct 2015 | EUR 499 | ebay.com | |
8. | Canon M | 109 mm | 66 mm | 32 mm | 298 g | 230 | n | Jul 2012 | EUR 599 | ebay.com | |
9. | Canon M3 | 111 mm | 68 mm | 44 mm | 366 g | 250 | n | Feb 2015 | EUR 749 | ebay.com | |
10. | Canon M5 | 116 mm | 89 mm | 61 mm | 427 g | 295 | n | Sep 2016 | EUR 1 129 | ebay.com | |
11. | Canon M100 | 108 mm | 67 mm | 35 mm | 302 g | 295 | n | Aug 2017 | EUR 479 | ebay.com | |
12. | Olympus E-3 | 142 mm | 116 mm | 75 mm | 876 g | 750 | Y | Oct 2007 | EUR 1 749 | ebay.com | |
13. | Olympus E-450 | 130 mm | 91 mm | 53 mm | 440 g | 500 | n | Mar 2009 | EUR 449 | ebay.com | |
14. | Olympus E-600 | 130 mm | 94 mm | 60 mm | 535 g | 500 | n | Aug 2009 | EUR 399 | ebay.com | |
15. | Olympus E-620 | 130 mm | 94 mm | 60 mm | 521 g | 500 | n | Feb 2009 | EUR 599 | ebay.com | |
16. | Sony A77 | 143 mm | 104 mm | 81 mm | 732 g | 470 | Y | Aug 2011 | EUR 1 299 | ebay.com | |
17. | Sony A5000 | 110 mm | 63 mm | 36 mm | 269 g | 420 | n | Jan 2014 | EUR 399 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M10 was launched at a markedly lower price (by 71 percent) than the E-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon M10 features an APS-C sensor and the Olympus E-5 a Four Thirds sensor. The sensor area in the E-5 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M10 has a native 3:2 aspect ratio, while the one in the E-5 offers a 4:3 aspect.
With 17.9MP, the M10 offers a higher resolution than the E-5 (12.2MP), but the M10 nevertheless has marginally larger individual pixels (pixel pitch of 4.31μm versus 4.29μm for the E-5) due to its larger sensor. Moreover, the M10 is a much more recent model (by 5 years) than the E-5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon M10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-5 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The M10 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M10 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus E-5 are ISO 100 to ISO 6400 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the M10 has a notably higher overall DXO score than the E-5 (overall score 9 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.6 bits higher color depth, 0.9 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon M10 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.2 | 11.4 | 753 | 65 | |
2. | Olympus E-5 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.6 | 10.5 | 519 | 56 | |
3. | Canon 1200D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.9 | 11.3 | 724 | 63 | |
4. | Canon 1300D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.0 | 11.7 | 781 | 66 | |
5. | Canon G5 X | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 21.4 | 12.3 | 471 | 62 | |
6. | Canon G7 X | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 23.0 | 12.7 | 556 | 71 | |
7. | Canon G9 X | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 21.5 | 12.3 | 495 | 63 | |
8. | Canon M | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.1 | 11.2 | 827 | 65 | |
9. | Canon M3 | APS-C | 24.0 | 6000 | 4000 | 1080/30p | 22.8 | 11.8 | 1169 | 72 | |
10. | Canon M5 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.4 | 12.4 | 1262 | 77 | |
11. | Canon M100 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.5 | 12.9 | 1272 | 78 | |
12. | Olympus E-3 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.6 | 10.5 | 571 | 56 | |
13. | Olympus E-450 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.5 | 10.5 | 512 | 56 | |
14. | Olympus E-600 | Four Thirds | 12.2 | 4032 | 3024 | none | 21.5 | 10.3 | 541 | 55 | |
15. | Olympus E-620 | Four Thirds | 12.2 | 4032 | 3024 | none | 21.3 | 10.3 | 536 | 55 | |
16. | Sony A77 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 24.0 | 13.2 | 801 | 78 | |
17. | Sony A5000 | APS-C | 19.8 | 5456 | 3632 | 1080/60i | 23.8 | 13.0 | 1089 | 79 |
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M10 provides a higher video resolution than the E-5. It can shoot video footage at 1080/30p, while the Olympus is limited to 720/30p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M10 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon M10 and Olympus E-5 in connection with corresponding information for a sample of similar cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon M10 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 4.6/s | Y | n | |
2. | Olympus E-5 | optical | Y | 3.0 / 920 | swivel | n | 1/8000s | 5.0/s | Y | Y | |
3. | Canon 1200D | optical | n | 3.0 / 460 | fixed | n | 1/4000s | 3.0/s | Y | n | |
4. | Canon 1300D | optical | n | 3.0 / 920 | fixed | n | 1/4000s | 3.0/s | Y | n | |
5. | Canon G5 X | 2360 | n | 3.0 / 1040 | swivel | Y | 1/2000s | 5.9/s | Y | Y | |
6. | Canon G7 X | none | n | 3.0 / 1040 | tilting | Y | 1/2000s | 6.5/s | Y | Y | |
7. | Canon G9 X | none | n | 3.0 / 1040 | fixed | Y | 1/2000s | 6.0/s | Y | Y | |
8. | Canon M | none | n | 3.0 / 1040 | fixed | Y | 1/4000s | 4.3/s | n | n | |
9. | Canon M3 | optional | n | 3.0 / 1040 | tilting | Y | 1/4000s | 4.2/s | Y | n | |
10. | Canon M5 | 2360 | n | 3.2 / 1620 | tilting | Y | 1/4000s | 9.0/s | Y | n | |
11. | Canon M100 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 6.1/s | Y | n | |
12. | Olympus E-3 | optical | Y | 2.5 / 230 | swivel | n | 1/8000s | 5.0/s | Y | Y | |
13. | Olympus E-450 | optical | n | 2.7 / 215 | fixed | n | 1/4000s | 3.5/s | Y | n | |
14. | Olympus E-600 | optical | n | 2.7 / 230 | swivel | n | 1/4000s | 4.0/s | Y | Y | |
15. | Olympus E-620 | optical | n | 2.7 / 230 | swivel | n | 1/4000s | 4.0/s | Y | Y | |
16. | Sony A77 | 2359 | Y | 3.0 / 921 | full-flex | n | 1/8000s | 12.0/s | Y | Y | |
17. | Sony A5000 | none | n | 3.0 / 461 | tilting | n | 1/4000s | 3.5/s | Y | n | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M10 has a touchscreen, while the E-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.The M10 writes its imaging data to SDXC cards, while the E-5 uses Compact Flash or xD Picture cards. The E-5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the M10 only has one slot.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M10 and Olympus E-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon M10 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
2. | Olympus E-5 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
3. | Canon 1200D | Y | mono / mono | - | - | mini | 2.0 | - | - | - | |
4. | Canon 1300D | Y | mono / mono | - | - | mini | 2.0 | Y | Y | - | |
5. | Canon G5 X | Y | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
6. | Canon G7 X | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
7. | Canon G9 X | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
8. | Canon M | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
9. | Canon M3 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
10. | Canon M5 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | Y | |
11. | Canon M100 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | Y | |
12. | Olympus E-3 | Y | - / - | - | - | - | 2.0 | - | - | - | |
13. | Olympus E-450 | Y | - / - | - | - | - | 2.0 | - | - | - | |
14. | Olympus E-600 | Y | - / - | - | - | - | 2.0 | - | - | - | |
15. | Olympus E-620 | Y | - / - | - | - | - | 2.0 | - | - | - | |
16. | Sony A77 | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
17. | Sony A5000 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - |
It is notable that the M10 offers wifi support, while the E-5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Olympus E-5 (unlike the M10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the M10 and the E-5 have been discontinued, but can regularly be found used on ebay. The M10 was replaced by the Canon M100, while the E-5 does not have a direct successor. Further information on the features and operation of the M10 and E-5 can be found, respectively, in the Canon M10 Manual (free pdf) or the online Olympus E-5 Manual.
Review summary
So how do things add up? Is the Canon M10 better than the Olympus E-5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS M10:
- More detail: Offers more megapixels (17.9 vs 12.2MP) with a 24% higher linear resolution.
- Better image quality: Scores markedly higher (9 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (0.9 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
- Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More compact: Is smaller (108x67mm vs 142x117mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 572g or 66 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (71 percent cheaper at launch).
- More modern: Reflects 5 years of technical progress since the E-5 launch.
Advantages of the Olympus E-5:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Gets more shots (750 versus 255) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in September 2010).
If the number of relative strengths (bullet points above) is taken as a guide, the M10 is the clear winner of the match-up (15 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M10 and the Olympus E-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M10 or the E-5 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon M10 | .. | .. | .. | .. | .. | 4/5 | Oct 2015 | EUR 499 | ebay.com | |
2. | Olympus E-5 | 4/5 | .. | .. | 75/100 | 4/5 | 4.5/5 | Sep 2010 | EUR 1 499 | ebay.com | |
3. | Canon 1200D | 3/5 | + | .. | .. | 4/5 | 4.5/5 | Feb 2014 | EUR 399 | ebay.com | |
4. | Canon 1300D | 4/5 | o | 4/5 | 73/100 | 4/5 | 4/5 | Mar 2016 | EUR 449 | ebay.com | |
5. | Canon G5 X | 5/5 | + + | .. | 78/100 | 4.5/5 | 4.5/5 | Oct 2015 | EUR 789 | ebay.com | |
6. | Canon G7 X | 4/5 | + + | .. | 77/100 | 4.5/5 | 4.5/5 | Sep 2014 | EUR 649 | ebay.com | |
7. | Canon G9 X | 3.5/5 | + + | .. | .. | 4.5/5 | 4.5/5 | Oct 2015 | EUR 499 | ebay.com | |
8. | Canon M | 3/5 | + | .. | .. | 4/5 | 4/5 | Jul 2012 | EUR 599 | ebay.com | |
9. | Canon M3 | 4/5 | o | .. | 75/100 | 4.5/5 | 4/5 | Feb 2015 | EUR 749 | ebay.com | |
10. | Canon M5 | 4/5 | + | 4/5 | 82/100 | 4/5 | 4/5 | Sep 2016 | EUR 1 129 | ebay.com | |
11. | Canon M100 | 3/5 | + | .. | .. | 4/5 | 3.5/5 | Aug 2017 | EUR 479 | ebay.com | |
12. | Olympus E-3 | .. | 88/100 | .. | + + | o | 4/5 | Oct 2007 | EUR 1 749 | ebay.com | |
13. | Olympus E-450 | .. | .. | .. | .. | 4/5 | 4/5 | Mar 2009 | EUR 449 | ebay.com | |
14. | Olympus E-600 | .. | .. | .. | .. | .. | 4.5/5 | Aug 2009 | EUR 399 | ebay.com | |
15. | Olympus E-620 | 3/5 | 88/100 | .. | 72/100 | 4.5/5 | 5/5 | Feb 2009 | EUR 599 | ebay.com | |
16. | Sony A77 | 5/5 | 91/100 | .. | 81/100 | .. | 5/5 | Aug 2011 | EUR 1 299 | ebay.com | |
17. | Sony A5000 | 3/5 | + | .. | .. | 4.5/5 | 4.5/5 | Jan 2014 | EUR 399 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 7D vs Olympus E-5
- Canon M10 vs Nikon W150
- Canon M10 vs Olympus E-PL8
- Canon M10 vs Panasonic G9
- Canon M10 vs Panasonic S1
- Canon M10 vs Sony A7R IV
- Canon M10 vs Sony RX100 VII
- Fujifilm GFX 100 vs Olympus E-5
- Fujifilm X-E1 vs Olympus E-5
- Leica M Typ 240 vs Olympus E-5
- Nikon D3500 vs Olympus E-5
- Olympus E-5 vs Olympus E-620
Specifications: Canon M10 vs Olympus E-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon M10 | Olympus E-5 |
---|---|---|
Camera Type | Mirrorless system camera | Digital single lens reflex |
Camera Lens | Canon EF-M mount lenses | Four Thirds lenses |
Launch Date | October 2015 | September 2010 |
Launch Price | USD 499 | USD 1,699 |
Sensor Specs | Canon M10 | Olympus E-5 |
Sensor Technology | CMOS | CMOS |
Sensor Format | APS-C Sensor | Four Thirds Sensor |
Sensor Size | 22.3 x 14.9 mm | 17.3 x 13.0 mm |
Sensor Area | 332.27 mm2 | 224.9 mm2 |
Sensor Diagonal | 26.8 mm | 21.6 mm |
Crop Factor | 1.6x | 2.0x |
Sensor Resolution | 17.9 Megapixels | 12.2 Megapixels |
Image Resolution | 5184 x 3456 pixels | 4032 x 3024 pixels |
Pixel Pitch | 4.31 μm | 4.29 μm |
Pixel Density | 5.39 MP/cm2 | 5.42 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | 1080/30p Video | 720/30p Video |
ISO Setting | 100 - 12,800 ISO | 100 - 6,400 ISO |
ISO Boost | 100 - 25,600 ISO | no Enhancement |
Image Processor | DIGIC 6 | TruePic V+ |
DXO Sensor Quality (score) | 65 | 56 |
DXO Color Depth (bits) | 22.2 | 21.6 |
DXO Dynamic Range (EV) | 11.4 | 10.5 |
DXO Low Light (ISO) | 753 | 519 |
Screen Specs | Canon M10 | Olympus E-5 |
Viewfinder Type | no viewfinder | Optical viewfinder |
Viewfinder Field of View | 100% | |
Viewfinder Magnification | 0.58x | |
Top-Level Screen | no Top Display | Control Panel |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 1040k dots | 920k dots |
LCD Attachment | Tilting screen | Swivel screen |
Touch Input | Touchscreen | no Touchscreen |
Shooting Specs | Canon M10 | Olympus E-5 |
Focus System | On-Sensor Phase-detect | Phase-detect AF |
Continuous Shooting | 4.6 shutter flaps/s | 5 shutter flaps/s |
Shutter Life Expectancy | 100 000 actuations | 150 000 actuations |
Image Stabilization | Lens stabilization only | In-body stabilization |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | SDXC cards | CF or XD cards |
Single or Dual Card Slots | Single card slot | Dual card slots |
Connectivity Specs | Canon M10 | Olympus E-5 |
External Flash | no Hotshoe | Hotshoe |
Studio Flash | no PC Sync | PC Sync socket |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | mini HDMI |
Wifi Support | Wifi built-in | no Wifi |
Near-Field Communication | NFC built-in | no NFC |
Body Specs | Canon M10 | Olympus E-5 |
Environmental Sealing | not weather sealed | Weathersealed body |
Battery Type | Canon LP-E12 | Olympus BLM-5 |
Battery Life (CIPA) | 255 shots per charge | 750 shots per charge |
Body Dimensions |
108 x 67 x 35 mm (4.3 x 2.6 x 1.4 in) |
142 x 117 x 75 mm (5.6 x 4.6 x 3.0 in) |
Camera Weight | 301 g (10.6 oz) | 873 g (30.8 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
