Canon M10 vs Nikon D40

The Canon EOS M10 and the Nikon D40 are two digital cameras that were officially introduced, respectively, in October 2015 and November 2006. The M10 is a mirrorless interchangeable lens camera, while the D40 is a DSLR. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Nikon provides 6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M10		Nikon D40
Mirrorless system camera		Digital single lens reflex
Canon EF-M mount lenses		Nikon F mount lenses
17.9 MP – APS-C sensor		6 MP – APS-C sensor
1080/30p Video		no Video
ISO 100-12,800 (100 - 25,600)		ISO 200-1,600 (200 - 3,200)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 1040k dots		2.5" LCD – 230k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
4.6 shutter flaps per second		2.5 shutter flaps per second
255 shots per battery charge		470 shots per battery charge
108 x 67 x 35 mm, 301 g		124 x 94 x 64 mm, 522 g

Check M10 offers at
ebay.com
Check D40 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M10 and the Nikon D40? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

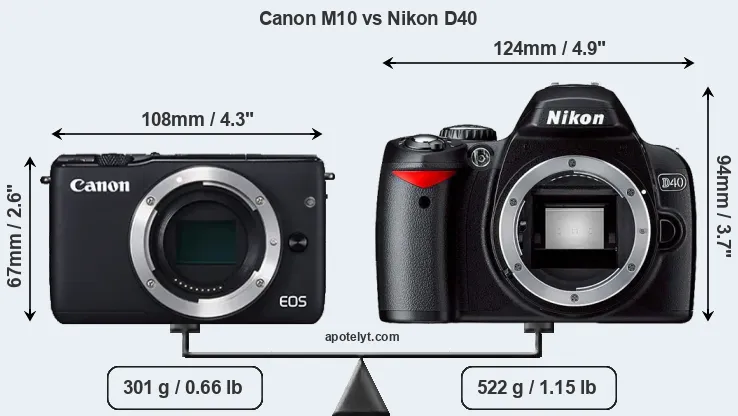

The physical size and weight of the Canon M10 and the Nikon D40 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The M10 can be obtained in two different colors (black, white), while the D40 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D40 is considerably larger (61 percent) than the Canon M10. Moreover, the D40 is substantially heavier (73 percent) than the M10. In this context, it is worth noting that neither the M10 nor the D40 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M10 gets 255 shots out of its Canon LP-E12 battery, while the D40 can take 470 images on a single charge of its Nikon EN-EL9 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
2.		Nikon D40	124 mm	94 mm	64 mm	522 g	470	n	Nov 2006	US$ 499	ebay.com
3.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
5.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
6.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
7.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
8.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
9.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
10.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
11.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
12.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	US$ 729	ebay.com
13.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
14.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	US$ 599	ebay.com
15.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	US$ 499	ebay.com
16.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	US$ 499	ebay.com
17.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D40 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M10) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

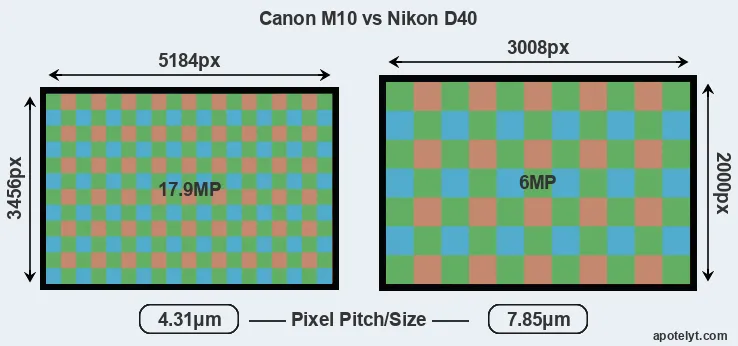

Despite having a smaller sensor, the Canon M10 offers a higher resolution of 17.9 megapixels, compared with 6 MP of the Nikon D40. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 7.85μm for the D40). However, it should be noted that the M10 is much more recent (by 8 years and 10 months) than the D40, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon M10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Nikon D40 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The M10 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M10 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D40 are ISO 200 to ISO 1600, with the possibility to increase the ISO range to 200-3200.

In terms of underlying technology, the M10 is build around a CMOS sensor, while the D40 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the M10 has a notably higher overall DXO score than the D40 (overall score 9 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 1.2 bits higher color depth, 0.4 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
2.		Nikon D40	APS-C	6.0	3008	2000	none	21.0	11.0	561	56
3.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
6.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
7.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
8.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
9.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
10.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
11.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
12.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
13.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
14.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
15.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
16.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
17.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79

Many modern cameras are not only capable of taking still images, but can also record movies. The M10 indeed provides movie recording capabilities, while the D40 does not. The highest resolution format that the M10 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D40 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M10 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon M10 and Nikon D40 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
2.		Nikon D40	optical	n	2.5 / 230	fixed	n	1/4000s	2.5/s	Y	n
3.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
6.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
7.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
8.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
9.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
10.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
12.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
14.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
15.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
16.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
17.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M10 has a touchscreen, while the D40 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The M10 writes its imaging data to SDXC cards, while the D40 uses SDHC cards. The M10 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D40 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M10 and Nikon D40 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Nikon D40	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
13.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
14.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
16.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
17.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the M10 offers wifi support, while the D40 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the M10 and the D40 have been discontinued, but can regularly be found used on ebay. The D40 was replaced by the Nikon D40X, while the M10 was followed by the Canon M100. Further information on the features and operation of the M10 and D40 can be found, respectively, in the Canon M10 Manual (free pdf) or the online Nikon D40 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon M10 and the Nikon D40? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS M10:

• More detail: Offers more megapixels (17.9 vs 6MP) with a 72% higher linear resolution.
• Better image quality: Scores markedly higher (9 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.2 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (4.6 vs 2.5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (108x67mm vs 124x94mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 221g or 42 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 8 years and 10 months of technical progress since the D40 launch.

Reasons to prefer the Nikon D40:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Gets more shots (470 versus 255) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in November 2006).

If the count of individual advantages (bullet points above) is taken as a guide, the M10 is the clear winner of the match-up (19 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M10 and the Nikon D40 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M10 or the D40 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
2.		Nikon D40	..	81/100	..	+ +	o	4.5/5	Nov 2006	US$ 499	ebay.com
3.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
5.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
6.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
7.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
8.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
9.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
10.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
11.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
12.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	US$ 729	ebay.com
13.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
14.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	US$ 599	ebay.com
15.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	US$ 499	ebay.com
16.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	US$ 499	ebay.com
17.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check M10 offers at
ebay.com
Check D40 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check M10 offers at
ebay.com
Check D40 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
