Canon M vs Sony NEX-3
The Canon EOS M and the Sony Alpha NEX-3 are two digital cameras that were revealed to the public, respectively, in July 2012 and May 2010. Both the Canon M and the NEX-3 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Sony provides 14 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Sony Alpha NEX-3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon M and the Sony NEX-3. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The Canon M can be obtained in two different colors (black, white), while the NEX-3 is available in three color-versions (black, silver, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M and the Sony NEX-3 are of equal size. However, the NEX-3 is slightly lighter (0 percent) than the Canon M. In this context, it is worth noting that neither the Canon M nor the NEX-3 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|2.||Sony NEX-3||117 mm||62 mm||33 mm||297 g||330||n||May 2010||599|
|3.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|4.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|5.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|6.||Canon 100D||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|7.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|8.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|9.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499|
|10.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599|
|11.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499|
|12.||Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599|
|13.||Sony NEX-5N||111 mm||59 mm||38 mm||269 g||460||n||Aug 2011||699|
|14.||Sony NEX-C3||110 mm||60 mm||33 mm||225 g||400||n||Jun 2011||599|
|15.||Sony NEX-5||111 mm||59 mm||38 mm||287 g||330||n||May 2010||699|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-3 is 10 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (Canon M) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

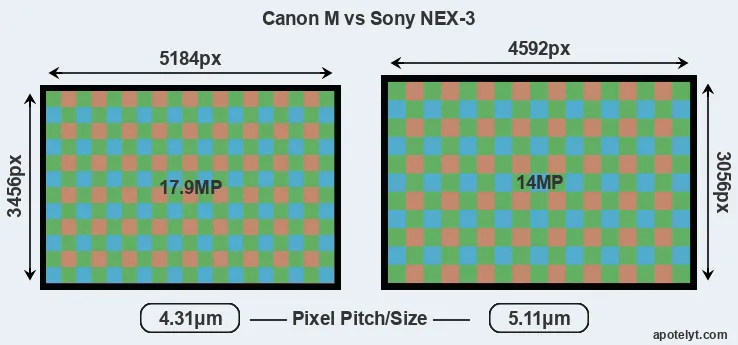

Despite having a smaller sensor, the Canon M offers a higher resolution of 17.9 megapixels, compared with 14 MP of the Sony NEX-3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 5.11μm for the NEX-3). However, it should be noted that the Canon M is much more recent (by 2 years and 2 months) than the NEX-3, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon M implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon M for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Sony NEX-3 are 23 x 15.3 inches or 58.3 x 38.8 cm for good quality, 18.4 x 12.2 inches or 46.7 x 31 cm for very good quality, and 15.3 x 10.2 inches or 38.9 x 25.9 cm for excellent quality prints.
The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Alpha NEX-3 are ISO 200 to ISO 12800 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|5.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|9.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|10.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the Canon M provides a higher video resolution than the NEX-3. It can shoot video footage at 1080/30p, while the Sony is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The Canon M and the NEX-3 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the NEX-3 can be equipped with an optional viewfinder – the FDA-SV1. The table below summarizes some of the other core capabilities of the Canon M and Sony NEX-3 in connection with corresponding information for a sample of similar cameras.
|1.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|2.||Sony NEX-3||optional||n||3.0 / 920||tilting||n||1/4000s||7.0/s||n||n|
|3.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|4.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|5.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|6.||Canon 100D||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|7.||Canon 700D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|8.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2/s||Y||Y|
|9.||Panasonic GF6||none||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|10.||Panasonic G3||1440||n||3.0 / 460||swivel||Y||1/4000s||4.0/s||Y||n|
|11.||Sony NEX-3N||optional||n||3.0 / 460||tilting||n||1/4000s||4.0/s||Y||n|
|12.||Sony NEX-F3||optional||n||3.0 / 920||tilting||n||1/4000s||5.5/s||Y||n|
|13.||Sony NEX-5N||optional||n||3.0 / 920||tilting||Y||1/4000s||10.0/s||n||n|
|14.||Sony NEX-C3||optional||n||3.0 / 920||tilting||n||1/4000s||5.5/s||n||n|
|15.||Sony NEX-5||optional||n||3.0 / 920||tilting||n||1/4000s||7.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Canon M has a touchscreen, while the NEX-3 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The NEX-3 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the Canon M does not have a selfie-screen.
The Canon M writes its imaging data to SDXC cards, while the NEX-3 uses SDXC or Memory Stick PRO Duo cards. The Canon M supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-3 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Sony Alpha NEX-3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Sony NEX-3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|3.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon 100D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|7.||Canon 700D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|9.||Panasonic GF6||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|10.||Panasonic G3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|11.||Sony NEX-3N||-||stereo / mono||-||-||micro||2.0||-||-||-|
|12.||Sony NEX-F3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|13.||Sony NEX-5N||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|14.||Sony NEX-C3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|15.||Sony NEX-5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the Canon M has a microphone port, which is missing on the NEX-3. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the Canon M and the NEX-3 have been discontinued, but can regularly be found used on eBay. The NEX-3 was replaced by the Sony NEX-3N, while the Canon M was followed by the Canon EOS M3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So what conclusions can be drawn? Which of the two cameras – the Canon M or the Sony NEX-3 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS M:
- More detail: Offers more megapixels (17.9 vs 14MP) with a 13% higher linear resolution.
- Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 2 years and 2 months of technical progress since the NEX-3 launch.
Arguments in favor of the Sony Alpha NEX-3:
- More dynamic range: Captures a broader range of light and dark details (0.8 EV of extra DR).
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (7 vs 4.3 flaps/sec) to capture the decisive moment.
- Longer lasting: Gets more shots (330 versus 230) out of a single battery charge.
- More heavily discounted: Has been around for much longer (launched in May 2010).
If the count of individual advantages (bullet points above) is taken as a guide, the Canon M comes out slightly ahead of the NEX-3 (8 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M and the Sony NEX-3 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the Canon M or the NEX-3 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599|
|2.||Sony NEX-3||..||..||..||70/100||4.5/5||4/5||May 2010||599|
|3.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499|
|4.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499|
|5.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699|
|6.||Canon 100D||4/5||+||..||78/100||4/5||4/5||Mar 2013||549|
|7.||Canon 700D||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|8.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549|
|9.||Panasonic GF6||..||+ +||..||..||4.5/5||4.5/5||Apr 2013||499|
|10.||Panasonic G3||3/5||+ +||..||75/100||4.5/5||5/5||May 2011||599|
|11.||Sony NEX-3N||3/5||..||..||..||4.5/5||4.5/5||Feb 2013||499|
|12.||Sony NEX-F3||4/5||..||..||74/100||4.5/5||4.5/5||May 2012||599|
|13.||Sony NEX-5N||3/5||+ +||..||79/100||4.5/5||4.5/5||Aug 2011||699|
|14.||Sony NEX-C3||3/5||+ +||..||74/100||4.5/5||4/5||Jun 2011||599|
|15.||Sony NEX-5||3/5||+ +||..||71/100||4.5/5||4/5||May 2010||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon M vs Sony NEX-3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M||Sony NEX-3|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Canon EF-M mount lenses||Sony E mount lenses|
|Launch Date||July 2012||May 2010|
|Launch Price||USD 599||USD 599|
|Sensor Specs||Canon M||Sony NEX-3|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.4 x 15.6 mm|
|Sensor Area||332.27 mm2||365.04 mm2|
|Sensor Diagonal||26.8 mm||28.1 mm|
|Sensor Resolution||17.9 Megapixels||14 Megapixels|
|Image Resolution||5184 x 3456 pixels||4592 x 3056 pixels|
|Pixel Pitch||4.31 μm||5.11 μm|
|Pixel Density||5.39 MP/cm2||3.84 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||720/30p Video|
|ISO Setting||100 - 12,800 ISO||200 - 12,800 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC V||BIONZ|
|DXO Sensor Quality (score)||65||68|
|DXO Color Depth (bits)||22.1||22.1|
|DXO Dynamic Range (EV)||11.2||12.0|
|DXO Low Light (ISO)||827||830|
|Screen Specs||Canon M||Sony NEX-3|
|Viewfinder Type||no viewfinder||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M||Sony NEX-3|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Continuous Shooting||4.3 shutter flaps/s||7 shutter flaps/s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon M||Sony NEX-3|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon M||Sony NEX-3|
|Battery Life (CIPA)||230 shots per charge||330 shots per charge|
109 x 66 x 32 mm
(4.3 x 2.6 x 1.3 in)
117 x 62 x 33 mm
(4.6 x 2.4 x 1.3 in)
|Camera Weight||298 g (10.5 oz)||297 g (10.5 oz)|
