Canon M vs Leica M-E Typ 240
The Canon EOS M and the Leica M-E (Typ 240) are two digital cameras that were announced, respectively, in July 2012 and June 2019. The Canon M is a mirrorless interchangeable lens camera, while the M-E Typ 240 is a rangefinder-style mirrorless. The cameras are based on an APS-C (Canon M) and a full frame (M-E Typ 240) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Leica provides 23.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Leica M-E (Typ 240)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

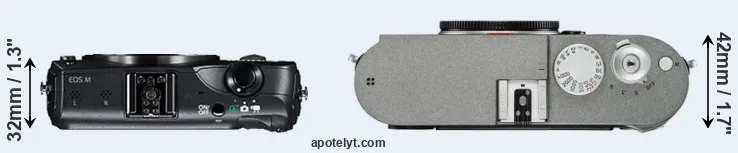

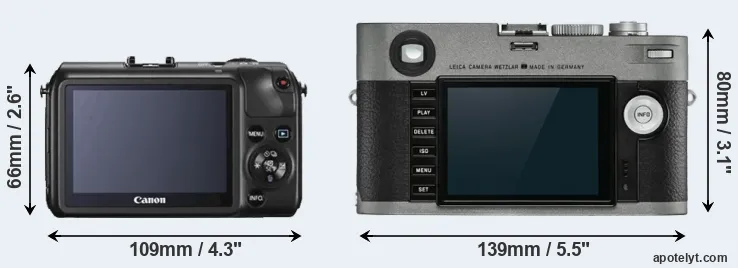

The side-by-side display below illustrates the physical size and weight of the Canon M and the Leica M-E Typ 240. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The Canon M can be obtained in two different colors (black, white), while the M-E Typ 240 is only available in silver.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M-E Typ 240 is considerably larger (55 percent) than the Canon M. Moreover, the M-E Typ 240 is substantially heavier (128 percent) than the Canon M. It is noteworthy in this context that the M-E Typ 240 is splash and dust-proof, while the Canon M does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|2.||Leica M-E Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Jun 2019||3,999|
|3.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|4.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|5.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|6.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|7.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|8.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|9.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|10.||Leica M10-R||139 mm||80 mm||39 mm||660 g||210||Y||Jul 2020||8,295|
|11.||Leica M10-P||139 mm||80 mm||39 mm||660 g||210||Y||Aug 2018||7,995|
|12.||Leica M10||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595|
|13.||Leica M Typ 262||139 mm||80 mm||42 mm||680 g||..||Y||Nov 2015||5,195|
|14.||Leica M Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Sep 2012||6,950|
|15.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499|
|16.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599|
|17.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The Canon M was launched at a markedly lower price (by 85 percent) than the M-E Typ 240, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon M features an APS-C sensor and the Leica M-E Typ 240 a full frame sensor. The sensor area in the M-E Typ 240 is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 23.7MP, the M-E Typ 240 offers a higher resolution than the Canon M (17.9MP), but the M-E Typ 240 nevertheless has larger individual pixels (pixel pitch of 6.01μm versus 4.31μm for the Canon M) due to its larger sensor. Moreover, the M-E Typ 240 is a much more recent model (by 6 years and 11 months) than the Canon M, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Leica M-E Typ 240 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M-E Typ 240 for good quality output (200 dots per inch) amounts to 29.8 x 19.9 inches or 75.6 x 50.5 cm, for very good quality (250 dpi) 23.8 x 15.9 inches or 60.5 x 40.4 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.7 cm. The corresponding values for the Canon M are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica M-E (Typ 240) are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-6400.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Leica M-E Typ 240||Full Frame||23.7||5952||3976||1080/25p||..||..||..||..|
|5.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|10.||Leica M10-R||Full Frame||40.9||7864||5200||none||..||..||..||..|
|11.||Leica M10-P||Full Frame||23.8||5952||3992||none||..||..||..||..|
|12.||Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|13.||Leica M Typ 262||Full Frame||23.7||5952||3976||none||..||..||..||..|
|14.||Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
|15.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|16.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the Canon M provides a higher frame rate than the M-E Typ 240. It can shoot video footage at 1080/30p, while the Leica is limited to 1080/25p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the M-E Typ 240 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M, the Leica M-E Typ 240, and comparable cameras.
|2.||Leica M-E Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
|5.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
|13.||Leica M Typ 262||optical||n||3.0||921||fixed||n||1/4000s||3.0||n||n|
|14.||Leica M Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Canon M has a touchscreen, while the M-E Typ 240 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
Concerning the storage of imaging data, both the Canon M and the M-E Typ 240 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Leica M-E (Typ 240) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|2.||Leica M-E Typ 240||Y||mono||-||-||-||-||2.0||-||-||-|
|5.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|13.||Leica M Typ 262||Y||-||-||-||-||-||2.0||-||-||-|
|14.||Leica M Typ 240||Y||stereo||mono||-||-||-||2.0||-||-||-|
It is notable that the Canon M has a microphone port, which is missing on the M-E Typ 240. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
The M-E Typ 240 is a recent model that features in the current product line-up of Leica. In contrast, the Canon M has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the Canon M was succeeded by the Canon EOS M3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what is the bottom line? Is the Canon M better than the Leica M-E Typ 240 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS M:
- Better video: Provides higher movie framerates (1080/30p versus 1080/25p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (4.3 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (109x66mm vs 139x80mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 382g or 56 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (85 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in July 2012).
Reasons to prefer the Leica M-E (Typ 240):
- More detail: Has more megapixels (23.7 vs 17.9MP), which boosts linear resolution by 15%.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More modern: Reflects 6 years and 11 months of technical progress since the Canon M launch.
If the number of relative strengths (bullet points above) is taken as a guide, the Canon M comes out slightly ahead of the M-E Typ 240 (10 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the Canon M or the M-E Typ 240 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|2.||Leica M-E Typ 240||..||..||..||..||..||Jun 2019||3,999|
|3.||Canon M100||3/5||+||..||4/5||3.5/5||Aug 2017||499|
|4.||Canon M10||..||..||..||..||4/5||Oct 2015||499|
|5.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|6.||Canon G16||4/5||+||..||4.5/5||4.5/5||Aug 2013||549|
|7.||Canon SL1||4/5||+||78/100||4/5||4/5||Mar 2013||549|
|8.||Canon T5i||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|9.||Canon T3i||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|10.||Leica M10-R||4.5/5||..||..||..||4/5||Jul 2020||8,295|
|11.||Leica M10-P||..||..||..||..||4/5||Aug 2018||7,995|
|12.||Leica M10||4.5/5||..||..||4/5||4.5/5||Jan 2017||6,595|
|13.||Leica M Typ 262||..||..||..||..||..||Nov 2015||5,195|
|14.||Leica M Typ 240||4/5||..||..||4/5||..||Sep 2012||6,950|
|15.||Panasonic GF6||..||+ +||..||4.5/5||4.5/5||Apr 2013||499|
|16.||Panasonic G3||3/5||+ +||75/100||4.5/5||5/5||May 2011||599|
|17.||Sony NEX-3N||3/5||..||..||4.5/5||4.5/5||Feb 2013||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon M vs Leica M-E Typ 240
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M||Leica M-E Typ 240|
|Camera Type||Mirrorless system camera||Rangefinder camera|
|Camera Lens||Canon EF-M mount lenses||Leica M mount lenses|
|Launch Date||July 2012||June 2019|
|Launch Price||USD 599||USD 3,999|
|Sensor Specs||Canon M||Leica M-E Typ 240|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||35.8 x 23.9 mm|
|Sensor Area||332.27 mm2||855.62 mm2|
|Sensor Diagonal||26.8 mm||43 mm|
|Sensor Resolution||17.9 Megapixels||23.7 Megapixels|
|Image Resolution||5184 x 3456 pixels||5952 x 3976 pixels|
|Pixel Pitch||4.31 μm||6.01 μm|
|Pixel Density||5.39 MP/cm2||2.77 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/25p Video|
|ISO Setting||100 - 12,800 ISO||200 - 6,400 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 6,400 ISO|
|DXO Sensor Quality (score)||65||..|
|DXO Color Depth (bits)||22.1||..|
|DXO Dynamic Range (EV)||11.2||..|
|DXO Low Light (ISO)||827||..|
|Screen Specs||Canon M||Leica M-E Typ 240|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M||Leica M-E Typ 240|
|Focus System||On-Sensor Phase-detect||Manual Focus|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||4.3 shutter flaps/s||3 shutter flaps/s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon M||Leica M-E Typ 240|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon M||Leica M-E Typ 240|
|Environmental Sealing||not weather sealed||Weathersealed body|
109 x 66 x 32 mm
(4.3 x 2.6 x 1.3 in)
139 x 80 x 42 mm
(5.5 x 3.1 x 1.7 in)
|Camera Weight||298 g (10.5 oz)||680 g (24.0 oz)|
