Canon M vs Fujifilm X20

The Canon EOS M and the Fujifilm X20 are two digital cameras that were announced, respectively, in July 2012 and January 2013. The Canon M is a mirrorless interchangeable lens camera, while the X20 is a fixed lens compact. The cameras are based on an APS-C (Canon M) and a 2/3 (X20) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Fujifilm provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M		Fujifilm X20
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		28-112mm f/2.0-2.8
17.9 MP – APS-C sensor		12 MP – Two Thirds sensor
1080/30p Video		1080/60p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-12,800
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 1040k dots		2.8" LCD – 460k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
4.3 shutter flaps per second		12 shutter flaps per second
230 shots per battery charge		270 shots per battery charge
109 x 66 x 32 mm, 298 g		117 x 70 x 57 mm, 353 g

Check Canon M offers at
ebay.com
Check X20 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Fujifilm X20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

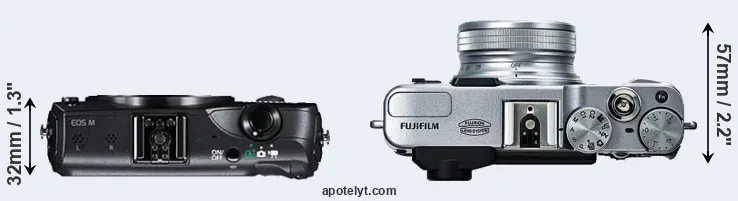

An illustration of the physical size and weight of the Canon M and the Fujifilm X20 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The Canon M can be obtained in two different colors (black, white), while the X20 is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X20 is notably larger (14 percent) than the Canon M. In this context, it is worth noting that neither the Canon M nor the X20 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X20 has a lens built in, whereas the Canon M is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the Canon M gets 230 shots out of its Canon LP-E12 battery, while the X20 can take 270 images on a single charge of its Fujifilm NP-50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
2.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
3.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
4.		Canon 700D	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
6.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
7.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
8.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
9.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
10.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
11.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	US$ 699	ebay.com
12.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
13.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	US$ 499	ebay.com
14.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
15.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	US$ 499	ebay.com
16.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

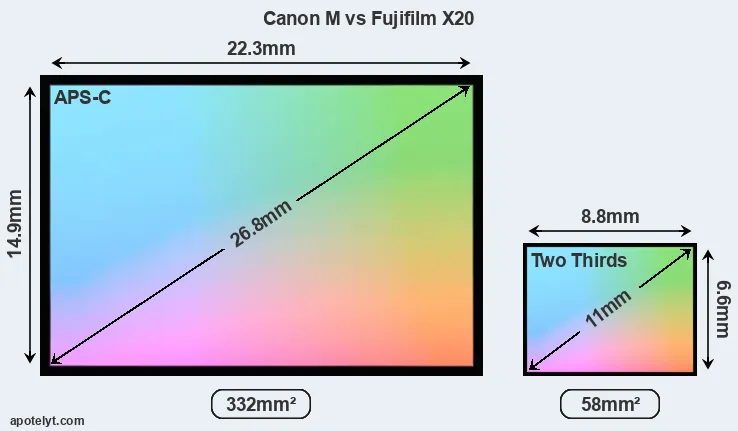

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M features an APS-C sensor and the Fujifilm X20 a 2/3 sensor. The sensor area in the X20 is 83 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 3.9. The sensor in the Canon M has a native 3:2 aspect ratio, while the one in the X20 offers a 4:3 aspect.

With 17.9MP, the Canon M offers a higher resolution than the X20 (12MP), but the Canon M nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 2.20μm for the X20) due to its larger sensor. However, the X20 is a somewhat more recent model (by 5 months) than the Canon M, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon M for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Fujifilm X20 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Fujifilm X20 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Like most digital cameras, the Canon M uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X20 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
2.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
3.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
4.		Canon 700D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
7.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
8.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
9.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
10.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
11.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
12.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
13.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
14.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
15.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74
16.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the X20 provides a faster frame rate than the Canon M. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the X20 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon M and Fujifilm X20 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
2.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
3.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
4.		Canon 700D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
7.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
8.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
9.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
10.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
11.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
12.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
13.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
14.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
15.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
16.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Canon M has a touchscreen, while the X20 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the Canon M and the X20 write their files to SDXC cards. The Canon M supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the X20 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Fujifilm X20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
3.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Canon 700D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
8.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
14.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-
16.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the Canon M has a microphone port, which is missing on the X20. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the Canon M and the X20 have been discontinued, but can regularly be found used on ebay. The Canon M was replaced by the Canon EOS M3, while the X20 was followed by the Fujifilm X30. Further information on the features and operation of the Canon M and X20 can be found, respectively, in the Canon M Manual (free pdf) or the online Fujifilm X20 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon M and the Fujifilm X20? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS M:

• More detail: Offers more megapixels (17.9 vs 12MP) with a 25% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More compact: Is smaller (109x66mm vs 117x70mm) and thus needs less room in the bag.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been on the market for longer (launched in July 2012).

Advantages of the Fujifilm X20:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster burst: Shoots at higher frequency (12 vs 4.3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has an integrated lens, whereas the Canon M necessitates an extra lens.
• Longer lasting: Gets more shots (270 versus 230) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More modern: Was introduced somewhat (5 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the Canon M is the clear winner of the match-up (14 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M and the Fujifilm X20 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the Canon M or the X20. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
2.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
3.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
4.		Canon 700D	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
6.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
7.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
8.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
9.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
10.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
11.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	US$ 699	ebay.com
12.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
13.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	US$ 499	ebay.com
14.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
15.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	US$ 499	ebay.com
16.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
