Canon M vs R5 Mark II

The Canon EOS M and the Canon EOS R5 Mark II are two digital cameras that were revealed to the public, respectively, in July 2012 and July 2024. Both the Canon M and the R5 Mark II are mirrorless interchangeable lens cameras that are based on an APS-C (Canon M) and a full frame (R5 Mark II) sensor. The Canon M has a resolution of 17.9 megapixels, whereas the R5 Mark II provides 44.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon M
versus
Canon R5 Mark II
Canon M   Canon R5 Mark II
Mirrorless system camera Mirrorless system camera
Canon EF-M mount lenses Canon RF mount lenses
17.9 MP – APS-C sensor 44.8 MP – Full Frame sensor
1080/30p Video 8k/60p Video
ISO 100-12,800 (100 - 25,600) ISO 100-51,200 (50 - 102,400)
No viewfinder, LCD framing Electronic viewfinder (5760k dots)
3.0" LCD – 1040k dots 3.2" LCD – 2100k dots
Fixed touchscreen Swivel touchscreen
4.3 shutter flaps per second 12 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
230 shots per battery charge340 shots per battery charge
109 x 66 x 32 mm, 298 g 138 x 98 x 88 mm, 746 g
logo
Check Canon M offers at
ebay.com
logo
Check R5 Mark II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Canon EOS R5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Canon M and the Canon R5 Mark II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The Canon M can be obtained in two different colors (black, white), while the R5 Mark II is only available in black.

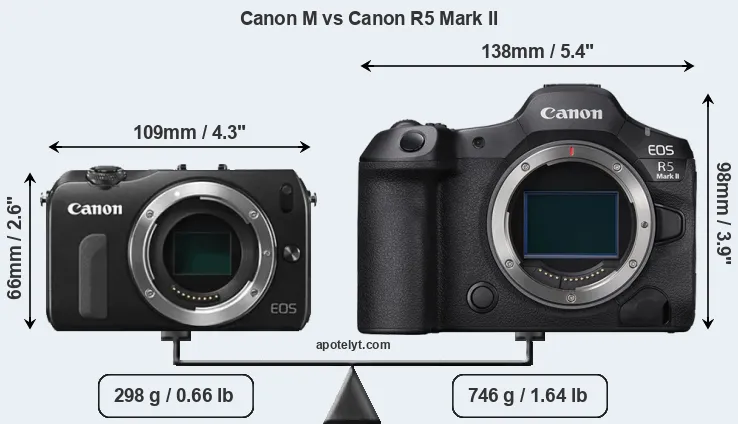

Size Canon M vs Canon R5 Mark II

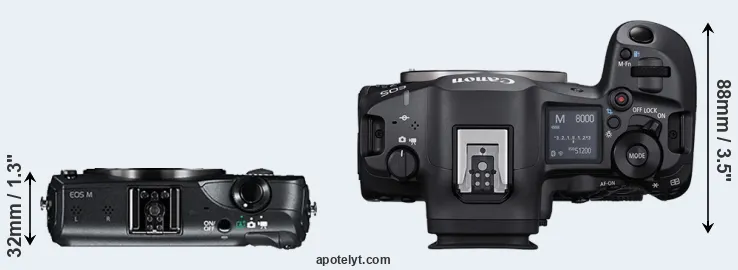

Compare Canon M versus R5 Mark II top
Comparison Canon M or R5 Mark II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R5 Mark II is considerably larger (88 percent) than the Canon M. Moreover, the R5 Mark II is substantially heavier (150 percent) than the Canon M. It is noteworthy in this context that the R5 Mark II is splash and dust-proof, while the Canon M does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the R5 Mark II can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon M 109 mm 66 mm 32 mm 298 g 230 n Jul 2012 US$ 599ebay.com
2.

Canon R5 Mark II 138 mm 98 mm 88 mm 746 g 340 Y Jul 2024 US$ 4 299 amazon.com
3.

Canon 100D 117 mm 91 mm 69 mm 407 g 380 n Mar 2013 US$ 549ebay.com
4.

Canon 700D 133 mm 100 mm 79 mm 580 g 440 n Mar 2013 US$ 649ebay.com
5.

Canon G7 X 103 mm 60 mm 40 mm 304 g 210 n Sep 2014 US$ 699ebay.com
6.

Canon G16 109 mm 76 mm 40 mm 356 g 360 n Aug 2013 US$ 549ebay.com
7.

Canon M10 108 mm 67 mm 35 mm 301 g 255 n Oct 2015 US$ 499ebay.com
8.

Canon M100 108 mm 67 mm 35 mm 302 g 295 n Aug 2017 US$ 499ebay.com
9.

Canon R5 138 mm 98 mm 88 mm 738 g 320 Y Jul 2020 US$ 3 899 amazon.com
10.

Canon R5 C 142 mm 101 mm 111 mm 770 g 320 Y Jan 2022 US$ 4 499 amazon.com
11.

Canon R6 138 mm 98 mm 88 mm 680 g 360 Y Jul 2020 US$ 2 499 amazon.com
12.

Fujifilm GFX 50S II 150 mm 104 mm 87 mm 900 g 440 Y Sep 2021 US$ 3 999 amazon.com
13.

Nikon Z8 144 mm 119 mm 83 mm 910 g 340 Y May 2023 US$ 3 999 amazon.com
14.

Panasonic G3 115 mm 84 mm 47 mm 336 g 270 n May 2011 US$ 599ebay.com
15.

Panasonic GF6 111 mm 65 mm 38 mm 323 g 340 n Apr 2013 US$ 499ebay.com
16.

Sony NEX-3N 110 mm 62 mm 35 mm 269 g 480 n Feb 2013 US$ 499ebay.com
17.

Sony NEX-F3 117 mm 67 mm 42 mm 314 g 470 n May 2012 US$ 599ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon M was launched at a markedly lower price (by 86 percent) than the R5 Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M features an APS-C sensor and the Canon R5 Mark II a full frame sensor. The sensor area in the R5 Mark II is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the R5 Mark II uses a more advanced image processing engine (DIGIC X) than the Canon M (DIGIC V), with benefits for noise reduction, color accuracy, and processing speed.

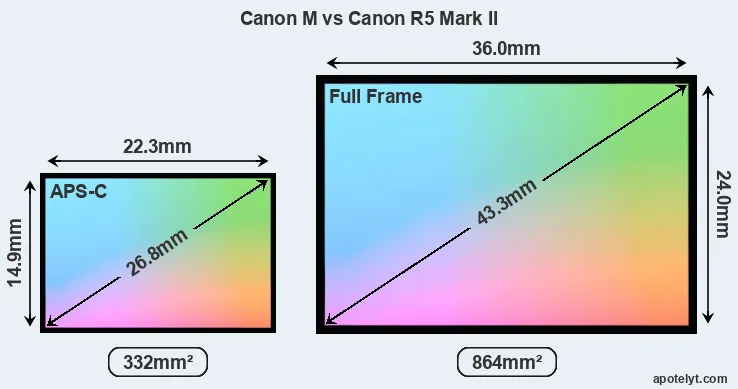

Canon M and Canon R5 Mark II sensor measures

With 44.8MP, the R5 Mark II offers a higher resolution than the Canon M (17.9MP), but the R5 Mark II nevertheless has marginally larger individual pixels (pixel pitch of 4.39μm versus 4.31μm for the Canon M) due to its larger sensor. Moreover, the R5 Mark II is a much more recent model (by 11 years and 11 months) than the Canon M, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Canon M are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS R5 Mark II are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-102400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

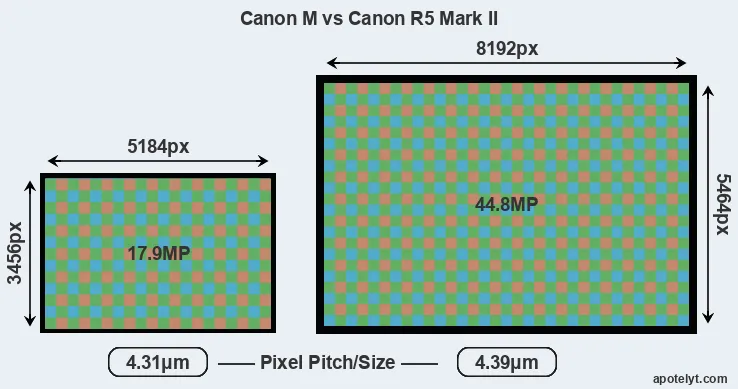

Canon M versus R5 Mark II MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon M APS-C 17.9 5184 34561080/30p22.111.282765
2.

Canon R5 Mark II Full Frame 44.8 8192 54648k/60p25.414.8333297
3.

Canon 100D APS-C 17.9 5184 34561080/30p21.811.384363
4.

Canon 700D APS-C 17.9 5184 34561080/30p21.711.268161
5.

Canon G7 X 1-inch 20.0 5472 36481080/60p23.012.755671
6.

Canon G16 1/1.7 12.0 4000 30001080/60p21.011.723054
7.

Canon M10 APS-C 17.9 5184 34561080/30p22.211.475365
8.

Canon M100 APS-C 24.0 6000 40001080/60p23.512.9127278
9.

Canon R5 Full Frame 44.8 8192 54648K/30p25.314.6304295
10.

Canon R5 C Full Frame 44.8 8192 54648k/60p25.414.5308296
11.

Canon R6 Full Frame 20.0 5472 36484k/60p24.214.3339490
12.

Fujifilm GFX 50S II Medium Format 51.1 8256 61921080/30p25.914.83456100
13.

Nikon Z8 Full Frame 45.4 8256 55048K/30p26.314.2254898
14.

Panasonic G3 Four Thirds 15.8 4592 34481080/60i21.010.666756
15.

Panasonic GF6 Four Thirds 15.8 4592 34481080/60i20.710.662254
16.

Sony NEX-3N APS-C 16.0 4912 32641080/60i22.812.5106774
17.

Sony NEX-F3 APS-C 16.0 4912 32641080/60i22.712.3111473
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the R5 Mark II provides a better video resolution than the Canon M. It can shoot movie footage at 8k/60p, while the Canon M is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R5 Mark II has an electronic viewfinder (5760k dots), which can be very helpful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M, the Canon R5 Mark II, and comparable cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon Mnone n3.0 / 1040 fixed Y 1/4000s 4.3/s n n
2.

Canon R5 Mark II5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
3.

Canon 100Doptical n3.0 / 1040 fixed Y 1/4000s 4.9/s Y n
4.

Canon 700Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
5.

Canon G7 Xnone n3.0 / 1040 tilting Y 1/2000s 6.5/s Y Y
6.

Canon G16optical n3.0 / 922 fixed n 1/4000s 2.2/s Y Y
7.

Canon M10none n3.0 / 1040 tilting Y 1/4000s 4.6/s Y n
8.

Canon M100none n3.0 / 1040 tilting Y 1/4000s 6.1/s Y n
9.

Canon R55760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
10.

Canon R5 C5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n n
11.

Canon R63690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
12.

Fujifilm GFX 50S II3690 Y3.2 / 2360 full-flex Y 1/4000s 3.0/s n Y
13.

Nikon Z83690 Y3.2 / 2089 full-flex Y 1/32000s 30.0/s n Y
14.

Panasonic G31440 n3.0 / 460 swivel Y 1/4000s 4.0/s Y n
15.

Panasonic GF6none n3.0 / 1040 tilting Y 1/4000s 4.2/s Y n
16.

Sony NEX-3Noptional n3.0 / 460 tilting n 1/4000s 4.0/s Y n
17.

Sony NEX-F3optional n3.0 / 920 tilting n 1/4000s 5.5/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the R5 Mark II and the Canon M is in-body image stabilization (IBIS). The R5 Mark II reduces the risk of handshake-induced blur with all attached lenses, while the Canon M offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The R5 Mark II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the Canon M does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R5 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The Canon M writes its imaging data to SDXC cards, while the R5 Mark II uses CFexpress (type B) or SDXC cards. The R5 Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the Canon M only has one slot. The R5 Mark II supports UHS-II cards (on both slots), while the Canon M can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Canon EOS R5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon MYstereo / monoY-mini2.0---
2.

Canon R5 Mark IIYmono / monoYYfull3.2Y-Y
3.

Canon 100DYmono / monoY-mini2.0---
4.

Canon 700DYstereo / monoY-mini2.0---
5.

Canon G7 X-stereo / mono--micro2.0YY-
6.

Canon G16Ystereo / mono--mini2.0Y--
7.

Canon M10-stereo / mono--mini2.0YY-
8.

Canon M100-stereo / mono--micro2.0YYY
9.

Canon R5Ymono / monoYYmicro3.2Y-Y
10.

Canon R5 CYstereo / monoYYmicro3.2Y-Y
11.

Canon R6Ymono / monoYYmicro3.2Y-Y
12.

Fujifilm GFX 50S IIYstereo / monoYYmicro3.2Y--
13.

Nikon Z8Ystereo / monoYYfull3.2Y-Y
14.

Panasonic G3Ystereo / mono--mini2.0---
15.

Panasonic GF6-stereo / mono--mini2.0YY-
16.

Sony NEX-3N-stereo / mono--micro2.0---
17.

Sony NEX-F3Ystereo / mono--mini2.0---

It is notable that the R5 Mark II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the Canon M does not provide wifi capability.

Studio photographers will appreciate that the Canon R5 Mark II (unlike the Canon M) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The R5 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the Canon M has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the Canon M was succeeded by the Canon EOS M3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon M and the Canon R5 Mark II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.


Arguments in favor of the Canon EOS M:

  • More compact: Is smaller (109x66mm vs 138x98mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 448g or 60 percent) and hence easier to carry around.
  • More affordable: Was introduced into a lower priced category (86 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in July 2012).


Reasons to prefer the Canon EOS R5 Mark II:

  • More detail: Has more megapixels (44.8 vs 17.9MP), which boosts linear resolution by 58%.
  • Better image quality: Is equipped with a larger and more technologically advanced sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC V).
  • Better video: Provides higher definition movie capture (8k/60p vs 1080/30p).
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (12 vs 4.3 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Gets more shots (340 versus 230) out of a single battery charge.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Reflects 11 years and 11 months of technical progress since the Canon M launch.

If the number of relative strengths (bullet points above) is taken as a guide, the R5 Mark II is the clear winner of the contest (30 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

Canon M 04:30 R5 Mark II

How about other alternatives? Do the specifications of the Canon M and the Canon R5 Mark II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the Canon M or the R5 Mark II. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon M3/5+....4/54/5 Jul 2012 US$ 599ebay.com
2.

Canon R5 Mark II......93/100.... Jul 2024 US$ 4 299 amazon.com
3.

Canon 100D4/5+..78/1004/54/5 Mar 2013 US$ 549ebay.com
4.

Canon 700D......76/1004.5/54.5/5 Mar 2013 US$ 649ebay.com
5.

Canon G7 X4/5+ +..77/1004.5/54.5/5 Sep 2014 US$ 699ebay.com
6.

Canon G164/5+....4.5/54.5/5 Aug 2013 US$ 549ebay.com
7.

Canon M10..........4/5 Oct 2015 US$ 499ebay.com
8.

Canon M1003/5+....4/53.5/5 Aug 2017 US$ 499ebay.com
9.

Canon R54.5/5+4/591/1004.5/54.5/5 Jul 2020 US$ 3 899 amazon.com
10.

Canon R5 C..+ +........ Jan 2022 US$ 4 499 amazon.com
11.

Canon R65/5+ +4/590/1004.5/55/5 Jul 2020 US$ 2 499 amazon.com
12.

Fujifilm GFX 50S II5/5..5/587/100..5/5 Sep 2021 US$ 3 999 amazon.com
13.

Nikon Z85/5..5/594/1005/54.5/5 May 2023 US$ 3 999 amazon.com
14.

Panasonic G33/5+ +..75/1004.5/55/5 May 2011 US$ 599ebay.com
15.

Panasonic GF6..+ +....4.5/54.5/5 Apr 2013 US$ 499ebay.com
16.

Sony NEX-3N3/5......4.5/54.5/5 Feb 2013 US$ 499ebay.com
17.

Sony NEX-F34/5....74/1004.5/54.5/5 May 2012 US$ 599ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check Canon M offers at
ebay.com
logo
Check R5 Mark II price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon M vs Canon R5 Mark II

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon M Canon R5 Mark II
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon EF-M mount lenses Canon RF mount lenses
    Launch Date July 2012 July 2024
    Launch Price USD 599 USD 4,299
    Sensor Specs Canon M Canon R5 Mark II
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Full Frame Sensor
    Sensor Size 22.3 x 14.9 mm 36.0 x 24.0 mm
    Sensor Area 332.27 mm2 864 mm2
    Sensor Diagonal 26.8 mm 43.3 mm
    Crop Factor 1.6x 1.0x
    Sensor Resolution 17.9 Megapixels 44.8 Megapixels
    Image Resolution 5184 x 3456 pixels 8192 x 5464 pixels
    Pixel Pitch 4.31 μm 4.39 μm
    Pixel Density 5.39 MP/cm2 5.18 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/30p Video 8k/60p Video
    ISO Setting 100 - 12,800 ISO 100 - 51,200 ISO
    ISO Boost 100 - 25,600 ISO 50 - 102,400 ISO
    Image Processor DIGIC V DIGIC X
    DXO Sensor Quality (score) 65 ..
    DXO Color Depth (bits) 22.1 ..
    DXO Dynamic Range (EV) 11.2 ..
    DXO Low Light (ISO) 827 ..
    Screen Specs Canon M Canon R5 Mark II
    Viewfinder Type no viewfinder Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.76x
    Viewfinder Resolution 5760k dots
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.2inch
    LCD Resolution 1040k dots 2100k dots
    LCD Attachment Fixed screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon M Canon R5 Mark II
    Focus System On-Sensor Phase-detect On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 4.3 shutter flaps/s 12 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/32000s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards CFexB or SDXC cards
    Single or Dual Card Slots Single card slot Dual card slots
    UHS card support UHS-I Dual UHS-II
    Connectivity Specs Canon M Canon R5 Mark II
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 3.2
    HDMI Port mini HDMI full HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support no Wifi Wifi built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Canon M Canon R5 Mark II
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Canon LP-E12 Canon LP-E6P
    Battery Life (CIPA)230 shots per charge340 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 109 x 66 x 32 mm
    (4.3 x 2.6 x 1.3 in)
    138 x 98 x 88 mm
    (5.4 x 3.9 x 3.5 in)
    Camera Weight 298 g (10.5 oz) 746 g (26.3 oz)
    logo
    Check Canon M offers at
    ebay.com
    logo
    Check R5 Mark II price at
    amazon.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon M vs Canon R5 Mark II
