Canon G5 X vs Leica T

The Canon PowerShot G5 X and the Leica T (Typ 701) are two digital cameras that were revealed to the public, respectively, in October 2015 and April 2014. The G5X is a fixed lens compact, while the T Typ 701 is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (G5X) and an APS-C (T Typ 701) sensor. The Canon has a resolution of 20 megapixels, whereas the Leica provides 16.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G5 X		Leica T
Fixed lens compact camera		Mirrorless system camera
24-100mm f/1.8-2.8		Leica T mount lenses
20 MP – 1" sensor		16.2 MP – APS-C sensor
1080/60p Video		1080/30p Video
ISO 125-12,800 (125 - 25,600)		ISO 100-12,500
Electronic viewfinder (2360k dots)		Viewfinder optional
3.0" LCD – 1040k dots		3.7" LCD – 1230k dots
Swivel touchscreen		Fixed touchscreen
5.9 shutter flaps per second		5 shutter flaps per second
210 shots per battery charge		400 shots per battery charge
112 x 76 x 44 mm, 353 g		134 x 69 x 33 mm, 384 g

Check G5X offers at
ebay.com
Check T Typ 701 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G5 X and the Leica T (Typ 701)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

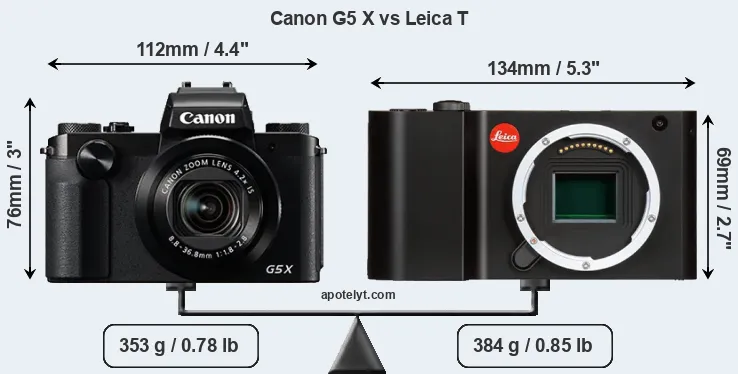

The side-by-side display below illustrates the physical size and weight of the Canon G5 X and the Leica T. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The T Typ 701 can be obtained in two different colors (black, silver), while the G5X is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica T is notably larger (9 percent) than the Canon G5 X. In this context, it is worth noting that neither the G5X nor the T Typ 701 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G5X has a lens built in, whereas the T Typ 701 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the G5X gets 210 shots out of its Canon NB-13L battery, while the T Typ 701 can take 400 images on a single charge of its Leica BP-DC13 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
2.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	US$ 1 849	ebay.com
3.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
4.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	US$ 899	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
7.		Canon G7 X Mark III	105 mm	61 mm	41 mm	304 g	235	n	Jul 2019	US$ 749	amazon.com
8.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
9.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
10.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
11.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	US$ 1 695	ebay.com
12.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	US$ 1 949	ebay.com
13.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
14.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
15.		Panasonic TZ100	111 mm	65 mm	44 mm	312 g	300	n	Jan 2016	US$ 699	ebay.com
16.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
17.		Sony RX100 V	102 mm	58 mm	41 mm	299 g	220	n	Oct 2016	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The G5X was launched at a lower price than the T Typ 701, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

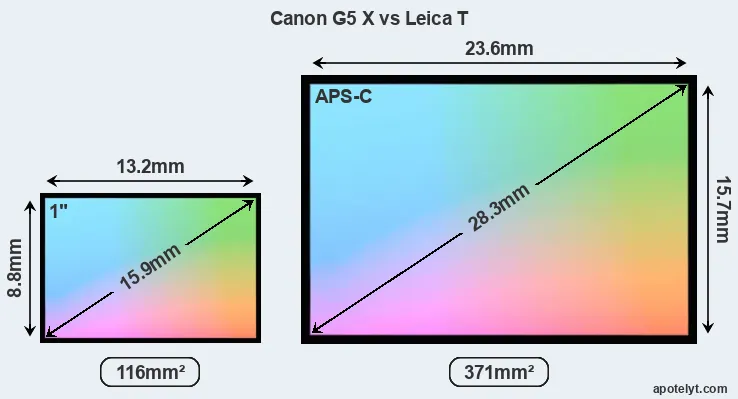

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon G5 X features an one-inch sensor and the Leica T an APS-C sensor. The sensor area in the T Typ 701 is 220 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon G5 X offers a higher resolution of 20 megapixels, compared with 16.2 MP of the Leica T. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 4.79μm for the T Typ 701). However, it should be noted that the G5X is a somewhat more recent model (by 1 year and 5 months) than the T Typ 701, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the T Typ 701 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon G5 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Leica T are 24.7 x 16.4 inches or 62.8 x 41.6 cm for good quality, 19.8 x 13.1 inches or 50.2 x 33.3 cm for very good quality, and 16.5 x 10.9 inches or 41.9 x 27.8 cm for excellent quality prints.

The Canon PowerShot G5 X has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Leica T (Typ 701) are ISO 100 to ISO 12500 (no boost).

In terms of underlying technology, the G5X is build around a BSI-CMOS sensor, while the T Typ 701 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the T Typ 701 offers substantially better image quality than the G5X (overall score 13 points higher). The advantage is based on 1.6 bits higher color depth, 0.4 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
2.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
3.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
4.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon G7 X Mark III	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
8.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
9.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
10.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
11.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
12.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
13.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
14.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
15.		Panasonic TZ100	1-inch	20.0	5472	3648	4K/30p	22.8	12.5	559	70
16.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
17.		Sony RX100 V	1-inch	20.0	5472	3648	4K/30p	22.8	12.4	586	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the G5X provides a higher frame rate than the T Typ 701. It can shoot video footage at 1080/60p, while the Leica is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the G5X has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the T Typ 701 relies on live view and the rear LCD for framing. That said, the T Typ 701 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Canon G5 X and Leica T in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
2.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
3.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
4.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon G7 X Mark III	none	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
8.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
9.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
10.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
11.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
12.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
13.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
14.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
15.		Panasonic TZ100	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
16.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony RX100 V	2359	n	3.0 / 1229	tilting	n	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Canon G5 X has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the G5X and the T Typ 701 write their files to SDXC cards. The G5X supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the T Typ 701 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G5 X and Leica T (Typ 701) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
3.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G7 X Mark III	-	stereo / mono	Y	-	micro	3.1	Y	-	Y
8.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
10.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
11.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
13.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
14.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic TZ100	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

Both the G5X and the T Typ 701 have been discontinued, but can regularly be found used on ebay. The T Typ 701 was replaced by the Leica TL, while the G5X was followed by the Canon G5 X Mark II. Further information on the features and operation of the G5X and T Typ 701 can be found, respectively, in the Canon G5 X Manual (free pdf) or the online Leica T Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon G5 X and the Leica T? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon PowerShot G5 X:

• More detail: Offers more megapixels (20 vs 16.2MP) with a 11% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (5.9 vs 5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has a lens built-in, whereas the T Typ 701 requires a separate lens.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the T Typ 701).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Is somewhat more recent (announced 1 year and 5 months after the T Typ 701).

Advantages of the Leica T (Typ 701):

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (13 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.6 bits more color depth).
• Better low-light sensitivity: Can shoot in dim conditions (1.2 stops ISO advantage).
• Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 1040k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (400 versus 210) out of a single battery charge.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been on the market for longer (launched in April 2014).

If the number of relative strengths (bullet points above) is taken as a guide, the G5X is the clear winner of the match-up (15 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G5 X and the Leica T place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the G5X and the T Typ 701 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
2.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	US$ 1 849	ebay.com
3.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
4.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	US$ 899	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
7.		Canon G7 X Mark III	..	+ +	4/5	81/100	4/5	..	Jul 2019	US$ 749	amazon.com
8.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
9.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
10.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
11.		Leica TL	..	..	..	..	..	4/5	Nov 2016	US$ 1 695	ebay.com
12.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	US$ 1 949	ebay.com
13.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
14.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
15.		Panasonic TZ100	4.5/5	+ +	..	82/100	4.5/5	4.5/5	Jan 2016	US$ 699	ebay.com
16.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
17.		Sony RX100 V	4.5/5	+ +	..	83/100	4/5	4.5/5	Oct 2016	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
