Canon G5 X Mark II vs Pentax MX-1
The Canon PowerShot G5 X Mark II and the Pentax MX-1 are two digital cameras that were announced, respectively, in July 2019 and January 2013. Both the G5X Mark II and the MX-1 are fixed lens compact cameras that are based on an one-inch (G5X Mark II) and a 1/1.7-inch (MX-1) sensor. The Canon has a resolution of 20 megapixels, whereas the Pentax provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G5 X Mark II and the Pentax MX-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

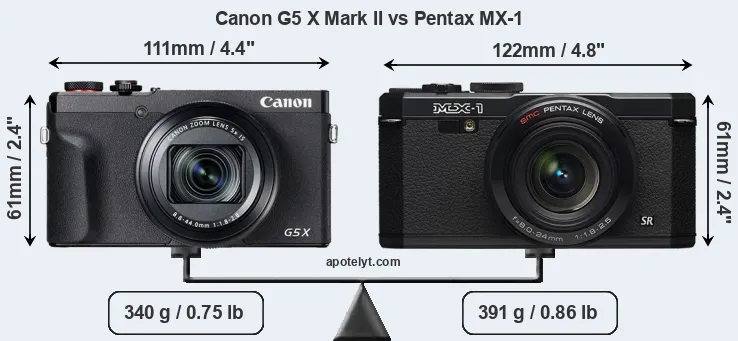

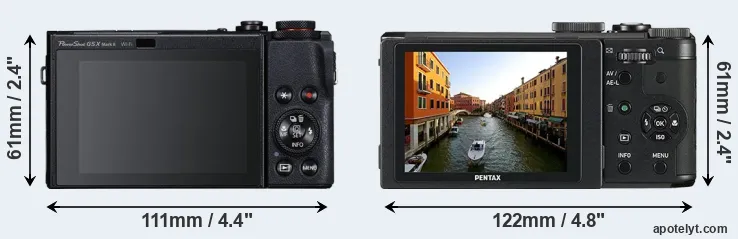

The side-by-side display below illustrates the physical size and weight of the Canon G5 X Mark II and the Pentax MX-1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax MX-1 is notably larger (10 percent) than the Canon G5 X Mark II. Moreover, the MX-1 is markedly heavier (15 percent) than the G5X Mark II. In this context, it is worth noting that neither the G5X Mark II nor the MX-1 are weather-sealed.
The power pack in the G5X Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon G5 X Mark II||111 mm||61 mm||46 mm||340 g||230||n||Jul 2019||899|
|2.||Pentax MX-1||122 mm||61 mm||51 mm||391 g||290||n||Jan 2013||499|
|3.||Canon G7 X Mark III||105 mm||61 mm||41 mm||304 g||235||n||Jul 2019||749|
|4.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779|
|5.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399|
|6.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|7.||Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799|
|8.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|9.||Canon G15||107 mm||76 mm||40 mm||352 g||350||n||Sep 2012||499|
|10.||Leica C-LUX||113 mm||67 mm||46 mm||340 g||370||n||Jun 2018||1,049|
|11.||Nikon P7800||119 mm||78 mm||50 mm||399 g||350||n||Sep 2013||549|
|12.||Olympus XZ-2||113 mm||65 mm||48 mm||346 g||340||n||Sep 2012||599|
|13.||Panasonic LX100 II||115 mm||66 mm||65 mm||392 g||300||n||Aug 2018||999|
|14.||Panasonic ZS200||111 mm||65 mm||45 mm||340 g||370||n||Feb 2018||799|
|15.||Panasonic LF1||103 mm||62 mm||28 mm||192 g||250||n||Apr 2013||499|
|16.||Sony ZV-1||105 mm||60 mm||44 mm||294 g||260||n||May 2020||799|
|17.||Sony RX100 VI||102 mm||58 mm||43 mm||301 g||240||n||Jun 2018||1,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The MX-1 was launched at a markedly lower price (by 44 percent) than the G5X Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

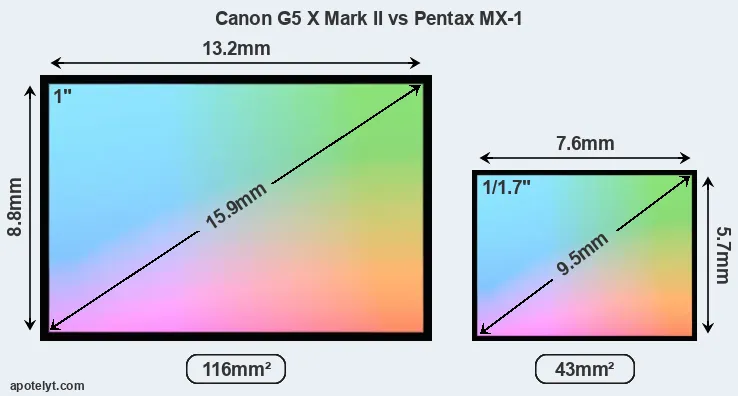

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon G5 X Mark II features an one-inch sensor and the Pentax MX-1 a 1/1.7-inch sensor. The sensor area in the MX-1 is 63 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 4.5. The sensor in the G5X Mark II has a native 3:2 aspect ratio, while the one in the MX-1 offers a 4:3 aspect.

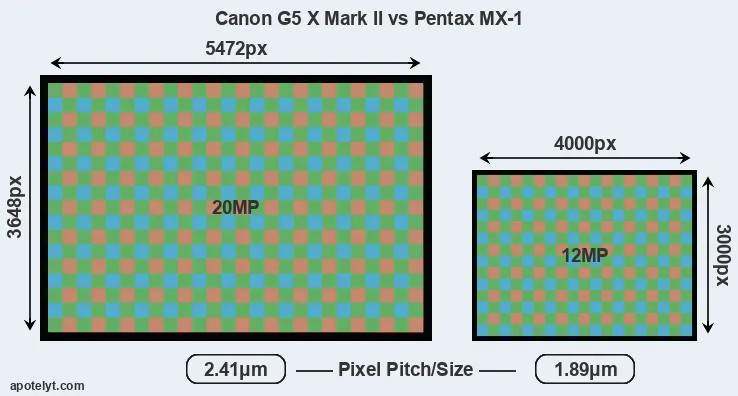

With 20MP, the G5X Mark II offers a higher resolution than the MX-1 (12MP), but the G5X Mark II nevertheless has larger individual pixels (pixel pitch of 2.41μm versus 1.89μm for the MX-1) due to its larger sensor. Moreover, the G5X Mark II is a much more recent model (by 6 years and 6 months) than the MX-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon G5 X Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5X Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Canon PowerShot G5 X Mark II has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Pentax MX-1 are ISO 100 to ISO 12800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Canon G5 X Mark II||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|3.||Canon G7 X Mark III||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|6.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|7.||Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|13.||Panasonic LX100 II||Four Thirds||16.8||4736||3552||4K/30p||..||..||..||..|
|17.||Sony RX100 VI||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the G5X Mark II provides a higher video resolution than the MX-1. It can shoot video footage at 4K/30p, while the Pentax is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the G5X Mark II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the MX-1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon G5 X Mark II, the Pentax MX-1, and comparable cameras.
|1.||Canon G5 X Mark II||2360||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y|
|3.||Canon G7 X Mark III||none||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y|
|6.||Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|7.||Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y|
|13.||Panasonic LX100 II||2764||n||3.0||1240||fixed||Y||1/4000s||11.0||n||Y|
|17.||Sony RX100 VI||2359||n||3.0||1229||tilting||Y||1/2000s||24.0||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G5X Mark II has a touchscreen, while the MX-1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The G5X Mark II has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the MX-1 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the G5X Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon G5 X Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Both the G5X Mark II and the MX-1 have zoom lenses built in. The G5X Mark II has a 24-120mm f/1.8-2.8 optic and the MX-1 offers a 28-112mm f/1.8-2.5 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Pentax. Both cameras offer the same maximum aperture.
Concerning the storage of imaging data, both the G5X Mark II and the MX-1 write their files to SDXC cards. The G5X Mark II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the MX-1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G5 X Mark II and Pentax MX-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon G5 X Mark II||-||stereo||mono||-||-||micro||3.1||Y||-||Y|
|3.||Canon G7 X Mark III||-||stereo||mono||Y||-||micro||3.1||Y||-||Y|
|6.||Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|7.||Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|13.||Panasonic LX100 II||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|17.||Sony RX100 VI||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
It is notable that the G5X Mark II offers wifi support, while the MX-1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The G5X Mark II is a recent model that features in the current product line-up of Canon. In contrast, the MX-1 has been discontinued (but can be found pre-owned on eBay). There has not been a direct replacement model for the MX-1 from Pentax. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what is the bottom line? Is the Canon G5 X Mark II better than the Pentax MX-1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon PowerShot G5 X Mark II:
- More detail: Offers more megapixels (20 vs 12MP) with a 32% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (30 vs 1 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
- More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
- Less heavy: Is lighter (by 51g or 13 percent) and hence easier to carry around.
- Easier travel charging: Can be conveniently charged via its USB port.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 6 years and 6 months of technical progress since the MX-1 launch.
Reasons to prefer the Pentax MX-1:
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Longer lasting: Gets more shots (290 versus 230) out of a single battery charge.
- More affordable: Was introduced into a lower priced category (44 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in January 2013).
If the number of relative strengths (bullet points above) is taken as a guide, the G5X Mark II is the clear winner of the match-up (22 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon G5 X Mark II and the Pentax MX-1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the G5X Mark II or the MX-1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon G5 X Mark II||4/5||+||82/100||..||4/5||Jul 2019||899|
|2.||Pentax MX-1||3/5||..||74/100||4/5||4/5||Jan 2013||499|
|3.||Canon G7 X Mark III||..||+ +||81/100||4/5||..||Jul 2019||749|
|4.||Canon M50||..||+||79/100||..||3.5/5||Feb 2018||779|
|5.||Canon SX740||..||+||..||4/5||4/5||Jul 2018||399|
|6.||Canon G7 X Mark II||4.5/5||+ +||81/100||4.5/5||4.5/5||Feb 2016||699|
|7.||Canon G5 X||5/5||+ +||78/100||4.5/5||4.5/5||Oct 2015||799|
|8.||Canon G16||4/5||+||..||4.5/5||4.5/5||Aug 2013||549|
|9.||Canon G15||4/5||+||76/100||4.5/5||4.5/5||Sep 2012||499|
|10.||Leica C-LUX||..||..||..||4.5/5||4/5||Jun 2018||1,049|
|11.||Nikon P7800||3/5||..||..||4/5||4.5/5||Sep 2013||549|
|12.||Olympus XZ-2||4/5||+||..||4.5/5||4.5/5||Sep 2012||599|
|13.||Panasonic LX100 II||4.5/5||+||82/100||4.5/5||4.5/5||Aug 2018||999|
|14.||Panasonic ZS200||..||+ +||81/100||4.5/5||4.5/5||Feb 2018||799|
|15.||Panasonic LF1||3/5||+||..||4/5||4.5/5||Apr 2013||499|
|16.||Sony ZV-1||4/5||..||85/100||4/5||4.5/5||May 2020||799|
|17.||Sony RX100 VI||4.5/5||+ +||83/100||4/5||4.5/5||Jun 2018||1,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon G5 X Mark II vs Pentax MX-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon G5 X Mark II||Pentax MX-1|
|Camera Type||Fixed lens compact camera||Fixed lens compact camera|
|Camera Lens||24-120mm f/1.8-2.8||28-112mm f/1.8-2.5|
|Launch Date||July 2019||January 2013|
|Launch Price||USD 899||USD 499|
|Sensor Specs||Canon G5 X Mark II||Pentax MX-1|
|Sensor Format||1" Sensor||1/1.7" Sensor|
|Sensor Size||13.2 x 8.8 mm||7.6 x 5.7 mm|
|Sensor Area||116.16 mm2||43.32 mm2|
|Sensor Diagonal||15.9 mm||9.5 mm|
|Sensor Resolution||20 Megapixels||12 Megapixels|
|Image Resolution||5472 x 3648 pixels||4000 x 3000 pixels|
|Pixel Pitch||2.41 μm||1.89 μm|
|Pixel Density||17.18 MP/cm2||27.70 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/30p Video|
|ISO Setting||125 - 12,800 ISO||100 - 12,800 ISO|
|ISO Boost||125 - 25,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||..||49|
|DXO Color Depth (bits)||..||20.4|
|DXO Dynamic Range (EV)||..||11.3|
|DXO Low Light (ISO)||..||208|
|Screen Specs||Canon G5 X Mark II||Pentax MX-1|
|Viewfinder Type||Electronic viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon G5 X Mark II||Pentax MX-1|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||30 shutter flaps/s||1 shutter flaps/s|
|Electronic Shutter||up to 1/25600s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon G5 X Mark II||Pentax MX-1|
|External Flash||no Hotshoe||no Hotshoe|
|USB Connector||USB 3.1||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon G5 X Mark II||Pentax MX-1|
|Battery Life (CIPA)||230 shots per charge||290 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
111 x 61 x 46 mm
(4.4 x 2.4 x 1.8 in)
122 x 61 x 51 mm
(4.8 x 2.4 x 2.0 in)
|Camera Weight||340 g (12.0 oz)||391 g (13.8 oz)|
