Canon G5 X Mark II vs XTi

The Canon PowerShot G5 X Mark II and the Canon EOS Rebel XTi (labelled Canon 400D in some countries) are two digital cameras that were officially introduced, respectively, in July 2019 and August 2006. The G5X Mark II is a fixed lens compact, while the XTi is a DSLR. The cameras are based on an one-inch (G5X Mark II) and an APS-C (XTi) sensor. The G5X Mark II has a resolution of 20 megapixels, whereas the XTi provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon G5 X Mark II   VS Canon XTi
Canon G5 X Mark II Canon XTi
Fixed lens compact camera Digital single lens reflex
24-120mm f/1.8-2.8 Canon EF mount lenses
20 MP, 1" Sensor 10.1 MP, APS-C Sensor
4K/30p Video no Video
ISO 125-12800 (125-25600) ISO 100-1600
Electronic viewfinder (2360k dots) Optical viewfinder
3.0" LCD, 1040k dots 2.5" LCD, 230k dots
Tilting touchscreen Fixed screen (not touch-sensitive)
30 shutter flaps per second 3 shutter flaps per second
230 shots per battery charge370 shots per battery charge
111 x 61 x 46 mm, 340 g 127 x 84 x 65 mm, 556 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G5 X Mark II and the Canon EOS Rebel XTi? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon G5 X Mark II and the Canon XTi is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

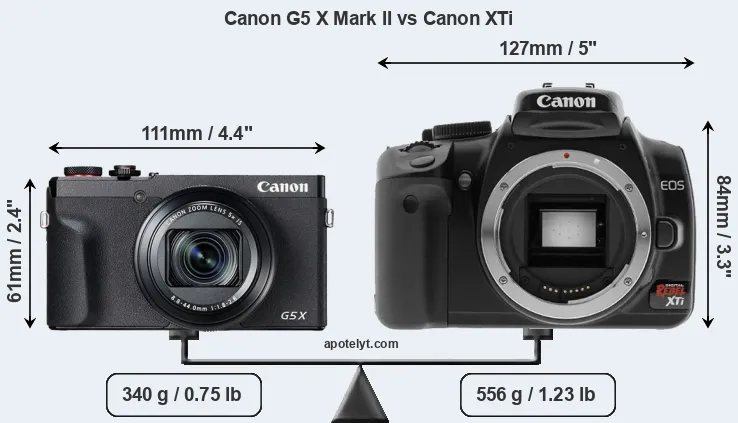

Size Canon G5 X Mark II vs Canon XTi

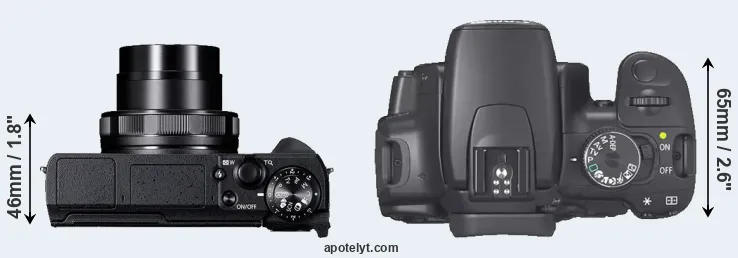

Compare G5X Mark II versus XTi top

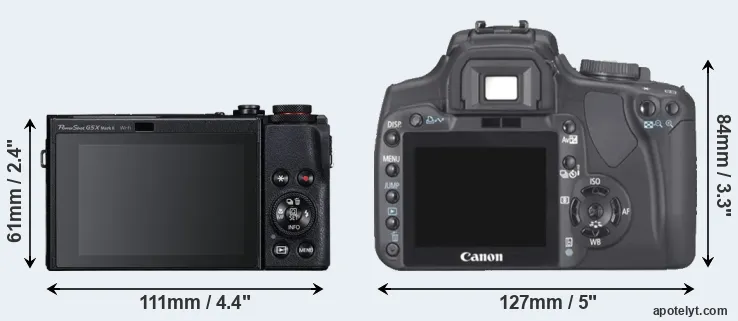

Comparison G5X Mark II or XTi rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XTi is considerably larger (58 percent) than the Canon G5 X Mark II. In this context, it is worth noting that neither the G5X Mark II nor the XTi are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G5X Mark II has a lens built in, whereas the XTi is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the XTi and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the G5X Mark II gets 230 shots out of its NB-13L battery, while the XTi can take 370 images on a single charge of its NB-2LH power pack. The power pack in the G5X Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Camera
Model

Canon G5 X Mark II» 4.4 in 2.4 in 1.8 in 12.0 oz 230 n Jul 2019 899 iCanon G5 X Mark II

Canon XTi« 5.0 in 3.3 in 2.6 in 19.6 oz 370 n Aug 2006 799iCanon XTi

Canon G7 X Mark III« » 4.1 in 2.4 in 1.6 in 10.7 oz 235 n Jul 2019 749 iCanon G7 X Mark III

Canon M50« » 4.6 in 3.5 in 2.3 in 13.8 oz 235 n Feb 2018 779 iCanon M50

Canon SX740« » 4.3 in 2.5 in 1.6 in 10.5 oz 265 n Jul 2018 399 iCanon SX740

Canon G7 X Mark II« » 4.2 in 2.4 in 1.7 in 11.3 oz 265 n Feb 2016 699iCanon G7 X Mark II

Canon G5 X« » 4.4 in 3.0 in 1.7 in 12.5 oz 210 n Oct 2015 799iCanon G5 X

Canon T6i« » 5.2 in 4.0 in 3.1 in 19.6 oz 440 n Feb 2015 749iCanon T6i

Canon T6s« » 5.2 in 4.0 in 3.1 in 19.9 oz 440 n Feb 2015 649iCanon T6s

Canon XSi« » 5.1 in 3.9 in 2.4 in 18.5 oz 500 n Jan 2008 799iCanon XSi

Canon XT« » 5.0 in 3.7 in 2.5 in 19.0 oz 400 n Feb 2005 899iCanon XT

Canon Rebel« » 5.6 in 3.9 in 2.8 in 22.9 oz 400 n Aug 2003 899iCanon Rebel

Leica C-LUX« » 4.4 in 2.6 in 1.8 in 12.0 oz 370 n Jun 2018 1,049 iLeica C-LUX

Panasonic FZ1000 II« » 5.4 in 3.8 in 5.2 in 28.6 oz 350 n Feb 2019 899 iPanasonic FZ1000 II

Panasonic LX100 II« » 4.5 in 2.6 in 2.6 in 13.8 oz 300 n Aug 2018 999 iPanasonic LX100 II

Panasonic ZS200« » 4.4 in 2.6 in 1.8 in 12.0 oz 370 n Feb 2018 799 iPanasonic ZS200

Sony RX100 VI« » 4.0 in 2.3 in 1.7 in 10.6 oz 240 n Jun 2018 1,199iSony RX100 VI
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G5 X Mark II features an one-inch sensor and the Canon XTi an APS-C sensor. The sensor area in the XTi is 184 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the G5X Mark II uses a more advanced image processing engine (DIGIC 8) than the XTi (DIGIC II), with benefits for noise reduction, color accuracy, and processing speed.

Canon G5 X Mark II and Canon XTi sensor measures

Despite having a smaller sensor, the Canon G5 X Mark II offers a higher resolution of 20 megapixels, compared with 10.1 MP of the Canon XTi. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 5.71μm for the XTi). However, it should be noted that the G5X Mark II is much more recent (by 12 years and 10 months) than the XTi, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon G5 X Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5X Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inch or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inch or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inch or 46.3 x 30.9 cm. The corresponding values for the Canon XTi are 19.4 x 13 inch or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inch or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inch or 32.9 x 21.9 cm for excellent quality prints.

The Canon PowerShot G5 X Mark II has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Canon EOS Rebel XTi are ISO 100 to ISO 1600 (no boost).

G5X Mark II versus XTi MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon G5 X Mark II 1-inch 20.0 5472 36484K/30p........Canon G5 X Mark II

Canon XTi APS-C 10.1 3888 2592none22.111.066462Canon XTi

Canon G7 X Mark III 1-inch 20.0 5472 36484K/30p........Canon G7 X Mark III

Canon M50 APS-C 24.0 6000 40004K/24p........Canon M50

Canon SX740 1/2.3 20.2 5184 38884K/30p........Canon SX740

Canon G7 X Mark II 1-inch 20.0 5472 36481080/60p........Canon G7 X Mark II

Canon G5 X 1-inch 20.0 5472 36481080/60p........Canon G5 X

Canon T6i APS-C 24.0 6000 40001080/30p22.712.091971Canon T6i

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570Canon T6s

Canon XSi APS-C 12.2 4272 2848none21.910.869261Canon XSi

Canon XT APS-C 8.0 3456 2304none21.810.863760Canon XT

Canon Rebel APS-C 6.3 3072 2048none21.010.854455Canon Rebel

Leica C-LUX 1-inch 20.0 5472 36484K/30p........Leica C-LUX

Panasonic FZ1000 II 1-inch 20.0 5472 36484K/30p........Panasonic FZ1000 II

Panasonic LX100 II Four Thirds 16.8 4736 35524K/30p........Panasonic LX100 II

Panasonic ZS200 1-inch 20.0 5472 36484K/30p........Panasonic ZS200

Sony RX100 VI 1-inch 20.0 5472 36484K/30p........Sony RX100 VI

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The G5X Mark II indeed provides movie recording capabilities, while the XTi does not. The highest resolution format that the G5X Mark II can use is 4K/30p.



Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the G5X Mark II has an electronic viewfinder (2360k dots), while the XTi has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon G5 X Mark II and Canon XTi along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon G5 X Mark II2360 n 3.0 1040 tilting Y 1/2000s 30 Y Y Canon G5 X Mark II

Canon XTioptical n 2.5 230 fixed n 1/4000s 3.0 Y n Canon XTi

Canon G7 X Mark IIInone n 3.0 1040 tilting Y 1/2000s 30 Y Y Canon G7 X Mark III

Canon M502360 n 3.0 1040 swivel Y 1/4000s 10.0 Y n Canon M50

Canon SX740none n 3.0 922 tilting n 1/3200s 10.0 Y Y Canon SX740

Canon G7 X Mark IInone n 3.0 1040 tilting Y 1/2000s 8.0 Y Y Canon G7 X Mark II

Canon G5 X2360 n 3.0 1040 swivel Y 1/2000s 5.9 Y Y Canon G5 X

Canon T6ioptical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon T6i

Canon T6soptical Y 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon T6s

Canon XSioptical n 3.0 230 fixed n 1/4000s 3.5 Y n Canon XSi

Canon XToptical n 1.8 115 fixed n 1/4000s 3.0 Y n Canon XT

Canon Rebeloptical n 1.8 118 fixed n 1/4000s 2.5 Y n Canon Rebel

Leica C-LUX2330 n 3.0 1240 fixed Y 1/2000s 10.0 Y Y Leica C-LUX

Panasonic FZ1000 II2360 n 3.0 1240 swivel Y 1/4000s 12.0 Y Y Panasonic FZ1000 II

Panasonic LX100 II2764 n 3.0 1240 fixed Y 1/4000s 11.0 n Y Panasonic LX100 II

Panasonic ZS2002330 n 3.0 1240 fixed Y 1/2000s 10.0 Y Y Panasonic ZS200

Sony RX100 VI2359 n 3.0 1229 tilting Y 1/2000s 24.0 Y Y Sony RX100 VI

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G5X Mark II has a touchscreen, while the XTi has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The G5X Mark II has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the XTi does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the G5X Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon G5 X Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The G5X Mark II writes its imaging data to SDXC cards, while the XTi uses Compact Flash cards.



Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G5 X Mark II and Canon EOS Rebel XTi and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon G5 X Mark II-stereomono--micro3.1Y-YCanon G5 X Mark II

Canon XTiYnonenone--none2.0---Canon XTi

Canon G7 X Mark III-stereomonoY-micro3.1Y-YCanon G7 X Mark III

Canon M50YstereomonoY-micro2.0YYYCanon M50

Canon SX740-stereomono--micro2.0YYYCanon SX740

Canon G7 X Mark II-stereomono--micro2.0YY-Canon G7 X Mark II

Canon G5 XYstereomono--mini2.0YY-Canon G5 X

Canon T6iYstereomonoY-mini2.0YY-Canon T6i

Canon T6sYstereomonoY-mini2.0YY-Canon T6s

Canon XSiYnonenone--mini2.0---Canon XSi

Canon XTYnonenone--none2.0---Canon XT

Canon RebelYnonenone--none1.1---Canon Rebel

Leica C-LUX-stereomono--micro2.0Y--Leica C-LUX

Panasonic FZ1000 IIYstereomonoY-micro2.0Y-YPanasonic FZ1000 II

Panasonic LX100 IIYstereomono--micro2.0Y-YPanasonic LX100 II

Panasonic ZS200-stereomono--micro2.0Y-YPanasonic ZS200

Sony RX100 VI-stereomono--micro2.0YYYSony RX100 VI

It is notable that the G5X Mark II offers wifi support, while the XTi does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The G5X Mark II is a recent model that features in the current product line-up of Canon. In contrast, the XTi has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the XTi was succeeded by the Canon Xsi. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what is the bottom line? Is the Canon G5 X Mark II better than the Canon XTi or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Arguments in favor of the Canon PowerShot G5 X Mark II:

  • More detail: Offers more megapixels (20 vs 10.1MP) with a 41% higher linear resolution.
  • Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC II).
  • Broader imaging potential: Can record not only still images but also 4K/30p movies.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (30 vs 3 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Ready to shoot: Comes with a built-in lens, while the XTi requires a separate lens.
  • More compact: Is smaller (111x61mm vs 127x84mm) and thus needs less room in the bag.
  • Less heavy: Is lighter even though it comes with a built-in lens (unlike the XTi).
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More modern: Reflects 12 years and 10 months of technical progress since the XTi launch.


Advantages of the Canon EOS Rebel XTi:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
  • More flexible: Makes it possible to change lenses and thus to use specialty optics.
  • Longer lasting: Gets more shots (370 versus 230) out of a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • More heavily discounted: Has been around for much longer (launched in August 2006).

If the count of individual advantages (bullet points above) is taken as a guide, the G5X Mark II is the clear winner of the match-up (20 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

G5X Mark II 20:06 XTi

How about other alternatives? Do the specifications of the Canon G5 X Mark II and the Canon XTi place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the G5X Mark II or the XTi perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cam
era
  labs
dp
re
  view
e
  zine
ima
ging
resource
graphy
  blog
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Camera
Model

Canon G5 X Mark II+82/100....4/5 Jul 2019 899 iCanon G5 X Mark II

Canon XTi+ ++ +o4.5/54/5 Aug 2006 799iCanon XTi

Canon G7 X Mark III+ +81/1004/5.... Jul 2019 749 iCanon G7 X Mark III

Canon M50+79/100..4/53.5/5 Feb 2018 779 iCanon M50

Canon SX740+..4/5..4/5 Jul 2018 399 iCanon SX740

Canon G7 X Mark II+ +81/1004.5/54/54.5/5 Feb 2016 699iCanon G7 X Mark II

Canon G5 X+ +78/1004.5/54/54.5/5 Oct 2015 799iCanon G5 X

Canon T6i..75/1004.5/54.5/54.5/5 Feb 2015 749iCanon T6i

Canon T6s+77/1004.5/54.5/54.5/5 Feb 2015 649iCanon T6s

Canon XSi+ ++ +4/55/54.5/5 Jan 2008 799iCanon XSi

Canon XT80/100+ +oo.. Feb 2005 899iCanon XT

Canon Rebel..+ +..o.. Aug 2003 899iCanon Rebel

Leica C-LUX....4.5/5..4/5 Jun 2018 1,049 iLeica C-LUX

Panasonic FZ1000 II....4.5/5..4.5/5 Feb 2019 899 iPanasonic FZ1000 II

Panasonic LX100 II+82/1004.5/54.5/54.5/5 Aug 2018 999 iPanasonic LX100 II

Panasonic ZS200+ +81/1004.5/5..4.5/5 Feb 2018 799 iPanasonic ZS200

Sony RX100 VI+ +83/1004/5..4.5/5 Jun 2018 1,199iSony RX100 VI
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Canon G5 X Mark II:
Check Amazon price
Canon XTi:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

    Specifications: Canon G5 X Mark II vs Canon XTi

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon G5 X Mark II Canon XTi
    Camera Type Fixed lens compact camera Digital single lens reflex
    Camera Lens 24-120mm f/1.8-2.8 Canon EF mount lenses
    Launch Date July 2019 August 2006
    Launch Price USD 899 USD 799
    Sensor Specs Canon G5 X Mark II Canon XTi
    Sensor Technology BSI-CMOS CMOS
    Sensor Format 1" Sensor APS-C Sensor
    Sensor Size 13.2 x 8.8 mm 22.2 x 14.8 mm
    Sensor Area 116.16 mm2 328.56 mm2
    Sensor Diagonal 15.9 mm 26.7 mm
    Crop Factor 2.7x 1.6x
    Sensor Resolution 20 Megapixels 10.1 Megapixels
    Image Resolution 5472 x 3648 pixels 3888 x 2592 pixels
    Pixel Pitch 2.41 μm 5.71 μm
    Pixel Density 17.18 MP/cm2 3.07 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 4K/30p Video no Video
    ISO Setting 125-12800 ISO 100-1600 ISO
    ISO Boost 125-25600 ISO no Enhancement
    Image Processor DIGIC 8 DIGIC II
    DXO Sensor Quality (score) .. 62
    DXO Color Depth (bits) .. 22.1
    DXO Dynamic Range (EV) .. 11.0
    DXO Low Light (ISO) .. 664
    Screen Specs Canon G5 X Mark II Canon XTi
    Viewfinder Type Electronic viewfinder Optical viewfinder
    Viewfinder Field of View 100% 95%
    Viewfinder Magnification ..x 0.49x
    Viewfinder Resolution 2360k dots
    LCD Framing Live View
    Rear LCD Size 3.0 inch 2.5 inch
    LCD Resolution 1040k dots 230k dots
    LCD Attachment Tilting screen Fixed screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Canon G5 X Mark II Canon XTi
    Autofocus System Contrast-detect AF Phase-detect AF
    Manual Focusing AidFocus PeakingNo Peaking Feature
    Continuous Shooting 30 shutter flaps/s 3 shutter flaps/s
    Electronic Shutterup to 1/25600sno E-Shutter
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards CF cards
    Second Storage Option Single card slot Single card slot
    Connectivity Specs Canon G5 X Mark II Canon XTi
    External Flash no Hotshoe Hotshoe
    USB Connector USB 3.1 USB 2.0
    HDMI Port micro HDMI no HDMI
    Wifi Support Wifi built-in no Wifi
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon G5 X Mark II Canon XTi
    Battery Type NB-13L NB-2LH
    Battery Life (CIPA)230 shots per charge370 shots per charge
    In-Camera Charging USB charging no USB charging
    Body Dimensions 111 x 61 x 46 mm
    (4.4 x 2.4 x 1.8 in)
    127 x 84 x 65 mm
    (5.0 x 3.3 x 2.6 in)
    Camera Weight 340 g (12.0 oz) 556 g (19.6 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon G5 X Mark II vs Canon XTi
