Canon G1 X Mark III vs G5X
The Canon PowerShot G1 X Mark III and the Canon PowerShot G5 X are two digital cameras that were revealed to the public, respectively, in October 2017 and October 2015. Both the G1X Mark III and the G5X are fixed lens compact cameras that are based on an APS-C (G1X Mark III) and an one-inch (G5X) sensor. The G1X Mark III has a resolution of 24 megapixels, whereas the G5X provides 20 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon G1 X Mark III||Canon G5 X|
|Fixed lens compact camera||Fixed lens compact camera|
|24-72mm f/2.8-5.6||24-100mm f/1.8-2.8|
|24 MP, APS-C Sensor||20 MP, 1" Sensor|
|1080/60p Video||1080/60p Video|
|ISO 100-25600||ISO 125-12800 (125-25600)|
|Electronic viewfinder (2360k dots)||Electronic viewfinder (2360k dots)|
|3.0" LCD, 1040k dots||3.0" LCD, 1040k dots|
|Swivel touchscreen||Swivel touchscreen|
|9 shutter flaps per second||5.9 shutter flaps per second|
|Weathersealed body||Not weather sealed|
|200 shots per battery charge||210 shots per battery charge|
|115 x 78 x 51 mm, 399 g||112 x 76 x 44 mm, 353 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G1 X Mark III and the Canon PowerShot G5 X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

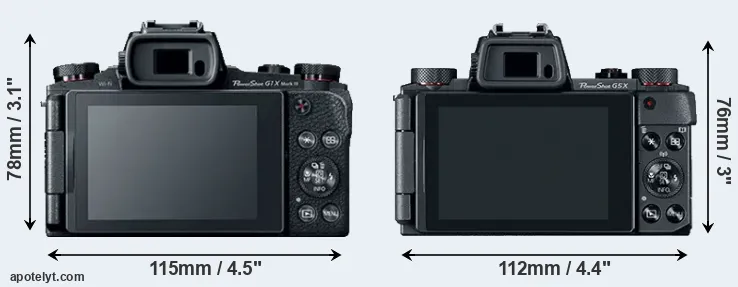

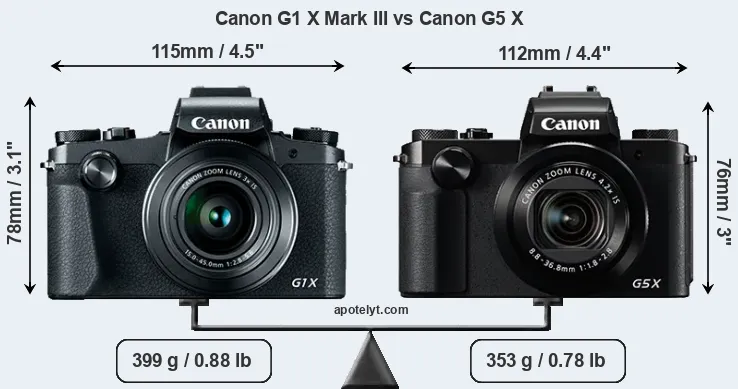

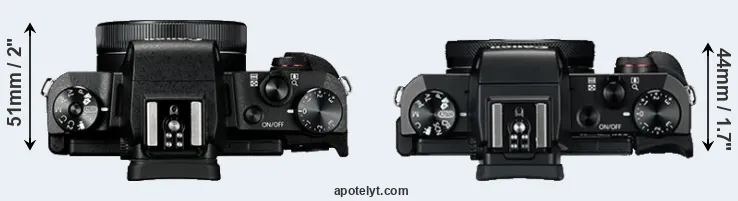

The side-by-side display below illustrates the physical size and weight of the Canon G1 X Mark III and the Canon G5 X. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon G5 X is notably smaller (5 percent) than the Canon G1 X Mark III. Moreover, the G5X is markedly lighter (12 percent) than the G1X Mark III. It is worth mentioning in this context that the G1X Mark III is splash and dust resistant, while the G5X does not feature any corresponding weather-sealing.
The power pack in the G5X can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon G1 X Mark III»||115 mm||78 mm||51 mm||399 g||200||Y||Oct 2017||1,299||Canon G1 X Mark III|
|Canon G5 X«||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799||Canon G5 X|
|Canon G5 X Mark II« »||111 mm||61 mm||46 mm||340 g||230||n||Jul 2019||899||Canon G5 X Mark II|
|Canon M50« »||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779||Canon M50|
|Canon 6D Mark II« »||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Canon 200D« »||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||Canon 200D|
|Canon G9 X Mark II« »||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529||Canon G9 X Mark II|
|Canon 80D« »||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||Canon 80D|
|Canon G7 X Mark II« »||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699||Canon G7 X Mark II|
|Canon SX540« »||120 mm||82 mm||92 mm||442 g||205||n||Jan 2016||399||Canon SX540|
|Canon M3« »||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||Canon M3|
|Canon G7 X« »||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||Canon G7 X|
|Fujifilm X100V« »||128 mm||75 mm||53 mm||478 g||420||Y||Feb 2020||1,399||Fujifilm X100V|
|Fujifilm X100F« »||127 mm||75 mm||52 mm||469 g||390||n||Jan 2017||1,299||Fujifilm X100F|
|Nikon D7500« »||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299||Nikon D7500|
|Sony RX10 III« »||133 mm||94 mm||127 mm||1051 g||420||Y||Mar 2016||1,499||Sony RX10 III|
|Sony RX100 III« »||102 mm||58 mm||41 mm||290 g||320||n||May 2014||799||Sony RX100 III|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G5X was launched at a markedly lower price (by 38 percent) than the G1X Mark III, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

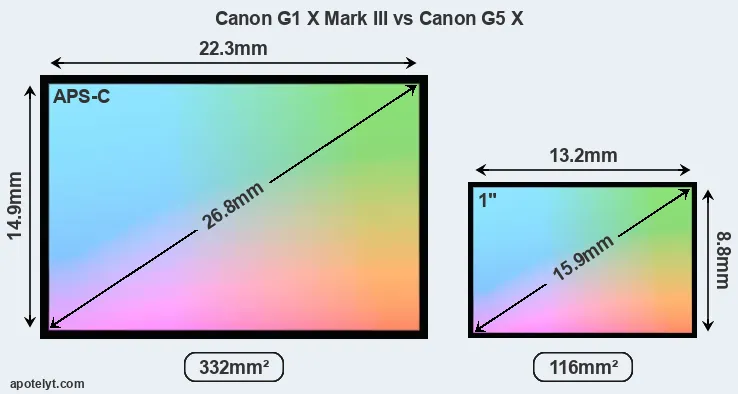

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon G1 X Mark III features an APS-C sensor and the Canon G5 X an one-inch sensor. The sensor area in the G5X is 65 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the G1X Mark III uses a more advanced image processing engine (DIGIC 7) than the G5X (DIGIC 6), with benefits for noise reduction, color accuracy, and processing speed.

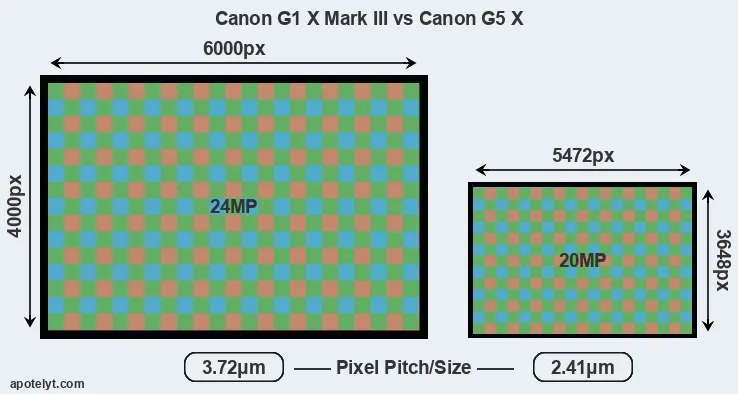

With 24MP, the G1X Mark III offers a higher resolution than the G5X (20MP), but the G1X Mark III nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 2.41μm for the G5X) due to its larger sensor. Moreover, the G1X Mark III is a much more recent model (by 2 years) than the G5X, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon G1 X Mark III implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G1X Mark III for good quality output (200 dots per inch) amounts to 30 x 20 inch or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inch or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inch or 50.8 x 33.9 cm. The corresponding values for the Canon G5 X are 27.4 x 18.2 inch or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inch or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inch or 46.3 x 30.9 cm for excellent quality prints.
The G1X Mark III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon PowerShot G1 X Mark III has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Canon PowerShot G5 X are ISO 125 to ISO 12800, with the possibility to increase the ISO range to 125-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon G1 X Mark III||APS-C||24.0||6000||4000||1080/60p||..||..||..||..||Canon G1 X Mark III|
|Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..||Canon G5 X|
|Canon G5 X Mark II||1-inch||20.0||5472||3648||4K/30p||..||..||..||..||Canon G5 X Mark II|
|Canon M50||APS-C||24.0||6000||4000||4K/24p||..||..||..||..||Canon M50|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Canon 200D||APS-C||24.0||6000||4000||1080/60p||23.6||13.4||1041||79||Canon 200D|
|Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65||Canon G9 X Mark II|
|Canon 80D||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79||Canon 80D|
|Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..||Canon G7 X Mark II|
|Canon SX540||1/2.3||20.2||5184||3888||1080/60p||..||..||..||..||Canon SX540|
|Canon M3||APS-C||24.0||6000||4000||1080/30p||22.8||11.8||1169||72||Canon M3|
|Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71||Canon G7 X|
|Fujifilm X100V||APS-C||26.0||6240||4160||4K/30p||..||..||..||..||Fujifilm X100V|
|Fujifilm X100F||APS-C||24.0||6000||4000||1080/60p||..||..||..||..||Fujifilm X100F|
|Nikon D7500||APS-C||20.7||5568||3712||4K/30p||24.3||14.0||1483||86||Nikon D7500|
|Sony RX10 III||1-inch||20.0||5472||3648||4K/30p||23.1||12.6||472||70||Sony RX10 III|
|Sony RX100 III||1-inch||20.0||5472||3648||1080/60p||22.4||12.3||495||67||Sony RX100 III|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).
Apart from body and sensor, cameras can and do differ across a variety of features. The G1X Mark III and the G5X are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The table below summarizes some of the other core capabilities of the Canon G1 X Mark III and Canon G5 X in connection with corresponding information for a sample of similar cameras.
|Canon G1 X Mark III||2360||n||3.0||1040||swivel||Y||1/2000s||9.0||Y||Y||Canon G1 X Mark III|
|Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y||Canon G5 X|
|Canon G5 X Mark II||2360||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y||Canon G5 X Mark II|
|Canon M50||2360||n||3.0||1040||swivel||Y||1/4000s||10.0||Y||n||Canon M50|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Canon 200D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 200D|
|Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y||Canon G9 X Mark II|
|Canon 80D||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 80D|
|Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y||Canon G7 X Mark II|
|Canon SX540||none||n||3.0||461||fixed||n||1/2000s||5.9||Y||Y||Canon SX540|
|Canon M3||optional||n||3.0||1040||tilting||Y||1/4000s||4.2||Y||n||Canon M3|
|Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y||Canon G7 X|
|Fujifilm X100V||3690||n||3.0||1620||tilting||Y||1/4000s||11.0||Y||n||Fujifilm X100V|
|Fujifilm X100F||2360||n||3.0||1040||fixed||n||1/4000s||8.0||Y||n||Fujifilm X100F|
|Nikon D7500||optical||Y||3.2||922||tilting||Y||1/8000s||8.0||Y||n||Nikon D7500|
|Sony RX10 III||2359||Y||3.0||1229||tilting||n||1/2000s||14.0||Y||Y||Sony RX10 III|
|Sony RX100 III||1440||n||3.0||1229||tilting||n||1/2000s||10.0||Y||Y||Sony RX100 III|
The Canon G1 X Mark III and the Canon G5 X both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Both the G1X Mark III and the G5X have zoom lenses built in. The G1X Mark III has a 24-72mm f/2.8-5.6 optic and the G5X offers a 24-100mm f/1.8-2.8 (focal lengths in full frame equivalent terms). Hence, the G1X Mark III and G5X provide the same view at the wide-angle end, but the G5X has more tele-photo reach at the long end. The G5X offers the faster maximum aperture.
Concerning the storage of imaging data, both the G1X Mark III and the G5X write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G1 X Mark III and Canon PowerShot G5 X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon G1 X Mark III||Y||stereo||mono||-||-||micro||2.0||Y||Y||Y||Canon G1 X Mark III|
|Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-||Canon G5 X|
|Canon G5 X Mark II||-||stereo||mono||-||-||micro||3.1||Y||-||Y||Canon G5 X Mark II|
|Canon M50||Y||stereo||mono||Y||-||micro||2.0||Y||Y||Y||Canon M50|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Canon 200D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 200D|
|Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y||Canon G9 X Mark II|
|Canon 80D||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Canon 80D|
|Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Canon G7 X Mark II|
|Canon SX540||-||stereo||mono||-||-||mini||2.0||Y||Y||-||Canon SX540|
|Canon M3||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon M3|
|Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Canon G7 X|
|Fujifilm X100V||Y||stereo||mono||Y||-||micro||3.1||Y||-||Y||Fujifilm X100V|
|Fujifilm X100F||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Fujifilm X100F|
|Nikon D7500||Y||stereo||mono||Y||Y||mini||2.0||Y||-||Y||Nikon D7500|
|Sony RX10 III||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-||Sony RX10 III|
|Sony RX100 III||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Sony RX100 III|
The G1X Mark III is a recent model that features in the current product line-up of Canon. In contrast, the G5X has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the G5X was succeeded by the Canon G5 X Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is the Canon G1 X Mark III better than the Canon G5 X or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon PowerShot G1 X Mark III:
- More detail: Offers more megapixels (24 vs 20MP) with a 10% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 6).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Faster burst: Shoots at higher frequency (9 vs 5.9 flaps/sec) to capture the decisive moment.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Reflects 2 years of technical progress since the G5X launch.
Advantages of the Canon PowerShot G5 X:
- Better light gathering: Has a lens with a wider maximum aperture (f/1.8 vs f/2.8).
- More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
- Less heavy: Has a lower weight (by 46g or 12 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More affordable: Was introduced into a lower priced category (38 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in October 2015).
If the count of relative strengths (bullet points above) is taken as a measure, the G1X Mark III is the clear winner of the match-up (11 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon G1 X Mark III and the Canon G5 X place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the G1X Mark III and the G5X in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon D30 vs Canon G5 X
- Canon G1 X Mark III vs Fujifilm X-T4
- Canon G1 X Mark III vs Nikon D5600
- Canon G1 X Mark III vs Panasonic FZ2000
- Canon G1 X Mark III vs Panasonic FZ330
- Canon G5 X Mark II vs Canon M3
- Canon G5 X Mark II vs Panasonic FZ300
- Canon G5 X vs Nikon D60
- Canon G5 X vs Olympus E-3
- Canon G5 X vs Olympus E-520
- Canon G5 X vs Panasonic TS7
- Canon G5 X vs Pentax K-3
Specifications: Canon G1 X Mark III vs Canon G5 X
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon G1 X Mark III||Canon G5 X|
|Camera Type||Fixed lens compact camera||Fixed lens compact camera|
|Camera Lens||24-72mm f/2.8-5.6||24-100mm f/1.8-2.8|
|Launch Date||October 2017||October 2015|
|Launch Price||USD 1299||USD 799|
|Sensor Specs||Canon G1 X Mark III||Canon G5 X|
|Sensor Format||APS-C Sensor||1" Sensor|
|Sensor Size||22.3 x 14.9 mm||13.2 x 8.8 mm|
|Sensor Area||332.27 mm2||116.16 mm2|
|Sensor Diagonal||26.8 mm||15.9 mm|
|Sensor Resolution||24 Megapixels||20 Megapixels|
|Image Resolution||6000 x 4000 pixels||5472 x 3648 pixels|
|Pixel Pitch||3.72 μm||2.41 μm|
|Pixel Density||7.22 MP/cm2||17.18 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/60p Video|
|ISO Setting||100-25600 ISO||125-12800 ISO|
|ISO Boost||no Enhancement||125-25600 ISO|
|Image Processor||DIGIC 7||DIGIC 6|
|Screen Specs||Canon G1 X Mark III||Canon G5 X|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Canon G1 X Mark III||Canon G5 X|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000/s||1/2000/s|
|Continuous Shooting||9 shutter flaps/s||5.9 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon G1 X Mark III||Canon G5 X|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||NFC built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon G1 X Mark III||Canon G5 X|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Life (CIPA)||200 shots per charge||210 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
115 x 78 x 51 mm
(4.5 x 3.1 x 2.0 in)
112 x 76 x 44 mm
(4.4 x 3.0 x 1.7 in)
|Camera Weight||399 g (14.1 oz)||353 g (12.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
