Canon 80D vs XSi
The Canon EOS 80D and the Canon EOS Rebel XSi (labelled Canon 450D in some countries) are two digital cameras that were officially introduced, respectively, in February 2016 and January 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 80D has a resolution of 24 megapixels, whereas the XSi provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 80D and the Canon EOS Rebel XSi? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

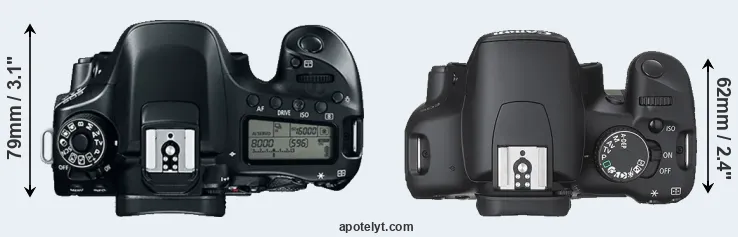

The physical size and weight of the Canon 80D and the Canon XSi are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XSi is notably smaller (13 percent) than the Canon 80D. Moreover, the XSi is markedly lighter (28 percent) than the 80D. It is worth mentioning in this context that the 80D is splash and dust resistant, while the XSi does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|2.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|3.||Canon 90D||141 mm||105 mm||77 mm||701 g||1300||Y||Aug 2019||1,199|
|4.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|5.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|6.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|7.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|8.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|9.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|10.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|11.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|12.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|13.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|14.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|15.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|16.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|17.||Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XSi was launched at a markedly lower price (by 33 percent) than the 80D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

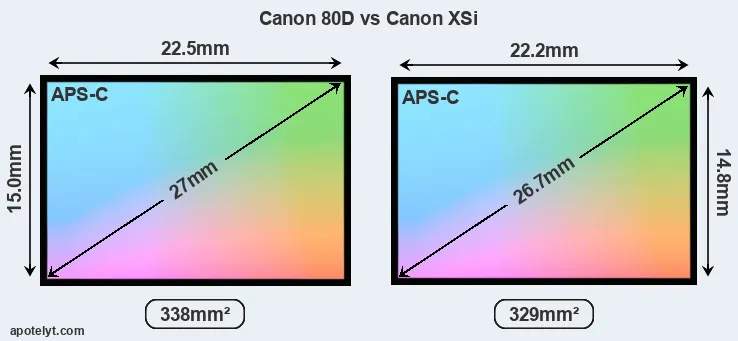

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the XSi is 3 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the 80D uses a more advanced image processing engine (DIGIC 6) than the XSi (DIGIC 3), with benefits for noise reduction, color accuracy, and processing speed.

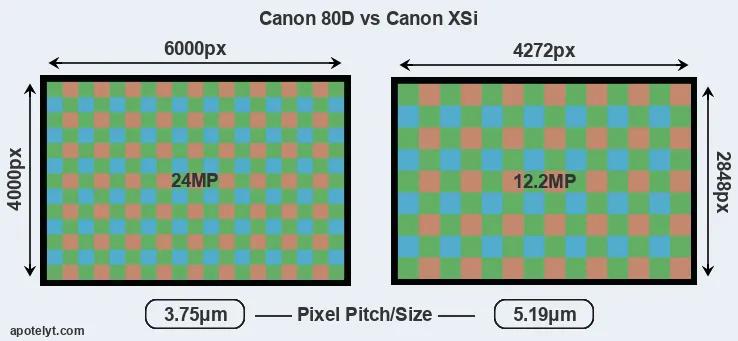

With 24MP, the 80D offers a higher resolution than the XSi (12.2MP), but the 80D has smaller individual pixels (pixel pitch of 3.75μm versus 5.19μm for the XSi). However, the 80D is a much more recent model (by 8 years) than the XSi, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 80D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 80D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon XSi are 21.4 x 14.2 inches or 54.3 x 36.2 cm for good quality, 17.1 x 11.4 inches or 43.4 x 28.9 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.1 cm for excellent quality prints.
The 80D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 80D has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS Rebel XSi are ISO 100 to ISO 1600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 80D provides substantially higher image quality than the XSi, with an overall score that is 18 points higher. This advantage is based on 1.7 bits higher color depth, 2.4 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|4.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|5.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|8.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 80D indeed provides movie recording capabilities, while the XSi does not. The highest resolution format that the 80D can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 80D and the XSi are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 80D offers a wider field of view (100%) than the one in the XSi (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 80D has a higher magnification (0.59x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 80D and Canon XSi in connection with corresponding information for a sample of similar cameras.
|1.||Canon 80D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0||Y||n|
|2.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5||Y||n|
|3.||Canon 90D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||11.0||Y||n|
|4.||Canon 6D Mark II||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.5||n||n|
|5.||Canon G3 X||optional||n||3.2 / 1620||tilting||Y||1/2000s||5.9||Y||Y|
|6.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|7.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|8.||Canon 7D II||optical||Y||3.0 / 1040||fixed||n||1/8000s||10.0||Y||n|
|9.||Canon 70D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0||Y||n|
|10.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|11.||Canon T3||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|12.||Canon 60D||optical||Y||3.0 / 1040||swivel||n||1/8000s||5.3||Y||n|
|13.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4||Y||n|
|14.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5||Y||n|
|15.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|16.||Nikon D7500||optical||Y||3.2 / 922||tilting||Y||1/8000s||8.0||Y||n|
|17.||Nikon D7200||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0||Y||n|
One feature that is present on the 80D, but is missing on the XSi is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 80D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the XSi does not have a selfie-screen.
The Canon 80D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 80D writes its imaging data to SDXC cards, while the XSi uses SDHC cards. The 80D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XSi cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and Canon EOS Rebel XSi and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 80D||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|2.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|3.||Canon 90D||Y||stereo / mono||Y||Y||mini||2.0||Y||-||Y|
|4.||Canon 6D Mark II||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon G3 X||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|6.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|7.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon 7D II||Y||stereo / mono||Y||Y||mini||3.0||-||-||-|
|9.||Canon 70D||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|10.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon T3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|12.||Canon 60D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|13.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|14.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Nikon D7500||Y||stereo / mono||Y||Y||mini||2.0||Y||-||Y|
|17.||Nikon D7200||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
It is notable that the 80D offers wifi support, while the XSi does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the 80D and the XSi have been discontinued, but can regularly be found used on eBay. The XSi was replaced by the Canon T1i, while the 80D was followed by the Canon 90D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Which of the two cameras – the Canon 80D or the Canon XSi – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 80D:
- More detail: Offers more megapixels (24 vs 12.2MP) with a 40% higher linear resolution.
- Better image quality: Scores substantially higher (18 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.7 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.4 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 3).
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.54x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 3.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (960 versus 500) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 8 years of technical progress since the XSi launch.
Advantages of the Canon EOS Rebel XSi:
- More compact: Is smaller (129x98mm vs 139x105mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 206g or 28 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in January 2008).
If the count of relative strengths (bullet points above) is taken as a measure, the 80D is the clear winner of the match-up (24 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 80D and the Canon XSi place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 80D and the XSi in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 80D||4/5||+ +||4.5/5||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|2.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799|
|3.||Canon 90D||4/5||+||4.5/5||85/100||4.5/5||4.5/5||Aug 2019||1,199|
|4.||Canon 6D Mark II||4/5||+||4/5||80/100||4.5/5||4/5||Jun 2017||1,999|
|5.||Canon G3 X||3.5/5||+||..||..||4.5/5||4/5||Jun 2015||999|
|6.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|7.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|8.||Canon 7D II||4.5/5||+||3.5/5||84/100||4/5||4.5/5||Sep 2014||1,799|
|9.||Canon 70D||5/5||+ +||..||83/100||4.5/5||5/5||Jul 2013||1,199|
|10.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|11.||Canon T3||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449|
|12.||Canon 60D||5/5||+||..||79/100||4/5||4.5/5||Aug 2010||1,399|
|13.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799|
|14.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|15.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799|
|16.||Nikon D7500||4.5/5||+ +||4.5/5||86/100||5/5||4.5/5||Apr 2017||1,299|
|17.||Nikon D7200||4/5||+ +||..||84/100||4.5/5||4.5/5||Mar 2015||1,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D X vs Canon XSi
- Canon 5D Mark III vs Canon XSi
- Canon 80D vs Canon G7 X
- Canon 80D vs Leica V-LUX 5
- Canon 80D vs Olympus XZ-1
- Canon 80D vs Panasonic GH2
- Canon 80D vs Panasonic L10
- Canon 80D vs Panasonic LX7
- Canon XSi vs Nikon D1
- Canon XSi vs Nikon D800E
- Canon XSi vs Nikon P7800
- Canon XSi vs Olympus E-PL5
Specifications: Canon 80D vs Canon XSi
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 80D||Canon XSi|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||February 2016||January 2008|
|Launch Price||USD 1,199||USD 799|
|Sensor Specs||Canon 80D||Canon XSi|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.5 x 15.0 mm||22.2 x 14.8 mm|
|Sensor Area||337.5 mm2||328.56 mm2|
|Sensor Diagonal||27 mm||26.7 mm|
|Sensor Resolution||24 Megapixels||12.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||4272 x 2848 pixels|
|Pixel Pitch||3.75 μm||5.19 μm|
|Pixel Density||7.11 MP/cm2||3.70 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||100 - 16,000 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 6||DIGIC 3|
|DXO Sensor Quality (score)||79||61|
|DXO Color Depth (bits)||23.6||21.9|
|DXO Dynamic Range (EV)||13.2||10.8|
|DXO Low Light (ISO)||1135||692|
|Screen Specs||Canon 80D||Canon XSi|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||230k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 80D||Canon XSi|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||7 shutter flaps/s||3.5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 80D||Canon XSi|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 80D||Canon XSi|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||960 shots per charge||500 shots per charge|
139 x 105 x 79 mm
(5.5 x 4.1 x 3.1 in)
129 x 98 x 62 mm
(5.1 x 3.9 x 2.4 in)
|Camera Weight||730 g (25.8 oz)||524 g (18.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
