Canon 800D versus Nikon D5600

The Canon EOS800D (called Canon T7i in some regions) and the Nikon D5600 are two digital cameras that were announced, respectively, in February 2017 and November 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixel.

Body comparison

The physical size and weight of the Canon 800D and the Nikon D5600 are illustrated in the side-by-side display below. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter. You can also toggle the display to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the 800D – represents 100 percent across all the size and weight measures).

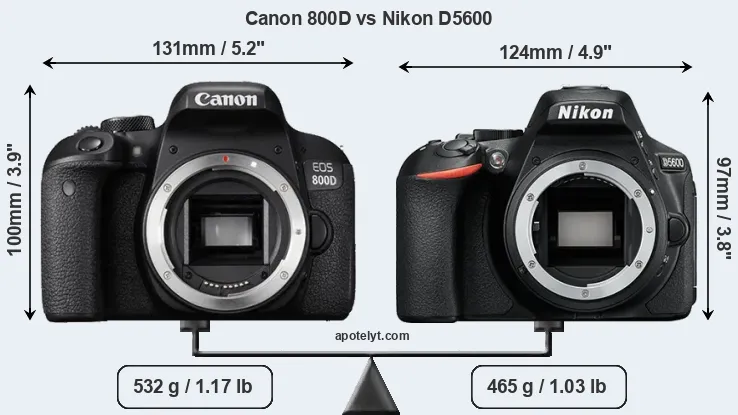

Canon 800D vs Nikon D5600 front

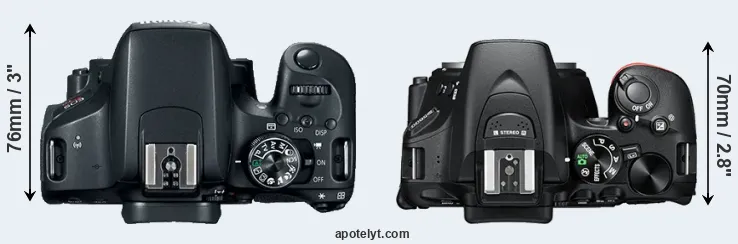

800D versus D5600 top view

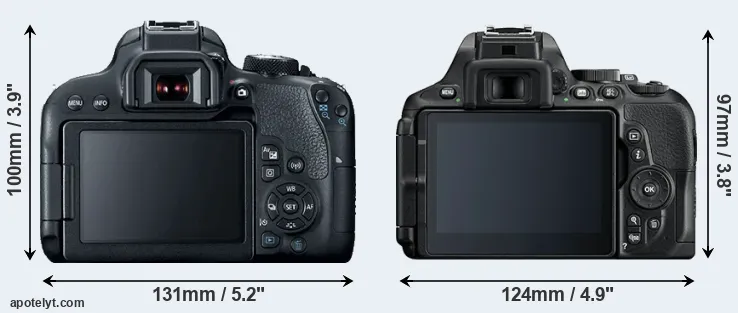

800D and D5600 rear side
Body view (800D on the left)

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5600 is somewhat smaller (8 percent) than the Canon 800D. Moreover, the D5600 is markedly lighter (13 percent) than the 800D. In this context, it is worth noting that neither the 800D nor the D5600 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can find an overview of optics for the two cameras in the Canon EF Lens Catalog (800D) and the Nikon Lens Catalog (D5600).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

Camera Body Specifications
Camera Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(y/n)
Camera
Launch
(year)
Launch
Price
(USD)
Street
Price
(amazon)
Used
Price
(ebay)
Canon 800D (⇒ rgt) 131 mm 100 mm 76 mm 532 g 600 no 2017 749 latest check
Nikon D5600 (⇒ lft) 124 mm 97 mm 70 mm 465 g 970 no 2016 699 latest check
Canon M3 (⇒ lft | rgt) 111 mm 68 mm 44 mm 366 g 250 no 2015 679discont. check
Nikon D7500 (⇒ lft | rgt) 136 mm 104 mm 73 mm 720 g 950 YES 2017 1,299 latest check
Nikon D3400 (⇒ lft | rgt) 124 mm 98 mm 76 mm 445 g 1200 no 2016 499 latest check
Nikon D5500 (⇒ lft | rgt) 124 mm 97 mm 70 mm 420 g 820 no 2015 899discont. check
Nikon D5300 (⇒ lft | rgt) 125 mm 98 mm 76 mm 480 g 600 no 2013 799discont. check

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D5600 was somewhat cheaper (by 7 percent) than the 800D at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D5600 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (800D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

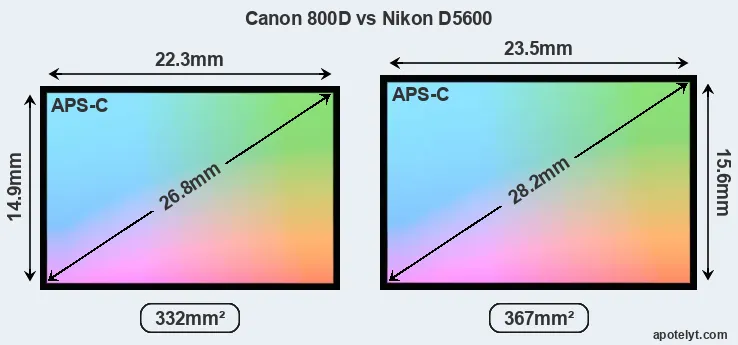

Canon 800D and Nikon D5600 sensor measures
Sensor size
noscript
Sensor size

Even though the D5600 has a larger sensor, both cameras offer the same resolution of 24 megapixel. This implies that the D5600 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.91μm versus 3.72μm for the 800D), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the 800D is a somewhat more recent model (by 3 months) than the D5600, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the D5600 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

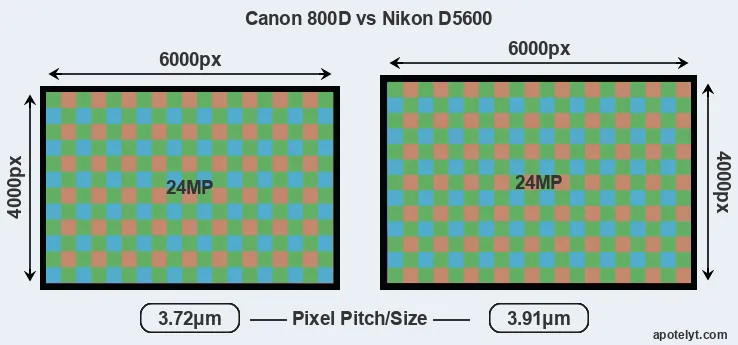

800D versus D5600 MP
Sensor resolution
noscript
Sensor resolution

For most cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
Camera Sensor
Class
Resolution
(Megapixel)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Canon 800D (⇒ rgt) APS-C 24.0 6000 4000 1080/60p .. .. .. ..
Nikon D5600 (⇒ lft) APS-C 24.0 6000 4000 1080/60p 24.1 14.0 1306 84
Canon M3 (⇒ lft | rgt) APS-C 24.0 6000 4000 1080/30p 22.8 11.8 1169 72
Nikon D7500 (⇒ lft | rgt) APS-C 20.7 5568 3712 4K/30p 24.8 13.9 1192 86
Nikon D3400 (⇒ lft | rgt) APS-C 24.0 6000 4000 1080/60p 24.8 13.9 1192 86
Nikon D5500 (⇒ lft | rgt) APS-C 24.0 6000 4000 1080/60p 24.1 14.0 1438 84
Nikon D5300 (⇒ lft | rgt) APS-C 24.0 6000 4000 1080/60p 24.0 13.9 1338 83

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The 800D and the D5600 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon 800D and Nikon D5600 along with similar information for a selection of comparators. The full specs-sheets can be found in the camera manual or, for example, in the dpreview camera hub.

Core Features
Camera Viewfinder
(Type or
'000 dots)
Control
Panel
(Y/n)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(Y/n)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec))
Build-in
Flash
(GN)
Build-in
Stab
Canon 800D (⇒ rgt) optical no 3.0 1040 swivel YES 4000 6.0 12 no
Nikon D5600 (⇒ lft) optical no 3.2 1037 swivel YES 4000 5.0 12 no
Canon M3 (⇒ lft | rgt) no no 3.0 1040 tilting YES 4000 4.2 5 no
Nikon D7500 (⇒ lft | rgt) optical YES 3.2 922 tilting YES 8000 8.0 12 no
Nikon D3400 (⇒ lft | rgt) optical no 3.0 921 fixed no 4000 5.0 7 no
Nikon D5500 (⇒ lft | rgt) optical no 3.2 1037 swivel YES 4000 5.0 12 no
Nikon D5300 (⇒ lft | rgt) optical no 3.2 1037 swivel no 4000 5.0 12 no

Both the 800D and the D5600 are current models that good online retailers will have in stock. You can check the latest prices, for example, at amazon. The D5600 replaced the earlier Nikon D5500, while the 800D followed on from the Canon 750D.

Summary

So what conclusions can be drawn? Which of the two cameras – the Canon 800D or the Nikon D5600 – has the upper hand? A synthesis of the relative strong points of each of the models is listed below.


logo checkmark

Arguments in favor of the Canon EOS800D:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
  • More modern: Is somewhat more recent (announced 3 months after the D5600).

logo checkmark

Reasons to prefer the Nikon D5600:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • Less heavy: Has a lower weight (by 67g or 13 percent) and is thus easier to take along.
  • Longer lasting: Gets more shots (970 versus 600) out of a single battery charge.
  • More heavily discounted: Has been on the market for longer (launched in November 2016).

If the number of relative strengths (bullet points above) is taken as a guide, the D5600 emerges as the winner of the match-up (5 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features.

800D 03:05 D5600

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the 800D or the D5600. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why hands-on reviews by experts are important. The following table reports the overall rankings of the cameras as published by some of the major camera review sites. The full reviews are available, respectively, at cameralabs.com, dpreview.com, ephotozine.com, imaging-resource.com, and photographyblog.com.

Review scores
Camera camera
labs
dp
review
ephoto
zine
imaging
resource
photography
blog
Camera
Launch
(year)
Launch
Price
(USD)
Street
Price
(amazon)
Used
Price
(ebay)
Canon 800D (⇒ rgt) .. 80/100 Gold 4.5/5 .. 4/5 2017 749 latest check
Nikon D5600 (⇒ lft) - 79/100 Silver 4.5/5 4.5/5 4/5 2016 699 latest check
Canon M3 (⇒ lft | rgt) reviewed 75/100 4.5/5 4.5/5 4/5 2015 679discont. check
Nikon D7500 (⇒ lft | rgt) HiRec 86/100 Silver 5/5 4.5/5 4.5/5 2017 1,299 latest check
Nikon D3400 (⇒ lft | rgt) Rec 76/100 4/5 4.5/5 4.5/5 2016 499 latest check
Nikon D5500 (⇒ lft | rgt) Rec 79/100 Silver 4.5/5 5/5 4.5/5 2015 899discont. check
Nikon D5300 (⇒ lft | rgt) HiRec 79/100 Silver 4.5/5 4.5/5 4.5/5 2013 799discont. check

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
