Canon 60D vs Olympus XZ-1

The Canon EOS 60D and the Olympus XZ-1 are two digital cameras that were revealed to the public, respectively, in August 2010 and January 2011. The 60D is a DSLR, while the XZ-1 is a fixed lens compact. The cameras are based on an APS-C (60D) and a 1/1.7-inch (XZ-1) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 60D		Olympus XZ-1
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		28-112mm f/1.8-2.5
17.9 MP – APS-C sensor		10.1 MP – 1/1.7" sensor
1080/30p Video		720/30p Video
ISO 100-6,400 (100 - 12,800)		ISO 100-6,400
Optical viewfinder		Viewfinder optional
3.0" LCD – 1040k dots		3.0" LCD – 614k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5.3 shutter flaps per second		2 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		not weather sealed
1100 shots per battery charge		320 shots per battery charge
145 x 106 x 79 mm, 755 g		111 x 65 x 42 mm, 275 g

Check 60D offers at
ebay.com
Check XZ-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Olympus XZ-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon 60D and the Olympus XZ-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The XZ-1 can be obtained in two different colors (black, white), while the 60D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-1 is considerably smaller (53 percent) than the Canon 60D. It is worth mentioning in this context that the 60D is splash and dust resistant, while the XZ-1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-1 has a lens built in, whereas the 60D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 60D and their specifications in the Canon EF Lens Catalog.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	EUR 1 149	ebay.com
2.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	EUR 480	ebay.com
3.		Canon 1D Mark IV	156 mm	157 mm	80 mm	1230 g	1500	Y	Oct 2009	EUR 4 699	ebay.com
4.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	EUR 1 499	ebay.com
5.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	EUR 1 699	ebay.com
6.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	EUR 1 099	ebay.com
7.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	EUR 1 099	ebay.com
8.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	EUR 1 285	ebay.com
9.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	EUR 899	ebay.com
10.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	EUR 1 399	ebay.com
11.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	EUR 599	ebay.com
12.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	EUR 549	ebay.com
13.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	EUR 449	ebay.com
14.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	EUR 599	ebay.com
15.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	EUR 529	ebay.com
16.		Sony RX10	129 mm	88 mm	102 mm	813 g	420	Y	Oct 2013	EUR 1 199	ebay.com
17.		Sony RX10 II	129 mm	88 mm	102 mm	813 g	400	Y	Jun 2015	EUR 1 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XZ-1 was launched at a lower price than the 60D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 60D features an APS-C sensor and the Olympus XZ-1 a 1/1.7-inch sensor. The sensor area in the XZ-1 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the 60D has a native 3:2 aspect ratio, while the one in the XZ-1 offers a 4:3 aspect.

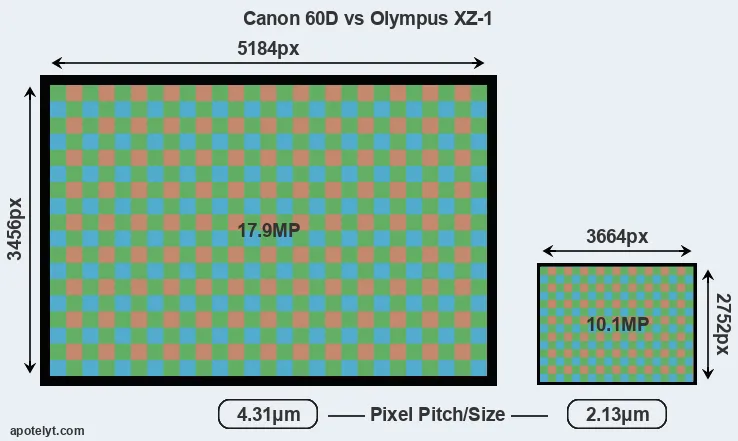

With 17.9MP, the 60D offers a higher resolution than the XZ-1 (10.1MP), but the 60D nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 2.13μm for the XZ-1) due to its larger sensor. However, the XZ-1 is a somewhat more recent model (by 4 months) than the 60D, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 60D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 60D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus XZ-1 are 18.3 x 13.8 inches or 46.5 x 35 cm for good quality, 14.7 x 11 inches or 37.2 x 28 cm for very good quality, and 12.2 x 9.2 inches or 31 x 23.3 cm for excellent quality prints.

The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus XZ-1 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the 60D is build around a CMOS sensor, while the XZ-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 60D provides substantially higher image quality than the XZ-1, with an overall score that is 32 points higher. This advantage is based on 3.4 bits higher color depth, 1.1 EV in additional dynamic range, and 2.8 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
2.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
3.		Canon 1D Mark IV	APS-H	16.0	4896	3264	1080/30p	22.8	12.0	1320	74
4.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
5.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
6.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
7.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
8.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
9.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
10.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
11.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
12.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
13.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
14.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
15.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
16.		Sony RX10	1-inch	20.0	5472	3648	1080/60p	22.9	12.6	474	69
17.		Sony RX10 II	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	531	70

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 60D provides a higher video resolution than the XZ-1. It can shoot video footage at 1080/30p, while the Olympus is limited to 720/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 60D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XZ-1 relies on live view and the rear LCD for framing. That said, the XZ-1 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Canon 60D and Olympus XZ-1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
2.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
3.		Canon 1D Mark IV	optical	Y	3.0 / 920	fixed	n	1/8000s	10.0/s	n	n
4.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
5.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
6.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
7.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
8.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
9.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
10.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
11.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
12.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
13.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
14.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
15.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
16.		Sony RX10	1440	Y	3.0 / 1229	tilting	n	1/3200s	10.0/s	Y	Y
17.		Sony RX10 II	2359	Y	3.0 / 1229	tilting	n	1/3200s	14.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 60D, but is missing on the XZ-1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Olympus XZ-1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 60D and the XZ-1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Olympus XZ-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
2.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
3.		Canon 1D Mark IV	Y	stereo / -	Y	-	mini	2.0	-	-	-
4.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
5.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
6.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
7.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
9.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-
11.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Sony RX10	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
17.		Sony RX10 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the 60D has a microphone port, which is missing on the XZ-1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Canon 60D (unlike the XZ-1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 60D and the XZ-1 have been discontinued, but can regularly be found used on ebay. The 60D was replaced by the Canon 70D, while the XZ-1 was followed by the Olympus XZ-2. Further information on the features and operation of the 60D and XZ-1 can be found, respectively, in the Canon 60D Manual (free pdf) or the online Olympus XZ-1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon 60D and the Olympus XZ-1? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS 60D:

• More detail: Offers more megapixels (17.9 vs 10.1MP) with a 36% higher linear resolution.
• Better image quality: Scores substantially higher (32 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (3.4 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.1 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (2.8 stops ISO advantage).
• Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 614k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (5.3 vs 2 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (1100 versus 320) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been on the market for longer (launched in August 2010).

Advantages of the Olympus XZ-1:

• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the 60D requires a separate lens.
• More compact: Is smaller (111x65mm vs 145x106mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 60D).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (4 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the 60D is the clear winner of the match-up (19 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 60D and the Olympus XZ-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 60D and the XZ-1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	EUR 1 149	ebay.com
2.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	EUR 480	ebay.com
3.		Canon 1D Mark IV	5/5	..	..	89/100	..	..	Oct 2009	EUR 4 699	ebay.com
4.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	EUR 1 499	ebay.com
5.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	EUR 1 699	ebay.com
6.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	EUR 1 099	ebay.com
7.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	EUR 1 099	ebay.com
8.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	EUR 1 285	ebay.com
9.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	EUR 899	ebay.com
10.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	EUR 1 399	ebay.com
11.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	EUR 599	ebay.com
12.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	EUR 549	ebay.com
13.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	EUR 449	ebay.com
14.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	EUR 599	ebay.com
15.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	EUR 529	ebay.com
16.		Sony RX10	5/5	+	..	80/100	4.5/5	4.5/5	Oct 2013	EUR 1 199	ebay.com
17.		Sony RX10 II	5/5	+ +	..	82/100	4.5/5	4/5	Jun 2015	EUR 1 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
