Canon 5D vs SL1
The Canon EOS 5D and the Canon EOS Rebel SL1 (labelled Canon 100D in some countries) are two digital cameras that were revealed to the public, respectively, in August 2005 and March 2013. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D) and an APS-C (SL1) sensor. The 5D has a resolution of 12.7 megapixels, whereas the SL1 provides 17.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Canon EOS Rebel SL1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

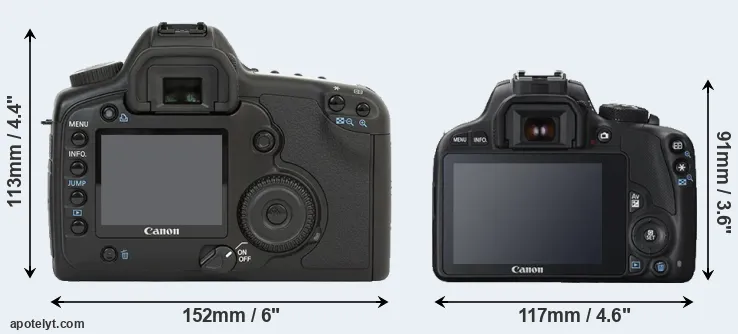

The physical size and weight of the Canon 5D and the Canon SL1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The SL1 can be obtained in two different colors (black, white), while the 5D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SL1 is considerably smaller (38 percent) than the Canon 5D. Moreover, the SL1 is substantially lighter (55 percent) than the 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the SL1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (SL1). You can compare the optics available in the Canon EF Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 5D||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299|
|Canon SL1||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549|
|Canon 6D Mark II||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999|
|Canon SL2||4.8 in||3.7 in||2.8 in||16.0 oz||650||n||Jun 2017||549|
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 5DS R||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon T5i||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649|
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Canon 6D||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099|
|Canon M||4.3 in||2.6 in||1.3 in||10.5 oz||230||n||Jul 2012||599|
|Canon T4i||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849|
|Canon T3i||5.2 in||3.9 in||3.1 in||20.1 oz||440||n||Feb 2011||599|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 1D Mark II N||6.1 in||6.2 in||3.1 in||55.2 oz||1200||Y||Aug 2005||3,999|
|Canon 1Ds Mark II||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999|
|Canon 1Ds||6.1 in||6.2 in||3.1 in||44.6 oz||600||Y||Sep 2002||8,999|
|Nikon D700||5.8 in||4.8 in||3.0 in||37.9 oz||1000||Y||Jul 2008||2,999|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SL1 was launched at a markedly lower price (by 83 percent) than the 5D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Canon SL1 an APS-C sensor. The sensor area in the SL1 is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the SL1 uses a more advanced image processing engine (DIGIC 5) than the 5D (DIGIC 2), with benefits for noise reduction, color accuracy, and processing speed.
Despite having a smaller sensor, the SL1 offers a higher resolution of 17.9 megapixels, compared with 12.7 MP of the 5D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 8.25μm for the 5D). However, it should be noted that the SL1 is much more recent (by 7 years and 7 months) than the 5D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon SL1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL1 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inches or 55.5 x 37 cm for good quality, 17.5 x 11.6 inches or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inches or 37 x 24.7 cm for excellent quality prints.
The SL1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon EOS Rebel SL1 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 5D has a notably higher overall DXO score than the SL1 (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 1.1 bits higher color depth, 0.2 EV of lower dynamic range, and 0.7 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63|
|Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The SL1 indeed provides for movie recording, while the 5D does not. The highest resolution format that the SL1 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 5D and the SL1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D offers a wider field of view (96%) than the one in the SL1 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D has a higher magnification (0.71x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 5D and Canon SL1 along with similar information for a selection of comparators.
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n|
|Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
One feature that is present on the 5D, but is missing on the SL1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 5D writes its imaging data to Compact Flash cards, while the SL1 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Canon EOS Rebel SL1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Canon 1D Mark II N||Y||-||-||-||-||-||1.1||-||-||-|
|Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
Studio photographers will appreciate that the Canon 5D (unlike the SL1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D and the SL1 have been discontinued, but can regularly be found used on eBay. The 5D was replaced by the Canon 5D Mark II, while the SL1 was followed by the Canon SL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So how do things add up? Which of the two cameras – the Canon 5D or the Canon SL1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 5D:
- Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.1 bits more color depth).
- Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.54x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2005).
Arguments in favor of the Canon EOS Rebel SL1:
- More detail: Has more megapixels (17.9 vs 12.7MP), which boosts linear resolution by 19%.
- Better jpgs: Has a more modern image processing engine (DIGIC 5 vs DIGIC 2).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (4.9 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (117x91mm vs 152x113mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 488g or 55 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (83 percent cheaper at launch).
- More modern: Reflects 7 years and 7 months of technical progress since the 5D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the SL1 emerges as the winner of the match-up (13 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Canon SL1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 5D and the SL1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Canon SL1||+||78/100||4/5||4/5||4/5||Mar 2013||549|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon SL2||+ +||78/100||4.5/5||4.5/5||4.5/5||Jun 2017||549|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon T5i||..||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon M||+||..||4/5||3.5/5||4/5||Jul 2012||599|
|Canon T4i||+ +||77/100||4.5/5||4.5/5||4.5/5||Jun 2012||849|
|Canon T3i||o||77/100||4.5/5||5/5||4.5/5||Feb 2011||599|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 1D Mark II N||..||..||..||..||..||Aug 2005||3,999|
|Canon 1Ds Mark II||..||+ +||..||..||..||Sep 2004||7,999|
|Canon 1Ds||..||+ +||..||..||..||Sep 2002||8,999|
|Nikon D700||89/100||+ +||4.5/5||5/5||4.5/5||Jul 2008||2,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 5D vs Canon SL1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Canon SL1|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||August 2005||March 2013|
|Launch Price||USD 3,299||USD 549|
|Sensor Specs||Canon 5D||Canon SL1|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||12.7 Megapixels||17.9 Megapixels|
|Image Resolution||4368 x 2912 pixels||5184 x 3456 pixels|
|Pixel Pitch||8.25 μm||4.31 μm|
|Pixel Density||1.47 MP/cm2||5.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100 - 1,600 ISO||100 - 12,800 ISO|
|ISO Boost||50 - 3,200 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 2||DIGIC 5|
|DXO Sensor Quality (score)||71||63|
|DXO Color Depth (bits)||22.9||21.8|
|DXO Dynamic Range (EV)||11.1||11.3|
|DXO Low Light (ISO)||1368||843|
|Screen Specs||Canon 5D||Canon SL1|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5D||Canon SL1|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||4.9 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D||Canon SL1|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5D||Canon SL1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||400 shots per charge||380 shots per charge|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
117 x 91 x 69 mm
(4.6 x 3.6 x 2.7 in)
|Camera Weight||895 g (31.6 oz)||407 g (14.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
