The Canon EOS 5D and the Canon EOS 77D are two digital cameras that were officially introduced, respectively, in August 2005 and February 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D) and an APS-C (77D) sensor. The 5D has a resolution of 12.7 megapixels, whereas the 77D provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Canon EOS 77D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon 5D and the Canon 77D is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 77D is notably smaller (24 percent) than the Canon 5D. Moreover, the 77D is substantially lighter (40 percent) than the 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the 77D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (77D). You can compare the optics available in the Canon EF Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|2.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|3.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|4.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|5.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|6.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|7.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|8.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|9.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|10.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|11.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|12.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|13.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|14.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|15.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|16.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999|
|17.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 77D was launched at a markedly lower price (by 73 percent) than the 5D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

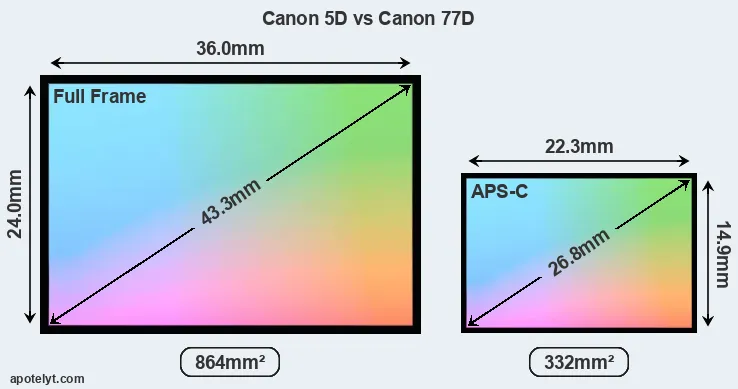

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Canon 77D an APS-C sensor. The sensor area in the 77D is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 77D uses a more advanced image processing engine (DIGIC 7) than the 5D (DIGIC 2), with benefits for noise reduction, color accuracy, and processing speed.
Despite having a smaller sensor, the 77D offers a higher resolution of 24 megapixels, compared with 12.7 MP of the 5D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 8.25μm for the 5D). However, it should be noted that the 77D is much more recent (by 11 years and 6 months) than the 5D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon 77D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 77D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inches or 55.5 x 37 cm for good quality, 17.5 x 11.6 inches or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inches or 37 x 24.7 cm for excellent quality prints.
The 77D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon EOS 77D are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the 77D has a markedly higher DXO score than the 5D (overall score 7 points higher), which will translate into better image quality. The advantage is based on 0.7 bits higher color depth, 2.2 EV in additional dynamic range, and 0.5 stops of reduced low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|1.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|4.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|7.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|8.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|9.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|12.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|13.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|14.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|16.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|17.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
Many modern cameras cannot only take still pictures, but also record videos. The 77D indeed provides for movie recording, while the 5D does not. The highest resolution format that the 77D can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. The 5D and the 77D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D offers a wider field of view (96%) than the one in the 77D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D has a higher magnification (0.71x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 5D and Canon 77D along with similar information for a selection of comparators.
|1.||Canon 5D||optical||Y||2.5 / 230||fixed||n||1/8000s||3.0||n||n|
|2.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|3.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|4.||Canon 6D Mark II||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.5||n||n|
|5.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|6.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|7.||Canon 5D Mark IV||optical||Y||3.2 / 1620||fixed||Y||1/8000s||7.0||n||n|
|8.||Canon 5DS||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0||n||n|
|9.||Canon 5DS R||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0||n||n|
|10.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|11.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|12.||Canon 5D Mark III||optical||Y||3.2 / 1040||fixed||n||1/8000s||6.0||n||n|
|13.||Canon 6D||optical||Y||3.0 / 1040||fixed||n||1/4000s||4.5||n||n|
|14.||Canon 5D Mark II||optical||Y||3.0 / 920||fixed||n||1/8000s||3.9||n||n|
|15.||Canon 50D||optical||Y||3.0 / 920||fixed||n||1/8000s||6.3||Y||n|
|16.||Canon 1D Mark II N||optical||Y||2.5 / 230||fixed||n||1/8000s||8.5||n||n|
|17.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0||Y||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 77D has a touchscreen, while the 5D has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The 77D has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D does not have a selfie-screen.
The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D writes its imaging data to Compact Flash cards, while the 77D uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Canon EOS 77D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 5D||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|3.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 6D Mark II||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon 5D Mark IV||Y||mono / mono||Y||Y||mini||3.0||Y||Y||-|
|8.||Canon 5DS||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|9.||Canon 5DS R||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|10.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|12.||Canon 5D Mark III||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|13.||Canon 6D||Y||mono / mono||Y||-||mini||2.0||Y||-||-|
|14.||Canon 5D Mark II||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|15.||Canon 50D||Y||- / -||-||-||mini||2.0||-||-||-|
|16.||Canon 1D Mark II N||Y||- / -||-||-||-||1.1||-||-||-|
|17.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
It is notable that the 77D offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D does not provide wifi capability.
Studio photographers will appreciate that the Canon 5D (unlike the 77D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The 77D is a recent model that features in the current product line-up of Canon. In contrast, the 5D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 5D was succeeded by the Canon 5D Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is the Canon 5D better than the Canon 77D or vice versa? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS 5D:
- Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.51x).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2005).
Advantages of the Canon EOS 77D:
- More detail: Has more megapixels (24 vs 12.7MP), which boosts linear resolution by 37%.
- Better image quality: Scores markedly higher (7 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (2.2 EV of extra DR).
- Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 2).
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (131x100mm vs 152x113mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 355g or 40 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (600 versus 400) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (73 percent cheaper at launch).
- More modern: Reflects 11 years and 6 months of technical progress since the 5D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 77D is the clear winner of the contest (22 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Canon 77D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D or the 77D. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D||..||88/100||..||+ +||o||..||Aug 2005||3,299|
|2.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|3.||Canon 2000D||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|4.||Canon 6D Mark II||4/5||+||4/5||80/100||4.5/5||4/5||Jun 2017||1,999|
|5.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|6.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749|
|7.||Canon 5D Mark IV||4.5/5||+ +||4/5||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|8.||Canon 5DS||..||+||..||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|9.||Canon 5DS R||5/5||+||..||83/100||5/5||4.5/5||Feb 2015||3,699|
|10.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|11.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|12.||Canon 5D Mark III||..||+ +||..||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|13.||Canon 6D||5/5||+ +||..||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|14.||Canon 5D Mark II||4/5||91/100||..||79/100||4/5||..||Sep 2008||3,499|
|15.||Canon 50D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|16.||Canon 1D Mark II N||..||..||..||..||..||..||Aug 2005||3,999|
|17.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 5D vs Canon 77D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Canon 77D|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||August 2005||February 2017|
|Launch Price||USD 3,299||USD 899|
|Sensor Specs||Canon 5D||Canon 77D|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||12.7 Megapixels||24 Megapixels|
|Image Resolution||4368 x 2912 pixels||6000 x 4000 pixels|
|Pixel Pitch||8.25 μm||3.72 μm|
|Pixel Density||1.47 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 1,600 ISO||100 - 25,600 ISO|
|ISO Boost||50 - 3,200 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 2||DIGIC 7|
|DXO Sensor Quality (score)||71||78|
|DXO Color Depth (bits)||22.9||23.6|
|DXO Dynamic Range (EV)||11.1||13.3|
|DXO Low Light (ISO)||1368||971|
|Screen Specs||Canon 5D||Canon 77D|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||95%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5D||Canon 77D|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||6 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D||Canon 77D|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 5D||Canon 77D|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||400 shots per charge||600 shots per charge|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
|Camera Weight||895 g (31.6 oz)||540 g (19.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
