Canon 500D vs Sony HX400V

The Canon EOS 500D (called Canon T1i in some regions) and the Sony Cyber-shot DSC-HX400V are two digital cameras that were announced, respectively, in March 2009 and February 2014. The 500D is a DSLR, while the HX400V is a fixed lens compact. The cameras are based on an APS-C (500D) and a 1/2.3-inch (HX400V) sensor. The Canon has a resolution of 15.1 megapixels, whereas the Sony provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 500D		Sony HX400V
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-1200mm f/2.8-6.3
15.1 MP – APS-C sensor		20.2 MP – 1/2.3" sensor
1080/20p Video		1080/60p Video
ISO 100-6,400 (100 - 12,800)		ISO 80-3,200 (80 - 12,800)
Optical viewfinder		Electronic viewfinder (210k dots)
3.0" LCD – 920k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
3.4 shutter flaps per second		10 shutter flaps per second
400 shots per battery charge		300 shots per battery charge
129 x 98 x 62 mm, 520 g		130 x 93 x 103 mm, 660 g

Check 500D offers at
ebay.com
Check HX400V offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 500D and the Sony Cyber-shot DSC-HX400V? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 500D and the Sony HX400V. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony HX400V is somewhat smaller (4 percent) than the Canon 500D. In this context, it is worth noting that neither the 500D nor the HX400V are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the HX400V has a lens built in, whereas the 500D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 500D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 500D gets 400 shots out of its Canon LP-E5 battery, while the HX400V can take 300 images on a single charge of its Sony NP-BX1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 500D	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
2.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
3.		Canon 450D	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
4.		Canon 550D	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
5.		Canon 600D	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
6.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
7.		Canon 700D	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
8.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
9.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
10.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
11.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
12.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
13.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
14.		Sony H300	128 mm	89 mm	92 mm	590 g	350	n	Feb 2014	US$ 219	ebay.com
15.		Sony H400	130 mm	95 mm	122 mm	628 g	300	n	Feb 2014	US$ 319	ebay.com
16.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	US$ 429	ebay.com
17.		Sony HX350	130 mm	93 mm	103 mm	652 g	300	n	Dec 2016	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The HX400V was launched at a lower price than the 500D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

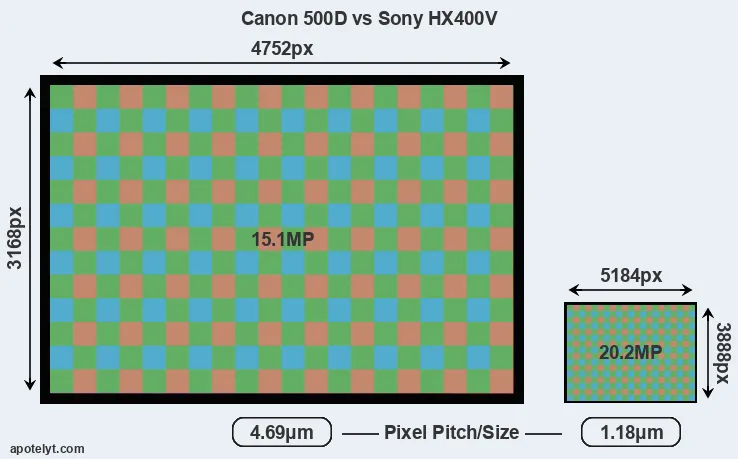

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 500D features an APS-C sensor and the Sony HX400V a 1/2.3-inch sensor. The sensor area in the HX400V is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 500D has a native 3:2 aspect ratio, while the one in the HX400V offers a 4:3 aspect.

Despite having a smaller sensor, the HX400V offers a higher resolution of 20.2 megapixels, compared with 15.1 MP of the 500D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.69μm for the 500D). However, it should be noted that the HX400V is much more recent (by 4 years and 10 months) than the 500D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the HX400V has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Sony HX400V implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the HX400V for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Canon 500D are 23.8 x 15.8 inches or 60.4 x 40.2 cm for good quality, 19 x 12.7 inches or 48.3 x 32.2 cm for very good quality, and 15.8 x 10.6 inches or 40.2 x 26.8 cm for excellent quality prints.

The Canon EOS 500D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Sony Cyber-shot DSC-HX400V are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the 500D is build around a CMOS sensor, while the HX400V uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 500D	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
2.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
3.		Canon 450D	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
4.		Canon 550D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
5.		Canon 600D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
6.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
7.		Canon 700D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
8.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
9.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
10.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
11.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
12.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
13.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
14.		Sony H300	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
15.		Sony H400	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
16.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
17.		Sony HX350	1/2.3	19.9	5152	3864	1080/60p	20.5	11.9	896	49
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the HX400V provides a faster frame rate than the 500D. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/20p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the HX400V has an electronic viewfinder (210k dots), while the 500D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon 500D and Sony HX400V in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 500D	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
2.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
3.		Canon 450D	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
4.		Canon 550D	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
5.		Canon 600D	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
6.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 700D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
12.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
13.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
14.		Sony H300	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
15.		Sony H400	210	n	3.0 / 460	fixed	n	1/2000s	0.7/s	Y	Y
16.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony HX350	202	n	3.0 / 922	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The 500D writes its imaging data to SDHC cards, while the HX400V uses SDXC or Memory Stick PRO Duo cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 500D and Sony Cyber-shot DSC-HX400V and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 500D	Y	mono / mono	-	-	mini	2.0	-	-	-
2.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon 450D	Y	- / -	-	-	mini	2.0	-	-	-
4.		Canon 550D	Y	stereo / -	Y	-	mini	2.0	-	-	-
5.		Canon 600D	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Canon 700D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
14.		Sony H300	-	mono / mono	-	-	micro	2.0	Y	-	-
15.		Sony H400	-	mono / mono	-	-	micro	2.0	Y	-	-
16.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony HX350	-	stereo / mono	-	-	micro	2.0	-	-	-

It is notable that the HX400V offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 500D does not provide wifi capability.

Travel and landscape photographers will find it useful that the HX400V has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the 500D and the HX400V have been discontinued, but can regularly be found used on ebay. The 500D was replaced by the Canon 550D, while the HX400V does not have a direct successor. Further information on the features and operation of the 500D and HX400V can be found, respectively, in the Canon 500D Manual (free pdf) or the online Sony HX400V Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon 500D and the Sony HX400V? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS 500D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (400 versus 300) on a single battery charge.
• More heavily discounted: Has been available for much longer (launched in March 2009).

Arguments in favor of the Sony Cyber-shot DSC-HX400V:

• More detail: Has more megapixels (20.2 vs 15.1MP), which boosts linear resolution by 13%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (1080/60p versus 1080/20p).
• More framing info: Has an electronic viewfinder that displays shooting data.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster burst: Shoots at higher frequency (10 vs 3.4 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with an integrated lens, while the 500D requires a separate lens.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 4 years and 10 months of technical progress since the 500D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the HX400V is the clear winner of the contest (13 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 500D and the Sony HX400V place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 500D and the HX400V in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 500D	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
2.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
3.		Canon 450D	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
4.		Canon 550D	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
5.		Canon 600D	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
6.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
7.		Canon 700D	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
8.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
9.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
10.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
11.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
12.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
13.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
14.		Sony H300	..	+	..	..	4.5/5	4/5	Feb 2014	US$ 219	ebay.com
15.		Sony H400	..	o	..	..	3.5/5	3.5/5	Feb 2014	US$ 319	ebay.com
16.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	US$ 429	ebay.com
17.		Sony HX350	..	..	..	..	..	4/5	Dec 2016	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
