Canon 40D vs Sony NEX-6
The Canon EOS 40D and the Sony Alpha NEX-6 are two enthusiast cameras that were announced, respectively, in August 2007 and September 2012. The 40D is a DSLR, while the NEX-6 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Sony provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 40D||Sony NEX-6|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Sony E mount lenses|
|10.1 MP, APS-C Sensor||16 MP, APS-C Sensor|
|no Video||1080/60i Video|
|ISO 100-1600 (100-3200)||ISO 100-25600|
|Optical viewfinder||Electronic viewfinder (2359k dots)|
|3.0" LCD, 230k dots||3.0" LCD, 921k dots|
|Fixed screen (not touch-sensitive)||Tilting screen (not touch-sensitive)|
|6.5 shutter flaps per second||10 shutter flaps per second|
|750 shots per battery charge||360 shots per battery charge|
|146 x 108 x 74 mm, 822 g||120 x 67 x 43 mm, 345 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Sony Alpha NEX-6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

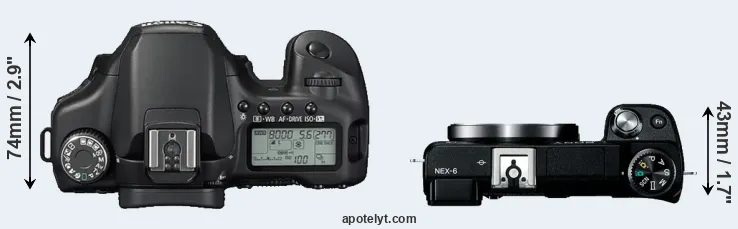

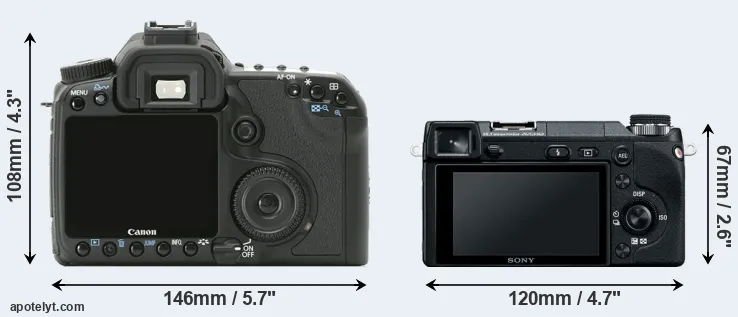

The physical size and weight of the Canon 40D and the Sony NEX-6 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-6 is considerably smaller (49 percent) than the Canon 40D. Moreover, the NEX-6 is substantially lighter (58 percent) than the 40D. In this context, it is worth noting that neither the 40D nor the NEX-6 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (40D) and the Sony E-Mount Lens Catalog (NEX-6). Mirrorless cameras, such as the NEX-6, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 40D»||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||Canon 40D|
|Sony NEX-6«||4.7 in||2.6 in||1.7 in||12.2 oz||360||n||Sep 2012||999||Sony NEX-6|
|Canon T3« »||5.1 in||3.9 in||3.1 in||17.5 oz||700||n||Feb 2011||449||Canon T3|
|Canon 60D« »||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399||Canon 60D|
|Canon 50D« »||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299||Canon 50D|
|Canon XS« »||5.0 in||3.9 in||2.6 in||17.7 oz||500||n||Jun 2008||449||Canon XS|
|Canon XSi« »||5.1 in||3.9 in||2.4 in||18.5 oz||500||n||Jan 2008||799||Canon XSi|
|Canon 30D« »||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399||Canon 30D|
|Canon XTi« »||5.0 in||3.3 in||2.6 in||19.6 oz||370||n||Aug 2006||799||Canon XTi|
|Canon 20D« »||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499||Canon 20D|
|Canon 10D« »||5.9 in||4.2 in||3.0 in||30.0 oz||500||n||Feb 2003||1,999||Canon 10D|
|Nikon D90« »||5.2 in||4.1 in||3.0 in||24.8 oz||850||n||Aug 2008||1,299||Nikon D90|
|Sony A6000« »||4.7 in||2.6 in||1.8 in||12.1 oz||360||n||Feb 2014||599||Sony A6000|
|Sony NEX-3N« »||4.3 in||2.4 in||1.4 in||9.5 oz||480||n||Feb 2013||499||Sony NEX-3N|
|Sony NEX-5N« »||4.4 in||2.3 in||1.5 in||9.5 oz||460||n||Aug 2011||699||Sony NEX-5N|
|Sony NEX-3« »||4.6 in||2.4 in||1.3 in||10.5 oz||330||n||May 2010||599||Sony NEX-3|
|Sony NEX-5« »||4.4 in||2.3 in||1.5 in||10.1 oz||330||n||May 2010||699||Sony NEX-5|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NEX-6 was launched at a somewhat lower price (by 23 percent) than the 40D, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-6 is 10 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (40D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
With 16MP, the NEX-6 offers a higher resolution than the 40D (10.1MP), but the NEX-6 has smaller individual pixels (pixel pitch of 4.78μm versus 5.73μm for the 40D). Yet, the NEX-6 is a much more recent model (by 5 years) than the 40D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Sony NEX-6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NEX-6 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inch or 62.4 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inch or 49.9 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inch or 41.6 x 27.6 cm. The corresponding values for the Canon 40D are 19.4 x 13 inch or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inch or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inch or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Sony Alpha NEX-6 are ISO 100 to ISO 25600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the NEX-6 offers substantially better image quality than the 40D (overall score 14 points higher). The advantage is based on 1.6 bits higher color depth, 1.8 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 40D||APS-C||10.1||3888||2592||none||22.1||11.3||703||64||Canon 40D|
|Sony NEX-6||APS-C||16.0||4912||3264||1080/60i||23.7||13.1||1018||78||Sony NEX-6|
|Canon T3||APS-C||12.2||4272||2848||720/30p||21.9||11.0||755||62||Canon T3|
|Canon 60D||APS-C||17.9||5184||3456||1080/30p||22.2||11.5||813||66||Canon 60D|
|Canon 50D||APS-C||15.1||4752||3168||none||21.8||11.4||696||63||Canon 50D|
|Canon XS||APS-C||10.1||3888||2592||none||..||..||..||..||Canon XS|
|Canon XSi||APS-C||12.2||4272||2848||none||21.9||10.8||692||61||Canon XSi|
|Canon 30D||APS-C||8.2||3504||2336||none||21.5||10.8||736||59||Canon 30D|
|Canon XTi||APS-C||10.1||3888||2592||none||22.1||11.0||664||62||Canon XTi|
|Canon 20D||APS-C||8.2||3504||2336||none||21.9||11.0||721||62||Canon 20D|
|Canon 10D||APS-C||6.3||3072||2048||none||21.1||10.9||571||57||Canon 10D|
|Nikon D90||APS-C||12.2||4288||2848||720/24p||22.7||12.5||977||73||Nikon D90|
|Sony A6000||APS-C||24.0||6000||4000||1080/60p||24.1||13.1||1347||82||Sony A6000|
|Sony NEX-3N||APS-C||16.0||4912||3264||1080/60i||22.8||12.5||1067||74||Sony NEX-3N|
|Sony NEX-5N||APS-C||16.0||4912||3264||1080/60i||23.6||12.7||1079||77||Sony NEX-5N|
|Sony NEX-3||APS-C||14.0||4592||3056||720/30p||22.1||12.0||830||68||Sony NEX-3|
|Sony NEX-5||APS-C||14.0||4592||3056||1080/60i||22.2||12.2||796||69||Sony NEX-5|
Many modern cameras are not only capable of taking still images, but can also record movies. The NEX-6 indeed provides for movie recording, while the 40D does not. The highest resolution format that the NEX-6 can use is 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the NEX-6 has an electronic viewfinder (2359k dots), while the 40D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the NEX-6 offers a wider field of view (100%) than the one in the 40D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the NEX-6 has a higher magnification (0.73x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 40D, the Sony NEX-6, and comparable cameras.
|Canon 40D||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Sony NEX-6||2359||n||3.0||921||tilting||n||1/4000s||10.0||Y||n||Sony NEX-6|
|Canon T3||optical||n||2.7||230||fixed||n||1/4000s||3.0||Y||n||Canon T3|
|Canon 60D||optical||Y||3.0||1040||swivel||n||1/8000s||5.3||Y||n||Canon 60D|
|Canon 50D||optical||Y||3.0||920||fixed||n||1/8000s||6.3||Y||n||Canon 50D|
|Canon XS||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Canon XS|
|Canon XSi||optical||n||3.0||230||fixed||n||1/4000s||3.5||Y||n||Canon XSi|
|Canon 30D||optical||Y||2.5||230||fixed||n||1/8000s||5.0||Y||n||Canon 30D|
|Canon XTi||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Canon XTi|
|Canon 20D||optical||Y||1.8||118||fixed||n||1/8000s||5.0||Y||n||Canon 20D|
|Canon 10D||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Canon 10D|
|Nikon D90||optical||Y||3.0||920||fixed||n||1/4000s||4.5||Y||n||Nikon D90|
|Sony A6000||1440||n||3.0||922||tilting||n||1/4000s||11.0||Y||n||Sony A6000|
|Sony NEX-3N||optional||n||3.0||460||tilting||n||1/4000s||4.0||Y||n||Sony NEX-3N|
|Sony NEX-5N||optional||n||3.0||920||tilting||Y||1/4000s||10.0||n||n||Sony NEX-5N|
|Sony NEX-3||optional||n||3.0||920||tilting||n||1/4000s||7.0||n||n||Sony NEX-3|
|Sony NEX-5||optional||n||3.0||920||tilting||n||1/4000s||7.0||n||n||Sony NEX-5|
One feature that is present on the 40D, but is missing on the NEX-6 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 40D writes its imaging data to Compact Flash cards, while the NEX-6 uses SDXC or Memory Stick PRO Duo cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Sony Alpha NEX-6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 40D||Y||none||none||-||-||none||2.0||-||-||-||Canon 40D|
|Sony NEX-6||Y||stereo||mono||-||-||mini||2.0||Y||-||-||Sony NEX-6|
|Canon T3||Y||stereo||mono||-||-||mini||2.0||-||-||-||Canon T3|
|Canon 60D||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 60D|
|Canon 50D||Y||none||none||-||-||mini||2.0||-||-||-||Canon 50D|
|Canon XS||Y||none||none||-||-||none||2.0||-||-||-||Canon XS|
|Canon XSi||Y||none||none||-||-||mini||2.0||-||-||-||Canon XSi|
|Canon 30D||Y||none||none||-||-||none||2.0||-||-||-||Canon 30D|
|Canon XTi||Y||none||none||-||-||none||2.0||-||-||-||Canon XTi|
|Canon 20D||Y||none||none||-||-||none||1.1||-||-||-||Canon 20D|
|Canon 10D||Y||none||none||-||-||none||1.1||-||-||-||Canon 10D|
|Nikon D90||Y||mono||mono||-||-||mini||2.0||-||-||-||Nikon D90|
|Sony A6000||Y||stereo||mono||-||-||micro||2.0||Y||Y||-||Sony A6000|
|Sony NEX-3N||-||stereo||mono||-||-||micro||2.0||-||-||-||Sony NEX-3N|
|Sony NEX-5N||Y||stereo||mono||-||-||mini||2.0||-||-||-||Sony NEX-5N|
|Sony NEX-3||Y||stereo||mono||-||-||mini||2.0||-||-||-||Sony NEX-3|
|Sony NEX-5||Y||stereo||mono||-||-||mini||2.0||-||-||-||Sony NEX-5|
It is notable that the NEX-6 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 40D does not offer wifi capability.
Studio photographers will appreciate that the Canon 40D (unlike the NEX-6) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 40D and the NEX-6 have been discontinued, but can regularly be found used on eBay. The 40D was replaced by the Canon 50D, while the NEX-6 was followed by the Sony A6000. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So what is the bottom line? Is there a clear favorite between the Canon 40D and the Sony NEX-6? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 40D:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (750 versus 360) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2007).
Arguments in favor of the Sony Alpha NEX-6:
- More detail: Has more megapixels (16 vs 10.1MP), which boosts linear resolution by 26%.
- Better image quality: Scores substantially higher (14 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.6 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.8 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.5 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.59x).
- More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster burst: Shoots at higher frequency (10 vs 6.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (120x67mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 477g or 58 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was released into a lower priced segment (23 percent cheaper at launch).
- More modern: Reflects 5 years of technical progress since the 40D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the NEX-6 is the clear winner of the contest (18 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Sony NEX-6 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 40D and the NEX-6 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 40D vs Sony NEX-6
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 40D||Sony NEX-6|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||August 2007||September 2012|
|Launch Price||USD 1299||USD 999|
|Sensor Specs||Canon 40D||Sony NEX-6|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.4 x 15.6 mm|
|Sensor Area||332.27 mm2||365.04 mm2|
|Sensor Diagonal||26.8 mm||28.1 mm|
|Sensor Resolution||10.1 Megapixels||16 Megapixels|
|Image Resolution||3888 x 2592 pixels||4912 x 3264 pixels|
|Pixel Pitch||5.73 μm||4.78 μm|
|Pixel Density||3.03 MP/cm2||4.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||100-1600 ISO||100-25600 ISO|
|ISO Boost||100-3200 ISO||no Enhancement|
|Image Processor||DIGIC 3||BIONZ|
|DXO Sensor Quality (score)||64||78|
|DXO Color Depth (bits)||22.1||23.7|
|DXO Dynamic Range (EV)||11.3||13.1|
|DXO Low Light (ISO)||703||1018|
|Screen Specs||Canon 40D||Sony NEX-6|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2359k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||230k dots||921k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon 40D||Sony NEX-6|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000/s||1/4000/s|
|Continuous Shooting||6.5 shutter flaps/s||10 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||150 000 actuations|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 40D||Sony NEX-6|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 40D||Sony NEX-6|
|Battery Life (CIPA)||750 shots per charge||360 shots per charge|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
120 x 67 x 43 mm
(4.7 x 2.6 x 1.7 in)
|Camera Weight||822 g (29.0 oz)||345 g (12.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
