Canon 40D vs S120
The Canon EOS 40D and the Canon PowerShot S120 are two digital cameras that were officially introduced, respectively, in August 2007 and August 2013. The 40D is a DSLR, while the S120 is a fixed lens compact. The cameras are based on an APS-C (40D) and a 1/1.7-inch (S120) sensor. The 40D has a resolution of 10.1 megapixels, whereas the S120 provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Canon PowerShot S120? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison
The physical size and weight of the Canon 40D and the Canon S120 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon S120 is considerably smaller (63 percent) than the Canon 40D. In this context, it is worth noting that neither the 40D nor the S120 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the S120 has a lens built in, whereas the 40D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 40D and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the 40D gets 750 shots out of its Canon BP-511A battery, while the S120 can take 230 images on a single charge of its Canon NB-6LH power pack.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price (USD) |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 40D | 146 mm | 108 mm | 74 mm | 822 g | 750 | n | Aug 2007 | 1,299 | ebay.com | |
2. | Canon S120 | 100 mm | 59 mm | 29 mm | 217 g | 230 | n | Aug 2013 | 449 | ebay.com | |
3. | Canon 10D | 150 mm | 107 mm | 75 mm | 850 g | 500 | n | Feb 2003 | 1,999 | ebay.com | |
4. | Canon 20D | 144 mm | 106 mm | 72 mm | 770 g | 700 | n | Aug 2004 | 1,499 | ebay.com | |
5. | Canon 30D | 144 mm | 106 mm | 74 mm | 785 g | 750 | n | Feb 2006 | 1,399 | ebay.com | |
6. | Canon 50D | 146 mm | 108 mm | 74 mm | 822 g | 800 | Y | Aug 2008 | 1,299 | ebay.com | |
7. | Canon 60D | 145 mm | 106 mm | 79 mm | 755 g | 1100 | Y | Aug 2010 | 1,399 | ebay.com | |
8. | Canon G1 X Mark II | 116 mm | 74 mm | 66 mm | 553 g | 240 | n | Feb 2014 | 799 | ebay.com | |
9. | Canon G15 | 107 mm | 76 mm | 40 mm | 352 g | 350 | n | Sep 2012 | 499 | ebay.com | |
10. | Canon G16 | 109 mm | 76 mm | 40 mm | 356 g | 360 | n | Aug 2013 | 549 | ebay.com | |
11. | Canon SX50 | 123 mm | 87 mm | 106 mm | 595 g | 315 | n | Sep 2012 | 429 | ebay.com | |
12. | Canon T3 | 130 mm | 100 mm | 78 mm | 495 g | 700 | n | Feb 2011 | 449 | ebay.com | |
13. | Canon XS | 126 mm | 98 mm | 65 mm | 502 g | 500 | n | Jun 2008 | 449 | ebay.com | |
14. | Canon XSi | 129 mm | 98 mm | 62 mm | 524 g | 500 | n | Jan 2008 | 799 | ebay.com | |
15. | Canon XTi | 127 mm | 84 mm | 65 mm | 556 g | 370 | n | Aug 2006 | 799 | ebay.com | |
16. | Nikon D90 | 132 mm | 103 mm | 77 mm | 703 g | 850 | n | Aug 2008 | 1,299 | ebay.com | |
17. | Panasonic LF1 | 103 mm | 62 mm | 28 mm | 192 g | 250 | n | Apr 2013 | 499 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The S120 was launched at a lower price than the 40D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 40D features an APS-C sensor and the Canon S120 a 1/1.7-inch sensor. The sensor area in the S120 is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.5. The sensor in the 40D has a native 3:2 aspect ratio, while the one in the S120 offers a 4:3 aspect.

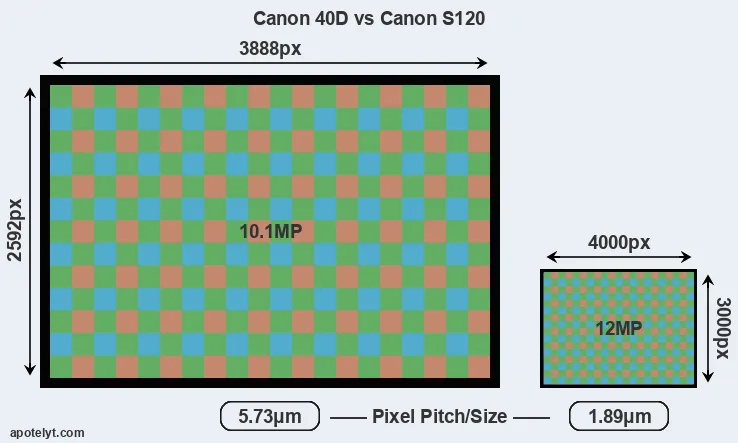

Despite having a smaller sensor, the S120 offers a higher resolution of 12 megapixels, compared with 10.1 MP of the 40D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.89μm versus 5.73μm for the 40D). However, it should be noted that the S120 is much more recent (by 6 years) than the 40D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon S120 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S120 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Canon 40D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon PowerShot S120 are ISO 80 to ISO 12800 (no boost).
In terms of underlying technology, the 40D is build around a CMOS sensor, while the S120 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 40D has a notably higher overall DXO score than the S120 (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.8 bits higher color depth, 0.6 EV of lower dynamic range, and 1.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 40D | APS-C | 10.1 | 3888 | 2592 | none | 22.1 | 11.3 | 703 | 64 | |
2. | Canon S120 | 1/1.7 | 12.0 | 4000 | 3000 | 1080/60p | 21.3 | 11.9 | 246 | 56 | |
3. | Canon 10D | APS-C | 6.3 | 3072 | 2048 | none | 21.1 | 10.9 | 571 | 57 | |
4. | Canon 20D | APS-C | 8.2 | 3504 | 2336 | none | 21.9 | 11.0 | 721 | 62 | |
5. | Canon 30D | APS-C | 8.2 | 3504 | 2336 | none | 21.5 | 10.8 | 736 | 59 | |
6. | Canon 50D | APS-C | 15.1 | 4752 | 3168 | none | 21.8 | 11.4 | 696 | 63 | |
7. | Canon 60D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.2 | 11.5 | 813 | 66 | |
8. | Canon G1 X Mark II | 1.5-inch | 13.0 | 4160 | 3120 | 1080/30p | 21.5 | 10.8 | 581 | 58 | |
9. | Canon G15 | 1/1.7 | 12.0 | 4000 | 3000 | 1080/24p | 19.9 | 11.5 | 165 | 46 | |
10. | Canon G16 | 1/1.7 | 12.0 | 4000 | 3000 | 1080/60p | 21.0 | 11.7 | 230 | 54 | |
11. | Canon SX50 | 1/2.3 | 12.0 | 4000 | 3000 | 1080/24p | 20.3 | 11.2 | 179 | 47 | |
12. | Canon T3 | APS-C | 12.2 | 4272 | 2848 | 720/30p | 21.9 | 11.0 | 755 | 62 | |
13. | Canon XS | APS-C | 10.1 | 3888 | 2592 | none | 22.0 | 10.9 | 719 | 62 | |
14. | Canon XSi | APS-C | 12.2 | 4272 | 2848 | none | 21.9 | 10.8 | 692 | 61 | |
15. | Canon XTi | APS-C | 10.1 | 3888 | 2592 | none | 22.1 | 11.0 | 664 | 62 | |
16. | Nikon D90 | APS-C | 12.2 | 4288 | 2848 | 720/24p | 22.7 | 12.5 | 977 | 73 | |
17. | Panasonic LF1 | 1/1.7 | 12.0 | 4000 | 3000 | 1080/60i | 20.8 | 11.6 | 211 | 52 |
Many modern cameras are not only capable of taking still images, but can also record movies. The S120 indeed provides for movie recording, while the 40D does not. The highest resolution format that the S120 can use is 1080/60p.
Feature comparison
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 40D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the S120 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 40D, the Canon S120, and comparable cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 40D | optical | Y | 3.0 / 230 | fixed | n | 1/8000s | 6.5/s | Y | n | |
2. | Canon S120 | none | n | 3.0 / 922 | fixed | Y | 1/2000s | 12.1/s | Y | Y | |
3. | Canon 10D | optical | Y | 1.8 / 118 | fixed | n | 1/4000s | 3.0/s | Y | n | |
4. | Canon 20D | optical | Y | 1.8 / 118 | fixed | n | 1/8000s | 5.0/s | Y | n | |
5. | Canon 30D | optical | Y | 2.5 / 230 | fixed | n | 1/8000s | 5.0/s | Y | n | |
6. | Canon 50D | optical | Y | 3.0 / 920 | fixed | n | 1/8000s | 6.3/s | Y | n | |
7. | Canon 60D | optical | Y | 3.0 / 1040 | swivel | n | 1/8000s | 5.3/s | Y | n | |
8. | Canon G1 X Mark II | optional | n | 3.0 / 1040 | tilting | Y | 1/4000s | 5.2/s | Y | Y | |
9. | Canon G15 | optical | n | 3.0 / 922 | fixed | n | 1/4000s | 2.1/s | Y | Y | |
10. | Canon G16 | optical | n | 3.0 / 922 | fixed | n | 1/4000s | 2.2/s | Y | Y | |
11. | Canon SX50 | 202 | n | 3.0 / 461 | swivel | n | 1/2000s | 2.2/s | Y | Y | |
12. | Canon T3 | optical | n | 2.7 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
13. | Canon XS | optical | n | 2.5 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
14. | Canon XSi | optical | n | 3.0 / 230 | fixed | n | 1/4000s | 3.5/s | Y | n | |
15. | Canon XTi | optical | n | 2.5 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
16. | Nikon D90 | optical | Y | 3.0 / 920 | fixed | n | 1/4000s | 4.5/s | Y | n | |
17. | Panasonic LF1 | 200 | n | 3.0 / 920 | fixed | n | 1/4000s | 10.0/s | Y | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One feature that is present on the 40D, but is missing on the S120 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Canon S120 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 40D writes its imaging data to Compact Flash cards, while the S120 uses SDXC cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Canon PowerShot S120 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 40D | Y | - / - | - | - | - | 2.0 | - | - | - | |
2. | Canon S120 | - | stereo / mono | - | - | mini | 2.0 | Y | - | - | |
3. | Canon 10D | Y | - / - | - | - | - | 1.1 | - | - | - | |
4. | Canon 20D | Y | - / - | - | - | - | 1.1 | - | - | - | |
5. | Canon 30D | Y | - / - | - | - | - | 2.0 | - | - | - | |
6. | Canon 50D | Y | - / - | - | - | mini | 2.0 | - | - | - | |
7. | Canon 60D | Y | mono / mono | Y | - | mini | 2.0 | - | - | - | |
8. | Canon G1 X Mark II | Y | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
9. | Canon G15 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
10. | Canon G16 | Y | stereo / mono | - | - | mini | 2.0 | Y | - | - | |
11. | Canon SX50 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
12. | Canon T3 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
13. | Canon XS | Y | - / - | - | - | - | 2.0 | - | - | - | |
14. | Canon XSi | Y | - / - | - | - | mini | 2.0 | - | - | - | |
15. | Canon XTi | Y | - / - | - | - | - | 2.0 | - | - | - | |
16. | Nikon D90 | Y | mono / mono | - | - | mini | 2.0 | - | - | - | |
17. | Panasonic LF1 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - |
It is notable that the 40D has a hotshoe, while the S120 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Canon 40D (unlike the S120) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 40D and the S120 have been discontinued, but can regularly be found used on ebay. The 40D was replaced by the Canon 50D, while the S120 does not have a direct successor. Further information on the features and operation of the 40D and S120 can be found, respectively, in the Canon 40D Manual (free pdf) or the online Canon S120 Manual.
Review summary
So what is the bottom line? Is there a clear favorite between the Canon 40D and the Canon S120? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 40D:
- Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
- Better low-light sensitivity: Requires less light for good images (1.5 stops ISO advantage).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (750 versus 230) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2007).
Arguments in favor of the Canon PowerShot S120:
- More detail: Has more megapixels (12 vs 10.1MP), which boosts linear resolution by 7%.
- More dynamic range: Captures a broader range of light and dark details (0.6 EV of extra DR).
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (12.1 vs 6.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Comes with an integrated lens, while the 40D requires a separate lens.
- More compact: Is smaller (100x59mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 40D).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 6 years of technical progress since the 40D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the S120 is the clear winner of the contest (14 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Canon S120 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 40D and the S120 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price (USD) |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 40D | .. | + + | .. | + + | 4.5/5 | 4.5/5 | Aug 2007 | 1,299 | ebay.com | |
2. | Canon S120 | .. | + + | .. | .. | 4.5/5 | 4.5/5 | Aug 2013 | 449 | ebay.com | |
3. | Canon 10D | .. | .. | .. | + + | .. | .. | Feb 2003 | 1,999 | ebay.com | |
4. | Canon 20D | .. | .. | .. | + + | .. | .. | Aug 2004 | 1,499 | ebay.com | |
5. | Canon 30D | .. | + + | .. | + + | o | .. | Feb 2006 | 1,399 | ebay.com | |
6. | Canon 50D | .. | + + | .. | + + | 4.5/5 | 4.5/5 | Aug 2008 | 1,299 | ebay.com | |
7. | Canon 60D | 5/5 | + | .. | 79/100 | 4/5 | 4.5/5 | Aug 2010 | 1,399 | ebay.com | |
8. | Canon G1 X Mark II | 3/5 | + | .. | 77/100 | 4/5 | 4.5/5 | Feb 2014 | 799 | ebay.com | |
9. | Canon G15 | 4/5 | + | .. | 76/100 | 4.5/5 | 4.5/5 | Sep 2012 | 499 | ebay.com | |
10. | Canon G16 | 4/5 | + | .. | .. | 4.5/5 | 4.5/5 | Aug 2013 | 549 | ebay.com | |
11. | Canon SX50 | 3/5 | + + | .. | 72/100 | 4.5/5 | 4.5/5 | Sep 2012 | 429 | ebay.com | |
12. | Canon T3 | .. | 80/100 | .. | 69/100 | 4/5 | 4.5/5 | Feb 2011 | 449 | ebay.com | |
13. | Canon XS | .. | 82/100 | .. | + + | 3.5/5 | 4.5/5 | Jun 2008 | 449 | ebay.com | |
14. | Canon XSi | .. | + + | .. | + + | 4/5 | 4.5/5 | Jan 2008 | 799 | ebay.com | |
15. | Canon XTi | .. | + + | .. | + + | o | 4/5 | Aug 2006 | 799 | ebay.com | |
16. | Nikon D90 | .. | + + | .. | + + | 4/5 | 4.5/5 | Aug 2008 | 1,299 | ebay.com | |
17. | Panasonic LF1 | 3/5 | + | .. | .. | 4/5 | 4.5/5 | Apr 2013 | 499 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 40D vs Canon S120
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon 40D | Canon S120 |
---|---|---|
Camera Type | Digital single lens reflex | Fixed lens compact camera |
Camera Lens | Canon EF mount lenses | 24-120mm f/1.8-5.7 |
Launch Date | August 2007 | August 2013 |
Launch Price | USD 1,299 | USD 449 |
Sensor Specs | Canon 40D | Canon S120 |
Sensor Technology | CMOS | BSI-CMOS |
Sensor Format | APS-C Sensor | 1/1.7" Sensor |
Sensor Size | 22.3 x 14.9 mm | 7.6 x 5.7 mm |
Sensor Area | 332.27 mm2 | 43.32 mm2 |
Sensor Diagonal | 26.8 mm | 9.5 mm |
Crop Factor | 1.6x | 4.5x |
Sensor Resolution | 10.1 Megapixels | 12 Megapixels |
Image Resolution | 3888 x 2592 pixels | 4000 x 3000 pixels |
Pixel Pitch | 5.73 μm | 1.89 μm |
Pixel Density | 3.03 MP/cm2 | 27.70 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | no Video | 1080/60p Video |
ISO Setting | 100 - 1,600 ISO | 80 - 12,800 ISO |
ISO Boost | 100 - 3,200 ISO | no Enhancement |
Image Processor | DIGIC 3 | Digic 6 |
DXO Sensor Quality (score) | 64 | 56 |
DXO Color Depth (bits) | 22.1 | 21.3 |
DXO Dynamic Range (EV) | 11.3 | 11.9 |
DXO Low Light (ISO) | 703 | 246 |
Screen Specs | Canon 40D | Canon S120 |
Viewfinder Type | Optical viewfinder | no viewfinder |
Viewfinder Field of View | 95% | |
Viewfinder Magnification | 0.59x | |
Top-Level Screen | Control Panel | no Top Display |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 230k dots | 922k dots |
LCD Attachment | Fixed screen | Fixed screen |
Touch Input | no Touchscreen | Touchscreen |
Shooting Specs | Canon 40D | Canon S120 |
Focus System | Phase-detect AF | Contrast-detect AF |
Manual Focusing Aid | no Peaking Feature | Focus Peaking |
Max Shutter Speed (mechanical) | 1/8000s | 1/2000s |
Continuous Shooting | 6.5 shutter flaps/s | 12.1 shutter flaps/s |
Time-Lapse Photography | no Intervalometer | Intervalometer built-in |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | CF cards | SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
Connectivity Specs | Canon 40D | Canon S120 |
External Flash | Hotshoe | no Hotshoe |
Studio Flash | PC Sync socket | no PC Sync |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | no HDMI | mini HDMI |
Wifi Support | no Wifi | Wifi built-in |
Body Specs | Canon 40D | Canon S120 |
Battery Type | Canon BP-511A | Canon NB-6LH |
Battery Life (CIPA) | 750 shots per charge | 230 shots per charge |
Body Dimensions |
146 x 108 x 74 mm (5.7 x 4.3 x 2.9 in) |
100 x 59 x 29 mm (3.9 x 2.3 x 1.1 in) |
Camera Weight | 822 g (29.0 oz) | 217 g (7.7 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
