Canon 40D vs 650D
The Canon EOS 40D and the Canon EOS 650D (labelled Canon T4i in some countries) are two digital cameras that were revealed to the public, respectively, in August 2007 and June 2012. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 40D has a resolution of 10.1 megapixels, whereas the 650D provides 17.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 40D||Canon 650D|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|10.1 MP, APS-C Sensor||17.9 MP, APS-C Sensor|
|no Video||1080/30p Video|
|ISO 100-1600 (100-3200)||ISO 100-12800 (100-25600)|
|Optical viewfinder||Optical viewfinder|
|3.0" LCD, 230k dots||3.0" LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Swivel touchscreen|
|6.5 shutter flaps per second||5 shutter flaps per second|
|750 shots per battery charge||440 shots per battery charge|
|146 x 108 x 74 mm, 822 g||133 x 100 x 79 mm, 575 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Canon EOS 650D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

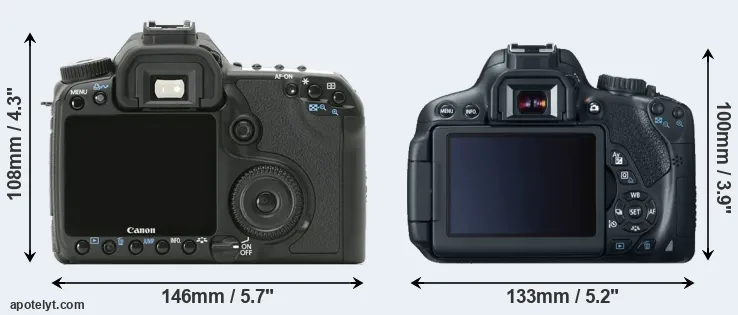

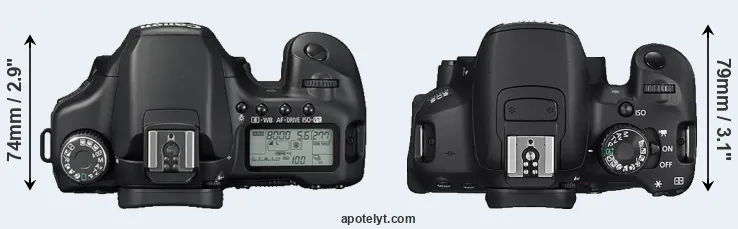

The side-by-side display below illustrates the physical size and weight of the Canon 40D and the Canon 650D. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 650D is notably smaller (16 percent) than the Canon 40D. Moreover, the 650D is markedly lighter (30 percent) than the 40D. In this context, it is worth noting that neither the 40D nor the 650D are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 40D»||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||Canon 40D|
|Canon 650D«||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849||Canon 650D|
|Canon 700D« »||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649||Canon 700D|
|Canon G1 X« »||4.6 in||3.2 in||2.6 in||18.8 oz||250||n||Jan 2012||799||Canon G1 X|
|Canon 600D« »||5.2 in||3.9 in||3.1 in||20.1 oz||440||n||Feb 2011||599||Canon 600D|
|Canon T3« »||5.1 in||3.9 in||3.1 in||17.5 oz||700||n||Feb 2011||449||Canon T3|
|Canon 60D« »||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399||Canon 60D|
|Canon 550D« »||5.1 in||3.9 in||2.4 in||18.7 oz||440||n||Feb 2010||699||Canon 550D|
|Canon 500D« »||5.1 in||3.9 in||2.4 in||18.3 oz||400||n||Mar 2009||799||Canon 500D|
|Canon 50D« »||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299||Canon 50D|
|Canon XS« »||5.0 in||3.9 in||2.6 in||17.7 oz||500||n||Jun 2008||449||Canon XS|
|Canon XSi« »||5.1 in||3.9 in||2.4 in||18.5 oz||500||n||Jan 2008||799||Canon XSi|
|Canon 30D« »||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399||Canon 30D|
|Canon XTi« »||5.0 in||3.3 in||2.6 in||19.6 oz||370||n||Aug 2006||799||Canon XTi|
|Canon 20D« »||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499||Canon 20D|
|Canon 10D« »||5.9 in||4.2 in||3.0 in||30.0 oz||500||n||Feb 2003||1,999||Canon 10D|
|Nikon D90« »||5.2 in||4.1 in||3.0 in||24.8 oz||850||n||Aug 2008||1,299||Nikon D90|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 650D was launched at a markedly lower price (by 35 percent) than the 40D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 650D uses a more advanced image processing engine (DIGIC 5) than the 40D (DIGIC 3), with benefits for noise reduction, color accuracy, and processing speed.
While the two cameras under review share the same sensor size, the 650D offers a higher resolution of 17.9 megapixels, compared with 10.1 MP of the 40D. This megapixels advantage translates into a 33 percent gain in linear resolution. On the other hand, these sensor specs imply that the 650D has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 5.73μm for the 40D). However, it should be noted that the 650D is much more recent (by 4 years and 9 months) than the 40D, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Canon 650D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 650D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inch or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inch or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inch or 43.9 x 29.3 cm. The corresponding values for the Canon 40D are 19.4 x 13 inch or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inch or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inch or 32.9 x 21.9 cm for excellent quality prints.
The 650D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon EOS 650D are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 40D||APS-C||10.1||3888||2592||none||22.1||11.3||703||64||Canon 40D|
|Canon 650D||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62||Canon 650D|
|Canon 700D||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||681||61||Canon 700D|
|Canon G1 X||1.5-inch||14.2||4352||3264||1080/24p||21.7||10.8||644||60||Canon G1 X|
|Canon 600D||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||793||65||Canon 600D|
|Canon T3||APS-C||12.2||4272||2848||720/30p||21.9||11.0||755||62||Canon T3|
|Canon 60D||APS-C||17.9||5184||3456||1080/30p||22.2||11.5||813||66||Canon 60D|
|Canon 550D||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||784||66||Canon 550D|
|Canon 500D||APS-C||15.1||4752||3168||1080/20p||21.7||11.5||663||63||Canon 500D|
|Canon 50D||APS-C||15.1||4752||3168||none||21.8||11.4||696||63||Canon 50D|
|Canon XS||APS-C||10.1||3888||2592||none||..||..||..||..||Canon XS|
|Canon XSi||APS-C||12.2||4272||2848||none||21.9||10.8||692||61||Canon XSi|
|Canon 30D||APS-C||8.2||3504||2336||none||21.5||10.8||736||59||Canon 30D|
|Canon XTi||APS-C||10.1||3888||2592||none||22.1||11.0||664||62||Canon XTi|
|Canon 20D||APS-C||8.2||3504||2336||none||21.9||11.0||721||62||Canon 20D|
|Canon 10D||APS-C||6.3||3072||2048||none||21.1||10.9||571||57||Canon 10D|
|Nikon D90||APS-C||12.2||4288||2848||720/24p||22.7||12.5||977||73||Nikon D90|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 650D indeed provides for movie recording, while the 40D does not. The highest resolution format that the 650D can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 40D and the 650D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 40D has a higher magnification than the one of the 650D (0.59x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 40D, the Canon 650D, and comparable cameras.
|Canon 40D||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Canon 650D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 650D|
|Canon 700D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 700D|
|Canon G1 X||optical||n||3.0||922||Swivel||n||1/4000s||1.9||Y||Y||Canon G1 X|
|Canon 600D||optical||n||3.0||1040||swivel||n||1/4000s||3.7||Y||n||Canon 600D|
|Canon T3||optical||n||2.7||230||fixed||n||1/4000s||3.0||Y||n||Canon T3|
|Canon 60D||optical||Y||3.0||1040||swivel||n||1/8000s||5.3||Y||n||Canon 60D|
|Canon 550D||optical||n||3.0||1040||fixed||n||1/4000s||3.7||Y||n||Canon 550D|
|Canon 500D||optical||n||3.0||920||fixed||n||1/4000s||3.4||Y||n||Canon 500D|
|Canon 50D||optical||Y||3.0||920||fixed||n||1/8000s||6.3||Y||n||Canon 50D|
|Canon XS||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Canon XS|
|Canon XSi||optical||n||3.0||230||fixed||n||1/4000s||3.5||Y||n||Canon XSi|
|Canon 30D||optical||Y||2.5||230||fixed||n||1/8000s||5.0||Y||n||Canon 30D|
|Canon XTi||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Canon XTi|
|Canon 20D||optical||Y||1.8||118||fixed||n||1/8000s||5.0||Y||n||Canon 20D|
|Canon 10D||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Canon 10D|
|Nikon D90||optical||Y||3.0||920||fixed||n||1/4000s||4.5||Y||n||Nikon D90|
One feature that is present on the 40D, but is missing on the 650D is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 650D has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 40D does not have a selfie-screen.
The 40D writes its imaging data to Compact Flash cards, while the 650D uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Canon EOS 650D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 40D||Y||none||none||-||-||none||2.0||-||-||-||Canon 40D|
|Canon 650D||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon 650D|
|Canon 700D||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon 700D|
|Canon G1 X||Y||stereo||mono||-||-||mini||2.0||-||-||-||Canon G1 X|
|Canon 600D||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 600D|
|Canon T3||Y||stereo||mono||-||-||mini||2.0||-||-||-||Canon T3|
|Canon 60D||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 60D|
|Canon 550D||Y||stereo||none||Y||-||mini||2.0||-||-||-||Canon 550D|
|Canon 500D||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon 500D|
|Canon 50D||Y||none||none||-||-||mini||2.0||-||-||-||Canon 50D|
|Canon XS||Y||none||none||-||-||none||2.0||-||-||-||Canon XS|
|Canon XSi||Y||none||none||-||-||mini||2.0||-||-||-||Canon XSi|
|Canon 30D||Y||none||none||-||-||none||2.0||-||-||-||Canon 30D|
|Canon XTi||Y||none||none||-||-||none||2.0||-||-||-||Canon XTi|
|Canon 20D||Y||none||none||-||-||none||1.1||-||-||-||Canon 20D|
|Canon 10D||Y||none||none||-||-||none||1.1||-||-||-||Canon 10D|
|Nikon D90||Y||mono||mono||-||-||mini||2.0||-||-||-||Nikon D90|
Studio photographers will appreciate that the Canon 40D (unlike the 650D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 40D and the 650D have been discontinued, but can regularly be found used on eBay. The 40D was replaced by the Canon 50D, while the 650D was followed by the Canon 700D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Is there a clear favorite between the Canon 40D and the Canon 650D? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS 40D:
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.53x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (6.5 vs 5 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (750 versus 440) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2007).
Reasons to prefer the Canon EOS 650D:
- More detail: Has more megapixels (17.9 vs 10.1MP), which boosts linear resolution by 33%.
- Better jpgs: Has a more modern image processing engine (DIGIC 5 vs DIGIC 3).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (133x100mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 247g or 30 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (35 percent cheaper at launch).
- More modern: Reflects 4 years and 9 months of technical progress since the 40D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the 650D is the clear winner of the contest (12 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Canon 650D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 40D or the 650D perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1100D vs Canon 40D
- Canon 1D Mark II vs Canon 650D
- Canon 1Ds Mark III vs Canon 650D
- Canon 40D vs Canon G9 X
- Canon 40D vs Olympus E-5
- Canon 40D vs Samsung NX1
- Canon 40D vs Sony A6100
- Canon 650D vs Canon S120
- Canon 650D vs Nikon D4S
- Canon 650D vs Nikon D5500
- Canon 650D vs Panasonic GF5
- Canon 650D vs Sony HX80
Specifications: Canon 40D vs Canon 650D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 40D||Canon 650D|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||August 2007||June 2012|
|Launch Price||USD 1299||USD 849|
|Sensor Specs||Canon 40D||Canon 650D|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||22.3 x 14.9 mm|
|Sensor Area||332.27 mm2||332.27 mm2|
|Sensor Diagonal||26.8 mm||26.8 mm|
|Sensor Resolution||10.1 Megapixels||17.9 Megapixels|
|Image Resolution||3888 x 2592 pixels||5184 x 3456 pixels|
|Pixel Pitch||5.73 μm||4.31 μm|
|Pixel Density||3.03 MP/cm2||5.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100-1600 ISO||100-12800 ISO|
|ISO Boost||100-3200 ISO||100-25600 ISO|
|Image Processor||DIGIC 3||DIGIC 5|
|DXO Sensor Quality (score)||64||62|
|DXO Color Depth (bits)||22.1||21.7|
|DXO Dynamic Range (EV)||11.3||11.2|
|DXO Low Light (ISO)||703||722|
|Screen Specs||Canon 40D||Canon 650D|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 40D||Canon 650D|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||6.5 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 40D||Canon 650D|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 40D||Canon 650D|
|Battery Life (CIPA)||750 shots per charge||440 shots per charge|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
133 x 100 x 79 mm
(5.2 x 3.9 x 3.1 in)
|Camera Weight||822 g (29.0 oz)||575 g (20.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
