Canon 20D vs Panasonic LX5

The Canon EOS 20D and the Panasonic Lumix DMC-LX5 are two digital cameras that were announced, respectively, in August 2004 and July 2010. The 20D is a DSLR, while the LX5 is a fixed lens compact. The cameras are based on an APS-C (20D) and a 1/1.7-inch (LX5) sensor. The Canon has a resolution of 8.2 megapixels, whereas the Panasonic provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 20D		Panasonic LX5
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-90mm f/2.0-3.3
8.2 MP – APS-C sensor		10 MP – 1/1.7" sensor
no Video		720/60p Video
ISO 100-1,600 (100 - 3,200)		ISO 80-3,200 (80 - 12,800)
Optical viewfinder		Viewfinder optional
1.8" LCD – 118k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		2.5 shutter flaps per second
700 shots per battery charge		400 shots per battery charge
144 x 106 x 72 mm, 770 g		110 x 65 x 43 mm, 271 g

Check 20D offers at
ebay.com
Check LX5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 20D and the Panasonic Lumix DMC-LX5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

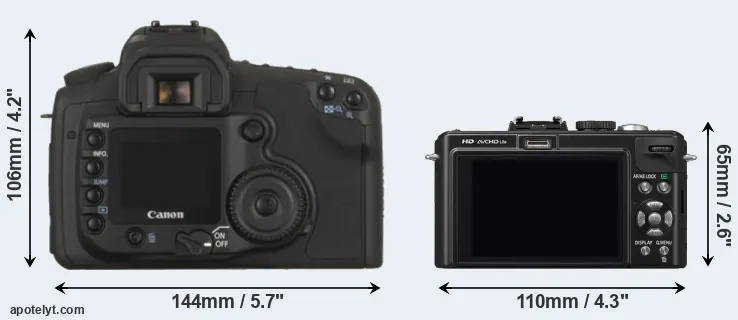

Body comparison

The physical size and weight of the Canon 20D and the Panasonic LX5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The LX5 can be obtained in two different colors (black, white), while the 20D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX5 is considerably smaller (53 percent) than the Canon 20D. In this context, it is worth noting that neither the 20D nor the LX5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX5 has a lens built in, whereas the 20D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 20D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 20D gets 700 shots out of its Canon BP-511A battery, while the LX5 can take 400 images on a single charge of its Panasonic DMW-BCJ13 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	US$ 1 499	ebay.com
2.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
3.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
5.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	US$ 1 999	ebay.com
6.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
7.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
8.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
9.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
10.		Canon 300D	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
11.		Canon 350D	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
12.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
13.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	US$ 1 699	ebay.com
14.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
15.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
16.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The LX5 was launched at a lower price than the 20D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 20D features an APS-C sensor and the Panasonic LX5 a 1/1.7-inch sensor. The sensor area in the LX5 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the 20D has a native 3:2 aspect ratio, while the one in the LX5 offers a 4:3 aspect. The LX5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

Despite having a smaller sensor, the LX5 offers a higher resolution of 10 megapixels, compared with 8.2 MP of the 20D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.14μm versus 6.42μm for the 20D). However, it should be noted that the LX5 is much more recent (by 5 years and 11 months) than the 20D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic LX5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the LX5 for good quality output (200 dots per inch) amounts to 18.2 x 13.7 inches or 46.3 x 34.7 cm, for very good quality (250 dpi) 14.6 x 10.9 inches or 37.1 x 27.8 cm, and for excellent quality (300 dpi) 12.2 x 9.1 inches or 30.9 x 23.2 cm. The corresponding values for the Canon 20D are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.

The Canon EOS 20D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Panasonic Lumix DMC-LX5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the 20D is build around a CMOS sensor, while the LX5 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 20D provides substantially higher image quality than the LX5, with an overall score that is 21 points higher. This advantage is based on 2.3 bits higher color depth, 0.2 EV in additional dynamic range, and 2.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
2.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
3.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
4.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
5.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
6.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
7.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
8.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
9.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
10.		Canon 300D	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
11.		Canon 350D	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
12.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
13.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
14.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
15.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
16.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50

Many modern cameras are not only capable of taking still images, but can also record movies. The LX5 indeed provides for movie recording, while the 20D does not. The highest resolution format that the LX5 can use is 720/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 20D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the LX5 relies on live view and the rear LCD for framing. That said, the LX5 can be equipped with an optional viewfinder – the DMW-LVF1. The table below summarizes some of the other core capabilities of the Canon 20D and Panasonic LX5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
2.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
3.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
4.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
5.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
7.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
8.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
9.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
10.		Canon 300D	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
11.		Canon 350D	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
12.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
13.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
14.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
15.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
16.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 20D, but is missing on the LX5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 20D writes its imaging data to Compact Flash cards, while the LX5 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 20D and Panasonic Lumix DMC-LX5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
2.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
4.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
6.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
8.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
9.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon 300D	Y	- / -	-	-	-	1.1	-	-	-
11.		Canon 350D	Y	- / -	-	-	-	2.0	-	-	-
12.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
14.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Canon 20D (unlike the LX5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 20D and the LX5 have been discontinued, but can regularly be found used on ebay. The 20D was replaced by the Canon 30D, while the LX5 was followed by the Panasonic LX7. Further information on the features and operation of the 20D and LX5 can be found, respectively, in the Canon 20D Manual (free pdf) or the online Panasonic LX5 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 20D or the Panasonic LX5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS 20D:

• Better image quality: Scores substantially higher (21 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (2.3 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (2.4 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 2.5 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (700 versus 400) on a single battery charge.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in August 2004).

Reasons to prefer the Panasonic Lumix DMC-LX5:

• More detail: Has more megapixels (10 vs 8.2MP), which boosts linear resolution by 8%.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Broader imaging potential: Can capture not only stills but also 720/60p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 118k dots).
• Ready to shoot: Comes with an integrated lens, while the 20D requires a separate lens.
• More compact: Is smaller (110x65mm vs 144x106mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 20D).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 5 years and 11 months of technical progress since the 20D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the LX5 comes out slightly ahead of the 20D (12 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 20D and the Panasonic LX5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 20D and the LX5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	US$ 1 499	ebay.com
2.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
3.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
5.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	US$ 1 999	ebay.com
6.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
7.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
8.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
9.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
10.		Canon 300D	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
11.		Canon 350D	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
12.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
13.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	US$ 1 699	ebay.com
14.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
15.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
16.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
