Canon 200D versus Canon 800D

The Canon EOS 200D (called Canon SL2 in some regions) and the Canon EOS 800D (labelled Canon T7i in some countries) are two digital cameras that were revealed to the public, respectively, in June 2017 and February 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixel. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 200D vs Canon 800D

The side-by-side display below illustrates the physical size and weight of the Canon 200D and the Canon 800D. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left side – the 200D – represents the basis for the calculations across all the size and weight measures).

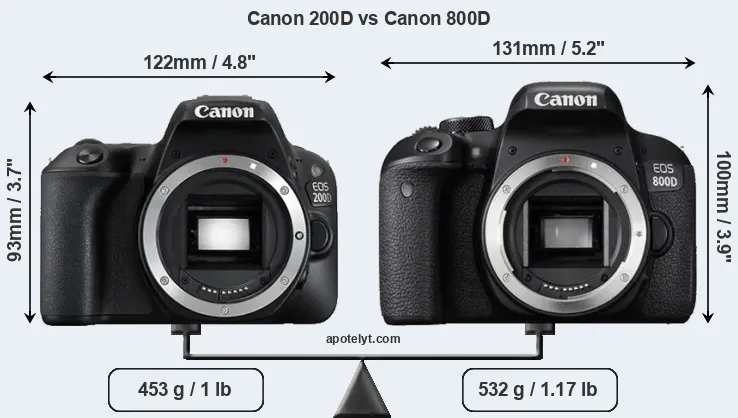

Compare Canon 200D vs Canon 800D

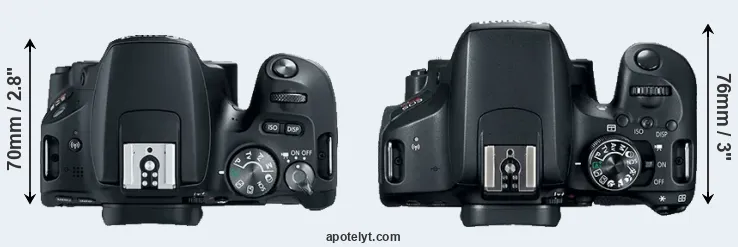

Compare 200D versus 800D top

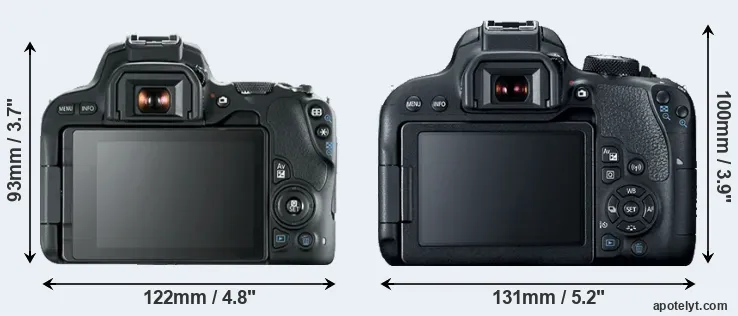

Compare 200D and 800D rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 800D is notably larger (15 percent) than the Canon 200D. Moreover, the 800D is markedly heavier (17 percent) than the 200D. In this context, it is worth noting that neither the 200D nor the 800D are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can find an overview of suitable optics in the Canon EF Lens Catalog.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 200D» 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549 i i Canon 200D
Canon 800D« 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749 i i Canon 800D
Canon 2000D« » 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 i i Canon 2000D
Canon 77D« » 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899 i i Canon 77D
Canon G9 X Mark II« » 98 mm 58 mm 31 mm 206 g 235 n Jan 2017 529 i i Canon G9 X Mark II
Canon M6« » 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 779 i i Canon M6
Canon M100« » 108 mm 67 mm 35 mm 302 g 295 n Aug 2017 499 i i Canon M100
Canon M5« » 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979 i i Canon M5
Canon 750D« » 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749- i Canon 750D
Canon 760D« » 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 849- i Canon 760D
Canon 100D« » 117 mm 91 mm 69 mm 407 g 380 n Mar 2013 549- i Canon 100D
Nikon D5600« » 124 mm 97 mm 70 mm 465 g 970 n Nov 2016 699 i i Nikon D5600
Nikon D3400« » 124 mm 98 mm 76 mm 445 g 1200 n Aug 2016 499- i Nikon D3400

Any camera purchase will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 200D was launched at a markedly lower price (by 27 percent) than the 800D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 200D vs Canon 800D

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

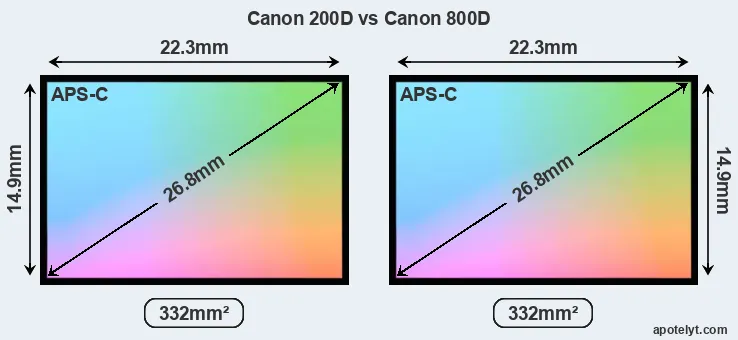

Canon 200D and Canon 800D sensor measures

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 24 megapixel. This similarity in sensor specs implies that both the 200D and the 800D have the same pixel density, as well as the same pixel size. It should, however, be noted that the 200D is a somewhat more recent model (by 4 months) than the 800D, and its sensor might have benefitted from technological advances during this time.

200D versus 800D MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 200D» APS-C 24.0 6000 40001080/60p23.613.4104179Canon 200D
Canon 800D« APS-C 24.0 6000 40001080/60p----Canon 800D
Canon 2000D« » APS-C 24.0 6000 40001080/30p22.611.9100971Canon 2000D
Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D
Canon G9 X Mark II« » 1-inch 20.0 5472 36481080/60p21.912.552265Canon G9 X Mark II
Canon M6« » APS-C 24.0 6000 40001080/60p----Canon M6
Canon M100« » APS-C 24.0 6000 40001080/60p23.512.9127278Canon M100
Canon M5« » APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5
Canon 750D« » APS-C 24.0 6000 40001080/60p22.712.091971Canon 750D
Canon 760D« » APS-C 24.0 6000 40001080/30p22.612.091570Canon 760D
Canon 100D« » APS-C 17.9 5184 34561080/30p21.811.384363Canon 100D
Nikon D5600« » APS-C 24.0 6000 40001080/60p24.114.0130684Nikon D5600
Nikon D3400« » APS-C 24.0 6000 40001080/60p24.813.9119286Nikon D3400

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).



Feature comparison: Canon 200D vs Canon 800D

Apart from body and sensor, cameras can and do differ across a range of features. The 200D and the 800D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon 200D and Canon 800D along with similar information for a selection of comparators. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 200D»optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 200D
Canon 800D«optical n 3.0 1040 swivel Y 4000 6.0 Y n Canon 800D
Canon 2000D« »optical n 3.0 920 fixed n 4000 3.0 Y n Canon 2000D
Canon 77D« »optical Y 3.0 1040 swivel Y 4000 6.0 Y n Canon 77D
Canon G9 X Mark II« »- n 3.0 1040 fixed Y 2000 8.2 Y Y Canon G9 X Mark II
Canon M6« »- n 3.0 1040 tilting Y 4000 9.0 Y n Canon M6
Canon M100« »- n 3.0 1040 tilting Y 4000 6.1 Y n Canon M100
Canon M5« »2360 n 3.2 1620 tilting Y 4000 9.0 Y n Canon M5
Canon 750D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 750D
Canon 760D« »optical Y 3.0 1040 swivel Y 4000 5.0 Y n Canon 760D
Canon 100D« »optical n 3.0 1040 fixed Y 4000 4.9 Y n Canon 100D
Nikon D5600« »optical n 3.2 1037 swivel Y 4000 5.0 Y n Nikon D5600
Nikon D3400« »optical n 3.0 921 fixed n 4000 5.0 Y n Nikon D3400

Both the 200D and the 800D write their imaging data to SDXC cards.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 200D»YstereomonoY-mini2.0YYYCanon 200D
Canon 800D«YstereomonoY-mini2.0YYYCanon 800D
Canon 2000D« »Ymonomono--mini2.0YY-Canon 2000D
Canon 77D« »YstereomonoY-mini2.0YYYCanon 77D
Canon G9 X Mark II« »-stereomono--micro2.0YYYCanon G9 X Mark II
Canon M6« »YstereomonoY-mini2.0YYYCanon M6
Canon M100« »-stereomono--mini2.0YYYCanon M100
Canon M5« »YstereomonoY-mini2.0YYYCanon M5
Canon 750D« »YstereomonoY-mini2.0YY-Canon 750D
Canon 760D« »YstereomonoY-mini2.0YY-Canon 760D
Canon 100D« »YmonomonoY-mini2.0---Canon 100D
Nikon D5600« »YstereomonoY-mini2.0YYYNikon D5600
Nikon D3400« »Ymonomono--mini2.0Y-YNikon D3400

Both the 200D and the 800D are recent models that feature in their makers' current product line-up. The 800D replaced the earlier Canon 750D, while the 200D followed on from the Canon 100D.

Review summary: Canon 200D vs Canon 800D

So what conclusions can be drawn? Is the Canon 200D better than the Canon 800D or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Advantages of the Canon EOS 200D:

  • More compact: Is smaller (122x93mm vs 131x100mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 79g or 15 percent) and hence easier to carry around.
  • More affordable: Was introduced into a lower priced category (27 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 4 months after the 800D).


Arguments in favor of the Canon EOS 800D:

  • Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
  • More heavily discounted: Has been on the market for longer (launched in February 2017).

If the count of individual advantages (bullet points above) is taken as a guide, the 200D emerges as the winner of the contest (4 : 2 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

200D 04:02 800D

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 200D or the 800D handle or perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased. This is why expert reviews are important. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The detailed reviews can be accessed by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 200D»HiRec78/1004.5/54.5/54.5/5 Jun 2017 549 i i Canon 200D
Canon 800D«-80/1004.5/54/54/5 Feb 2017 749 i i Canon 800D
Canon 2000D« »rev-3.5/5-3.5/5 Feb 2018 449 i i Canon 2000D
Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D
Canon G9 X Mark II« »-75/1004.5/54.5/54.5/5 Jan 2017 529 i i Canon G9 X Mark II
Canon M6« »-80/1004/54.5/54/5 Feb 2017 779 i i Canon M6
Canon M100« »Rec-4/5-3.5/5 Aug 2017 499 i i Canon M100
Canon M5« »Rec82/1004/54.5/54/5 Sep 2016 979 i i Canon M5
Canon 750D« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon 750D
Canon 760D« »Rec77/1004.5/54.5/54.5/5 Feb 2015 849- i Canon 760D
Canon 100D« »Rec78/1004/54/54/5 Mar 2013 549- i Canon 100D
Nikon D5600« »-79/1004.5/54.5/54/5 Nov 2016 699 i i Nikon D5600
Nikon D3400« »Rec76/1004/54.5/54.5/5 Aug 2016 499- i Nikon D3400

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
