Canon 200D vs 77D

The Canon EOS 200D (called Canon SL2 in some regions) and the Canon EOS 77D are two digital cameras that were revealed to the public, respectively, in June 2017 and February 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 200D
versus
Canon 77D
Canon 200D   Canon 77D
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Canon EF mount lenses
24 MP – APS-C sensor 24 MP – APS-C sensor
1080/60p Video 1080/60p Video
ISO 100-25,600 (100 - 51,200) ISO 100-25,600 (100 - 51,200)
Optical viewfinder Optical viewfinder
3.0" LCD – 1040k dots 3.0" LCD – 1040k dots
Swivel touchscreen Swivel touchscreen
5 shutter flaps per second 6 shutter flaps per second
650 shots per battery charge600 shots per battery charge
122 x 93 x 70 mm, 453 g 131 x 100 x 76 mm, 540 g
logo
Check 200D offers at
ebay.com
logo
Check 77D offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 200D and the Canon EOS 77D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

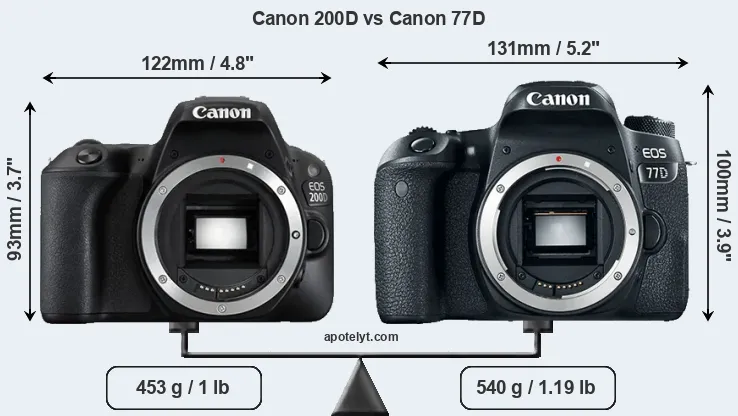

The side-by-side display below illustrates the physical size and weight of the Canon 200D and the Canon 77D. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The 200D can be obtained in two different colors (black, white), while the 77D is only available in black.

Size Canon 200D vs Canon 77D

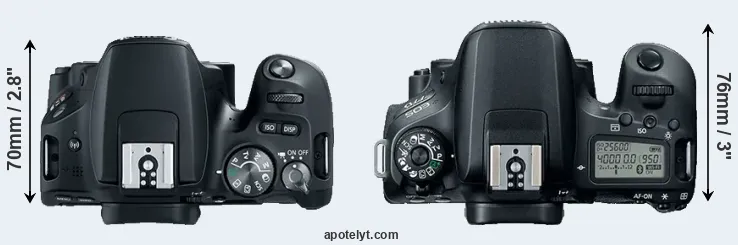

Compare 200D versus 77D top

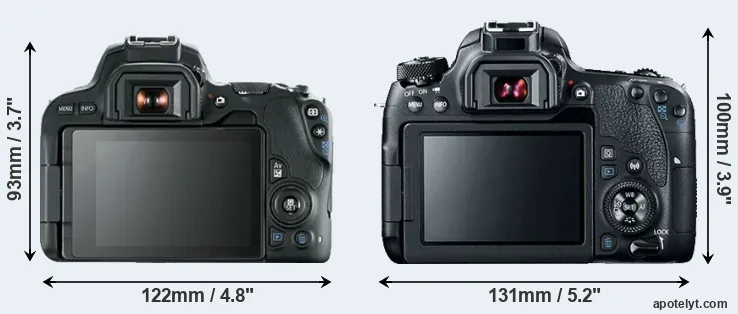

Comparison 200D or 77D rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 77D is notably larger (15 percent) than the Canon 200D. Moreover, the 77D is markedly heavier (19 percent) than the 200D. In this context, it is worth noting that neither the 200D nor the 77D are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 200D 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
2.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899ebay.com
3.

Canon 250D 122 mm 93 mm 70 mm 449 g 1070 n Apr 2019 599 amazon.com
4.

Canon 2000D 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 amazon.com
5.

Canon 800D 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
6.

Canon G9 X Mark II 98 mm 58 mm 31 mm 206 g 235 n Jan 2017 529ebay.com
7.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 779ebay.com
8.

Canon M100 108 mm 67 mm 35 mm 302 g 295 n Aug 2017 499ebay.com
9.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
10.

Canon T7i 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
11.

Canon M5 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979ebay.com
12.

Canon 760D 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
13.

Canon T6i 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749ebay.com
14.

Canon T6s 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
15.

Canon 100D 117 mm 91 mm 69 mm 407 g 380 n Mar 2013 549ebay.com
16.

Nikon D3400 124 mm 98 mm 76 mm 445 g 1200 n Aug 2016 499ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 200D was launched at a markedly lower price (by 39 percent) than the 77D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

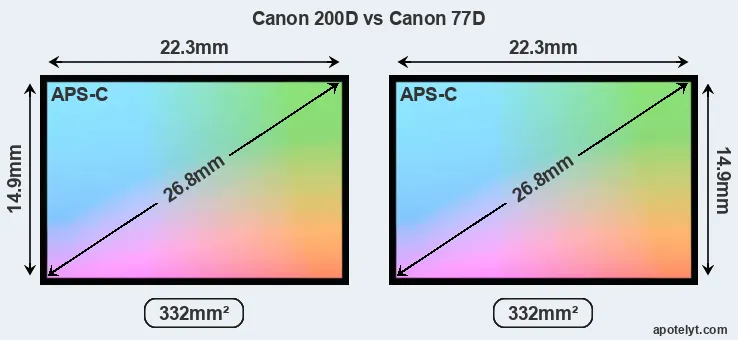

Canon 200D and Canon 77D sensor measures

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 24 megapixels. This similarity in sensor specs implies that both the 200D and the 77D have the same pixel density, as well as the same pixel size. It should, however, be noted that the 200D is a somewhat more recent model (by 4 months) than the 77D, and its sensor might have benefitted from technological advances during this time.

The Canon EOS 200D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The Canon EOS 77D offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

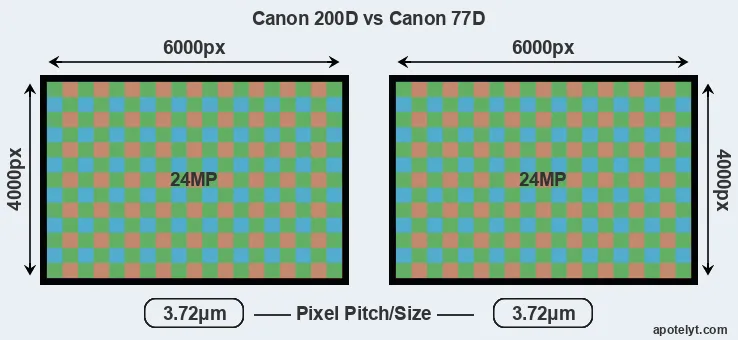

200D versus 77D MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 200D APS-C 24.0 6000 40001080/60p23.613.4104179
2.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
3.

Canon 250D APS-C 24.0 6000 40004K/25p23.913.4179182
4.

Canon 2000D APS-C 24.0 6000 40001080/30p22.611.9100971
5.

Canon 800D APS-C 24.0 6000 40001080/60p23.713.1158680
6.

Canon G9 X Mark II 1-inch 20.0 5472 36481080/60p21.912.552265
7.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
8.

Canon M100 APS-C 24.0 6000 40001080/60p23.512.9127278
9.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.4104179
10.

Canon T7i APS-C 24.0 6000 40001080/60p23.713.1158680
11.

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277
12.

Canon 760D APS-C 24.0 6000 40001080/30p22.612.091570
13.

Canon T6i APS-C 24.0 6000 40001080/30p22.712.091971
14.

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570
15.

Canon 100D APS-C 17.9 5184 34561080/30p21.811.384363
16.

Nikon D3400 APS-C 24.0 6000 40001080/60p24.813.9119286
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 200D and the 77D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 200D has a higher magnification than the one of the 77D (0.54x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 200D and Canon 77D along with similar information for a selection of comparators.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 200Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
2.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
3.

Canon 250Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
4.

Canon 2000Doptical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
5.

Canon 800Doptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
6.

Canon G9 X Mark IInone n3.0 / 1040 fixed Y 1/2000s 8.2/s Y Y
7.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
8.

Canon M100none n3.0 / 1040 tilting Y 1/4000s 6.1/s Y n
9.

Canon SL2optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
10.

Canon T7ioptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
11.

Canon M52360 n3.2 / 1620 tilting Y 1/4000s 9.0/s Y n
12.

Canon 760Doptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
13.

Canon T6ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
14.

Canon T6soptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
15.

Canon 100Doptical n3.0 / 1040 fixed Y 1/4000s 4.9/s Y n
16.

Nikon D3400optical n3.0 / 921 fixed n 1/4000s 5.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One feature that is present on the 77D, but is missing on the 200D is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 200D and the 77D write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 200D and Canon EOS 77D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 200DYstereo / monoY-mini2.0YYY
2.

Canon 77DYstereo / monoY-mini2.0YYY
3.

Canon 250DYstereo / monoY-mini2.0Y-Y
4.

Canon 2000DYmono / mono--mini2.0YY-
5.

Canon 800DYstereo / monoY-mini2.0YYY
6.

Canon G9 X Mark II-stereo / mono--micro2.0YYY
7.

Canon M6Ystereo / monoY-mini2.0YYY
8.

Canon M100-stereo / mono--micro2.0YYY
9.

Canon SL2Ystereo / monoY-mini2.0YYY
10.

Canon T7iYstereo / monoY-mini2.0YYY
11.

Canon M5Ystereo / monoY-mini2.0YYY
12.

Canon 760DYstereo / monoY-mini2.0YY-
13.

Canon T6iYstereo / monoY-mini2.0YY-
14.

Canon T6sYstereo / monoY-mini2.0YY-
15.

Canon 100DYmono / monoY-mini2.0---
16.

Nikon D3400Ymono / mono--mini2.0--Y
padding

Both the 200D and the 77D have been discontinued, but can regularly be found used on ebay. The 200D was replaced by the Canon 250D, while the 77D does not have a direct successor. Further information on the features and operation of the 200D and 77D can be found, respectively, in the Canon 200D Manual (free pdf) or the online Canon 77D Manual.

ad

Review summary

So what conclusions can be drawn? Is the Canon 200D better than the Canon 77D or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Advantages of the Canon EOS 200D:

  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.54x vs 0.51x).
  • More compact: Is smaller (122x93mm vs 131x100mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 87g or 16 percent) and hence easier to carry around.
  • More affordable: Was introduced into a lower priced category (39 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 4 months after the 77D).


Arguments in favor of the Canon EOS 77D:

  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More heavily discounted: Has been on the market for longer (launched in February 2017).

If the count of individual advantages (bullet points above) is taken as a guide, the 200D comes out slightly ahead of the 77D (5 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

200D 05:04 77D

How about other alternatives? Do the specifications of the Canon 200D and the Canon 77D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 200D or the 77D perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 200D4/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
2.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 899ebay.com
3.

Canon 250D4/5o4.5/579/1004/54/5 Apr 2019 599 amazon.com
4.

Canon 2000D3/5o3.5/5..3.5/53.5/5 Feb 2018 449 amazon.com
5.

Canon 800D4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
6.

Canon G9 X Mark II4/5..4/575/1004.5/54.5/5 Jan 2017 529ebay.com
7.

Canon M6......80/1004/54/5 Feb 2017 779ebay.com
8.

Canon M1003/5+....4/53.5/5 Aug 2017 499ebay.com
9.

Canon SL24/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
10.

Canon T7i4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
11.

Canon M54/5+4/582/1004/54/5 Sep 2016 979ebay.com
12.

Canon 760D5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
13.

Canon T6i5/5....75/1004.5/54.5/5 Feb 2015 749ebay.com
14.

Canon T6s5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
15.

Canon 100D4/5+..78/1004/54/5 Mar 2013 549ebay.com
16.

Nikon D34004/5+4/576/1004/54.5/5 Aug 2016 499ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check 200D offers at
ebay.com
logo
Check 77D offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon 200D vs Canon 77D

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 200D Canon 77D
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Canon EF mount lenses
    Launch Date June 2017 February 2017
    Launch Price USD 549 USD 899
    Sensor Specs Canon 200D Canon 77D
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.3 x 14.9 mm 22.3 x 14.9 mm
    Sensor Area 332.27 mm2 332.27 mm2
    Sensor Diagonal 26.8 mm 26.8 mm
    Crop Factor 1.6x 1.6x
    Sensor Resolution 24 Megapixels 24 Megapixels
    Image Resolution 6000 x 4000 pixels 6000 x 4000 pixels
    Pixel Pitch 3.72 μm 3.72 μm
    Pixel Density 7.22 MP/cm2 7.22 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video 1080/60p Video
    ISO Setting 100 - 25,600 ISO 100 - 25,600 ISO
    ISO Boost 100 - 51,200 ISO 100 - 51,200 ISO
    Image Processor DIGIC 7 DIGIC 7
    DXO Sensor Quality (score) 79 78
    DXO Color Depth (bits) 23.6 23.6
    DXO Dynamic Range (EV) 13.4 13.3
    DXO Low Light (ISO) 1041 971
    Screen Specs Canon 200D Canon 77D
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 95%
    Viewfinder Magnification 0.54x 0.51x
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1040k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon 200D Canon 77D
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 5 shutter flaps/s 6 shutter flaps/s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Canon 200D Canon 77D
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in NFC built-in
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs Canon 200D Canon 77D
    Battery Type Canon LP-E17 Canon LP-E17
    Battery Life (CIPA)650 shots per charge600 shots per charge
    Body Dimensions 122 x 93 x 70 mm
    (4.8 x 3.7 x 2.8 in)
    131 x 100 x 76 mm
    (5.2 x 3.9 x 3.0 in)
    Camera Weight 453 g (16.0 oz) 540 g (19.0 oz)
    logo
    Check 200D offers at
    ebay.com
    logo
    Check 77D offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 200D vs Canon 77D
