Canon 1D X vs 7D Mark II
The Canon EOS-1D X and the Canon EOS 7D Mark II are two digital cameras that were announced, respectively, in October 2011 and September 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (1DX) and an APS-C (7D Mark II) sensor. The 1DX has a resolution of 17.9 megapixels, whereas the 7D Mark II provides 20 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X and the Canon EOS 7D Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

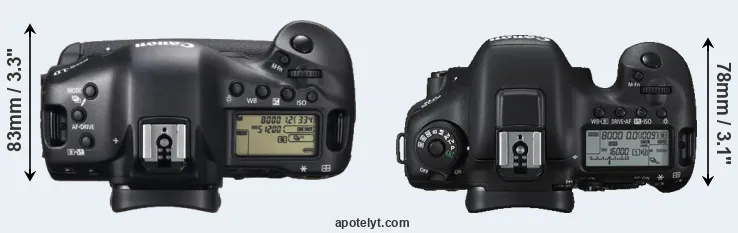

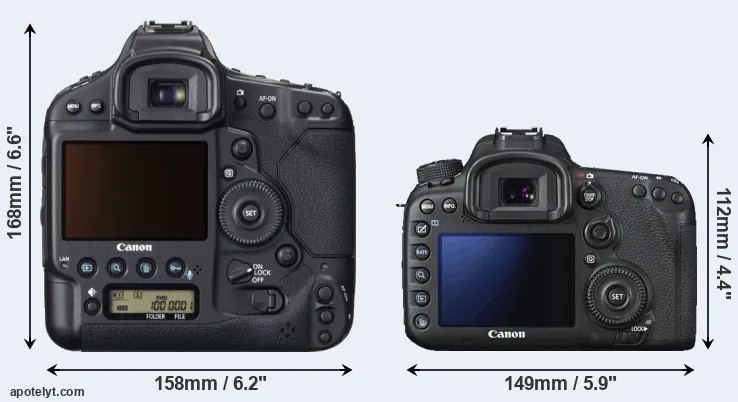

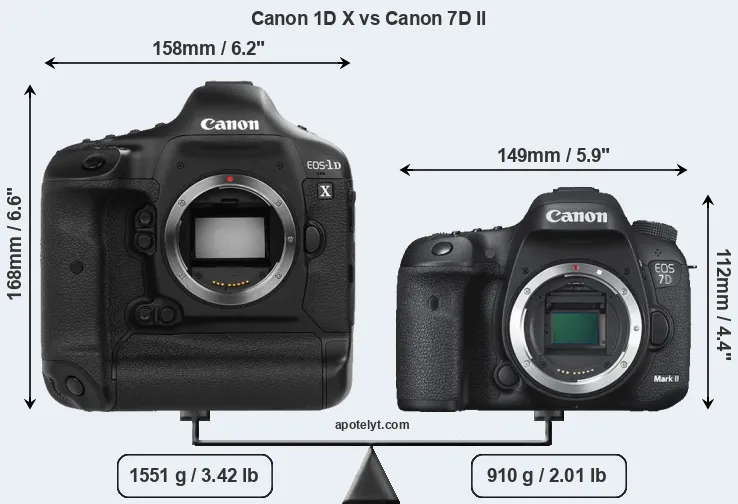

An illustration of the physical size and weight of the Canon 1D X and the Canon 7D II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 7D II is considerably smaller (37 percent) than the Canon 1D X. Moreover, the 7D Mark II is substantially lighter (41 percent) than the 1DX. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 1DX) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (7D Mark II). You can compare the optics available in the Canon EF Lens Catalog.
Concerning battery life, the 1DX gets 1120 shots out of its LP-E4N battery, while the 7D Mark II can take 670 images on a single charge of its LP-E6N power pack. As can be seen in the images above, the 1DX has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 7D Mark II, Canon provides the BG-E16 vertical grip as an optional accessory (see here on eBay).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|Canon 1D C||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999|
|Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999|
|Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|Nikon D4||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 7D Mark II was launched at a markedly lower price (by 74 percent) than the 1DX, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

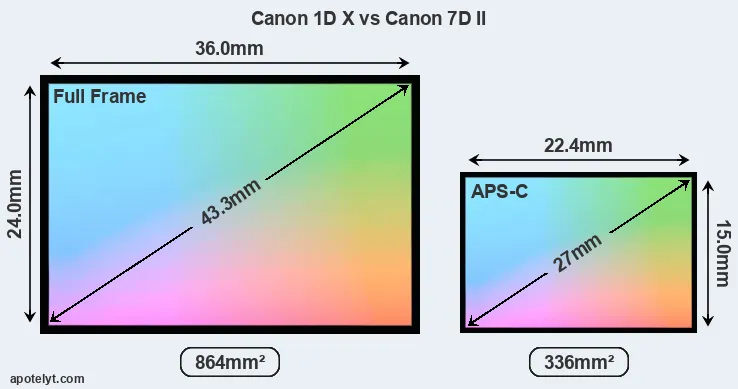

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1D X features a full frame sensor and the Canon 7D II an APS-C sensor. The sensor area in the 7D Mark II is 61 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 7D Mark II uses a more advanced image processing engine (DIGIC 6 (Dual)) than the 1DX (DIGIC 5+ (Dual)), with benefits for noise reduction, color accuracy, and processing speed.

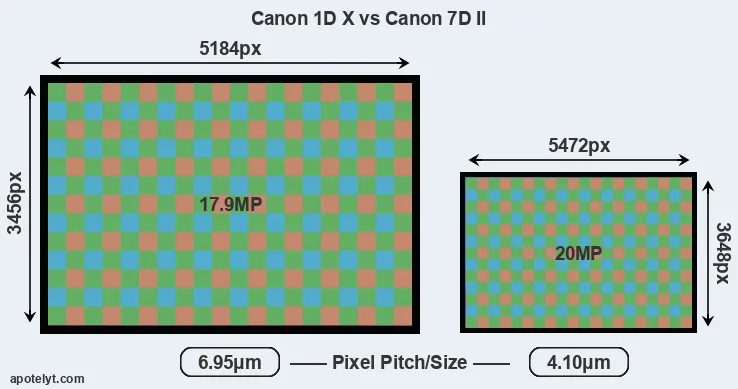

Despite having a smaller sensor, the 7D Mark II offers a higher resolution of 20 megapixels, compared with 17.9 MP of the 1DX. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.10μm versus 6.95μm for the 1DX). However, it should be noted that the 7D Mark II is much more recent (by 2 years and 10 months) than the 1DX, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon 7D II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 7D Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Canon 1D X are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The 7D Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1D X has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-204800. The corresponding ISO settings for the Canon EOS 7D Mark II are ISO 100 to ISO 16000, with the possibility to increase the ISO range to 100-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 1DX provides substantially higher image quality than the 7D Mark II, with an overall score that is 12 points higher. This advantage is based on 1.4 bits higher color depth, and 1.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 7D Mark II provides a faster frame rate than the 1DX. It can shoot movie footage at 1080/60p, while the 1DX is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 1DX and the 7D Mark II are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 1DX has a higher magnification than the one of the 7D Mark II (0.76x vs 0.63x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1D X and Canon 7D II along with similar information for a selection of comparators.
|Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
One difference between the cameras concerns the presence of an on-board flash. The 7D Mark II has one, while the 1DX does not. While the built-in flash of the 7D Mark II is not very powerful, it can at times be useful as a fill-in light.
The Canon 7D II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1DX writes its imaging data to Compact Flash cards, while the 7D Mark II uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X and Canon EOS 7D Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
|Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
It is notable that the 7D Mark II has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The 1DX lacks such a headphone port.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the 7D Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 7D Mark II is a recent model that features in the current product line-up of Canon. In contrast, the 1DX has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1DX was succeeded by the Canon 1DX Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is there a clear favorite between the Canon 1D X and the Canon 7D II? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS-1D X:
- Better image quality: Scores substantially higher (12 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.4 bits more color depth).
- Better low-light sensitivity: Requires less light for good images (1.4 stops ISO advantage).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.63x).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Faster burst: Shoots at higher frequency (14 vs 10 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1120 versus 670) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in October 2011).
Arguments in favor of the Canon EOS 7D Mark II:
- More detail: Has more megapixels (20 vs 17.9MP), which boosts linear resolution by 6%.
- Better jpgs: Has a more modern image processing engine (DIGIC 6 (Dual) vs DIGIC 5+ (Dual)).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (149x112mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 641g or 41 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
- More modern: Reflects 2 years and 10 months of technical progress since the 1DX launch.
If the count of individual advantages (bullet points above) is taken as a guide, the 7D Mark II is the clear winner of the contest (13 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D X and the Canon 7D II place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1DX or the 7D Mark II. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1D X||..||..||4.5/5||4.5/5||4.5/5||Oct 2011||6,799|
|Canon 7D II||+||84/100||4/5||5/5||4.5/5||Sep 2014||1,799|
|Canon 1D X Mark III||+ +||..||4.5/5||..||4/5||Jan 2020||6,499|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon 70D||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199|
|Canon 1D C||..||..||..||..||..||Apr 2012||14,999|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Canon 7D||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 1Ds Mark III||..||+ +||4.5/5||..||..||Aug 2007||7,999|
|Canon 1Ds Mark II||..||+ +||..||..||..||Sep 2004||7,999|
|Nikon D5||..||89/100||4.5/5||5/5||5/5||Jan 2016||6,499|
|Nikon D4||..||..||4.5/5||..||4.5/5||Jan 2012||5,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 1D X vs Canon 7D II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D X||Canon 7D II|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||October 2011||September 2014|
|Launch Price||USD 6,799||USD 1,799|
|Sensor Specs||Canon 1D X||Canon 7D II|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.4 x 15.0 mm|
|Sensor Area||864 mm2||336 mm2|
|Sensor Diagonal||43.3 mm||27 mm|
|Sensor Resolution||17.9 Megapixels||20 Megapixels|
|Image Resolution||5184 x 3456 pixels||5472 x 3648 pixels|
|Pixel Pitch||6.95 μm||4.10 μm|
|Pixel Density||2.07 MP/cm2||5.94 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 51,200 ISO||100 - 16,000 ISO|
|ISO Boost||50 - 204,800 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 5+ (Dual)||DIGIC 6 (Dual)|
|DXO Sensor Quality (score)||82||70|
|DXO Color Depth (bits)||23.8||22.4|
|DXO Dynamic Range (EV)||11.8||11.8|
|DXO Low Light (ISO)||2786||1082|
|Screen Specs||Canon 1D X||Canon 7D II|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D X||Canon 7D II|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||14 shutter flaps/s||10 shutter flaps/s|
|Shutter Life Expectancy||400 000 actuations||200 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF cards||CF or SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Canon 1D X||Canon 7D II|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon 1D X||Canon 7D II|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1120 shots per charge||670 shots per charge|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
149 x 112 x 78 mm
(5.9 x 4.4 x 3.1 in)
|Camera Weight||1551 g (54.7 oz)||910 g (32.1 oz)|
