Canon 1D X Mark III vs Nikon D5600
The Canon EOS-1D X Mark III and the Nikon D5600 are two digital cameras that were revealed to the public, respectively, in January 2020 and November 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (1DX Mark III) and an APS-C (D5600) sensor. The Canon has a resolution of 20 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X Mark III and the Nikon D5600? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

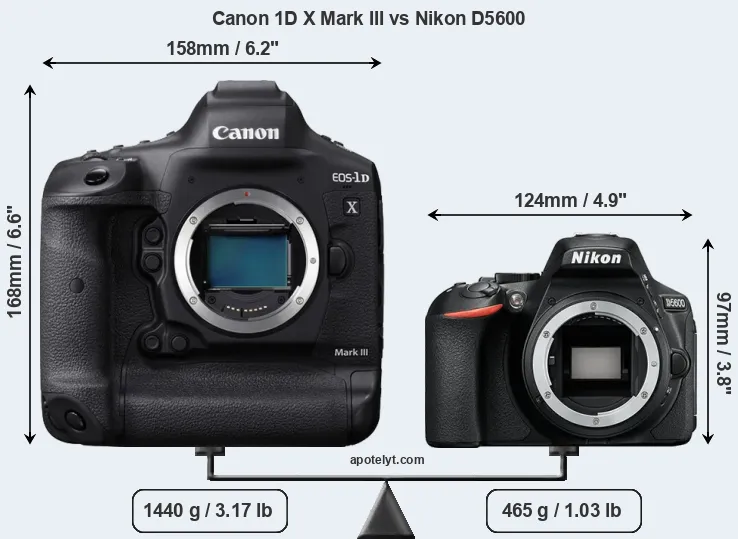

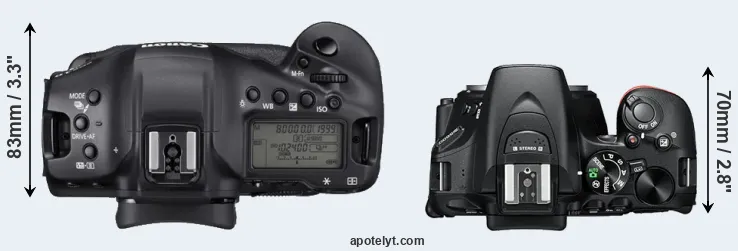

The physical size and weight of the Canon 1D X Mark III and the Nikon D5600 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The D5600 can be obtained in two different colors (black, red), while the 1DX Mark III is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5600 is considerably smaller (55 percent) than the Canon 1D X Mark III. Moreover, the D5600 is substantially lighter (68 percent) than the 1DX Mark III. It is worth mentioning in this context that the 1DX Mark III is splash and dust resistant, while the D5600 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1DX Mark III) and the Nikon Lens Catalog (D5600).
Concerning battery life, the 1DX Mark III gets 2850 shots out of its LP-E19 battery, while the D5600 can take 970 images on a single charge of its EN-EL14a power pack. As can be seen in the images above, the 1DX Mark III has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D5600, there are third party battery grips available as optional accessories (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|2.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|3.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|4.||Canon 1D C||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999|
|5.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|6.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|7.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|8.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|9.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|10.||Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999|
|11.||Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499|
|12.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|13.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|14.||Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|15.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|16.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|17.||Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D5600 was launched at a markedly lower price (by 89 percent) than the 1DX Mark III, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1D X Mark III features a full frame sensor and the Nikon D5600 an APS-C sensor. The sensor area in the D5600 is 58 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

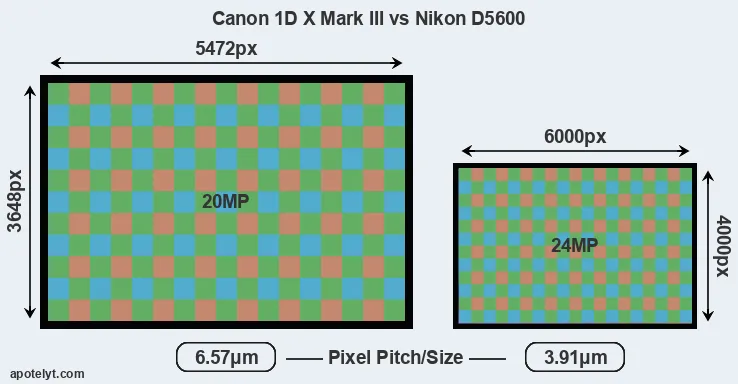

Despite having a smaller sensor, the D5600 offers a higher resolution of 24 megapixels, compared with 20 MP of the 1DX Mark III. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 6.57μm for the 1DX Mark III). Moreover, it should be noted that the 1DX Mark III is much more recent (by 3 years and 1 month) than the D5600, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D5600 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5600 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5600 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 1D X Mark III are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.
The 1DX Mark III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1D X Mark III has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-819200. The corresponding ISO settings for the Nikon D5600 are ISO 100 to ISO 25600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 1DX Mark III has a notably higher overall DXO score than the D5600 (overall score 7 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.099999999999998 bits higher color depth, 0.5 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|3.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|4.||Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..|
|5.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|6.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|7.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|8.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|9.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|10.||Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|11.||Nikon D6||Full Frame||20.7||5568||3712||4K/30p||..||..||..||..|
|12.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 1DX Mark III provides a higher video resolution than the D5600. It can shoot video footage at 4K/60p, while the Nikon is limited to 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. The 1DX Mark III and the D5600 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1DX Mark III offers a wider field of view (100%) than the one in the D5600 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 1DX Mark III has a higher magnification (0.76x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 1D X Mark III and Nikon D5600 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|3.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|4.||Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|5.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|7.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|8.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|9.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|10.||Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
One feature that is present on the 1DX Mark III, but is missing on the D5600 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The D5600 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 1DX Mark III does not have a selfie-screen.
The Canon 1D X Mark III and the Nikon D5600 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1DX Mark III writes its imaging data to CFexpress cards, while the D5600 uses SDXC cards. The 1DX Mark III features dual card slots, which can be very useful in case a memory card fails. In contrast, the D5600 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark III and Nikon D5600 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|3.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|4.||Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|5.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|7.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|8.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|9.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
|10.||Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
It is notable that the 1DX Mark III has a headphone jack, which is not present on the D5600 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.
Studio photographers will appreciate that the Canon 1D X Mark III (unlike the D5600) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 1DX Mark III has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the 1DX Mark III and the D5600 are recent models that are part of the current product line-up. The D5600 replaced the earlier Nikon D5500, while the 1DX Mark III followed on from the Canon 1DX Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So how do things add up? Is there a clear favorite between the Canon 1D X Mark III and the Nikon D5600? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS-1D X Mark III:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Scores markedly higher (7 points) in the DXO overall assessment.
- Better low-light sensitivity: Requires less light for good images (1.3 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.57x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 1037k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (2850 versus 970) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 3 years and 1 month of technical progress since the D5600 launch.
Reasons to prefer the Nikon D5600:
- More detail: Has more megapixels (24 vs 20MP), which boosts linear resolution by 10%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (124x97mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 975g or 68 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (89 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in November 2016).
If the count of relative strengths (bullet points above) is taken as a measure, the 1DX Mark III is the clear winner of the match-up (20 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D X Mark III and the Nikon D5600 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 1DX Mark III and the D5600 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D X Mark III||..||+ +||..||4.5/5||4/5||Jan 2020||6,499|
|2.||Nikon D5600||4/5||..||79/100||4.5/5||4/5||Nov 2016||699|
|3.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|4.||Canon 1D C||..||..||..||..||..||Apr 2012||14,999|
|5.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|6.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|7.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|8.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|9.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|10.||Canon 1Ds Mark II||..||..||+ +||..||..||Sep 2004||7,999|
|11.||Nikon D6||..||..||..||4.5/5||4.5/5||Feb 2020||6,499|
|12.||Nikon D5||..||..||89/100||4.5/5||5/5||Jan 2016||6,499|
|13.||Nikon D3400||4/5||+||76/100||4/5||4.5/5||Aug 2016||499|
|14.||Nikon D5500||5/5||+||79/100||4.5/5||4.5/5||Jan 2015||899|
|15.||Nikon D5300||4/5||+ +||79/100||4.5/5||4.5/5||Oct 2013||799|
|16.||Nikon D3200||5/5||+ +||73/100||4.5/5||4.5/5||Apr 2012||599|
|17.||Nikon D5200||4/5||+ +||79/100||4.5/5||4.5/5||Nov 2012||749|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 1D X Mark III vs Nikon D5600
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D X Mark III||Nikon D5600|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||January 2020||November 2016|
|Launch Price||USD 6,499||USD 699|
|Sensor Specs||Canon 1D X Mark III||Nikon D5600|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.5 x 15.6 mm|
|Sensor Area||864 mm2||366.6 mm2|
|Sensor Diagonal||43.3 mm||28.2 mm|
|Sensor Resolution||20 Megapixels||24 Megapixels|
|Image Resolution||5472 x 3648 pixels||6000 x 4000 pixels|
|Pixel Pitch||6.57 μm||3.91 μm|
|Pixel Density||2.31 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/60p Video||1080/60p Video|
|ISO Setting||100 - 102,400 ISO||100 - 25,600 ISO|
|ISO Boost||50 - 819,200 ISO||no Enhancement|
|Image Processor||DIGIC X||EXPEED 4|
|DXO Sensor Quality (score)||91||84|
|DXO Color Depth (bits)||24.2||24.1|
|DXO Dynamic Range (EV)||14.5||14.0|
|DXO Low Light (ISO)||3248||1306|
|Screen Specs||Canon 1D X Mark III||Nikon D5600|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.2inch|
|LCD Resolution||2100k dots||1037k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Canon 1D X Mark III||Nikon D5600|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||20 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||500 000 actuations||100 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CFexpress cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Canon 1D X Mark III||Nikon D5600|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.1||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 1D X Mark III||Nikon D5600|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||2850 shots per charge||970 shots per charge|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
124 x 97 x 70 mm
(4.9 x 3.8 x 2.8 in)
|Camera Weight||1440 g (50.8 oz)||465 g (16.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
