Canon 1D X Mark III vs 5DS

The Canon EOS-1D X Mark III and the Canon EOS 5DS are two professional cameras that were officially introduced, respectively, in January 2020 and February 2015. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a full frame sensor. The 1DX Mark III has a resolution of 20 megapixels, whereas the 5DS provides 50.3 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 1D X Mark III
versus
Canon 5DS
Canon 1D X Mark III   Canon 5DS
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Canon EF mount lenses
20 MP – Full Frame sensor 50.3 MP – Full Frame sensor
4K/60p Video 1080/30p Video
ISO 100-102,400 (50 - 819,200) ISO 100-6,400 (50 - 12,800)
Optical viewfinder Optical viewfinder
3.2" LCD – 2100k dots 3.2" LCD – 1040k dots
Fixed touchscreen Fixed screen (not touch-sensitive)
20 shutter flaps per second 5 shutter flaps per second
Weathersealed bodyWeathersealed body
2850 shots per battery charge700 shots per battery charge
158 x 168 x 83 mm, 1440 g 152 x 116 x 76 mm, 930 g
logo
Check 1DX Mark III price at
amazon.com
logo
Check 5DS offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X Mark III and the Canon EOS 5DS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Canon 1D X Mark III and the Canon 5DS is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

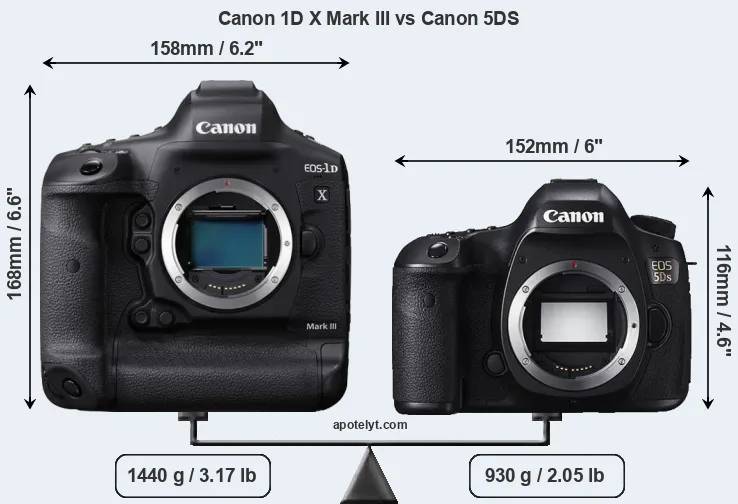

Size Canon 1D X Mark III vs Canon 5DS

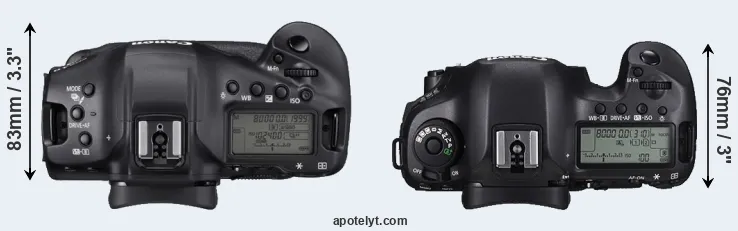

Compare 1DX Mark III versus 5DS top

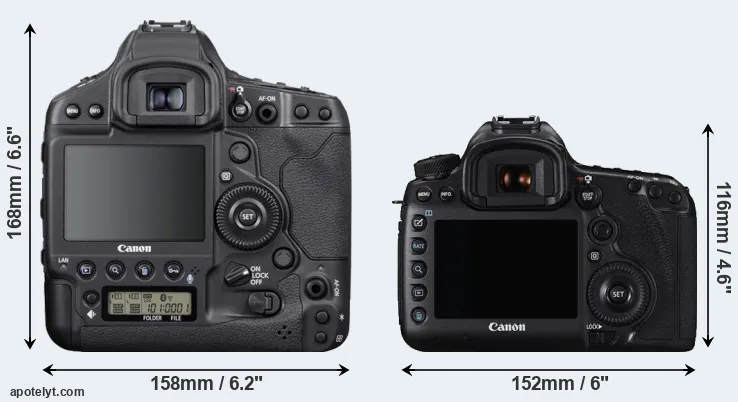

Comparison 1DX Mark III or 5DS rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5DS is considerably smaller (34 percent) than the Canon 1D X Mark III. Moreover, the 5DS is substantially lighter (35 percent) than the 1DX Mark III. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 1DX Mark III gets 2850 shots out of its Canon LP-E19 battery, while the 5DS can take 700 images on a single charge of its Canon LP-E6 power pack. As can be seen in the images above, the 1DX Mark III has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5DS, Canon provides the BG-E11 vertical grip as an optional accessory (see here on ebay).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 1D X Mark III 158 mm 168 mm 83 mm 1440 g 2850 Y Jan 2020 6,499 amazon.com
2.

Canon 5DS 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
3.

Canon R3 150 mm 143 mm 87 mm 1015 g 760 Y Sep 2021 5,999 amazon.com
4.

Canon 1D X Mark II 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999ebay.com
5.

Canon 5D Mark IV 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 3,499 amazon.com
6.

Canon 5DS R 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
7.

Canon 1D C 158 mm 164 mm 83 mm 1545 g 1120 Y Apr 2012 14,999ebay.com
8.

Canon 5D Mark III 152 mm 116 mm 76 mm 950 g 950 Y Mar 2012 3,499ebay.com
9.

Canon 6D 145 mm 111 mm 71 mm 770 g 1090 Y Sep 2012 2,099ebay.com
10.

Canon 1D X 158 mm 168 mm 83 mm 1551 g 1120 Y Oct 2011 6,799ebay.com
11.

Canon 5D Mark II 152 mm 114 mm 75 mm 850 g 850 Y Sep 2008 3,499ebay.com
12.

Canon 1Ds Mark III 150 mm 160 mm 80 mm 1385 g 1800 Y Aug 2007 7,999ebay.com
13.

Canon 1Ds Mark II 156 mm 158 mm 80 mm 1215 g 1200 Y Sep 2004 7,999ebay.com
14.

Nikon D6 160 mm 163 mm 92 mm 1270 g 3580 Y Feb 2020 6,499 amazon.com
15.

Nikon D850 146 mm 124 mm 79 mm 1005 g 1840 Y Jul 2017 3,299 amazon.com
16.

Nikon D810 146 mm 123 mm 82 mm 980 g 1200 Y Jun 2014 3,299ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 5DS was launched at a markedly lower price (by 43 percent) than the 1DX Mark III, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a full frame sensor and have a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the review cameras among the large-sensor cameras that aim for top notch image quality. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon 1D X Mark III and Canon 5DS sensor measures

While the two cameras under review share the same sensor size, the 5DS offers a higher resolution of 50.3 megapixels, compared with 20 MP of the 1DX Mark III. This megapixels advantage translates into a 59 percent gain in linear resolution. On the other hand, these sensor specs imply that the 5DS has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.14μm versus 6.57μm for the 1DX Mark III). Moreover, it should be noted, that the 1DX Mark III is much more recent (by 4 years and 11 months) than the 5DS, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels.

The resolution advantage of the Canon 5DS implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS for good quality output (200 dots per inch) amounts to 43.4 x 29 inches or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inches or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inches or 73.6 x 49 cm. The corresponding values for the Canon 1D X Mark III are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The 1DX Mark III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS-1D X Mark III has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-819200. The corresponding ISO settings for the Canon EOS 5DS are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 50-12800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

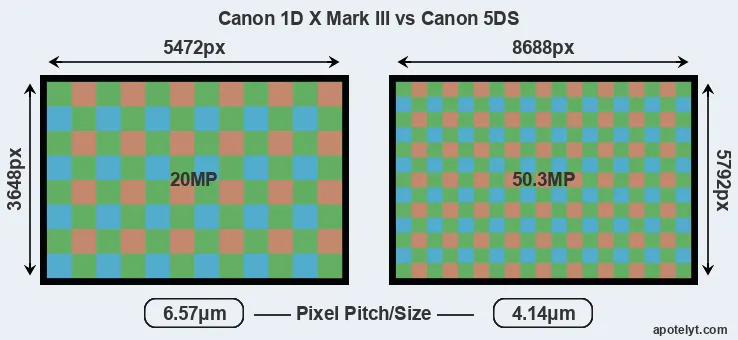

1DX Mark III versus 5DS MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 1DX Mark III has a notably higher overall DXO score than the 5DS (overall score 4 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.5 bits lower color depth, 2.1 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 1D X Mark III Full Frame 20.0 5472 36484K/60p24.214.5324891
2.

Canon 5DS Full Frame 50.3 8688 57921080/30p24.712.4238187
3.

Canon R3 Full Frame 24.0 6000 40006K/60p25.014.7408696
4.

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788
5.

Canon 5D Mark IV Full Frame 30.1 6720 44804K/30p24.813.6299591
6.

Canon 5DS R Full Frame 50.3 8688 57921080/30p24.612.4230886
7.

Canon 1D C Full Frame 17.9 5184 34564K/24p24.313.0215585
8.

Canon 5D Mark III Full Frame 22.1 5760 38401080/30p24.011.7229381
9.

Canon 6D Full Frame 20.0 5472 36481080/30p23.812.1234082
10.

Canon 1D X Full Frame 17.9 5184 34561080/30p23.811.8278682
11.

Canon 5D Mark II Full Frame 21.0 5616 37441080/30p23.711.9181579
12.

Canon 1Ds Mark III Full Frame 21.0 5616 3744none24.012.0166380
13.

Canon 1Ds Mark II Full Frame 16.6 4992 3328none23.311.3148074
14.

Nikon D6 Full Frame 20.7 5568 37124K/30p25.314.3288695
15.

Nikon D850 Full Frame 45.4 8256 55044K/30p26.414.82660100
16.

Nikon D810 Full Frame 36.2 7360 49121080/60p25.714.8285397
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 1DX Mark III provides a higher video resolution than the 5DS. It can shoot video footage at 4K/60p, while the 5DS is limited to 1080/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 1DX Mark III and the 5DS are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 1DX Mark III has a higher magnification than the one of the 5DS (0.76x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1D X Mark III and Canon 5DS along with similar information for a selection of comparators.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 1D X Mark IIIoptical Y3.2 / 2100 fixed Y 1/8000s 20.0/s n n
2.

Canon 5DSoptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
3.

Canon R35760 Y3.2 / 4150 swivel Y 1/8000s 12.0/s n Y
4.

Canon 1D X Mark IIoptical Y3.2 / 1620 fixed Y 1/8000s 16.0/s n n
5.

Canon 5D Mark IVoptical Y3.2 / 1620 fixed Y 1/8000s 7.0/s n n
6.

Canon 5DS Roptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
7.

Canon 1D Coptical Y3.2 / 1040 fixed n 1/8000s 14.0/s n n
8.

Canon 5D Mark IIIoptical Y3.2 / 1040 fixed n 1/8000s 6.0/s n n
9.

Canon 6Doptical Y3.0 / 1040 fixed n 1/4000s 4.5/s n n
10.

Canon 1D Xoptical Y3.2 / 1040 fixed n 1/8000s 14.0/s n n
11.

Canon 5D Mark IIoptical Y3.0 / 920 fixed n 1/8000s 3.9/s n n
12.

Canon 1Ds Mark IIIoptical Y3.0 / 230 fixed n 1/8000s 5.0/s n n
13.

Canon 1Ds Mark IIoptical Y2.0 / 230 fixed n 1/8000s 4.0/s n n
14.

Nikon D6optical Y3.2 / 2359 fixed Y 1/8000s 14.0/s n n
15.

Nikon D850optical Y3.2 / 2359 tilting Y 1/8000s 9.0/s n n
16.

Nikon D810optical Y3.2 / 1229 fixed n 1/8000s 5.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 1DX Mark III has a touchscreen, while the 5DS has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon 1D X Mark III and the Canon 5DS both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 1DX Mark III writes its imaging data to CFexpress (type B) cards, while the 5DS uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark III and Canon EOS 5DS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 1D X Mark IIIYmono / monoYYmini3.1Y-Y
2.

Canon 5DSYmono / monoY-mini3.0---
3.

Canon R3Ystereo / monoYYmicro3.2Y-Y
4.

Canon 1D X Mark IIYmono / monoYYmini3.0---
5.

Canon 5D Mark IVYmono / monoYYmini3.0YY-
6.

Canon 5DS RYmono / monoY-mini3.0---
7.

Canon 1D CYmono / monoYYmini2.0---
8.

Canon 5D Mark IIIYmono / monoYYmini2.0---
9.

Canon 6DYmono / monoY-mini2.0Y--
10.

Canon 1D XYmono / -Y-mini2.0---
11.

Canon 5D Mark IIYmono / monoY-mini2.0---
12.

Canon 1Ds Mark IIIYmono / ----2.0---
13.

Canon 1Ds Mark IIY- / ----2.0---
14.

Nikon D6Ystereo / monoYYmini3.1Y-Y
15.

Nikon D850Ystereo / monoYYmini3.0YYY
16.

Nikon D810Ystereo / monoYYmini3.0Y--
padding

It is notable that the 1DX Mark III has a headphone jack, which is not present on the 5DS This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Travel and landscape photographers will find it useful that the 1DX Mark III has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The 1DX Mark III is a recent model that features in the current product line-up of Canon. In contrast, the 5DS has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the 5DS from Canon. Further information on the features and operation of the 1DX Mark III and 5DS can be found, respectively, in the Canon 1D X Mark III Manual (free pdf) or the online Canon 5DS Manual.

ad

Review summary

So what is the bottom line? Is the Canon 1D X Mark III better than the Canon 5DS or vice versa? Below is a summary of the relative strengths of each of the two contestants.


Arguments in favor of the Canon EOS-1D X Mark III:

  • Better image quality: Scores markedly higher (4 points) in the DXO overall assessment.
  • More dynamic range: Captures a larger spectrum of light and dark details (2.1 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/60p vs 1080/30p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.71x).
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (2850 versus 700) on a single battery charge.
  • Easier geotagging: Features an internal GPS sensor to log localization data.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More modern: Reflects 4 years and 11 months of technical progress since the 5DS launch.


Advantages of the Canon EOS 5DS:

  • More detail: Has more megapixels (50.3 vs 20MP), which boosts linear resolution by 59%.
  • More compact: Is smaller (152x116mm vs 158x168mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 510g or 35 percent) and is thus easier to take along.
  • More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in February 2015).

If the number of relative strengths (bullet points above) is taken as a guide, the 1DX Mark III is the clear winner of the match-up (16 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

1DX Mark III 16:05 5DS

How about other alternatives? Do the specifications of the Canon 1D X Mark III and the Canon 5DS place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1DX Mark III or the 5DS. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 1D X Mark III..+ +5/5..4.5/54/5 Jan 2020 6,499 amazon.com
2.

Canon 5DS..+..83/1004.5/54.5/5 Feb 2015 3,699ebay.com
3.

Canon R35/5o4.5/5..5/54.5/5 Sep 2021 5,999 amazon.com
4.

Canon 1D X Mark II....4.5/589/1004.5/54.5/5 Feb 2016 5,999ebay.com
5.

Canon 5D Mark IV4.5/5+ +4/587/1004.5/54.5/5 Aug 2016 3,499 amazon.com
6.

Canon 5DS R5/5+..83/1005/54.5/5 Feb 2015 3,699ebay.com
7.

Canon 1D C............ Apr 2012 14,999ebay.com
8.

Canon 5D Mark III..+ +..82/1004.5/54.5/5 Mar 2012 3,499ebay.com
9.

Canon 6D5/5+ +..83/1004.5/54.5/5 Sep 2012 2,099ebay.com
10.

Canon 1D X5/5......4.5/54.5/5 Oct 2011 6,799ebay.com
11.

Canon 5D Mark II4/591/100..79/1004/5.. Sep 2008 3,499ebay.com
12.

Canon 1Ds Mark III......+ +4.5/5.. Aug 2007 7,999ebay.com
13.

Canon 1Ds Mark II......+ +.... Sep 2004 7,999ebay.com
14.

Nikon D6....4/5..4.5/54.5/5 Feb 2020 6,499 amazon.com
15.

Nikon D8504.5/5+ +5/589/1004.5/55/5 Jul 2017 3,299 amazon.com
16.

Nikon D8105/5..5/586/1005/54.5/5 Jun 2014 3,299ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check 1DX Mark III price at
amazon.com
logo
Check 5DS offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Canon 1D X Mark III vs Canon 5DS

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 1D X Mark III Canon 5DS
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Canon EF mount lenses
    Launch Date January 2020 February 2015
    Launch Price USD 6,499 USD 3,699
    Sensor Specs Canon 1D X Mark III Canon 5DS
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor Full Frame Sensor
    Sensor Size 36.0 x 24.0 mm 36.0 x 24.0 mm
    Sensor Area 864 mm2 864 mm2
    Sensor Diagonal 43.3 mm 43.3 mm
    Crop Factor 1.0x 1.0x
    Sensor Resolution 20 Megapixels 50.3 Megapixels
    Image Resolution 5472 x 3648 pixels 8688 x 5792 pixels
    Pixel Pitch 6.57 μm 4.14 μm
    Pixel Density 2.31 MP/cm2 5.82 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 4K/60p Video 1080/30p Video
    ISO Setting 100 - 102,400 ISO 100 - 6,400 ISO
    ISO Boost 50 - 819,200 ISO 50 - 12,800 ISO
    Image Processor DIGIC X DIGIC 6 (Dual)
    DXO Sensor Quality (score) 91 87
    DXO Color Depth (bits) 24.2 24.7
    DXO Dynamic Range (EV) 14.5 12.4
    DXO Low Light (ISO) 3248 2381
    Screen Specs Canon 1D X Mark III Canon 5DS
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.76x 0.71x
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 3.2inch
    LCD Resolution 2100k dots 1040k dots
    LCD Attachment Fixed screen Fixed screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Canon 1D X Mark III Canon 5DS
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 20 shutter flaps/s 5 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium CFexB cards CF or SDXC cards
    Single or Dual Card Slots Dual card slots Dual card slots
    Connectivity Specs Canon 1D X Mark III Canon 5DS
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 3.1 USB 3.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in no Wifi
    Bluetooth Support Bluetooth built-in no Bluetooth
    Geotagging GPS built-in no internal GPS
    Body Specs Canon 1D X Mark III Canon 5DS
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Canon LP-E19 Canon LP-E6
    Battery Life (CIPA)2850 shots per charge700 shots per charge
    Body Dimensions 158 x 168 x 83 mm
    (6.2 x 6.6 x 3.3 in)
    152 x 116 x 76 mm
    (6.0 x 4.6 x 3.0 in)
    Camera Weight 1440 g (50.8 oz) 930 g (32.8 oz)
    logo
    Check 1DX Mark III price at
    amazon.com
    logo
    Check 5DS offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 1D X Mark III vs Canon 5DS
