Canon 1D X Mark II versus Leica D-LUX 5

The Canon EOS-1D X Mark II and the Leica D-LUX 5 are two digital cameras that were officially introduced, respectively, in February 2016 and September 2010. The 1DX Mark II is a DSLR, while the D-LUX 5 is a fixed lens compact. The cameras are based on a full frame (1DX Mark II) and a 1/1.7-inch (D-LUX 5) sensor. The Canon has a resolution of 20 megapixel, whereas the Leica provides 10 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 1D X Mark II vs Leica D-LUX 5

The side-by-side display below illustrates the physical size and weight of the Canon 1D X Mark II and the Leica D-LUX 5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left – the 1DX Mark II – represents 100 percent across all the size and weight measures).

Compare Canon 1D X Mark II vs Leica D-LUX 5
Compare 1DX Mark II versus D-LUX 5 top
Compare 1DX Mark II and D-LUX 5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica D-LUX 5 is considerably smaller (73 percent) than the Canon 1D X Mark II. It is worth mentioning in this context that the 1DX Mark II is splash and dust resistant, while the D-LUX 5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX 5 has a lens build in, whereas the 1DX Mark II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can find an overview of optics for the 1DX Mark II and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 1DX Mark II gets 1210 shots out of its LP-E19 battery, while the D-LUX 5 can take 400 images on a single charge of its BP-DC10 power pack. As can be seen in the images above, the 1DX Mark II has a battery grip build in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D X Mark II» 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Leica D-LUX 5« 4.3 in 2.6 in 1.7 in 9.6 oz 400 n Sep 2010 699- i Leica D-LUX 5
Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II
Canon 5DS« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS
Canon 1D C« » 6.2 in 6.5 in 3.3 in 54.5 oz 1120 Y Apr 2012 14,999- i Canon 1D C
Canon 5D Mark III« » 6.0 in 4.6 in 3.0 in 33.5 oz 950 Y Mar 2012 3,499- i Canon 5D Mark III
Canon 6D« » 5.7 in 4.4 in 2.8 in 27.2 oz 1090 Y Sep 2012 2,099- i Canon 6D
Canon 1D X« » 6.2 in 6.6 in 3.3 in 54.7 oz 1120 Y Oct 2011 6,799- i Canon 1D X
Canon 5D Mark II« » 6.0 in 4.5 in 3.0 in 30.0 oz 850 Y Sep 2008 3,499- i Canon 5D Mark II
Canon 1Ds Mark III« » 5.9 in 6.3 in 3.1 in 48.9 oz 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1Ds Mark II« » 6.1 in 6.2 in 3.1 in 42.9 oz 1200 Y Sep 2004 7,999- i Canon 1Ds Mark II
Fujifilm X10« » 4.6 in 2.8 in 2.2 in 12.3 oz 270 n Sep 2011 599- i Fujifilm X10
Leica D-LUX 6« » 4.4 in 2.7 in 1.8 in 10.5 oz 330 n Sep 2012 699- i Leica D-LUX 6
Leica V-LUX 3« » 4.9 in 3.2 in 3.7 in 19.0 oz 410 n Dec 2011 949- i Leica V-LUX 3
Leica X1« » 4.9 in 2.4 in 1.3 in 10.8 oz 260 n Sep 2009 1,995- i Leica X1
Nikon D5« » 6.3 in 6.3 in 3.6 in 49.9 oz 3780 Y Jan 2016 6,499 i i Nikon D5
Panasonic LX5« » 4.3 in 2.6 in 1.7 in 9.6 oz 400 n Jul 2010 499- i Panasonic LX5

Any camera purchase will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D-LUX 5 was launched at a lower price than the 1DX Mark II, despite having a lens build in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon 1D X Mark II vs Leica D-LUX 5

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D X Mark II features a full frame sensor and the Leica D-LUX 5 a 1/1.7-inch sensor. The sensor area in the D-LUX 5 is 95 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 4.4. The sensor in the 1DX Mark II has a native 3:2 aspect ratio, while the one in the D-LUX 5 offers a 4:3 aspect. The D-LUX 5 has the particularity of featuring a switch that allows to toggle between different aspect ratios, while maintaining the same field of view and full image resolution.

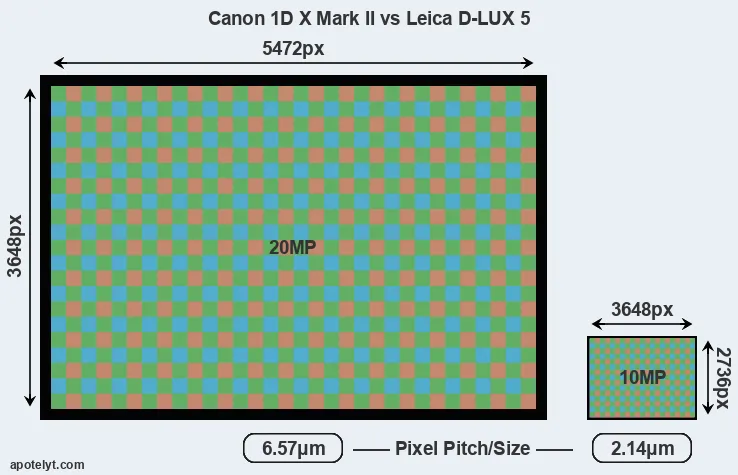

Canon 1D X Mark II and Leica D-LUX 5 sensor measures

With 20MP, the 1DX Mark II offers a higher resolution than the D-LUX 5 (10MP), but the 1DX Mark II nevertheless has larger individual pixels (pixel pitch of 6.57μm versus 2.14μm for the D-LUX 5) due to its larger sensor. Moreover, the 1DX Mark II is a somewhat more recent model (by 5 years and 4 months) than the D-LUX 5, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The 1DX Mark II has on-sensor phase detect pixels, which results in relatively fast and reliable autofocus acquisition during video recording.

1DX Mark II versus D-LUX 5 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 1D X Mark II» Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Leica D-LUX 5« 1/1.7 10.0 3648 2736720/60p----Leica D-LUX 5
Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II
Canon 5DS« » Full Frame 50.3 8688 57921080/60p24.712.4238187Canon 5DS
Canon 1D C« » Full Frame 17.9 5184 34564K/24p----Canon 1D C
Canon 5D Mark III« » Full Frame 22.1 5760 38401080/30p24.011.7229381Canon 5D Mark III
Canon 6D« » Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D
Canon 1D X« » Full Frame 17.9 5184 34561080/30p23.811.8278682Canon 1D X
Canon 5D Mark II« » Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II
Canon 1Ds Mark III« » Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III
Canon 1Ds Mark II« » Full Frame 16.6 4992 3328-23.311.3148074Canon 1Ds Mark II
Fujifilm X10« » 2/3 12.0 4000 30001080/30p20.511.324550Fujifilm X10
Leica D-LUX 6« » 1/1.7 10.0 3648 27361080/60p----Leica D-LUX 6
Leica V-LUX 3« » 1/2.3 12.0 4000 30001080/60p----Leica V-LUX 3
Leica X1« » APS-C 12.2 4272 2856-----Leica X1
Nikon D5« » Full Frame 20.7 5588 37124K/30p25.112.3234388Nikon D5
Panasonic LX5« » 1/1.7 10.0 3648 2736720/60p19.610.813241Panasonic LX5

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 1DX Mark II provides a higher video resolution than the D-LUX 5. It can shoot video footage at 4K/60p, while the Leica is limited to 720/60p.



Feature comparison: Canon 1D X Mark II vs Leica D-LUX 5

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 1DX Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the D-LUX 5 relies on live view and the rear LCD for framing. That said, the D-LUX 5 can be equipped with an optional viewfinder – the EVF1. The following table reports on some other key feature differences and similarities of the Canon 1D X Mark II, the Leica D-LUX 5, and comparable cameras. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 1D X Mark II»optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Leica D-LUX 5«- n 3.0 460 fixed n 4000 2.5 Y Y Leica D-LUX 5
Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 4000 6.5 n n Canon 6D Mark II
Canon 5DS« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS
Canon 1D C« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D C
Canon 5D Mark III« »optical Y 3.2 1040 fixed n 8000 6.0 n n Canon 5D Mark III
Canon 6D« »optical Y 3.0 1040 fixed n 4000 4.5 n n Canon 6D
Canon 1D X« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D X
Canon 5D Mark II« »optical Y 3.0 920 fixed n 8000 3.9 n n Canon 5D Mark II
Canon 1Ds Mark III« »optical Y 3.0 230 fixed n 8000 5.0 n n Canon 1Ds Mark III
Canon 1Ds Mark II« »optical Y 2.0 230 fixed n 8000 4.0 n n Canon 1Ds Mark II
Fujifilm X10« »optical n 2.8 460 fixed n 4000 10.0 Y Y Fujifilm X10
Leica D-LUX 6« »- n 3.0 920 fixed n 4000 11.0 Y Y Leica D-LUX 6
Leica V-LUX 3« »202 n 3.0 460 swivel n 2000 12.0 Y Y Leica V-LUX 3
Leica X1« »- n 2.7 230 fixed n 2000 3.0 Y n Leica X1
Nikon D5« »optical Y 3.2 2359 fixed Y 8000 14.0 n n Nikon D5
Panasonic LX5« »- n 3.0 460 fixed n 4000 2.5 Y Y Panasonic LX5

One feature that is present on the 1DX Mark II, but is missing on the D-LUX 5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 1DX Mark II writes its imaging data to Compact Flash or CFast cards, while the D-LUX 5 uses SDXC cards. The 1DX Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the D-LUX 5 only has one slot.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 1D X Mark II»YmonomonoYYmini3.0---Canon 1D X Mark II
Leica D-LUX 5«Ymonomono--mini2.0---Leica D-LUX 5
Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II
Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS
Canon 1D C« »YmonomonoYYmini2.0---Canon 1D C
Canon 5D Mark III« »YmonomonoYYmini2.0---Canon 5D Mark III
Canon 6D« »YmonomonoY-mini2.0Y--Canon 6D
Canon 1D X« »Ymono-Y-mini2.0---Canon 1D X
Canon 5D Mark II« »YmonomonoY-mini2.0---Canon 5D Mark II
Canon 1Ds Mark III« »Y-----2.0---Canon 1Ds Mark III
Canon 1Ds Mark II« »Y-----2.0---Canon 1Ds Mark II
Fujifilm X10« »Ystereomono--mini2.0---Fujifilm X10
Leica D-LUX 6« »Ystereomono--mini2.0---Leica D-LUX 6
Leica V-LUX 3« »Ystereo---mini2.0---Leica V-LUX 3
Leica X1« »Y----mini2.0---Leica X1
Nikon D5« »YstereomonoYYmini3.0---Nikon D5
Panasonic LX5« »Ymonomono--mini2.0---Panasonic LX5

The 1DX Mark II is a recent model that features in the current product line-up of Canon. In contrast, the D-LUX 5 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the D-LUX 5 was succeeded by the Leica D-LUX 6.

Review summary: Canon 1D X Mark II vs Leica D-LUX 5

So what conclusions can be drawn? Which of the two cameras – the Canon 1D X Mark II or the Leica D-LUX 5 – has the upper hand? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Reasons to prefer the Canon EOS-1D X Mark II:

  • More detail: Offers more megapixels (20 vs 10MP) with a 44% higher linear resolution.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: Larger sensor generates images with better, more accurate colors.
  • More dynamic range: Capable of capturing a wider spectrum of light and dark details.
  • Better low-light sensitivity: Can be used in poorly lit environments and still produce good images.
  • Better video: Provides higher definition movie capture (4K/60p vs 720/60p).
  • Better video autofocus: Features on-sensor phase-detection for more confident movie autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an optical viewfinder for image framing and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 460k dots).
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (16 vs 2.5 flaps/sec) to capture the decisive moment.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (1210 versus 400) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More modern: Reflects 5 years and 4 months of technical progress since the D-LUX 5 launch.

ilogo

Arguments in favor of the Leica D-LUX 5:

  • Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
  • Ready to shoot: Comes with an integrated lens, while the 1DX Mark II requires a separate lens.
  • More compact: Is smaller (110x65mm vs 158x168mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens build in (unlike the 1DX Mark II).
  • Sharper images: Has stabilization technology build-in to reduce the impact of hand-shake.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
  • More affordable: Was introduced at a lower price, despite coming with a build-in lens.
  • More heavily discounted: Has been around for much longer (launched in September 2010).

If the number of relative strengths (bullet points above) is taken as a guide, the 1DX Mark II is the clear winner of the match-up (23 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

1DX Mark II 23:09 D-LUX 5

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the 1DX Mark II or the D-LUX 5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why expert reviews are important. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The full reviews are available by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D X Mark II»-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Leica D-LUX 5«--4.5/5-4/5 Sep 2010 699- i Leica D-LUX 5
Canon 6D Mark II« »Rec80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II
Canon 5DS« »Rec83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS
Canon 1D C« »----- Apr 2012 14,999- i Canon 1D C
Canon 5D Mark III« »HiRec82/1004.5/55/54.5/5 Mar 2012 3,499- i Canon 5D Mark III
Canon 6D« »HiRec83/1004.5/54.5/54.5/5 Sep 2012 2,099- i Canon 6D
Canon 1D X« »--4.5/54.5/54.5/5 Oct 2011 6,799- i Canon 1D X
Canon 5D Mark II« »91/10079/1004/55/5- Sep 2008 3,499- i Canon 5D Mark II
Canon 1Ds Mark III« »-HiRec4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1Ds Mark II« »-HiRec--- Sep 2004 7,999- i Canon 1Ds Mark II
Fujifilm X10« »-76/1004/53.5/54.5/5 Sep 2011 599- i Fujifilm X10
Leica D-LUX 6« »--4/5-4/5 Sep 2012 699- i Leica D-LUX 6
Leica V-LUX 3« »----- Dec 2011 949- i Leica V-LUX 3
Leica X1« »-Rec--4/5 Sep 2009 1,995- i Leica X1
Nikon D5« »-89/1004.5/55/55/5 Jan 2016 6,499 i i Nikon D5
Panasonic LX5« »Rec73/1004.5/55/54.5/5 Jul 2010 499- i Panasonic LX5

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
