Canon 1D vs 5D Mark III
The Canon EOS-1D and the Canon EOS 5D Mark III are two professional cameras that were officially introduced, respectively, in September 2001 and March 2012. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D) and a full frame (5D Mark III) sensor. The 1D has a resolution of 4.1 megapixels, whereas the 5D Mark III provides 22.1 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.
|Canon 1D||Canon 5D Mark III|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|4.1 MP, APS-H Sensor||22.1 MP, Full Frame Sensor|
|no Video||1080/30p Video|
|ISO 200-1600 (100-3200)||ISO 100-25600 (50-102400)|
|Optical viewfinder||Optical viewfinder|
|2.0" LCD, 120k dots||3.2" LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|8 shutter flaps per second||6 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|500 shots per battery charge||950 shots per battery charge|
|156 x 158 x 80 mm, 1585 g||152 x 116 x 76 mm, 950 g|
Body comparison: Canon 1D vs 5D Mark III

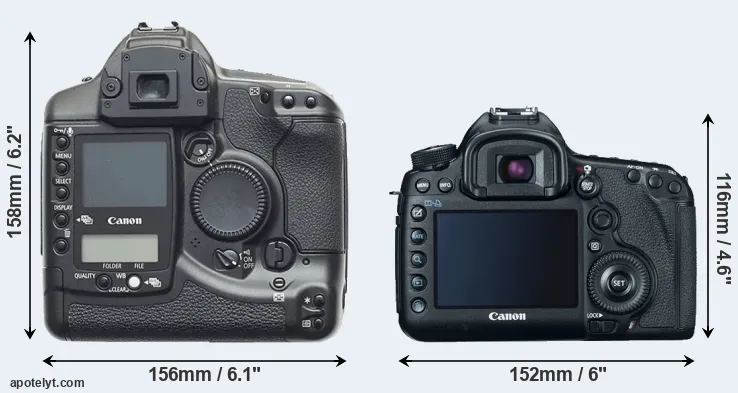

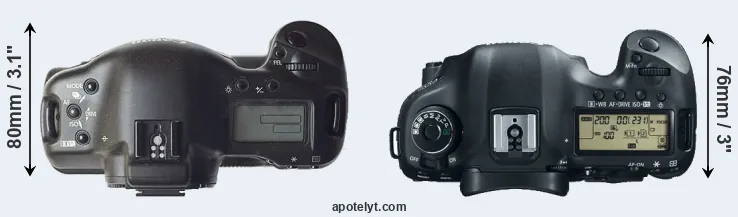

The side-by-side display below illustrates the physical size and weight of the Canon 1D and the Canon 5D Mark III. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5D Mark III is notably smaller (28 percent) than the Canon 1D. Moreover, the 5D Mark III is substantially lighter (40 percent) than the 1D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D Mark III) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (1D). You can compare the optics available in the Canon EF Lens Catalog.
Concerning battery life, the 1D gets 500 shots out of its NP-E3 battery, while the 5D Mark III can take 950 images on a single charge of its LP-E6 power pack. As can be seen in the images above, the 1D has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5D Mark III, Canon provides the BG-E11 vertical grip as an optional accessory (see here on eBay).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 1D»||156 mm||158 mm||80 mm||1585 g||500||Y||Sep 2001||6,499||-||Canon 1D|
|Canon 5D Mark III«||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 1D X Mark II« »||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 5D Mark IV« »||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 5DS« »||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon 1D C« »||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999||-||Canon 1D C|
|Canon 6D« »||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099||-||Canon 6D|
|Canon 1D X« »||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799||-||Canon 1D X|
|Canon 5D Mark II« »||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499||-||Canon 5D Mark II|
|Canon 1Ds Mark III« »||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999||-||Canon 1D Mark II N|
|Canon 1D Mark II« »||156 mm||158 mm||80 mm||1535 g||1200||Y||Jan 2004||4,499||-||Canon 1D Mark II|
|Canon 1Ds« »||156 mm||158 mm||80 mm||1265 g||600||Y||Sep 2002||8,999||-||Canon 1Ds|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 5D Mark III was launched at a markedly lower price (by 46 percent) than the 1D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison: Canon 1D vs 5D Mark III
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

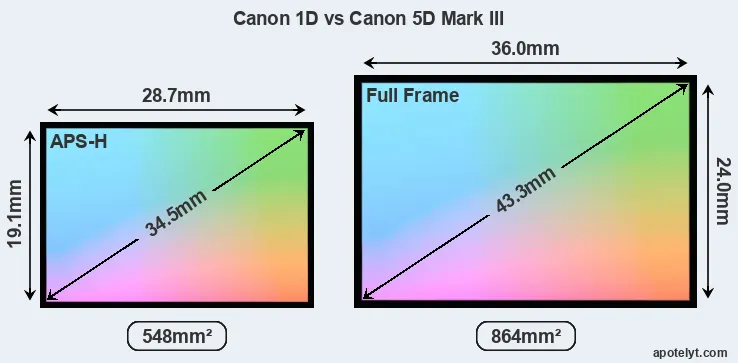

Of the two cameras under consideration, the Canon 1D features an APS-H sensor and the Canon 5D Mark III a full frame sensor. The sensor area in the 5D Mark III is 58 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 5D Mark III uses a more advanced image processing engine (DIGIC 5+) than the 1D (DIGIC), with benefits for noise reduction, color accuracy, and processing speed.

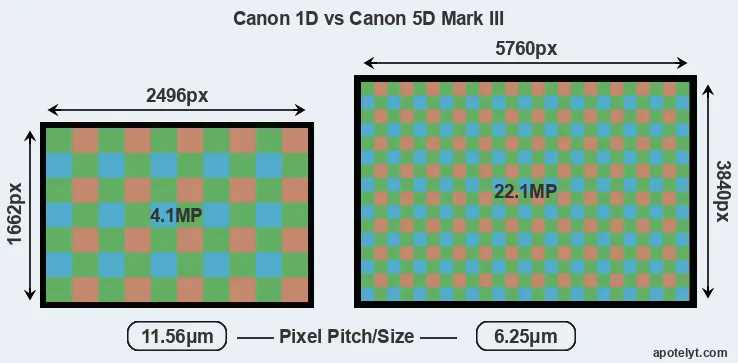

With 22.1MP, the 5D Mark III offers a higher resolution than the 1D (4.1MP), but the 5D Mark III has smaller individual pixels (pixel pitch of 6.25μm versus 11.56μm for the 1D). Yet, the 5D Mark III is a much more recent model (by 10 years and 5 months) than the 1D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The Canon EOS-1D has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon EOS 5D Mark III are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-102400..
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 1D»||APS-H||4.1||2496||1662||-||-||-||-||-||Canon 1D|
|Canon 5D Mark III«||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 1D X Mark II« »||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Canon 5D Mark IV« »||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91||Canon 5D Mark IV|
|Canon 5DS« »||Full Frame||50.3||8688||5792||1080/60p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R« »||Full Frame||50.3||8688||5792||1080/60p||24.6||12.4||2308||86||Canon 5DS R|
|Canon 1D C« »||Full Frame||17.9||5184||3456||4K/24p||-||-||-||-||Canon 1D C|
|Canon 6D« »||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Canon 1D X« »||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82||Canon 1D X|
|Canon 5D Mark II« »||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Canon 1Ds Mark III« »||Full Frame||21.0||5616||3744||-||24.0||12.0||1663||80||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||APS-H||8.2||3504||2336||-||22.3||11.2||975||66||Canon 1D Mark II N|
|Canon 1D Mark II« »||APS-H||8.2||3504||2336||-||22.3||11.1||1003||66||Canon 1D Mark II|
|Canon 1Ds« »||Full Frame||11.0||4064||2704||-||21.8||11.0||954||63||Canon 1Ds|
Many modern cameras cannot only take still pictures, but also record videos. The 5D Mark III indeed provides for movie recording, while the 1D does not. The highest resolution format that the 5D Mark III can use is 1080/30p.
Feature comparison: Canon 1D vs 5D Mark III
Apart from body and sensor, cameras can and do differ across a range of features. The 1D and the 5D Mark III are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The table below summarizes some of the other core capabilities of the Canon 1D and Canon 5D Mark III in connection with corresponding information for a sample of similar cameras.
|Canon 1D»||optical||Y||2.0||120||fixed||n||16000||8.0||n||n||Canon 1D|
|Canon 5D Mark III«||optical||Y||3.2||1040||fixed||n||8000||6.0||n||n||Canon 5D Mark III|
|Canon 1D X Mark II« »||optical||Y||3.2||1620||fixed||Y||8000||16.0||n||n||Canon 1D X Mark II|
|Canon 5D Mark IV« »||optical||Y||3.2||1620||fixed||Y||8000||7.0||n||n||Canon 5D Mark IV|
|Canon 5DS« »||optical||Y||3.2||1040||fixed||n||8000||5.0||n||n||Canon 5DS|
|Canon 5DS R« »||optical||Y||3.2||1040||fixed||n||8000||5.0||n||n||Canon 5DS R|
|Canon 1D C« »||optical||Y||3.2||1040||fixed||n||8000||14.0||n||n||Canon 1D C|
|Canon 6D« »||optical||Y||3.0||1040||fixed||n||4000||4.5||n||n||Canon 6D|
|Canon 1D X« »||optical||Y||3.2||1040||fixed||n||8000||14.0||n||n||Canon 1D X|
|Canon 5D Mark II« »||optical||Y||3.0||920||fixed||n||8000||3.9||n||n||Canon 5D Mark II|
|Canon 1Ds Mark III« »||optical||Y||3.0||230||fixed||n||8000||5.0||n||n||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||optical||Y||2.5||230||fixed||n||8000||8.5||n||n||Canon 1D Mark II N|
|Canon 1D Mark II« »||optical||Y||2.0||230||fixed||n||8000||8.3||n||n||Canon 1D Mark II|
|Canon 1Ds« »||optical||Y||2.0||120||fixed||n||8000||3.0||n||n||Canon 1Ds|
Concerning the storage of imaging data, both the 1D and the 5D Mark III write their files to Compact Flash cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
Connectivity comparison: Canon 1D vs 5D Mark III
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D and Canon EOS 5D Mark III and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 1D»||Y||-||-||-||-||-||FW||-||-||-||Canon 1D|
|Canon 5D Mark III«||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 1D X Mark II« »||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Canon 5D Mark IV« »||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-||Canon 5D Mark IV|
|Canon 5DS« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon 1D C« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 1D C|
|Canon 6D« »||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Canon 1D X« »||Y||mono||-||Y||-||mini||2.0||-||-||-||Canon 1D X|
|Canon 5D Mark II« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Canon 1Ds Mark III« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||Y||-||-||-||-||-||1.1||-||-||-||Canon 1D Mark II N|
|Canon 1D Mark II« »||Y||-||-||-||-||-||1.1||-||-||-||Canon 1D Mark II|
|Canon 1Ds« »||Y||-||-||-||-||-||FW||-||-||-||Canon 1Ds|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the 1D and the 5D Mark III have been discontinued, but can regularly be found used on eBay. The 1D was replaced by the Canon 1D Mark II, while the 5D Mark III was followed by the Canon 5D Mark IV.
Review summary: Canon 1D vs 5D Mark III
So what conclusions can be drawn? Is the Canon 1D better than the Canon 5D Mark III or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS-1D:
- Faster shutter: Has higher mechanical shutter speed (16000/sec vs 8000/sec) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 6 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- More heavily discounted: Has been available for much longer (launched in September 2001).
Reasons to prefer the Canon EOS 5D Mark III:
- More detail: Has more megapixels (22.1 vs 4.1MP), which boosts linear resolution by 131%.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: Larger sensor generates images with better, more accurate colors.
- More dynamic range: Capable of capturing a wider spectrum of light and dark details.
- Better low-light sensitivity: Can be used in poorly lit environments and still produce good images.
- Better jpgs: Has a more modern image processing engine (DIGIC 5+ vs DIGIC).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 120k dots).
- More compact: Is smaller (152x116mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 635g or 40 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (950 versus 500) out of a single battery charge.
- More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
- More modern: Reflects 10 years and 5 months of technical progress since the 1D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the 5D Mark III is the clear winner of the contest (14 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 1D or the 5D Mark III handle or perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews: Canon 1D vs 5D Mark III
This is why hands-on reviews by experts are important. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The full reviews are available by clicking on the site logo in the table header.
|Canon 1D»||-||HiRec||-||-||-||Sep 2001||6,499||-||Canon 1D|
|Canon 5D Mark III«||HiRec||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 1D X Mark II« »||-||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 5D Mark IV« »||HiRec||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 5DS« »||Rec||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||Rec||83/100||5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS R|
|Canon 1D C« »||-||-||-||-||-||Apr 2012||14,999||-||Canon 1D C|
|Canon 6D« »||HiRec||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099||-||Canon 6D|
|Canon 1D X« »||-||-||4.5/5||4.5/5||4.5/5||Oct 2011||6,799||-||Canon 1D X|
|Canon 5D Mark II« »||91/100||79/100||4/5||5/5||-||Sep 2008||3,499||-||Canon 5D Mark II|
|Canon 1Ds Mark III« »||-||HiRec||4.5/5||-||-||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||-||-||-||-||-||Aug 2005||3,999||-||Canon 1D Mark II N|
|Canon 1D Mark II« »||-||HiRec||-||rev||-||Jan 2004||4,499||-||Canon 1D Mark II|
|Canon 1Ds« »||-||HiRec||-||-||-||Sep 2002||8,999||-||Canon 1Ds|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D Mark IV vs Canon SL2
- Canon 1Ds Mark III vs Canon 5D
- Canon M5 vs Canon M100
- Fujifilm GFX 50S vs Leica V-LUX Typ 114
- Fujifilm X-E1 vs Panasonic GX9
- Fujifilm X-Pro1 vs Sony NEX-7
- Nikon D3400 vs Fujifilm X-T100
- Nikon D500 vs Leica X-U Typ 113
- Olympus E-M1X vs Fujifilm X-A10
- Panasonic G80 vs Panasonic LX100 II
- Panasonic GH5 vs Fujifilm X-T20
- Sony RX10 IV vs Sony HX95
Specifications: Canon 1D vs Canon 5D Mark III
|Camera Model||Canon 1D||Canon 5D Mark III|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||September 2001||March 2012|
|Launch Price||USD 6499||USD 3499|
|Sensor Format||APS-H Sensor||Full Frame Sensor|
|Sensor Size||28.7 x 19.1 mm||36.0 x 19.1 mm|
|Sensor Area||548.17 mm2||864 mm2|
|Sensor Diagonal||34.5 mm||43.3 mm|
|Sensor Resolution||4.1 Megapixels||22.1 Megapixels|
|Image Resolution||2496 x 1662 pixels||5760 x 3840 pixels|
|Pixel Pitch||11.56 μm||6.25 μm|
|Pixel Density||0.76 MP/cm2||2.56 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||200-1600 ISO||100-25600 ISO|
|ISO Boost||100-3200 ISO||50-102400 ISO|
|Image Processor||DIGIC||DIGIC 5+|
|DXO Sensor Quality (score)||..||81|
|DXO Color Depth (bits)||..||24.0|
|DXO Dynamic Range (EV)||..||11.7|
|DXO Low Light (ISO)||..||2293|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||n/a||Live View|
|Rear LCD Size||2.0 inch||3.2 inch|
|LCD Resolution||120k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Autofocus System||Phase-detect AF||Phase-detect AF|
|Maximum Shutter Speed||1/16000s||1/8000s|
|Continuous Shooting||8 shutter flaps/s||6 shutter flaps/s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||CF cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||Firewire||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Type||NP-E3 power pack||LP-E6 power pack|
|Battery Life (CIPA)||500 shots per charge||950 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
|Camera Weight||1585 g (55.9 oz)||950 g (33.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
