Canon 1D Mark IV vs 500D
The Canon EOS-1D Mark IV and the Canon EOS 500D (labelled Canon T1i in some countries) are two digital cameras that were announced, respectively, in October 2009 and March 2009. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D Mark IV) and an APS-C (500D) sensor. The 1D Mark IV has a resolution of 16 megapixels, whereas the 500D provides 15.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1D Mark IV||Canon 500D|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|16 MP, APS-H Sensor||15.1 MP, APS-C Sensor|
|1080/30p Video||1080/20p Video|
|ISO 100-12,800 (50 - 102,400)||ISO 100-6,400 (100 - 12,800)|
|Optical viewfinder||Optical viewfinder|
|3.0 LCD, 920k dots||3.0 LCD, 920k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|10 shutter flaps per second||3.4 shutter flaps per second|
|Weathersealed body||not weather sealed|
|1500 shots per battery charge||400 shots per battery charge|
|156 x 157 x 80 mm, 1230 g||129 x 98 x 62 mm, 520 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark IV and the Canon EOS 500D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon 1D Mark IV and the Canon 500D. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 500D is considerably smaller (48 percent) than the Canon 1D Mark IV. Moreover, the 500D is substantially lighter (58 percent) than the 1D Mark IV. It is worth mentioning in this context that the 1D Mark IV is splash and dust resistant, while the 500D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 1D Mark IV) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (500D). You can compare the optics available in the Canon EF Lens Catalog.
Concerning battery life, the 1D Mark IV gets 1500 shots out of its LP-E4 battery, while the 500D can take 400 images on a single charge of its LP-E5 power pack. As can be seen in the images above, the 1D Mark IV has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 500D, Canon provides the BG-E5 vertical grip as an optional accessory (see here on eBay).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 1D Mark IV||6.1 in||6.2 in||3.1 in||43.4 oz||1500||Y||Oct 2009||4,999|
|Canon 500D||5.1 in||3.9 in||2.4 in||18.3 oz||400||n||Mar 2009||799|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon G1 X Mark II||4.6 in||2.9 in||2.6 in||19.5 oz||240||n||Feb 2014||799|
|Canon 650D||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849|
|Canon G1 X||4.6 in||3.2 in||2.6 in||18.8 oz||250||n||Jan 2012||799|
|Canon 1D X||6.2 in||6.6 in||3.3 in||54.7 oz||1120||Y||Oct 2011||6,799|
|Canon 60D||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399|
|Canon 550D||5.1 in||3.9 in||2.4 in||18.7 oz||440||n||Feb 2010||699|
|Canon 7D||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 450D||5.1 in||3.9 in||2.4 in||18.5 oz||500||n||Jan 2008||799|
|Canon 1D Mark III||6.1 in||6.2 in||3.1 in||40.7 oz||2200||Y||Feb 2007||4,499|
|Canon 1D Mark II||6.1 in||6.2 in||3.1 in||54.1 oz||1200||Y||Jan 2004||4,499|
|Canon 1Ds Mark II||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999|
|Nikon D4||6.3 in||6.2 in||3.6 in||47.3 oz||2600||Y||Jan 2012||5,999|
|Nikon D3S||6.3 in||6.2 in||3.5 in||43.7 oz||4200||Y||Oct 2009||5,199|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 500D was launched at a markedly lower price (by 84 percent) than the 1D Mark IV, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

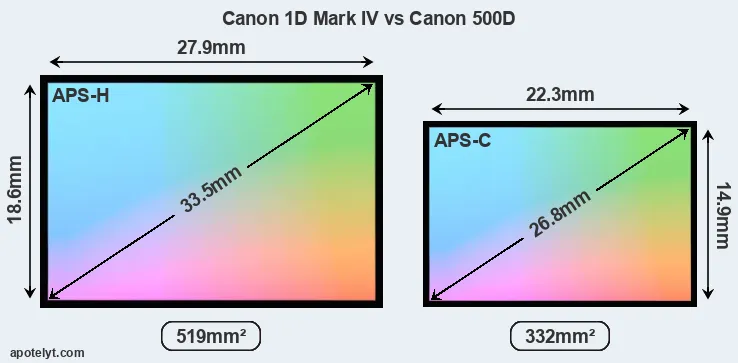

Of the two cameras under consideration, the Canon 1D Mark IV features an APS-H sensor and the Canon 500D an APS-C sensor. The sensor area in the 500D is 36 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 16MP, the 1D Mark IV offers a slightly higher resolution than the 500D (15.1MP), but the 1D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.70μm versus 4.69μm for the 500D) due to its larger sensor. Moreover, the 1D Mark IV is a somewhat more recent model (by 6 months) than the 500D, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The Canon EOS-1D Mark IV has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS 500D are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-12800.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 1D Mark IV provides substantially higher image quality than the 500D, with an overall score that is 11 points higher. This advantage is based on 1.1 bits higher color depth, 0.5 EV in additional dynamic range, and 1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|Canon G1 X||1.5-inch||14.2||4352||3264||1080/24p||21.7||10.8||644||60|
|Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71|
|Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66|
|Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 1D Mark IV provides a higher frame rate than the 500D. It can shoot video footage at 1080/30p, while the 500D is limited to 1080/20p.
Beyond body and sensor, cameras can and do differ across a range of features. The 1D Mark IV and the 500D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1D Mark IV offers a wider field of view (100%) than the one in the 500D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 1D Mark IV has a higher magnification (0.58x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 1D Mark IV and Canon 500D in connection with corresponding information for a sample of similar cameras.
|Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon G1 X Mark II||optional||n||3.0||1040||tilting||Y||1/4000s||5.2||Y||Y|
|Canon G1 X||optical||n||3.0||922||Swivel||n||1/4000s||1.9||Y||Y|
|Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Canon 1D Mark III||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n|
|Canon 1D Mark II||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n|
|Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
One feature that is present on the 1D Mark IV, but is missing on the 500D is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 1D Mark IV writes its imaging data to Compact Flash or SDHC cards, while the 500D uses SDHC cards. The 1D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the 500D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark IV and Canon EOS 500D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon G1 X Mark II||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|Canon G1 X||Y||stereo||mono||-||-||mini||2.0||-||-||-|
|Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Canon 1D Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1D Mark II||Y||-||-||-||-||-||1.1||-||-||-|
|Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
It is notable that the 1D Mark IV has a microphone port, which is missing on the 500D. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 1D Mark IV (unlike the 500D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 1D Mark IV and the 500D have been discontinued, but can regularly be found used on eBay. The 500D was replaced by the Canon 550D, while the 1D Mark IV does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So how do things add up? Is there a clear favorite between the Canon 1D Mark IV and the Canon 500D? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS-1D Mark IV:
- Better image quality: Scores substantially higher (11 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.1 bits more color depth).
- Better low-light sensitivity: Requires less light for good images (1 stops ISO advantage).
- Better video: Provides higher movie framerates (1080/30p versus 1080/20p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.54x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 3.4 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1500 versus 400) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Is somewhat more recent (announced 6 months after the 500D).
Advantages of the Canon EOS 500D:
- More compact: Is smaller (129x98mm vs 156x157mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 710g or 58 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (84 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in March 2009).
If the number of relative strengths (bullet points above) is taken as a guide, the 1D Mark IV is the clear winner of the match-up (16 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D Mark IV and the Canon 500D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 1D Mark IV or the 500D perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1D Mark IV||..||89/100||..||5/5||..||Oct 2009||4,999|
|Canon 500D||+ +||74/100||4.5/5||5/5||4.5/5||Mar 2009||799|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon G1 X Mark II||+||77/100||4/5||4/5||4.5/5||Feb 2014||799|
|Canon 650D||+ +||77/100||4.5/5||4.5/5||4.5/5||Jun 2012||849|
|Canon G1 X||+||76/100||4/5||4/5||4.5/5||Jan 2012||799|
|Canon 1D X||..||..||4.5/5||4.5/5||4.5/5||Oct 2011||6,799|
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Canon 550D||+ +||77/100||4/5||5/5||4.5/5||Feb 2010||699|
|Canon 7D||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 450D||+ +||+ +||4/5||5/5||4.5/5||Jan 2008||799|
|Canon 1D Mark III||..||..||..||o||..||Feb 2007||4,499|
|Canon 1D Mark II||..||+ +||..||o||..||Jan 2004||4,499|
|Canon 1Ds Mark II||..||+ +||..||..||..||Sep 2004||7,999|
|Nikon D4||..||..||4.5/5||..||4.5/5||Jan 2012||5,999|
|Nikon D3S||..||89/100||4.5/5||5/5||5/5||Oct 2009||5,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D Mark IV vs Hasselblad X1D
- Canon 1D Mark IV vs Nikon D1
- Canon 1D Mark IV vs Olympus E-620
- Canon 1D Mark IV vs Olympus TG-5
- Canon 1D Mark IV vs Panasonic G80
- Canon 1D Mark IV vs Sigma fp
- Canon 500D vs Canon M3
- Canon 500D vs Nikon D70s
- Canon 500D vs Panasonic FT7
- Canon 500D vs Panasonic GF6
- Canon 500D vs Sigma fp
- Canon 500D vs Sony A5100
Specifications: Canon 1D Mark IV vs Canon 500D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D Mark IV||Canon 500D|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||October 2009||March 2009|
|Launch Price||USD 4,999||USD 799|
|Sensor Specs||Canon 1D Mark IV||Canon 500D|
|Sensor Format||APS-H Sensor||APS-C Sensor|
|Sensor Size||27.9 x 18.6 mm||22.3 x 14.9 mm|
|Sensor Area||518.94 mm2||332.27 mm2|
|Sensor Diagonal||33.5 mm||26.8 mm|
|Sensor Resolution||16 Megapixels||15.1 Megapixels|
|Image Resolution||4896 x 3264 pixels||4752 x 3168 pixels|
|Pixel Pitch||5.70 μm||4.69 μm|
|Pixel Density||3.08 MP/cm2||4.53 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/20p Video|
|ISO Setting||100 - 12,800 ISO||100 - 6,400 ISO|
|ISO Boost||50 - 102,400 ISO||100 - 12,800 ISO|
|Image Processor||DIGIC IV||DIGIC 4|
|DXO Sensor Quality (score)||74||63|
|DXO Color Depth (bits)||22.8||21.7|
|DXO Dynamic Range (EV)||12.0||11.5|
|DXO Low Light (ISO)||1320||663|
|Screen Specs||Canon 1D Mark IV||Canon 500D|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||920k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D Mark IV||Canon 500D|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||10 shutter flaps/s||3.4 shutter flaps/s|
|Shutter Life Expectancy||300 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SDHC cards||SDHC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||no||no|
|Connectivity Specs||Canon 1D Mark IV||Canon 500D|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1D Mark IV||Canon 500D|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1500 shots per charge||400 shots per charge|
156 x 157 x 80 mm
(6.1 x 6.2 x 3.1 in)
129 x 98 x 62 mm
(5.1 x 3.9 x 2.4 in)
|Camera Weight||1230 g (43.4 oz)||520 g (18.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
