Canon 1D Mark II vs 5D Mark III
The Canon EOS-1D Mark II and the Canon EOS 5D Mark III are two professional cameras that were announced, respectively, in January 2004 and March 2012. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D Mark II) and a full frame (5D Mark III) sensor. The 1D Mark II has a resolution of 8.2 megapixels, whereas the 5D Mark III provides 22.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1D Mark II||Canon 5D Mark III|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|8.2 MP, APS-H Sensor||22.1 MP, Full Frame Sensor|
|no Video||1080/30p Video|
|ISO 100-1600 (50-3200)||ISO 100-25600 (50-102400)|
|Optical viewfinder||Optical viewfinder|
|2.0" LCD, 230k dots||3.2" LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|8.3 shutter flaps per second||6 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|1200 shots per battery charge||950 shots per battery charge|
|156 x 158 x 80 mm, 1535 g||152 x 116 x 76 mm, 950 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark II and the Canon EOS 5D Mark III? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

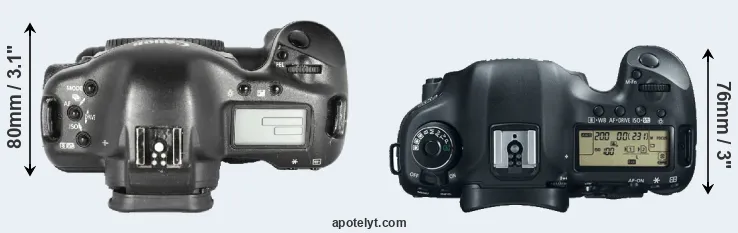

The physical size and weight of the Canon 1D Mark II and the Canon 5D Mark III are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5D Mark III is notably smaller (28 percent) than the Canon 1D Mark II. Moreover, the 5D Mark III is substantially lighter (38 percent) than the 1D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D Mark III) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (1D Mark II). You can compare the optics available in the Canon EF Lens Catalog.
Concerning battery life, the 1D Mark II gets 1200 shots out of its NP-E3 battery, while the 5D Mark III can take 950 images on a single charge of its LP-E6 power pack. As can be seen in the images above, the 1D Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5D Mark III, Canon provides the BG-E11 vertical grip as an optional accessory (see here on eBay).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 1D Mark II»||6.1 in||6.2 in||3.1 in||54.1 oz||1200||Y||Jan 2004||4,499||Canon 1D Mark II|
|Canon 5D Mark III«||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499||Canon 5D Mark III|
|Canon 5D Mark IV« »||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon 1D Mark IV« »||6.1 in||6.2 in||3.1 in||43.4 oz||1500||Y||Oct 2009||4,999||Canon 1D Mark IV|
|Canon 5D Mark II« »||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499||Canon 5D Mark II|
|Canon 1D Mark III« »||6.1 in||6.2 in||3.1 in||40.7 oz||2200||Y||Feb 2007||4,499||Canon 1D Mark III|
|Canon 1Ds Mark III« »||5.9 in||6.3 in||3.1 in||48.9 oz||1800||Y||Aug 2007||7,999||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||6.1 in||6.2 in||3.1 in||55.2 oz||1200||Y||Aug 2005||3,999||Canon 1D Mark II N|
|Canon 5D« »||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299||Canon 5D|
|Canon 1Ds Mark II« »||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999||Canon 1Ds Mark II|
|Canon 1Ds« »||6.1 in||6.2 in||3.1 in||44.6 oz||600||Y||Sep 2002||8,999||Canon 1Ds|
|Canon 1D« »||6.1 in||6.2 in||3.1 in||55.9 oz||500||Y||Sep 2001||6,499||Canon 1D|
|Nikon D610« »||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Oct 2013||1,999||Nikon D610|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 5D Mark III was launched at a somewhat lower price (by 22 percent) than the 1D Mark II, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 1D Mark II features an APS-H sensor and the Canon 5D Mark III a full frame sensor. The sensor area in the 5D Mark III is 58 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 5D Mark III uses a more advanced image processing engine (DIGIC 5+) than the 1D Mark II (DIGIC II), with benefits for noise reduction, color accuracy, and processing speed.
With 22.1MP, the 5D Mark III offers a higher resolution than the 1D Mark II (8.2MP), but the 5D Mark III has smaller individual pixels (pixel pitch of 6.25μm versus 8.17μm for the 1D Mark II). Yet, the 5D Mark III is a much more recent model (by 8 years and 1 month) than the 1D Mark II, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon 5D Mark III implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark III for good quality output (200 dots per inch) amounts to 28.8 x 19.2 inch or 73.2 x 48.8 cm, for very good quality (250 dpi) 23 x 15.4 inch or 58.5 x 39 cm, and for excellent quality (300 dpi) 19.2 x 12.8 inch or 48.8 x 32.5 cm. The corresponding values for the Canon 1D Mark II are 17.5 x 11.7 inch or 44.5 x 29.7 cm for good quality, 14 x 9.3 inch or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inch or 29.7 x 19.8 cm for excellent quality prints.
The Canon EOS-1D Mark II has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon EOS 5D Mark III are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-102400.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the 5D Mark III offers substantially better image quality than the 1D Mark II (overall score 15 points higher). The advantage is based on 1.7 bits higher color depth, 0.6 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66||Canon 1D Mark II|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91||Canon 5D Mark IV|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74||Canon 1D Mark IV|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71||Canon 1D Mark III|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80||Canon 1Ds Mark III|
|Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66||Canon 1D Mark II N|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71||Canon 5D|
|Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74||Canon 1Ds Mark II|
|Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63||Canon 1Ds|
|Canon 1D||APS-H||4.1||2496||1662||none||..||..||..||..||Canon 1D|
|Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94||Nikon D610|
Many modern cameras cannot only take still pictures, but also record videos. The 5D Mark III indeed provides for movie recording, while the 1D Mark II does not. The highest resolution format that the 5D Mark III can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 1D Mark II and the 5D Mark III are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 5D Mark III has a higher magnification than the one of the 1D Mark II (0.71x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1D Mark II and Canon 5D Mark III along with similar information for a selection of comparators.
|Canon 1D Mark II||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n||Canon 1D Mark II|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n||Canon 5D Mark IV|
|Canon 5DS||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n||Canon 1D Mark IV|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n||Canon 5D Mark II|
|Canon 1D Mark III||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n||Canon 1D Mark III|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n||Canon 1Ds Mark III|
|Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n||Canon 1D Mark II N|
|Canon 5D||optical||Y||2.5||230||fixed||n||1/8000s||3.0||n||n||Canon 5D|
|Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n||Canon 1Ds Mark II|
|Canon 1Ds||optical||Y||2.0||120||fixed||n||1/8000s||3.0||n||n||Canon 1Ds|
|Canon 1D||optical||Y||2.0||120||fixed||n||1/16000s||8.0||n||n||Canon 1D|
|Nikon D610||optical||Y||3.2||921||fixed||n||1/4000s||6.0||Y||n||Nikon D610|
The 1D Mark II writes its imaging data to Compact Flash or SD cards, while the 5D Mark III uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark II and Canon EOS 5D Mark III and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 1D Mark II||Y||none||none||-||-||none||1.1||-||-||-||Canon 1D Mark II|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-||Canon 5D Mark IV|
|Canon 5DS||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon 1D Mark IV||Y||stereo||none||Y||-||mini||2.0||-||-||-||Canon 1D Mark IV|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Canon 1D Mark III||Y||none||none||-||-||none||2.0||-||-||-||Canon 1D Mark III|
|Canon 1Ds Mark III||Y||none||none||-||-||none||2.0||-||-||-||Canon 1Ds Mark III|
|Canon 1D Mark II N||Y||none||none||-||-||none||1.1||-||-||-||Canon 1D Mark II N|
|Canon 5D||Y||none||none||-||-||none||2.0||-||-||-||Canon 5D|
|Canon 1Ds Mark II||Y||none||none||-||-||none||2.0||-||-||-||Canon 1Ds Mark II|
|Canon 1Ds||Y||none||none||-||-||none||FW||-||-||-||Canon 1Ds|
|Canon 1D||Y||none||none||-||-||none||FW||-||-||-||Canon 1D|
|Nikon D610||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Nikon D610|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the 1D Mark II and the 5D Mark III have been discontinued, but can regularly be found used on eBay. The 1D Mark II was replaced by the Canon 1D Mark II N, while the 5D Mark III was followed by the Canon 5D Mark IV. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is there a clear favorite between the Canon 1D Mark II and the Canon 5D Mark III? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS-1D Mark II:
- Faster burst: Shoots at higher frequency (8.3 vs 6 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1200 versus 950) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in January 2004).
Advantages of the Canon EOS 5D Mark III:
- More detail: Has more megapixels (22.1 vs 8.2MP), which boosts linear resolution by 64%.
- Better image quality: Scores substantially higher (15 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.7 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (0.6 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.2 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC 5+ vs DIGIC II).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.55x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More compact: Is smaller (152x116mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 585g or 38 percent) and is thus easier to take along.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- More affordable: Was released into a lower priced segment (22 percent cheaper at launch).
- More modern: Reflects 8 years and 1 month of technical progress since the 1D Mark II launch.
If the count of individual advantages (bullet points above) is taken as a guide, the 5D Mark III is the clear winner of the contest (15 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D Mark II and the Canon 5D Mark III place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 1D Mark II and the 5D Mark III in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1D Mark II N vs Canon SX530
- Canon 1D Mark II vs Canon G15
- Canon 1D Mark II vs Nikon 1 V2
- Canon 1D Mark II vs Panasonic G2
- Canon 1D Mark II vs Panasonic LX100
- Canon 1D Mark II vs Pentax K-5
- Canon 1D Mark II vs Sony HX80
- Canon 5D Mark III vs Canon 750D
- Canon 5D Mark III vs Leica V-LUX Typ 114
- Canon 5D Mark III vs Nikon D600
- Canon 5D Mark III vs Sony A6300
- Canon 5D Mark III vs YI M1
Specifications: Canon 1D Mark II vs Canon 5D Mark III
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D Mark II||Canon 5D Mark III|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||January 2004||March 2012|
|Launch Price||USD 4499||USD 3499|
|Sensor Specs||Canon 1D Mark II||Canon 5D Mark III|
|Sensor Format||APS-H Sensor||Full Frame Sensor|
|Sensor Size||28.7 x 19.1 mm||36.0 x 24.0 mm|
|Sensor Area||548.17 mm2||864 mm2|
|Sensor Diagonal||34.5 mm||43.3 mm|
|Sensor Resolution||8.2 Megapixels||22.1 Megapixels|
|Image Resolution||3504 x 2336 pixels||5760 x 3840 pixels|
|Pixel Pitch||8.17 μm||6.25 μm|
|Pixel Density||1.49 MP/cm2||2.56 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100-1600 ISO||100-25600 ISO|
|ISO Boost||50-3200 ISO||50-102400 ISO|
|Image Processor||DIGIC II||DIGIC 5+|
|DXO Sensor Quality (score)||66||81|
|DXO Color Depth (bits)||22.3||24.0|
|DXO Dynamic Range (EV)||11.1||11.7|
|DXO Low Light (ISO)||1003||2293|
|Screen Specs||Canon 1D Mark II||Canon 5D Mark III|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.0 inch||3.2 inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D Mark II||Canon 5D Mark III|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||8.3 shutter flaps/s||6 shutter flaps/s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SD cards||CF or SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|UHS card support||no||no|
|Connectivity Specs||Canon 1D Mark II||Canon 5D Mark III|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 1.1||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1D Mark II||Canon 5D Mark III|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1200 shots per charge||950 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
|Camera Weight||1535 g (54.1 oz)||950 g (33.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
