What is the sensor size of the Panasonic ZS70?

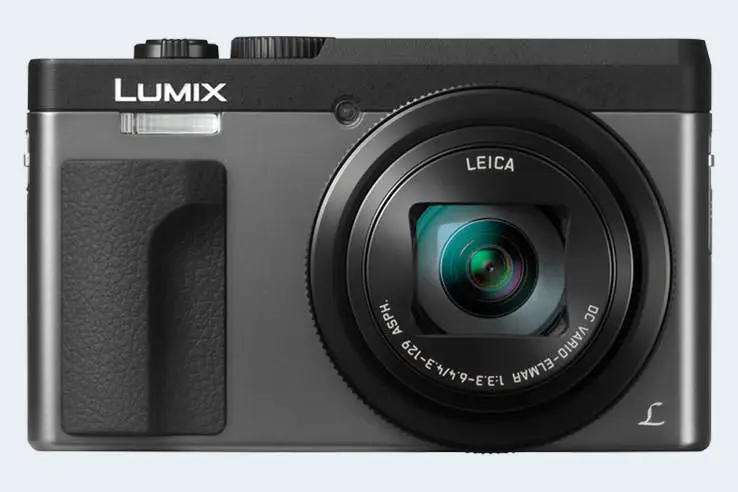

The Panasonic Lumix DC-ZS70 is a digital camera that has a 1/2.3-inch sensor at its core. This imager measures 6.17mm in width and 4.55mm in height, so that the total imaging area of the sensor amounts to 28 mm2.
The ZS70 provides an image resolution of 20.2 megapixels, based on 5 184 horizontal pixels and 3 888 vertical pixels.
Sensor size comparison with a film slide
The sensor diagonal measures 7.7mm, which gives rise to a format factor (or crop factor) of 5.6. Hence, the Panasonic ZS70 is a crop-sensor camera, as its sensor is smaller than a traditional 35mm film slide or negative.
Sensor specs and performance
The table below compares the sensor specs of the Panasonic ZS70 to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Panasonic ZS70 | 1/2.3 | 20.2 | 5184 | 3888 | 4K/30p | 19.1 | 10.6 | 106 | 36 | |
2. | Canon SX720 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.3 | 11.8 | 817 | 48 | |
3. | Canon SX730 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.5 | 11.9 | 924 | 50 | |
4. | Canon SX740 | 1/2.3 | 20.2 | 5184 | 3888 | 4K/30p | 20.6 | 12.1 | 1050 | 51 | |
5. | Fujifilm XF10 | APS-C | 24.0 | 6000 | 4000 | 4K/15p | 24.0 | 13.4 | 1844 | 83 | |
6. | Kodak AZ901 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/30p | 20.3 | 11.7 | 806 | 48 | |
7. | Panasonic FZ80 | 1/2.3 | 18.0 | 4896 | 3672 | 4K/30p | 20.5 | 11.9 | 900 | 49 | |
8. | Panasonic FZ150 | 1/2.3 | 12.0 | 4000 | 3000 | 1080/60p | 19.4 | 10.9 | 132 | 40 | |
9. | Panasonic LX5 | 1/1.7 | 10.0 | 3648 | 2736 | 720/60p | 19.6 | 10.8 | 132 | 41 | |
10. | Panasonic TS7 | 1/2.3 | 20.2 | 5184 | 3888 | 4K/30p | 20.6 | 12.1 | 1028 | 51 | |
11. | Panasonic ZS80 | 1/2.3 | 20.2 | 5184 | 3888 | 4K/30p | 20.7 | 12.2 | 1103 | 52 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
In the United States, the ZS70 was initially launched in April 2017 at a price of $449.
Camera to camera comparisons
In case you are interested in seeing how this camera compares to another one, just use the search menu below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon M200 vs Nikon Z6
- Canon SL2 vs Panasonic ZS70
- Fujifilm X-T10 vs Panasonic ZS70
- Fujifilm X100 vs Nikon Z6
- Leica Q2 vs Nikon Z6
- Nikon D3300 vs Nikon Z6
- Nikon D3500 vs Panasonic ZS70
- Nikon D700 vs Panasonic ZS70
- Nikon D7100 vs Panasonic ZS70
- Nikon D80 vs Panasonic ZS70
- Nikon Z6 vs Panasonic LX5
- Nikon Z6 vs Sony H200
Camera Model | Panasonic ZS70 | |
---|---|---|
Camera Type | Fixed lens compact camera | |
Camera Lens | 24-720mm f/3.3-6.4 | |
Launch Date | April 2017 | |
Launch Price | USD 449 | |
Sensor Specs | ||
Sensor Technology | BSI-CMOS | |
Sensor Format | 1/2.3" Sensor | |
Sensor Size | 6.17 x 4.55 mm | |
Sensor Area | 28 mm2 | |
Sensor Diagonal | 7.7 mm | |
Crop Factor | 5.6x | |
Sensor Resolution | 20.2 Megapixels | |
Image Resolution | 5 184 x 3 888 pixels | |
Pixel Pitch | 1.18 μm | |
Pixel Density | 71.80 MP/cm2 | |
Moiré control | no AA filter | |
Movie Capability | 4K/30p Video | |
ISO Setting | 80 - 3 200 ISO | |
ISO Boost | 80 - 6 400 ISO | |
Image Processor | Venus | |
DXO Sensor Quality (score) | 36 | |
DXO Color Depth (bits) | 19.1 | |
DXO Dynamic Range (EV) | 10.6 | |
DXO Low Light (ISO) | 106 | |
Screen Specs | ||
Viewfinder Type | Electronic viewfinder | |
Viewfinder Field of View | 100% | |
Viewfinder Magnification | 0.46x | |
Viewfinder Resolution | 1166k dots | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 1040k dots | |
LCD Attachment | Tilting screen | |
V-logging Friendliness | Front-flip possible | |
Touch Input | Touchscreen | |
Shooting Specs | ||
Focus System | Contrast-detect AF | |
Manual Focusing Aid | Focus Peaking | |
Maximum Shutter Speed | 1/2000s | |
Continuous Shooting | 10 shutter flaps/s | |
Silent Shooting | Electronic Shutter | |
Time Lapse Photography | no Intervalometer | |
Fill Flash | Built-in Flash | |
Storage Medium | SDXC cards | |
Single or Dual Card Slots | Single card slot | |
UHS card support | UHS-I | |
Connectivity Specs | ||
External Flash | no Hotshoe | |
USB Connector | USB 2.0 | |
HDMI Port | micro HDMI | |
Wifi Support | Wifi built-in | |
Body Specs | ||
Battery Type | Panasonic DMW-BLG10 power pack | |
Battery Life (CIPA) | 380 shots per charge | |
In-Camera Charging | USB charging | |
Body Dimensions |
112 x 67 x 41 mm (4.4 x 2.6 x 1.6 in) |
|
Camera Weight | 322 g (11.4 oz) |
