Zeiss ZX1 vs Sony RX1R II

The Zeiss ZX1 and the Sony Cyber-shot DSC-RX1R II are two enthusiast cameras that were officially introduced, respectively, in September 2018 and October 2015. Both the ZX1 and the RX1R II are fixed lens compact cameras that are equipped with a full frame sensor. The Zeiss has a resolution of 37.4 megapixels, whereas the Sony provides 42.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Zeiss ZX1		Sony RX1R II
Fixed lens compact camera		Fixed lens compact camera
35mm f/2.8		35mm f/2.0
37.4 MP – Full Frame sensor		42.2 MP – Full Frame sensor
4K/30p Video		1080/60p Video
ISO 80-51,200		ISO 100-25,600 (50 - 102,400)
Electronic viewfinder (6221k dots)		Electronic viewfinder (2360k dots)
4.3" LCD – 2765k dots		3.0" LCD – 1229k dots
Fixed touchscreen		Tilting screen (no touchscreen)
3 shutter flaps per second		5 shutter flaps per second
250 shots per battery charge		220 shots per battery charge
142 x 93 x 46 mm, 800 g		113 x 65 x 72 mm, 507 g

Check ZX1 offers at
ebay.com
Check RX1R II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Zeiss ZX1 and the Sony Cyber-shot DSC-RX1R II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

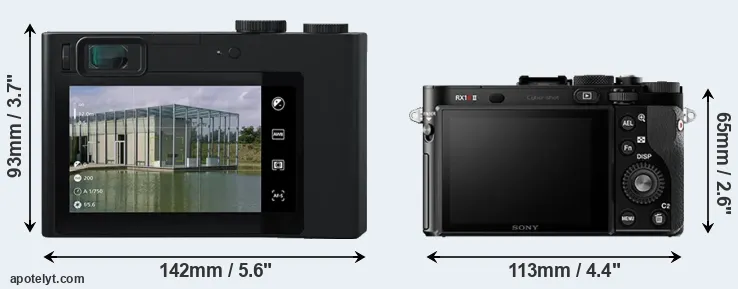

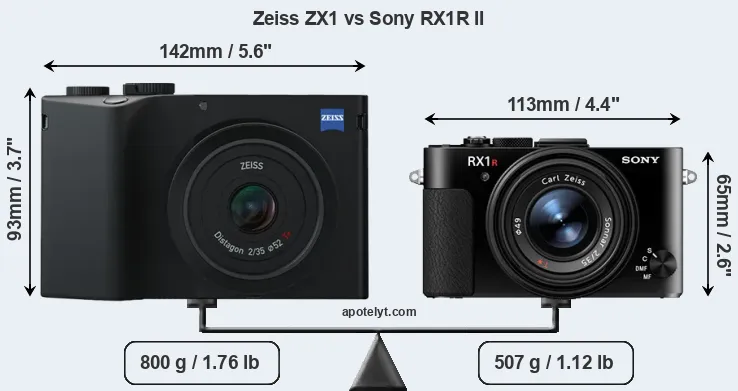

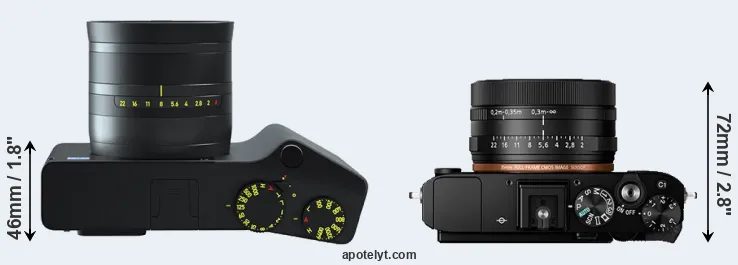

An illustration of the physical size and weight of the Zeiss ZX1 and the Sony RX1R II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX1R II is considerably smaller (44 percent) than the Zeiss ZX1. Moreover, the RX1R II is substantially lighter (37 percent) than the ZX1. In this context, it is worth noting that neither the ZX1 nor the RX1R II are weather-sealed.

Concerning battery life, the ZX1 gets 250 shots out of its Zeiss DD-PS1A battery, while the RX1R II can take 220 images on a single charge of its Sony NP-BX1 power pack. The power pack in the RX1R II can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Zeiss ZX1	142 mm	93 mm	46 mm	800 g	250	n	Sep 2018	5,999	ebay.com
2.		Sony RX1R II	113 mm	65 mm	72 mm	507 g	220	n	Oct 2015	3,299	ebay.com
3.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
4.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
5.		Leica Q3	130 mm	80 mm	93 mm	743 g	350	Y	May 2023	5,995	amazon.com
6.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	4,995	amazon.com
7.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	3,999	ebay.com
8.		Leica V-LUX 5	136 mm	97 mm	131 mm	812 g	350	n	Jul 2019	1,249	amazon.com
9.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	7,995	ebay.com
10.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	6,595	ebay.com
11.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	4,249	ebay.com
12.		Panasonic FZ1000 II	136 mm	97 mm	131 mm	810 g	350	n	Feb 2019	899	amazon.com
13.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	899	ebay.com
14.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	2,799	ebay.com
15.		Sony RX1	113 mm	65 mm	70 mm	482 g	270	n	Sep 2012	2,799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The RX1R II was launched at a markedly lower price (by 45 percent) than the ZX1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

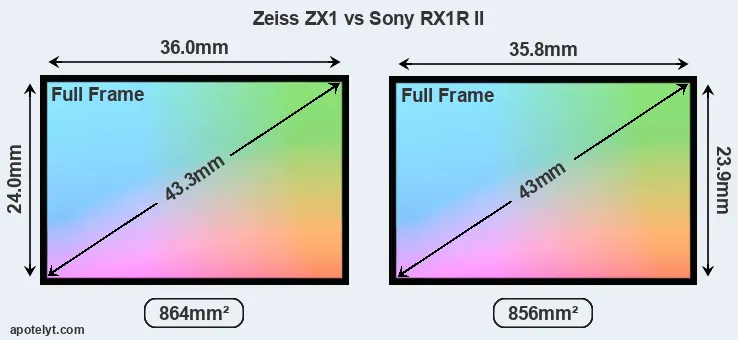

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the RX1R II is 1 percent smaller. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a slightly smaller sensor, the RX1R II offers a higher resolution of 42.2 megapixels, compared with 37.4 MP of the ZX1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.50μm versus 4.81μm for the ZX1). Moreover, it should be noted that the ZX1 is much more recent (by 2 years and 11 months) than the RX1R II, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the RX1R II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Sony RX1R II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the RX1R II for good quality output (200 dots per inch) amounts to 39.8 x 26.5 inches or 101 x 67.4 cm, for very good quality (250 dpi) 31.8 x 21.2 inches or 80.8 x 53.9 cm, and for excellent quality (300 dpi) 26.5 x 17.7 inches or 67.3 x 44.9 cm. The corresponding values for the Zeiss ZX1 are 37.4 x 25 inches or 95.1 x 63.4 cm for good quality, 30 x 20 inches or 76.1 x 50.7 cm for very good quality, and 25 x 16.6 inches or 63.4 x 42.3 cm for excellent quality prints.

The Zeiss ZX1 has a native sensitivity range from ISO 80 to ISO 51200. The corresponding ISO settings for the Sony Cyber-shot DSC-RX1R II are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-102400.

In terms of underlying technology, the ZX1 is build around a CMOS sensor, while the RX1R II uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Zeiss ZX1	Full Frame	37.4	7488	4992	4K/30p	25.2	14.1	2759	94
2.		Sony RX1R II	Full Frame	42.2	7952	5304	1080/60p	25.8	13.9	3204	97
3.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
4.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
5.		Leica Q3	Full Frame	60.3	9528	6328	8K/30p	25.4	14.7	3216	96
6.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
7.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
8.		Leica V-LUX 5	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	584	65
9.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
10.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
11.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
12.		Panasonic FZ1000 II	1-inch	20.0	5472	3648	4K/30p	22.1	12.4	546	65
13.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
14.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
15.		Sony RX1	Full Frame	24.0	6000	4000	1080/60p	25.1	14.3	2534	93
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the ZX1 provides a higher video resolution than the RX1R II. It can shoot video footage at 4K/30p, while the Sony is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the ZX1 offers a substantially higher resolution than the one in the RX1R II (6221k vs 2360k dots). The adjacent table lists some of the other core features of the Zeiss ZX1 and Sony RX1R II along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Zeiss ZX1	6221	n	4.3 / 2765	fixed	Y	1/1000s	3.0/s	n	n
2.		Sony RX1R II	2360	n	3.0 / 1229	tilting	n	1/4000s	5.0/s	n	n
3.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
4.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
5.		Leica Q3	5760	n	3.0 / 1840	tilting	Y	1/2000s	15.0/s	n	Y
6.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
7.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
8.		Leica V-LUX 5	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
9.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
10.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
11.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
12.		Panasonic FZ1000 II	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
13.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
14.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
15.		Sony RX1	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The ZX1 has a touchscreen, while the RX1R II has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the ZX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

Both the ZX1 and the RX1R II have built-in prime lenses. The ZX1 has a 35mm f/2.8 optic and the RX1R II offers a 35mm f/2.0. Hence, the ZX1 and the RX1R II provide the same angle of view. The RX1R II offers the faster maximum aperture.

The ZX1 writes its imaging data to an internal SSD, while the RX1R II uses SDXC or Memory Stick PRO Duo cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Zeiss ZX1 and Sony Cyber-shot DSC-RX1R II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Zeiss ZX1	Y	stereo / mono	-	-	-	3.1	Y	Y	Y
2.		Sony RX1R II	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
3.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
4.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
5.		Leica Q3	Y	stereo / mono	-	-	micro	3.1	Y	-	Y
6.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
7.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
8.		Leica V-LUX 5	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
9.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
10.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
11.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Panasonic FZ1000 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
13.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
14.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Sony RX1	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the RX1R II has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The ZX1 does not feature such a mic input.

Both the ZX1 and the RX1R II have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Zeiss and Sony. Further information on the features and operation of the ZX1 and RX1R II can be found, respectively, in the Zeiss ZX1 Manual (free pdf) or the online Sony RX1R II Manual.

Review summary

So what conclusions can be drawn? Is the Zeiss ZX1 better than the Sony RX1R II or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Zeiss ZX1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More detailed viewfinder: Has higher resolution electronic viewfinder (6221k vs 2360k dots).
• Larger screen: Has a bigger rear LCD (4.3" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2765k vs 1229k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Longer lasting: Can take more shots (250 versus 220) on a single battery charge.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More prestigious: Has the Zeiss luxury appeal, which ensures a high resale price.
• More modern: Reflects 2 years and 11 months of technical progress since the RX1R II launch.

Advantages of the Sony Cyber-shot DSC-RX1R II:

• More detail: Has more megapixels (42.2 vs 37.4MP), which boosts linear resolution by 6%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1000s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/2.8).
• More compact: Is smaller (113x65mm vs 142x93mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 293g or 37 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• More affordable: Was introduced into a lower priced category (45 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in October 2015).

If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (12 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Zeiss ZX1 and the Sony RX1R II place the cameras among the top in their class? Find out in the latest Best Prime Lens Compact Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the ZX1 and the RX1R II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Zeiss ZX1	3/5	..	..	83/100	4/5	4/5	Sep 2018	5,999	ebay.com
2.		Sony RX1R II	5/5	..	..	82/100	..	4.5/5	Oct 2015	3,299	ebay.com
3.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	3,699	ebay.com
4.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	3,699	ebay.com
5.		Leica Q3	5/5	..	4.5/5	..	..	4.5/5	May 2023	5,995	amazon.com
6.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	4,995	amazon.com
7.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	3,999	ebay.com
8.		Leica V-LUX 5	..	..	..	..	4/5	4/5	Jul 2019	1,249	amazon.com
9.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	7,995	ebay.com
10.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	6,595	ebay.com
11.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	4,249	ebay.com
12.		Panasonic FZ1000 II	..	..	..	83/100	4.5/5	4.5/5	Feb 2019	899	amazon.com
13.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	899	ebay.com
14.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	2,799	ebay.com
15.		Sony RX1	5/5	..	..	79/100	4/5	4.5/5	Sep 2012	2,799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
