Pentax MX-1 vs Sony RX1R II

The Pentax MX-1 and the Sony Cyber-shot DSC-RX1R II are two digital cameras that were revealed to the public, respectively, in January 2013 and October 2015. Both the MX-1 and the RX1R II are fixed lens compact cameras that are based on a 1/1.7-inch (MX-1) and a full frame (RX1R II) sensor. The Pentax has a resolution of 12 megapixels, whereas the Sony provides 42.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax MX-1		Sony RX1R II
Fixed lens compact camera		Fixed lens compact camera
28-112mm f/1.8-2.5		35mm f/2.0
12 MP – 1/1.7" sensor		42.2 MP – Full Frame sensor
1080/30p Video		1080/60p Video
ISO 100-12,800		ISO 100-25,600 (50 - 102,400)
No viewfinder, LCD framing		Electronic viewfinder (2360k dots)
3.0" LCD – 920k dots		3.0" LCD – 1229k dots
Tilting screen (no touchscreen)		Tilting screen (no touchscreen)
1 shutter flaps per second		5 shutter flaps per second
In-body stabilization		no shake reduction
290 shots per battery charge		220 shots per battery charge
122 x 61 x 51 mm, 391 g		113 x 65 x 72 mm, 507 g

Check MX-1 offers at
ebay.com
Check RX1R II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax MX-1 and the Sony Cyber-shot DSC-RX1R II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

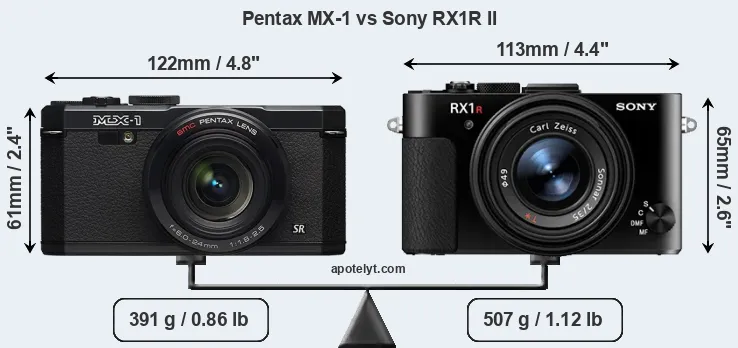

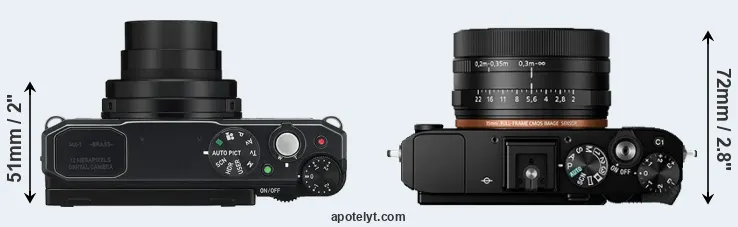

The side-by-side display below illustrates the physical size and weight of the Pentax MX-1 and the Sony RX1R II. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX1R II is somewhat smaller (1 percent) than the Pentax MX-1. However, the RX1R II is markedly heavier (30 percent) than the MX-1. In this context, it is worth noting that neither the MX-1 nor the RX1R II are weather-sealed.

The power pack in the RX1R II can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	US$ 499	ebay.com
2.		Sony RX1R II	113 mm	65 mm	72 mm	507 g	220	n	Oct 2015	US$ 3 299	ebay.com
3.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
4.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
5.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
6.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
7.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
8.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
9.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
10.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
11.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
12.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
13.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
14.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
15.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	US$ 499	ebay.com
16.		Sony RX1	113 mm	65 mm	70 mm	482 g	270	n	Sep 2012	US$ 2 799	ebay.com
17.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	US$ 2 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The MX-1 was launched at a markedly lower price (by 85 percent) than the RX1R II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Pentax MX-1 features a 1/1.7-inch sensor and the Sony RX1R II a full frame sensor. The sensor area in the RX1R II is 1891 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.5 and 1.0. The sensor in the MX-1 has a native 4:3 aspect ratio, while the one in the RX1R II offers a 3:2 aspect.

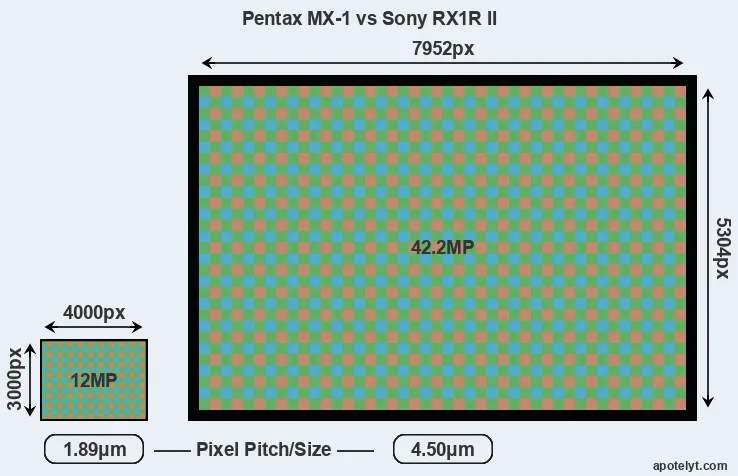

With 42.2MP, the RX1R II offers a higher resolution than the MX-1 (12MP), but the RX1R II nevertheless has larger individual pixels (pixel pitch of 4.50μm versus 1.89μm for the MX-1) due to its larger sensor. Moreover, the RX1R II is a much more recent model (by 2 years and 9 months) than the MX-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the RX1R II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Sony RX1R II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the RX1R II for good quality output (200 dots per inch) amounts to 39.8 x 26.5 inches or 101 x 67.4 cm, for very good quality (250 dpi) 31.8 x 21.2 inches or 80.8 x 53.9 cm, and for excellent quality (300 dpi) 26.5 x 17.7 inches or 67.3 x 44.9 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Pentax MX-1 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Sony Cyber-shot DSC-RX1R II are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-102400.

In terms of underlying technology, the MX-1 is build around a CMOS sensor, while the RX1R II uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the RX1R II offers substantially better image quality than the MX-1 (overall score 48 points higher). The advantage is based on 5.4 bits higher color depth, 2.6 EV in additional dynamic range, and 3.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
2.		Sony RX1R II	Full Frame	42.2	7952	5304	1080/60p	25.8	13.9	3204	97
3.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
4.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
5.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
6.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
7.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
8.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
9.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
10.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
11.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
12.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
13.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
14.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
15.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
16.		Sony RX1	Full Frame	24.0	6000	4000	1080/60p	25.1	14.3	2534	93
17.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the RX1R II provides a faster frame rate than the MX-1. It can shoot movie footage at 1080/60p, while the Pentax is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the RX1R II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the MX-1 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Pentax MX-1 and Sony RX1R II in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
2.		Sony RX1R II	2360	n	3.0 / 1229	tilting	n	1/4000s	5.0/s	n	n
3.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
4.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
5.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
6.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
7.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
8.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
9.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
10.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
11.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
12.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
13.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
14.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
15.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
16.		Sony RX1	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
17.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The MX-1 has one, while the RX1R II does not. While the built-in flash of the MX-1 is not very powerful, it can at times be useful as a fill-in light.

The MX-1 is equipped with a zoom lens, while the RX1R II comes with a built-in prime. The MX-1 has a 28-112mm f/1.8-2.5 optic and the RX1R II offers a 35mm f/2.0 (focal lengths in full frame equivalent terms). Hence, the Pentax provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Sony. The MX-1 offers the faster maximum aperture.

The MX-1 writes its imaging data to SDXC cards, while the RX1R II uses SDXC or Memory Stick PRO Duo cards. The RX1R II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the MX-1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax MX-1 and Sony Cyber-shot DSC-RX1R II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Sony RX1R II	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
3.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
4.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
5.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
8.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
10.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
16.		Sony RX1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the RX1R II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the MX-1 does not provide wifi capability.

Both the MX-1 and the RX1R II have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Pentax and Sony. Further information on the features and operation of the MX-1 and RX1R II can be found, respectively, in the Pentax MX-1 Manual (free pdf) or the online Sony RX1R II Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Pentax MX-1 or the Sony RX1R II – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Pentax MX-1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.8 vs f/2.0).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Less heavy: Is lighter (by 116g or 23 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (290 versus 220) on a single battery charge.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (85 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in January 2013).

Reasons to prefer the Sony Cyber-shot DSC-RX1R II:

• More detail: Has more megapixels (42.2 vs 12MP), which boosts linear resolution by 91%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (48 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (5.4 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.6 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (3.9 stops ISO advantage).
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1229k vs 920k dots).
• Faster burst: Shoots at higher frequency (5 vs 1 flaps/sec) to capture the decisive moment.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 2 years and 9 months of technical progress since the MX-1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the RX1R II is the clear winner of the contest (17 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax MX-1 and the Sony RX1R II place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the MX-1 or the RX1R II. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	US$ 499	ebay.com
2.		Sony RX1R II	5/5	..	..	82/100	..	4.5/5	Oct 2015	US$ 3 299	ebay.com
3.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
4.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
5.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
6.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
7.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
8.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
9.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
10.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
11.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
12.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
13.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
14.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
15.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	US$ 499	ebay.com
16.		Sony RX1	5/5	..	..	79/100	4/5	4.5/5	Sep 2012	US$ 2 799	ebay.com
17.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	US$ 2 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
