Pentax MX-1 vs Sony RX100 II

The Pentax MX-1 and the Sony Cyber-shot DSC-RX100 II are two digital cameras that were announced, respectively, in January 2013 and June 2013. Both the MX-1 and the RX100 II are fixed lens compact cameras that are based on a 1/1.7-inch (MX-1) and an one-inch (RX100 II) sensor. The Pentax has a resolution of 12 megapixels, whereas the Sony provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax MX-1		Sony RX100 II
Fixed lens compact camera		Fixed lens compact camera
28-112mm f/1.8-2.5		28-100mm f/1.8-4.9
12 MP – 1/1.7" sensor		20 MP – 1" sensor
1080/30p Video		1080/60p Video
ISO 100-12,800		ISO 100-12,800 (100 - 25,600)
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 920k dots		3.0" LCD – 1229k dots
Tilting screen (no touchscreen)		Tilting screen (no touchscreen)
1 shutter flaps per second		10 shutter flaps per second
In-body stabilization		Lens-based stabilization
290 shots per battery charge		350 shots per battery charge
122 x 61 x 51 mm, 391 g		102 x 58 x 38 mm, 281 g

Check MX-1 offers at
ebay.com
Check RX100 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax MX-1 and the Sony Cyber-shot DSC-RX100 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

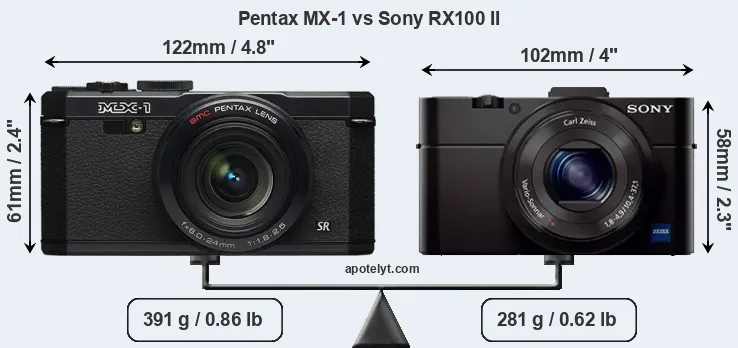

An illustration of the physical size and weight of the Pentax MX-1 and the Sony RX100 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX100 II is notably smaller (21 percent) than the Pentax MX-1. Moreover, the RX100 II is markedly lighter (28 percent) than the MX-1. In this context, it is worth noting that neither the MX-1 nor the RX100 II are weather-sealed.

The power pack in the RX100 II can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	US$ 499	ebay.com
2.		Sony RX100 II	102 mm	58 mm	38 mm	281 g	350	n	Jun 2013	US$ 749	ebay.com
3.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
4.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
5.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
6.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
7.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
8.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
9.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
10.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
11.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
12.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
13.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	US$ 499	ebay.com
14.		Sony RX100	102 mm	58 mm	36 mm	240 g	330	n	Jun 2012	US$ 649	ebay.com
15.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
16.		Sony RX100 VII	102 mm	58 mm	43 mm	302 g	260	n	Jul 2019	US$ 1 199	amazon.com
17.		Sony ZV-1	105 mm	60 mm	44 mm	294 g	260	n	May 2020	US$ 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The MX-1 was launched at a markedly lower price (by 33 percent) than the RX100 II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Pentax MX-1 features a 1/1.7-inch sensor and the Sony RX100 II an one-inch sensor. The sensor area in the RX100 II is 170 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.5 and 2.7. The sensor in the MX-1 has a native 4:3 aspect ratio, while the one in the RX100 II offers a 3:2 aspect.

With 20MP, the RX100 II offers a higher resolution than the MX-1 (12MP), but the RX100 II nevertheless has larger individual pixels (pixel pitch of 2.41μm versus 1.89μm for the MX-1) due to its larger sensor. Moreover, the RX100 II is a somewhat more recent model (by 5 months) than the MX-1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sony RX100 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the RX100 II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Pentax MX-1 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Sony Cyber-shot DSC-RX100 II are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the MX-1 is build around a CMOS sensor, while the RX100 II uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the RX100 II offers substantially better image quality than the MX-1 (overall score 18 points higher). The advantage is based on 2.1 bits higher color depth, 1.1 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
2.		Sony RX100 II	1-inch	20.0	5472	3648	1080/60p	22.5	12.4	483	67
3.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
4.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
5.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
6.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
7.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
8.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
9.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
10.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
11.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
12.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
13.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
14.		Sony RX100	1-inch	20.0	5472	3648	1080/60p	22.6	12.4	390	66
15.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
16.		Sony RX100 VII	1-inch	20.0	5472	3648	4K/30p	21.8	12.4	418	63
17.		Sony ZV-1	1-inch	20.0	5472	3648	4K/30p	22.2	12.6	669	66
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the RX100 II provides a faster frame rate than the MX-1. It can shoot movie footage at 1080/60p, while the Pentax is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The MX-1 and the RX100 II are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the RX100 II can be equipped with an optional viewfinder – the FDA-EV1MK. The table below summarizes some of the other core capabilities of the Pentax MX-1 and Sony RX100 II in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
2.		Sony RX100 II	optional	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
3.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
4.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
5.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
6.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
7.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
8.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
9.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
10.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
11.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
12.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
13.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
14.		Sony RX100	none	n	3.0 / 1229	fixed	n	1/2000s	10.0/s	Y	Y
15.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony RX100 VII	2359	n	3.0 / 921	tilting	Y	1/2000s	90.0/s	Y	Y
17.		Sony ZV-1	none	n	3.0 / 922	swivel	Y	1/2000s	24.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the MX-1 and the RX100 II have zoom lenses built in. The MX-1 has a 28-112mm f/1.8-2.5 optic and the RX100 II offers a 28-100mm f/1.8-4.9 (focal lengths in full frame equivalent terms). Hence, the Pentax and Sony provide the same view at the wide-angle end, but the Sony has less tele-photo reach at the long end. Both cameras offer the same maximum aperture.

The MX-1 writes its imaging data to SDXC cards, while the RX100 II uses SDXC or Memory Stick PRO Duo cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax MX-1 and Sony Cyber-shot DSC-RX100 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Sony RX100 II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
6.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
9.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
14.		Sony RX100	-	stereo / mono	-	-	micro	2.0	-	-	-
15.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony RX100 VII	-	stereo / mono	Y	-	micro	2.0	Y	Y	Y
17.		Sony ZV-1	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y

It is notable that the RX100 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the MX-1 does not provide wifi capability.

Both the MX-1 and the RX100 II have been discontinued, but can regularly be found used on ebay. The RX100 II was replaced by the Sony RX100 III, while the MX-1 does not have a direct successor. Further information on the features and operation of the MX-1 and RX100 II can be found, respectively, in the Pentax MX-1 Manual (free pdf) or the online Sony RX100 II Manual.

Review summary

So what conclusions can be drawn? Is the Pentax MX-1 better than the Sony RX100 II or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Pentax MX-1:

• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in January 2013).

Reasons to prefer the Sony Cyber-shot DSC-RX100 II:

• More detail: Has more megapixels (20 vs 12MP), which boosts linear resolution by 32%.
• Better image quality: Scores substantially higher (18 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.1 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.1 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.2 stops ISO advantage).
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More detailed LCD: Has a higher resolution rear screen (1229k vs 920k dots).
• Faster burst: Shoots at higher frequency (10 vs 1 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (102x58mm vs 122x61mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 110g or 28 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (350 versus 290) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More modern: Was introduced somewhat (5 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the RX100 II is the clear winner of the contest (17 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax MX-1 and the Sony RX100 II place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the MX-1 or the RX100 II perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	US$ 499	ebay.com
2.		Sony RX100 II	5/5	+ +	..	79/100	4.5/5	4.5/5	Jun 2013	US$ 749	ebay.com
3.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
4.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
5.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
6.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
7.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
8.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
9.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
10.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
11.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
12.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
13.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	US$ 499	ebay.com
14.		Sony RX100	5/5	+ +	..	78/100	4/5	5/5	Jun 2012	US$ 649	ebay.com
15.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
16.		Sony RX100 VII	4.5/5	..	4/5	..	4/5	5/5	Jul 2019	US$ 1 199	amazon.com
17.		Sony ZV-1	4/5	+	4/5	85/100	4/5	4.5/5	May 2020	US$ 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
