Pentax K-5 vs K-5 II
The Pentax K-5 and the Pentax K-5 II are two enthusiast cameras that were revealed to the public, respectively, in September 2010 and September 2012. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 16.1 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax K-5 and the Pentax K-5 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

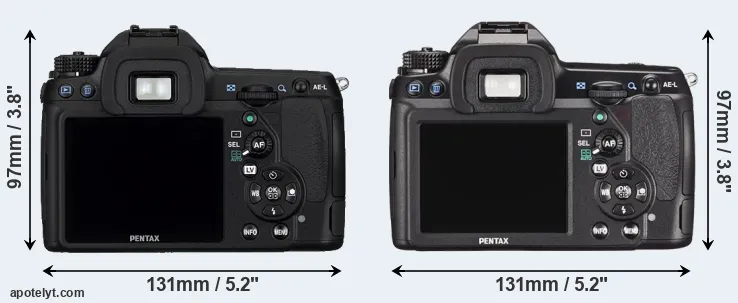

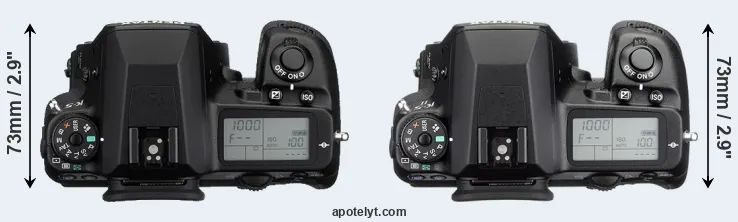

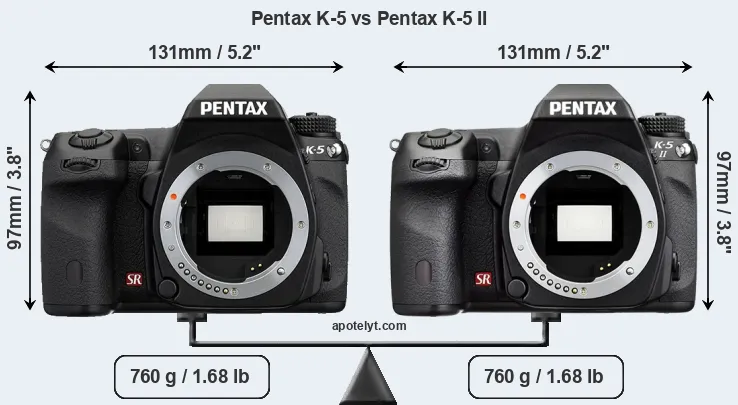

An illustration of the physical size and weight of the Pentax K-5 and the Pentax K-5 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
In this particular case, the Pentax K-5 and the Pentax K-5 II have exactly the same width and height, and, thus, have identically-sized bodies. Moreover, the two cameras also share the same weight. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price (USD) |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Pentax K-5 | 131 mm | 97 mm | 73 mm | 760 g | 740 | Y | Sep 2010 | 1,099 | ebay.com | |
2. | Pentax K-5 II | 131 mm | 97 mm | 73 mm | 760 g | 740 | Y | Sep 2012 | 1,099 | ebay.com | |
3. | Nikon D7000 | 132 mm | 105 mm | 77 mm | 780 g | 1050 | Y | Sep 2010 | 1,499 | ebay.com | |
4. | Pentax K-3 | 131 mm | 100 mm | 77 mm | 800 g | 560 | Y | Oct 2013 | 1,299 | ebay.com | |
5. | Pentax K-3 II | 131 mm | 100 mm | 77 mm | 800 g | 720 | Y | Apr 2015 | 1,099 | ebay.com | |
6. | Pentax K-30 | 130 mm | 97 mm | 71 mm | 650 g | 410 | Y | May 2012 | 849 | ebay.com | |
7. | Pentax K-50 | 130 mm | 97 mm | 71 mm | 650 g | 410 | Y | Jun 2013 | 599 | ebay.com | |
8. | Pentax K-70 | 126 mm | 93 mm | 74 mm | 688 g | 410 | Y | Jun 2016 | 649 | ebay.com | |
9. | Pentax K-500 | 130 mm | 97 mm | 71 mm | 646 g | 710 | n | Jun 2013 | 549 | ebay.com | |
10. | Pentax KP | 132 mm | 101 mm | 76 mm | 703 g | 390 | Y | Jan 2017 | 1,099 | ebay.com | |
11. | Sony A77 | 143 mm | 104 mm | 81 mm | 732 g | 470 | Y | Aug 2011 | 1,399 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison

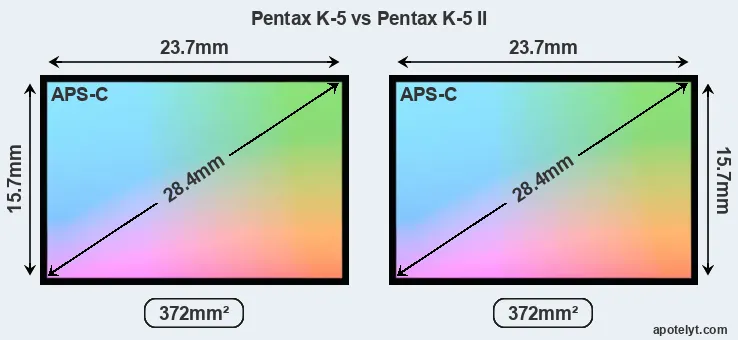

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.5. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

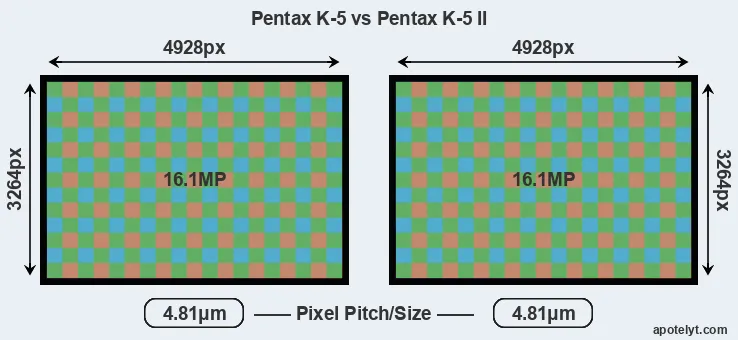

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 16.1 megapixels. This similarity in sensor specs implies that both the K-5 and the K-5 II have the same pixel density, as well as the same pixel size. It should, however, be noted that the K-5 II is a somewhat more recent model (by 1 year and 11 months) than the K-5, and its sensor might have benefitted from technological advances during this time.
The Pentax K-5 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 80-51200. The Pentax K-5 II offers exactly the same ISO settings.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Pentax K-5 | APS-C | 16.1 | 4928 | 3264 | 1080/25p | 23.7 | 14.1 | 1162 | 82 | |
2. | Pentax K-5 II | APS-C | 16.1 | 4928 | 3264 | 1080/25p | 23.8 | 14.1 | 1235 | 82 | |
3. | Nikon D7000 | APS-C | 16.1 | 4928 | 3264 | 1080/24p | 23.5 | 13.9 | 1167 | 80 | |
4. | Pentax K-3 | APS-C | 24.1 | 6016 | 4000 | 1080/60i | 23.7 | 13.4 | 1216 | 80 | |
5. | Pentax K-3 II | APS-C | 24.1 | 6016 | 4000 | 1080/60i | 23.6 | 13.6 | 1106 | 80 | |
6. | Pentax K-30 | APS-C | 16.1 | 4928 | 3264 | 1080/30p | 23.7 | 13.0 | 1129 | 79 | |
7. | Pentax K-50 | APS-C | 16.1 | 4928 | 3264 | 1080/30p | 23.7 | 13.0 | 1120 | 79 | |
8. | Pentax K-70 | APS-C | 24.0 | 6000 | 4000 | 1080/60i | 23.8 | 13.1 | 1639 | 80 | |
9. | Pentax K-500 | APS-C | 16.1 | 4928 | 3264 | 1080/30p | 23.7 | 13.1 | 1087 | 79 | |
10. | Pentax KP | APS-C | 24.1 | 6016 | 4000 | 1080/60i | 23.9 | 13.2 | 1699 | 81 | |
11. | Sony A77 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 24.0 | 13.2 | 801 | 78 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/25p).
Feature comparison
Beyond body and sensor, cameras can and do differ across a range of features. The K-5 and the K-5 II are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), as well as the same magnification (0.61x). The adjacent table lists some of the other core features of the Pentax K-5 and Pentax K-5 II along with similar information for a selection of comparators.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Pentax K-5 | optical | Y | 3.0 / 921 | fixed | n | 1/8000s | 7.0/s | Y | Y | |
2. | Pentax K-5 II | optical | Y | 3.0 / 921 | fixed | n | 1/8000s | 7.0/s | Y | Y | |
3. | Nikon D7000 | optical | Y | 3.0 / 921 | fixed | n | 1/8000s | 6.0/s | Y | n | |
4. | Pentax K-3 | optical | Y | 3.2 / 1037 | fixed | n | 1/8000s | 8.3/s | Y | Y | |
5. | Pentax K-3 II | optical | Y | 3.2 / 1037 | fixed | n | 1/8000s | 8.3/s | n | Y | |
6. | Pentax K-30 | optical | n | 3.0 / 921 | fixed | n | 1/6000s | 6.0/s | Y | Y | |
7. | Pentax K-50 | optical | n | 3.0 / 921 | fixed | n | 1/6000s | 6.0/s | Y | Y | |
8. | Pentax K-70 | optical | n | 3.0 / 921 | swivel | n | 1/6000s | 6.0/s | Y | Y | |
9. | Pentax K-500 | optical | n | 3.0 / 921 | fixed | n | 1/6000s | 6.0/s | Y | Y | |
10. | Pentax KP | optical | n | 3.0 / 921 | tilting | n | 1/6000s | 7.0/s | Y | Y | |
11. | Sony A77 | 2359 | Y | 3.0 / 921 | full-flex | n | 1/8000s | 12.0/s | Y | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
The Pentax K-5 and the Pentax K-5 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the K-5 and the K-5 II write their files to SDXC cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax K-5 and Pentax K-5 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Pentax K-5 | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
2. | Pentax K-5 II | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
3. | Nikon D7000 | Y | mono / mono | Y | - | mini | 2.0 | - | - | - | |
4. | Pentax K-3 | Y | mono / mono | Y | Y | mini | 3.0 | - | - | - | |
5. | Pentax K-3 II | Y | mono / mono | Y | Y | mini | 3.0 | - | - | - | |
6. | Pentax K-30 | Y | mono / mono | - | - | - | 2.0 | - | - | - | |
7. | Pentax K-50 | Y | mono / mono | - | - | micro | 2.0 | - | - | - | |
8. | Pentax K-70 | Y | stereo / mono | Y | - | mini | 2.0 | Y | - | - | |
9. | Pentax K-500 | Y | mono / mono | - | - | - | 2.0 | - | - | - | |
10. | Pentax KP | Y | stereo / mono | Y | - | - | 2.0 | Y | - | - | |
11. | Sony A77 | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - |
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the K-5 and the K-5 II have been discontinued, but can regularly be found used on ebay. The K-5 was replaced by the Pentax K-5 II, while the K-5 II was followed by the Pentax K-3. Further information on the features and operation of the K-5 and K-5 II can be found, respectively, in the Pentax K-5 Manual (free pdf) or the online Pentax K-5 II Manual.
Review summary
So what is the bottom line? Which of the two cameras – the Pentax K-5 or the Pentax K-5 II – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Pentax K-5:
- More heavily discounted: Has been on the market for longer (launched in September 2010).
Arguments in favor of the Pentax K-5 II:
- More modern: Was introduced somewhat (1 year and 11 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (1 points each). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Pentax K-5 and the Pentax K-5 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the K-5 or the K-5 II. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price (USD) |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Pentax K-5 | 4/5 | .. | .. | 83/100 | 5/5 | 4.5/5 | Sep 2010 | 1,099 | ebay.com | |
2. | Pentax K-5 II | 5/5 | .. | .. | 80/100 | 5/5 | 4.5/5 | Sep 2012 | 1,099 | ebay.com | |
3. | Nikon D7000 | 4/5 | .. | .. | 80/100 | 4.5/5 | 4.5/5 | Sep 2010 | 1,499 | ebay.com | |
4. | Pentax K-3 | 4/5 | .. | .. | 83/100 | 5/5 | 5/5 | Oct 2013 | 1,299 | ebay.com | |
5. | Pentax K-3 II | 4.5/5 | .. | .. | .. | 5/5 | 5/5 | Apr 2015 | 1,099 | ebay.com | |
6. | Pentax K-30 | 4/5 | .. | .. | 78/100 | 4.5/5 | 4.5/5 | May 2012 | 849 | ebay.com | |
7. | Pentax K-50 | 5/5 | .. | .. | .. | 5/5 | 4.5/5 | Jun 2013 | 599 | ebay.com | |
8. | Pentax K-70 | 4.5/5 | .. | 4/5 | 79/100 | 4.5/5 | 4.5/5 | Jun 2016 | 649 | ebay.com | |
9. | Pentax K-500 | .. | .. | .. | .. | 4.5/5 | 4.5/5 | Jun 2013 | 549 | ebay.com | |
10. | Pentax KP | 4/5 | .. | 3/5 | 82/100 | 5/5 | 4.5/5 | Jan 2017 | 1,099 | ebay.com | |
11. | Sony A77 | 5/5 | 91/100 | .. | 81/100 | .. | 5/5 | Aug 2011 | 1,399 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 50D vs Pentax K-5 II
- Canon 7D vs Pentax K-5
- Canon D60 vs Pentax K-5
- Canon G3 X vs Pentax K-5 II
- Canon SX520 vs Pentax K-5
- Fujifilm X-T20 vs Pentax K-5
- Leica M10-P vs Pentax K-5 II
- Leica SL2 vs Pentax K-5 II
- Nikon D3300 vs Pentax K-5
- Nikon W300 vs Pentax K-5
- Olympus E-M5 II vs Pentax K-5 II
- Pentax K-5 II vs Sony A6400
Specifications: Pentax K-5 vs Pentax K-5 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Pentax K-5 | Pentax K-5 II |
---|---|---|
Camera Type | Digital single lens reflex | Digital single lens reflex |
Camera Lens | Pentax K mount lenses | Pentax K mount lenses |
Launch Date | September 2010 | September 2012 |
Launch Price | USD 1,099 | USD 1,099 |
Sensor Specs | Pentax K-5 | Pentax K-5 II |
Sensor Technology | CMOS | CMOS |
Sensor Format | APS-C Sensor | APS-C Sensor |
Sensor Size | 23.7 x 15.7 mm | 23.7 x 15.7 mm |
Sensor Area | 372.09 mm2 | 372.09 mm2 |
Sensor Diagonal | 28.4 mm | 28.4 mm |
Crop Factor | 1.5x | 1.5x |
Sensor Resolution | 16.1 Megapixels | 16.1 Megapixels |
Image Resolution | 4928 x 3264 pixels | 4928 x 3264 pixels |
Pixel Pitch | 4.81 μm | 4.81 μm |
Pixel Density | 4.32 MP/cm2 | 4.32 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | 1080/25p Video | 1080/25p Video |
ISO Setting | 100 - 12,800 ISO | 100 - 12,800 ISO |
ISO Boost | 80 - 51,200 ISO | 80 - 51,200 ISO |
Image Processor | PRIME II | PRIME II |
DXO Sensor Quality (score) | 82 | 82 |
DXO Color Depth (bits) | 23.7 | 23.8 |
DXO Dynamic Range (EV) | 14.1 | 14.1 |
DXO Low Light (ISO) | 1162 | 1235 |
Screen Specs | Pentax K-5 | Pentax K-5 II |
Viewfinder Type | Optical viewfinder | Optical viewfinder |
Viewfinder Field of View | 100% | 100% |
Viewfinder Magnification | 0.61x | 0.61x |
Top-Level Screen | Control Panel | Control Panel |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 921k dots | 921k dots |
LCD Attachment | Fixed screen | Fixed screen |
Shooting Specs | Pentax K-5 | Pentax K-5 II |
Focus System | Phase-detect AF | Phase-detect AF |
Continuous Shooting | 7 shutter flaps/s | 7 shutter flaps/s |
Shutter Life Expectancy | 100 000 actuations | 100 000 actuations |
Time-Lapse Photography | Intervalometer built-in | Intervalometer built-in |
Image Stabilization | In-body stabilization | In-body stabilization |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | SDXC cards | SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | no | no |
Connectivity Specs | Pentax K-5 | Pentax K-5 II |
External Flash | Hotshoe | Hotshoe |
Studio Flash | PC Sync socket | PC Sync socket |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | mini HDMI |
Microphone Port | External MIC port | External MIC port |
Wifi Support | no Wifi | no Wifi |
Body Specs | Pentax K-5 | Pentax K-5 II |
Environmental Sealing | Weathersealed body | Weathersealed body |
Battery Type | Pentax D-LI90 | Pentax D-LI90 |
Battery Life (CIPA) | 740 shots per charge | 740 shots per charge |
Body Dimensions |
131 x 97 x 73 mm (5.2 x 3.8 x 2.9 in) |
131 x 97 x 73 mm (5.2 x 3.8 x 2.9 in) |
Camera Weight | 760 g (26.8 oz) | 760 g (26.8 oz) |
