Olympus TG-5 vs Ricoh WG-60
The Olympus Tough TG-5 and the Ricoh WG-60 are two digital cameras that were officially introduced, respectively, in May 2017 and October 2018. Both the TG-5 and the WG-60 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The Olympus has a resolution of 12 megapixels, whereas the Ricoh provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus TG-5||Ricoh WG-60|
|Fixed lens compact camera||Fixed lens compact camera|
|25-100mm f/2.0-4.9||28-140mm f/3.5-5.5|
|12 MP, 1/2.3" Sensor||15.9 MP, 1/2.3" Sensor|
|4K/30p Video||1080/60p Video|
|ISO 100-12800||ISO 125-6400|
|No viewfinder, LCD framing||No viewfinder, LCD framing|
|3.0" LCD, 460k dots||2.7" LCD, 230k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|20 shutter flaps per second||8 shutter flaps per second|
|In-body stabilization||No shake reduction|
|Waterproof body (14m)||Waterproof body (14m)|
|340 shots per battery charge||300 shots per battery charge|
|113 x 66 x 32 mm, 250 g||123 x 62 x 30 mm, 193 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Tough TG-5 and the Ricoh WG-60? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

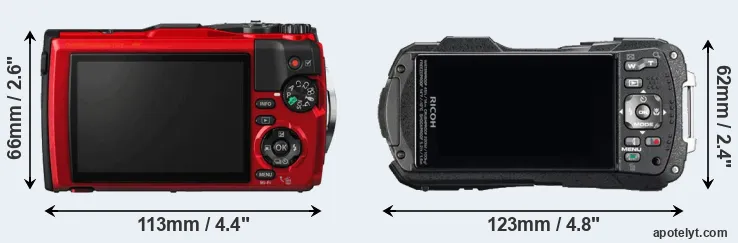

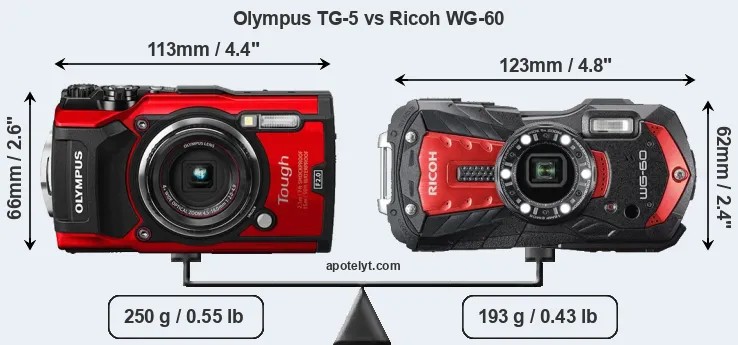

The physical size and weight of the Olympus TG-5 and the Ricoh WG-60 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Ricoh WG-60 is somewhat larger (2 percent) than the Olympus TG-5. However, the WG-60 is markedly lighter (23 percent) than the TG-5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, both cameras are water-proof and can, thus, be used for underwater photography.
The power pack in the TG-5 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Olympus TG-5»||4.4 in||2.6 in||1.3 in||8.8 oz||340||Y||May 2017||449||Olympus TG-5|
|Ricoh WG-60«||4.8 in||2.4 in||1.2 in||6.8 oz||300||Y||Oct 2018||279||Ricoh WG-60|
|Canon SX740« »||4.3 in||2.5 in||1.6 in||10.5 oz||265||n||Jul 2018||399||Canon SX740|
|Canon SX730« »||4.3 in||2.5 in||1.6 in||10.6 oz||250||n||Apr 2017||399||Canon SX730|
|Fujifilm XP140« »||4.3 in||2.8 in||1.1 in||7.3 oz||240||Y||Feb 2019||229||Fujifilm XP140|
|Fujifilm XP130« »||4.3 in||2.8 in||1.1 in||7.3 oz||240||n||Jan 2018||229||Fujifilm XP130|
|Fujifilm XP120« »||4.3 in||2.8 in||1.1 in||7.2 oz||210||Y||Jan 2017||229||Fujifilm XP120|
|Nikon W300« »||4.4 in||2.6 in||1.1 in||8.1 oz||280||Y||May 2017||389||Nikon W300|
|Olympus TG-6« »||4.4 in||2.6 in||1.3 in||8.9 oz||340||Y||May 2019||449||Olympus TG-6|
|Olympus TG-4« »||4.4 in||2.6 in||1.2 in||8.7 oz||380||Y||Apr 2015||379||Olympus TG-4|
|Olympus E-PM1« »||4.3 in||2.5 in||1.3 in||9.3 oz||330||n||Jun 2011||499||Olympus E-PM1|
|Olympus XZ-1« »||4.4 in||2.6 in||1.7 in||9.7 oz||320||n||Jan 2011||499||Olympus XZ-1|
|Panasonic TS7« »||4.6 in||3.0 in||1.5 in||11.3 oz||300||Y||May 2018||449||Panasonic TS7|
|Sony HX99« »||4.0 in||2.3 in||1.4 in||8.5 oz||370||n||Aug 2018||449||Sony HX99|
|Sony WX800« »||4.0 in||2.3 in||1.4 in||8.2 oz||370||n||Oct 2018||399||Sony WX800|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The WG-60 was launched at a markedly lower price (by 38 percent) than the TG-5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

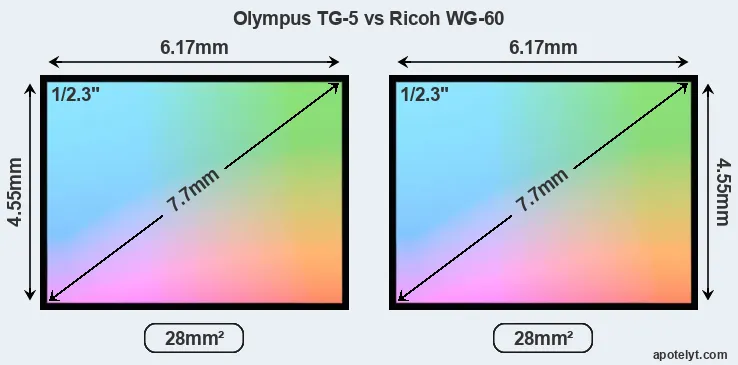

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

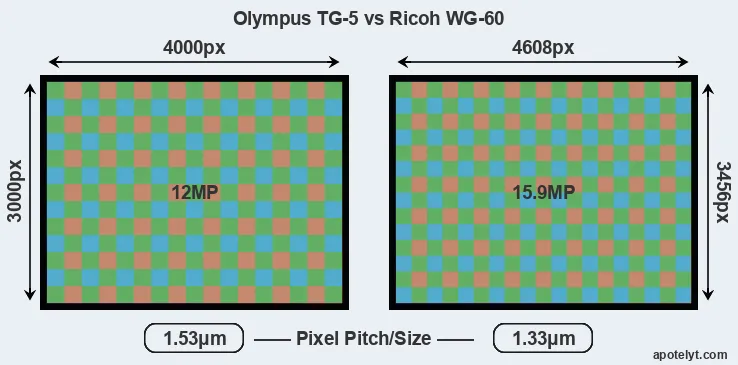

While the two cameras under review share the same sensor size, the WG-60 offers a higher resolution of 15.9 megapixels, compared with 12 MP of the TG-5. This megapixels advantage translates into a 15 percent gain in linear resolution. On the other hand, these sensor specs imply that the WG-60 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 1.53μm for the TG-5). However, it should be noted that the WG-60 is a somewhat more recent model (by 1 year and 5 months) than the TG-5, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the WG-60 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Ricoh WG-60 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the WG-60 for good quality output (200 dots per inch) amounts to 23 x 17.3 inch or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inch or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inch or 39 x 29.3 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inch or 50.8 x 38.1 cm for good quality, 16 x 12 inch or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inch or 33.9 x 25.4 cm for excellent quality prints.
The Olympus Tough TG-5 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Ricoh WG-60 are ISO 125 to ISO 6400 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus TG-5||1/2.3||12.0||4000||3000||4K/30p||..||..||..||..||Olympus TG-5|
|Ricoh WG-60||1/2.3||15.9||4608||3456||1080/60p||..||..||..||..||Ricoh WG-60|
|Canon SX740||1/2.3||20.2||5184||3888||4K/30p||..||..||..||..||Canon SX740|
|Canon SX730||1/2.3||20.2||5184||3888||1080/60p||..||..||..||..||Canon SX730|
|Fujifilm XP140||1/2.3||15.9||4608||3456||4K/15p||..||..||..||..||Fujifilm XP140|
|Fujifilm XP130||1/2.3||15.9||4608||3456||1080/60p||..||..||..||..||Fujifilm XP130|
|Fujifilm XP120||1/2.3||15.9||4608||3456||1080/60p||..||..||..||..||Fujifilm XP120|
|Nikon W300||1/2.3||15.9||4608||3456||4K/30p||..||..||..||..||Nikon W300|
|Olympus TG-6||1/2.3||12.0||4000||3000||4K/30p||..||..||..||..||Olympus TG-6|
|Olympus TG-4||1/2.3||15.9||4608||3456||1080/30p||..||..||..||..||Olympus TG-4|
|Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52||Olympus E-PM1|
|Olympus XZ-1||1/1.7||10.1||3664||2752||720/30p||18.8||10.4||117||34||Olympus XZ-1|
|Panasonic TS7||1/2.3||20.2||5184||3888||4K/30p||..||..||..||..||Panasonic TS7|
|Sony HX99||1/2.3||18.0||4896||3672||4K/30p||..||..||..||..||Sony HX99|
|Sony WX800||1/2.3||18.0||4896||3672||4K/30p||..||..||..||..||Sony WX800|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the TG-5 provides a higher video resolution than the WG-60. It can shoot video footage at 4K/30p, while the Ricoh is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. The TG-5 and the WG-60 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Olympus TG-5, the Ricoh WG-60, and comparable cameras.
|Olympus TG-5||none||n||3.0||460||fixed||n||1/2000s||20.0||Y||Y||Olympus TG-5|
|Ricoh WG-60||none||n||2.7||230||fixed||n||1/4000s||8.0||Y||n||Ricoh WG-60|
|Canon SX740||none||n||3.0||922||tilting||n||1/3200s||10.0||Y||Y||Canon SX740|
|Canon SX730||none||n||3.0||922||tilting||n||1/3200s||5.9||Y||Y||Canon SX730|
|Fujifilm XP140||none||n||3.0||920||fixed||n||1/2000s||10.0||Y||Y||Fujifilm XP140|
|Fujifilm XP130||none||n||3.0||920||fixed||n||1/2000s||10.0||Y||Y||Fujifilm XP130|
|Fujifilm XP120||none||n||3.0||920||fixed||n||1/2000s||10.0||Y||Y||Fujifilm XP120|
|Nikon W300||none||n||3.0||921||fixed||n||1/4000s||7.0||Y||Y||Nikon W300|
|Olympus TG-6||none||n||3.0||1040||fixed||n||1/2000s||20.0||Y||Y||Olympus TG-6|
|Olympus TG-4||none||n||3.0||460||fixed||n||1/2000s||5.0||Y||Y||Olympus TG-4|
|Olympus E-PM1||optional||n||3.0||460||fixed||n||1/4000s||5.5||n||Y||Olympus E-PM1|
|Olympus XZ-1||optional||n||3.0||614||fixed||n||1/2000s||2.0||Y||Y||Olympus XZ-1|
|Panasonic TS7||1170||n||3.0||1040||fixed||n||1/1300s||10.0||Y||Y||Panasonic TS7|
|Sony HX99||638||n||3.0||922||tilting||Y||1/2000s||10.0||Y||Y||Sony HX99|
|Sony WX800||none||n||3.0||922||tilting||Y||1/2000s||10.0||Y||Y||Sony WX800|
The Olympus TG-5 and the Ricoh WG-60 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Both the TG-5 and the WG-60 have zoom lenses built in. The TG-5 has a 25-100mm f/2.0-4.9 optic and the WG-60 offers a 28-140mm f/3.5-5.5 (focal lengths in full frame equivalent terms). Hence, the Olympus provides a wider angle of view at the short end than the Ricoh, but less tele-photo reach at the long end. The TG-5 offers the faster maximum aperture.
Concerning the storage of imaging data, both the TG-5 and the WG-60 write their files to SDXC cards. The TG-5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the WG-60 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Tough TG-5 and Ricoh WG-60 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus TG-5||-||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus TG-5|
|Ricoh WG-60||-||mono||mono||-||-||micro||2.0||-||-||-||Ricoh WG-60|
|Canon SX740||-||stereo||mono||-||-||micro||2.0||Y||Y||Y||Canon SX740|
|Canon SX730||-||stereo||mono||-||-||micro||2.0||Y||Y||Y||Canon SX730|
|Fujifilm XP140||-||mono||mono||-||-||micro||2.0||Y||-||Y||Fujifilm XP140|
|Fujifilm XP130||-||mono||mono||-||-||micro||2.0||Y||-||Y||Fujifilm XP130|
|Fujifilm XP120||-||mono||mono||-||-||micro||2.0||Y||-||-||Fujifilm XP120|
|Nikon W300||-||stereo||mono||-||-||micro||2.0||Y||-||Y||Nikon W300|
|Olympus TG-6||-||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus TG-6|
|Olympus TG-4||-||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus TG-4|
|Olympus E-PM1||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PM1|
|Olympus XZ-1||Y||mono||none||-||-||mini||2.0||-||-||-||Olympus XZ-1|
|Panasonic TS7||-||stereo||mono||-||-||micro||2.0||Y||-||-||Panasonic TS7|
|Sony HX99||-||stereo||mono||-||-||micro||2.0||Y||Y||Y||Sony HX99|
|Sony WX800||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Sony WX800|
It is notable that the TG-5 offers wifi support, while the WG-60 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The WG-60 is a recent model that features in the current product line-up of Ricoh. In contrast, the TG-5 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the TG-5 was succeeded by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Ricoh websites.
So how do things add up? Is the Olympus TG-5 better than the Ricoh WG-60 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Olympus Tough TG-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
- Faster burst: Shoots at higher frequency (20 vs 8 flaps/sec) to capture the decisive moment.
- Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/3.5).
- Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
- Longer lasting: Can take more shots (340 versus 300) on a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More heavily discounted: Has been on the market for longer (launched in May 2017).
Reasons to prefer the Ricoh WG-60:
- More detail: Has more megapixels (15.9 vs 12MP), which boosts linear resolution by 15%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
- Less heavy: Has a lower weight (by 57g or 23 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (38 percent cheaper at launch).
- More modern: Was introduced somewhat (1 year and 5 months) more recently.
If the count of relative strengths (bullet points above) is taken as a measure, the TG-5 is the clear winner of the match-up (13 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus TG-5 and the Ricoh WG-60 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the TG-5 or the WG-60. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D vs Ricoh WG-60
- Canon 550D vs Ricoh WG-60
- Canon G7 X Mark II vs Ricoh WG-60
- Canon M6 Mark II vs Ricoh WG-60
- Fujifilm GFX 50R vs Olympus TG-5
- Kodak S-1 vs Ricoh WG-60
- Leica D-LUX 5 vs Ricoh WG-60
- Leica V-LUX 3 vs Ricoh WG-60
- Leica X Vario vs Ricoh WG-60
- Olympus TG-5 vs Panasonic TZ200
- Olympus TG-5 vs Sony RX100
- Ricoh WG-60 vs Sony HX99
Specifications: Olympus TG-5 vs Ricoh WG-60
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus TG-5||Ricoh WG-60|
|Camera Type||Fixed lens compact camera||Fixed lens compact camera|
|Camera Lens||25-100mm f/2.0-4.9||28-140mm f/3.5-5.5|
|Launch Date||May 2017||October 2018|
|Launch Price||USD 449||USD 279|
|Sensor Specs||Olympus TG-5||Ricoh WG-60|
|Sensor Format||1/2.3" Sensor||1/2.3" Sensor|
|Sensor Size||6.17 x 4.55 mm||6.17 x 4.55 mm|
|Sensor Area||28.0735 mm2||28.0735 mm2|
|Sensor Diagonal||7.7 mm||7.7 mm|
|Sensor Resolution||12 Megapixels||15.9 Megapixels|
|Image Resolution||4000 x 3000 pixels||4608 x 3456 pixels|
|Pixel Pitch||1.53 μm||1.33 μm|
|Pixel Density||42.74 MP/cm2||56.73 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||1080/60p Video|
|ISO Setting||100-12800 ISO||125-6400 ISO|
|Screen Specs||Olympus TG-5||Ricoh WG-60|
|Viewfinder Type||No viewfinder||No viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||2.7 inch|
|LCD Resolution||460k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Olympus TG-5||Ricoh WG-60|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||No Peaking Feature|
|Continuous Shooting||20 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||No handshake reduction|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Olympus TG-5||Ricoh WG-60|
|External Flash||no Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Olympus TG-5||Ricoh WG-60|
|Environmental Sealing||Waterproof body (15m)||Waterproof body (14m)|
|Battery Life (CIPA)||340 shots per charge||300 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
113 x 66 x 32 mm
(4.4 x 2.6 x 1.3 in)
123 x 62 x 30 mm
(4.8 x 2.4 x 1.2 in)
|Camera Weight||250 g (8.8 oz)||193 g (6.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
