Olympus E-400 vs TG-6

The Olympus E-400 and the Olympus Tough TG-6 are two digital cameras that were officially introduced, respectively, in September 2006 and May 2019. The E-400 is a DSLR, while the TG-6 is a fixed lens compact. The cameras are based on a Four Thirds (E-400) and a 1/2.3-inch (TG-6) sensor. The E-400 has a resolution of 10 megapixels, whereas the TG-6 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-400		Olympus TG-6
Digital single lens reflex		Fixed lens compact camera
Four Thirds lenses		25-100mm f/2.0-4.9
10 MP – Four Thirds sensor		12 MP – 1/2.3" sensor
no Video		4K/30p Video
ISO 100-1,600		ISO 100-12,800
Optical viewfinder		No viewfinder, LCD framing
2.5" LCD – 215k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		20 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Waterproof body (15m)
500 shots per battery charge		340 shots per battery charge
130 x 91 x 53 mm, 435 g		113 x 66 x 32 mm, 253 g

Check E-400 offers at
ebay.com
Check TG-6 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-400 and the Olympus Tough TG-6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

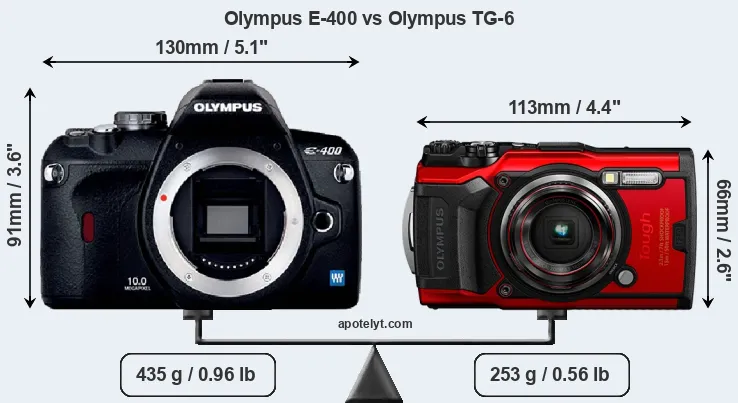

An illustration of the physical size and weight of the Olympus E-400 and the Olympus TG-6 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The TG-6 can be obtained in two different colors (black, red), while the E-400 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-6 is considerably smaller (37 percent) than the Olympus E-400. It is noteworthy in this context that the TG-6 is splash and dust-proof, while the E-400 does not feature any corresponding weather-sealing. More than that, the TG-6 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-6 has a lens built in, whereas the E-400 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-400 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the E-400 gets 500 shots out of its Olympus BLS-1 battery, while the TG-6 can take 340 images on a single charge of its Olympus LI-92B power pack. The power pack in the TG-6 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	699	ebay.com
2.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	449	ebay.com
3.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	729	ebay.com
4.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	699	ebay.com
5.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	599	ebay.com
6.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	499	ebay.com
7.		Olympus E-500	130 mm	95 mm	66 mm	479 g	750	n	Sep 2005	599	ebay.com
8.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	799	ebay.com
9.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	699	ebay.com
10.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	799	ebay.com
11.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	599	ebay.com
12.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	379	ebay.com
13.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	449	ebay.com
14.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	499	ebay.com
15.		OM System TG-7	114 mm	66 mm	33 mm	249 g	330	Y	Sep 2023	549	amazon.com
16.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	599	ebay.com
17.		Ricoh WG-6	118 mm	66 mm	33 mm	246 g	340	Y	Feb 2019	399	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The TG-6 was launched at a lower price than the E-400, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-400 features a Four Thirds sensor and the Olympus TG-6 a 1/2.3-inch sensor. The sensor area in the TG-6 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the TG-6 uses a more advanced image processing engine (TruePic VIII) than the E-400 (TruePic), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the TG-6 offers a higher resolution of 12 megapixels, compared with 10 MP of the E-400. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.53μm versus 4.74μm for the E-400). However, it should be noted that the TG-6 is much more recent (by 12 years and 8 months) than the E-400, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Olympus TG-6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TG-6 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Olympus E-400 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-400 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus Tough TG-6 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the E-400 is build around a CMOS sensor, while the TG-6 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
2.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
3.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
4.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
5.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
6.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
7.		Olympus E-500	Four Thirds	8.0	3264	2448	none	20.7	10.3	45	51
8.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
9.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
10.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
11.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
12.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
13.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
14.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
15.		OM System TG-7	1/2.3	12.0	4000	3000	4K/30p	20.9	12.7	1553	54
16.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
17.		Ricoh WG-6	1/2.3	20.2	5184	3888	4K/30p	20.7	12.2	1104	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The TG-6 indeed provides for movie recording, while the E-400 does not. The highest resolution format that the TG-6 can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-400 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-6 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Olympus E-400 and Olympus TG-6 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
2.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
3.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
5.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
6.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
7.		Olympus E-500	optical	n	2.5 / 215	fixed	n	1/4000s	2.5/s	Y	n
8.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
9.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
10.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
11.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
12.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
13.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
14.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
15.		OM System TG-7	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
16.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
17.		Ricoh WG-6	none	n	3.0 / 1040	fixed	n	1/4000s	1.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Olympus TG-6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-400 writes its imaging data to Compact Flash or xD Picture cards, while the TG-6 uses SDXC cards. The E-400 features dual card slots, which can be very useful in case a memory card fails. In contrast, the TG-6 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-400 and Olympus Tough TG-6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
4.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
5.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-500	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
15.		OM System TG-7	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-
17.		Ricoh WG-6	-	mono / mono	-	-	micro	3.0	-	-	-

It is notable that the E-400 has a hotshoe, while the TG-6 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Travel and landscape photographers will find it useful that the TG-6 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the E-400 and the TG-6 have been discontinued, but can regularly be found used on ebay. The E-400 was replaced by the Olympus E-410, while the TG-6 was followed by the OM System TG-7. Further information on the features and operation of the E-400 and TG-6 can be found, respectively, in the Olympus E-400 Manual (free pdf) or the online Olympus TG-6 Manual.

Review summary

So what conclusions can be drawn? Is the Olympus E-400 better than the Olympus TG-6 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Olympus E-400:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (500 versus 340) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in September 2006).

Advantages of the Olympus Tough TG-6:

• More detail: Has more megapixels (12 vs 10MP), which boosts linear resolution by 10%.
• Better jpgs: Has a more modern image processing engine (TruePic VIII vs TruePic).
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 215k dots).
• Faster burst: Shoots at higher frequency (20 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the E-400 requires a separate lens.
• More compact: Is smaller (113x66mm vs 130x91mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the E-400).
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 12 years and 8 months of technical progress since the E-400 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the TG-6 is the clear winner of the contest (18 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-400 and the Olympus TG-6 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-400 or the TG-6. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	699	ebay.com
2.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	449	ebay.com
3.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	729	ebay.com
4.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	699	ebay.com
5.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	599	ebay.com
6.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	499	ebay.com
7.		Olympus E-500	..	76/100	..	+ +	..	..	Sep 2005	599	ebay.com
8.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	799	ebay.com
9.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	699	ebay.com
10.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	799	ebay.com
11.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	599	ebay.com
12.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	379	ebay.com
13.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	449	ebay.com
14.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	499	ebay.com
15.		OM System TG-7	4/5	..	4.5/5	..	4/5	4/5	Sep 2023	549	amazon.com
16.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	599	ebay.com
17.		Ricoh WG-6	..	..	..	..	3.5/5	3.5/5	Feb 2019	399	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check E-400 offers at
ebay.com
Check TG-6 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check E-400 offers at
ebay.com
Check TG-6 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
