Nikon Z5 vs Panasonic GH5
The Nikon Z5 and the Panasonic Lumix DC-GH5 are two digital cameras that were revealed to the public, respectively, in July 2020 and January 2017. Both the Z5 and the GH5 are mirrorless interchangeable lens cameras that are based on a full frame (Z5) and a Four Thirds (GH5) sensor. The Nikon has a resolution of 24.2 megapixels, whereas the Panasonic provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon Z5 and the Panasonic Lumix DC-GH5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

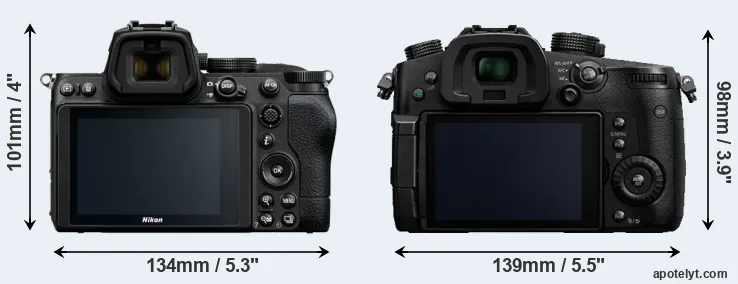

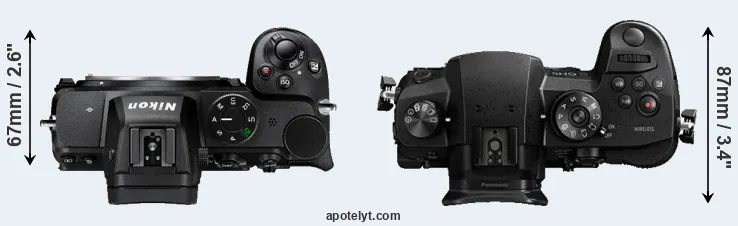

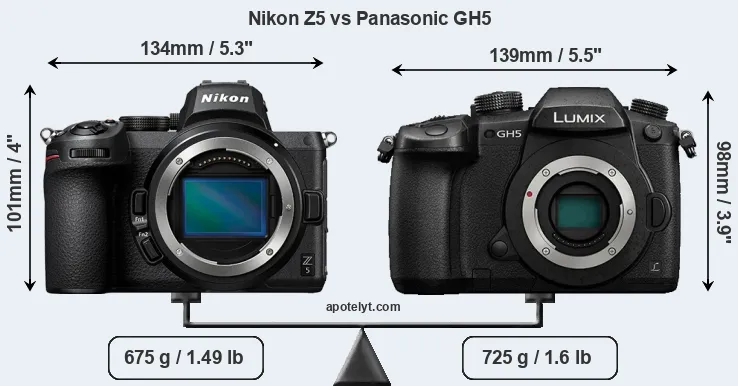

The physical size and weight of the Nikon Z5 and the Panasonic GH5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon Z5 and the Panasonic GH5 are of equal size. However, the GH5 is markedly heavier (7 percent) than the Z5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the Z5 gets 470 shots out of its EN-EL15c battery, while the GH5 can take 410 images on a single charge of its DMW-BLF19 power pack. The power pack in the Z5 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon Z5||134 mm||101 mm||67 mm||675 g||470||Y||Jul 2020||1,399|
|2.||Panasonic GH5||139 mm||98 mm||87 mm||725 g||410||Y||Jan 2017||1,999|
|3.||Canon R6||138 mm||98 mm||88 mm||680 g||360||Y||Jul 2020||2,499|
|4.||Fujifilm X-T4||135 mm||93 mm||64 mm||607 g||500||Y||Feb 2020||1,699|
|5.||Nikon Z7 II||134 mm||101 mm||70 mm||705 g||420||Y||Oct 2020||2,999|
|6.||Nikon Z6 II||134 mm||101 mm||70 mm||705 g||410||Y||Oct 2020||1,999|
|7.||Nikon Z6||134 mm||101 mm||67 mm||675 g||310||Y||Aug 2018||1,999|
|8.||Nikon Z7||134 mm||101 mm||67 mm||675 g||330||Y||Aug 2018||3,399|
|9.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|10.||Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|11.||Panasonic S5||133 mm||98 mm||82 mm||714 g||440||Y||Sep 2020||1,999|
|12.||Panasonic S1||149 mm||110 mm||97 mm||1017 g||400||Y||Feb 2019||2,499|
|13.||Panasonic G9||137 mm||97 mm||92 mm||658 g||400||Y||Nov 2017||1,699|
|14.||Panasonic G85||128 mm||89 mm||74 mm||505 g||330||Y||Sep 2016||899|
|15.||Panasonic GH4||133 mm||93 mm||84 mm||560 g||500||Y||Feb 2014||1,499|
|16.||Sony A9 II||129 mm||96 mm||76 mm||678 g||690||Y||Oct 2019||4,499|
|17.||Sony A7R IV||129 mm||96 mm||78 mm||665 g||670||Y||Jul 2019||3,499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Z5 was launched at a markedly lower price (by 30 percent) than the GH5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

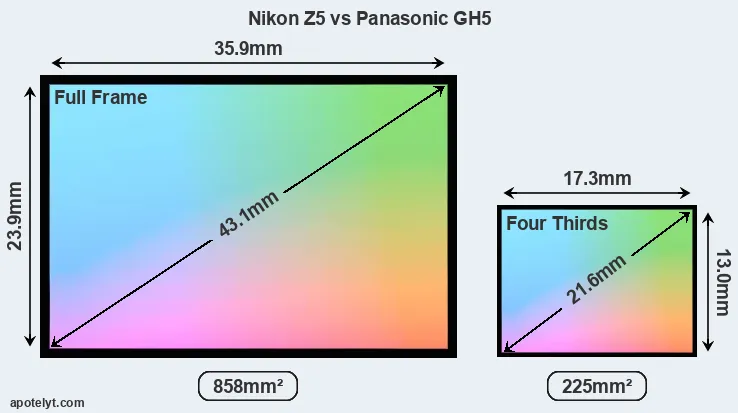

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon Z5 features a full frame sensor and the Panasonic GH5 a Four Thirds sensor. The sensor area in the GH5 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the Z5 has a native 3:2 aspect ratio, while the one in the GH5 offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

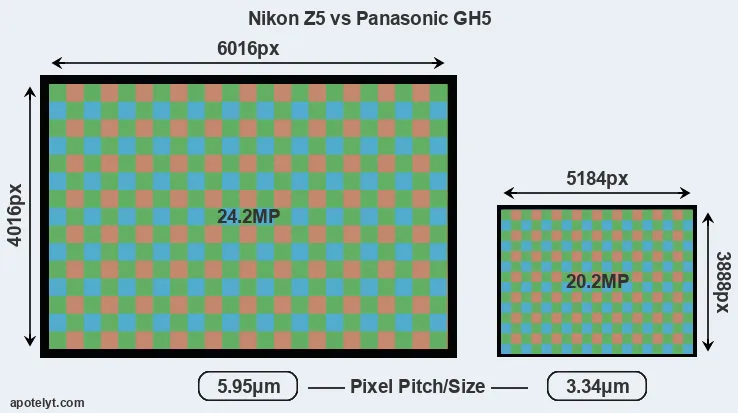

With 24.2MP, the Z5 offers a higher resolution than the GH5 (20.2MP), but the Z5 nevertheless has larger individual pixels (pixel pitch of 5.95μm versus 3.34μm for the GH5) due to its larger sensor. Moreover, the Z5 is a much more recent model (by 3 years and 6 months) than the GH5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the GH5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon Z5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Z5 for good quality output (200 dots per inch) amounts to 30.1 x 20.1 inches or 76.4 x 51 cm, for very good quality (250 dpi) 24.1 x 16.1 inches or 61.1 x 40.8 cm, and for excellent quality (300 dpi) 20.1 x 13.4 inches or 50.9 x 34 cm. The corresponding values for the Panasonic GH5 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The Z5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Nikon Z5 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Panasonic Lumix DC-GH5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Nikon Z5||Full Frame||24.2||6016||4016||4K/30p||..||..||..||..|
|2.||Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|3.||Canon R6||Full Frame||20.0||5472||3648||4k/60p||24.2||14.3||3394||90|
|5.||Nikon Z7 II||Full Frame||45.4||8256||5504||4K/60p||26.3||14.7||2841||100|
|6.||Nikon Z6 II||Full Frame||24.3||6048||4024||4K/60p||..||..||..||..|
|7.||Nikon Z6||Full Frame||24.3||6048||4024||4K/30p||25.3||14.3||3299||95|
|8.||Nikon Z7||Full Frame||45.4||8256||5504||4K/30p||26.3||14.6||2668||99|
|10.||Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|11.||Panasonic S5||Full Frame||24.0||6000||4000||4K/60p||..||..||..||..|
|12.||Panasonic S1||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95|
|13.||Panasonic G9||Four Thirds||20.2||5184||3888||4K/60p||..||..||..||..|
|14.||Panasonic G85||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|15.||Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|16.||Sony A9 II||Full Frame||24.0||6000||4000||4K/30p||25.0||14.0||3434||93|
|17.||Sony A7R IV||Full Frame||60.2||9504||6336||4K/30p||26.0||14.8||3344||99|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GH5 provides a faster frame rate than the Z5. It can shoot movie footage at 4K/60p, while the Nikon is limited to 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the Z5 offers a slightly higher resolution than the one in the GH5 (3690k vs 3680k dots). The adjacent table lists some of the other core features of the Nikon Z5 and Panasonic GH5 along with similar information for a selection of comparators.
|5.||Nikon Z7 II||3690||Y||3.2||2100||tilting||Y||1/8000s||10.0||n||Y|
|6.||Nikon Z6 II||3690||Y||3.2||2100||tilting||Y||1/8000s||14.0||n||Y|
|10.||Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|16.||Sony A9 II||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|17.||Sony A7R IV||5760||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon Z5 and the Panasonic GH5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the Z5 and the GH5 write their files to SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Moreover, both the Z5 and the GH5 support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s, on both slots.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon Z5 and Panasonic Lumix DC-GH5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|5.||Nikon Z7 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|6.||Nikon Z6 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|10.||Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|16.||Sony A9 II||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|17.||Sony A7R IV||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
Studio photographers will appreciate that the Panasonic GH5 (unlike the Z5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the Z5 and the GH5 are recent models that are part of the current product line-up. The GH5 replaced the earlier Panasonic GH4, while the Z5 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Panasonic websites.
So how do things add up? Is there a clear favorite between the Nikon Z5 and the Panasonic GH5? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Nikon Z5:
- More detail: Offers more megapixels (24.2 vs 20.2MP) with a 12% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.80x vs 0.76x).
- Longer lasting: Can take more shots (470 versus 410) on a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Faster data transfer: Supports a more advanced USB protocol (3.2 vs 3.1).
- More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).
- More modern: Reflects 3 years and 6 months of technical progress since the GH5 launch.
Advantages of the Panasonic Lumix DC-GH5:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (12 vs 4.5 flaps/sec) to capture the decisive moment.
- More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been around for much longer (launched in January 2017).
If the number of relative strengths (bullet points above) is taken as a guide, the Z5 is the clear winner of the match-up (13 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon Z5 and the Panasonic GH5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the Z5 or the GH5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon Z5||4/5||..||89/100||4.5/5||4/5||Jul 2020||1,399|
|2.||Panasonic GH5||4.5/5||+ +||85/100||4.5/5||5/5||Jan 2017||1,999|
|3.||Canon R6||5/5||+ +||90/100||4.5/5||5/5||Jul 2020||2,499|
|4.||Fujifilm X-T4||5/5||+ +||..||5/5||5/5||Feb 2020||1,699|
|5.||Nikon Z7 II||4.5/5||..||..||4.5/5||4.5/5||Oct 2020||2,999|
|6.||Nikon Z6 II||4.5/5||..||89/100||4.5/5||4.5/5||Oct 2020||1,999|
|7.||Nikon Z6||5/5||..||..||4.5/5||5/5||Aug 2018||1,999|
|8.||Nikon Z7||5/5||+||89/100||4.5/5||5/5||Aug 2018||3,399|
|9.||Nikon D500||5/5||+ +||91/100||4.5/5||5/5||Jan 2016||1,999|
|10.||Olympus E-M1 II||5/5||+ +||85/100||4.5/5||4.5/5||Sep 2016||1,999|
|11.||Panasonic S5||4.5/5||+ +||88/100||4.5/5||4.5/5||Sep 2020||1,999|
|12.||Panasonic S1||4.5/5||+ +||88/100||4.5/5||4/5||Feb 2019||2,499|
|13.||Panasonic G9||..||+ +||85/100||5/5||5/5||Nov 2017||1,699|
|14.||Panasonic G85||..||+ +||84/100||5/5||4.5/5||Sep 2016||899|
|15.||Panasonic GH4||5/5||+ +||85/100||5/5||5/5||Feb 2014||1,499|
|16.||Sony A9 II||..||..||90/100||5/5||5/5||Oct 2019||4,499|
|17.||Sony A7R IV||5/5||+||91/100||4.5/5||5/5||Jul 2019||3,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Nikon Z5 vs Panasonic GH5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon Z5||Panasonic GH5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Nikon Z mount lenses||Micro Four Thirds lenses|
|Launch Date||July 2020||January 2017|
|Launch Price||USD 1,399||USD 1,999|
|Sensor Specs||Nikon Z5||Panasonic GH5|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||35.9 x 23.9 mm||17.3 x 13.0 mm|
|Sensor Area||858.01 mm2||224.9 mm2|
|Sensor Diagonal||43.1 mm||21.6 mm|
|Sensor Resolution||24.2 Megapixels||20.2 Megapixels|
|Image Resolution||6016 x 4016 pixels||5184 x 3888 pixels|
|Pixel Pitch||5.95 μm||3.34 μm|
|Pixel Density||2.82 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||4K/60p Video|
|ISO Setting||100 - 51,200 ISO||200 - 25,600 ISO|
|ISO Boost||50 - 102,400 ISO||100 - 25,600 ISO|
|Image Processor||EXPEED 6||Venus 10|
|DXO Sensor Quality (score)||..||77|
|DXO Color Depth (bits)||..||23.9|
|DXO Dynamic Range (EV)||..||13.0|
|DXO Low Light (ISO)||..||807|
|Screen Specs||Nikon Z5||Panasonic GH5|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||3690k dots||3680k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.2inch|
|LCD Resolution||1040k dots||1620k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Nikon Z5||Panasonic GH5|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/8000s|
|Continuous Shooting||4.5 shutter flaps/s||12 shutter flaps/s|
|Shutter Life Expectancy||200 000 actuations||200 000 actuations|
|Electronic Shutter||up to 1/8000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|UHS card support||Dual UHS-II||Dual UHS-II|
|Connectivity Specs||Nikon Z5||Panasonic GH5|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 3.2||USB 3.1|
|HDMI Port||micro HDMI||full HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Nikon Z5||Panasonic GH5|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||470 shots per charge||410 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
134 x 101 x 67 mm
(5.3 x 4.0 x 2.6 in)
139 x 98 x 87 mm
(5.5 x 3.9 x 3.4 in)
|Camera Weight||675 g (23.8 oz)||725 g (25.6 oz)|
