Nikon P7800 vs Olympus XZ-1

The Nikon Coolpix P7800 and the Olympus XZ-1 are two digital cameras that were announced, respectively, in September 2013 and January 2011. Both the P7800 and the XZ-1 are fixed lens compact cameras that are equipped with a 1/1.7-inch sensor. The Nikon has a resolution of 12 megapixels, whereas the Olympus provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon P7800		Olympus XZ-1
Fixed lens compact camera		Fixed lens compact camera
28-200mm f/2.0-4.0		28-112mm f/1.8-2.5
12 MP – 1/1.7" sensor		10.1 MP – 1/1.7" sensor
1080/30p Video		720/30p Video
ISO 80-3,200 (80 - 6,400)		ISO 100-6,400
Electronic viewfinder (921k dots)		Viewfinder optional
3.0" LCD – 921k dots		3.0" LCD – 614k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
8 shutter flaps per second		2 shutter flaps per second
Lens-based stabilization		In-body stabilization
350 shots per battery charge		320 shots per battery charge
119 x 78 x 50 mm, 399 g		111 x 65 x 42 mm, 275 g

Check P7800 offers at
ebay.com
Check XZ-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon Coolpix P7800 and the Olympus XZ-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

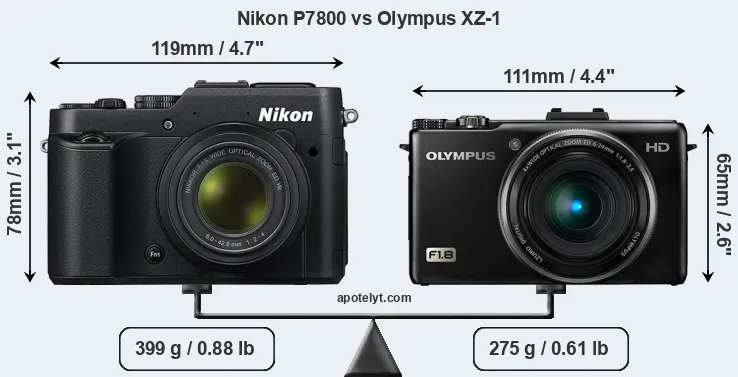

The side-by-side display below illustrates the physical size and weight of the Nikon P7800 and the Olympus XZ-1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The XZ-1 can be obtained in two different colors (black, white), while the P7800 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-1 is notably smaller (22 percent) than the Nikon P7800. Moreover, the XZ-1 is markedly lighter (31 percent) than the P7800. In this context, it is worth noting that neither the P7800 nor the XZ-1 are weather-sealed.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
2.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
3.		Canon G12	112 mm	76 mm	48 mm	401 g	370	n	Sep 2010	US$ 499	ebay.com
4.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
5.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
6.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
7.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
8.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
9.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
10.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
11.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
12.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
13.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
14.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	US$ 499	ebay.com
15.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
16.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
17.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XZ-1 was somewhat cheaper (by 9 percent) than the P7800 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

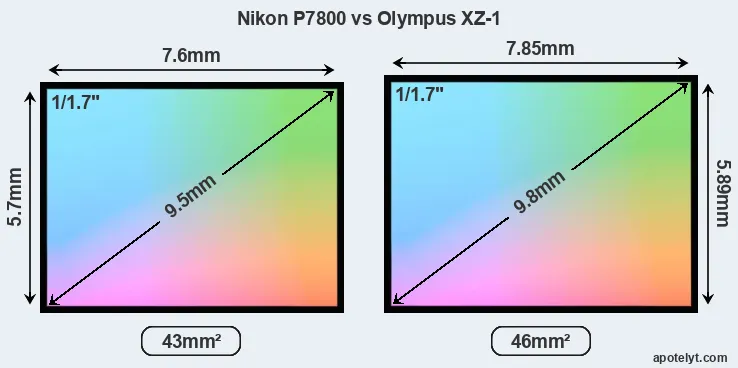

Both cameras under consideration feature a 1/1.7-inch sensor, but their sensors differ slightly in size. The sensor area in the XZ-1 is 7 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 4.5 (P7800) and 4.4. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the Nikon P7800 offers a higher resolution of 12 megapixels, compared with 10.1 MP of the Olympus XZ-1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.89μm versus 2.13μm for the XZ-1). However, it should be noted that the P7800 is much more recent (by 2 years and 7 months) than the XZ-1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Nikon P7800 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the P7800 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Olympus XZ-1 are 18.3 x 13.8 inches or 46.5 x 35 cm for good quality, 14.7 x 11 inches or 37.2 x 28 cm for very good quality, and 12.2 x 9.2 inches or 31 x 23.3 cm for excellent quality prints.

The Nikon Coolpix P7800 has a native sensitivity range from ISO 80 to ISO 3200, which can be extended to ISO 80-6400. The corresponding ISO settings for the Olympus XZ-1 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the P7800 is build around a BSI-CMOS sensor, while the XZ-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the P7800 provides substantially higher image quality than the XZ-1, with an overall score that is 20 points higher. This advantage is based on 2.4 bits higher color depth, 1.3 EV in additional dynamic range, and 0.8 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
2.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
3.		Canon G12	1/1.7	10.0	3648	2736	720/24p	20.4	11.2	161	47
4.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
5.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
6.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
7.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
8.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
9.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
10.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
11.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
12.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
13.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
14.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
15.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
16.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
17.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the P7800 provides a higher video resolution than the XZ-1. It can shoot video footage at 1080/30p, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the P7800 has an electronic viewfinder (921k dots), which can be very helpful when shooting in bright sunlight. In contrast, the XZ-1 relies on live view and the rear LCD for framing. That said, the XZ-1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Nikon P7800 and Olympus XZ-1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
2.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
3.		Canon G12	optical	n	2.8 / 461	swivel	n	1/4000s	1.1/s	Y	Y
4.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
5.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
6.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
7.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
8.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
9.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
10.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
11.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
12.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
13.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
14.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
15.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
16.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
17.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Nikon P7800 and the Olympus XZ-1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the P7800 and the XZ-1 have zoom lenses built in. The P7800 has a 28-200mm f/2.0-4.0 optic and the XZ-1 offers a 28-112mm f/1.8-2.5 (focal lengths in full frame equivalent terms). Hence, the Nikon and Olympus provide the same view at the wide-angle end, but the Olympus has less tele-photo reach at the long end. The XZ-1 offers the faster maximum aperture.

Concerning the storage of imaging data, both the P7800 and the XZ-1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon Coolpix P7800 and Olympus XZ-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
3.		Canon G12	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
6.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
8.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
10.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
15.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the P7800 has a microphone port, which is missing on the XZ-1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the P7800 and the XZ-1 have been discontinued, but can regularly be found used on ebay. The XZ-1 was replaced by the Olympus XZ-2, while the P7800 does not have a direct successor. Further information on the features and operation of the P7800 and XZ-1 can be found, respectively, in the Nikon P7800 Manual (free pdf) or the online Olympus XZ-1 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Nikon P7800 and the Olympus XZ-1? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Nikon Coolpix P7800:

• More detail: Offers more megapixels (12 vs 10.1MP) with a 9% higher linear resolution.
• Better image quality: Scores substantially higher (20 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (2.4 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.3 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.8 stops ISO advantage).
• Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 614k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (8 vs 2 flaps/sec) to capture the decisive moment.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More modern: Reflects 2 years and 7 months of technical progress since the XZ-1 launch.

Advantages of the Olympus XZ-1:

• Better light gathering: Has a lens with a wider maximum aperture (f/1.8 vs f/2.0).
• More compact: Is smaller (111x65mm vs 119x78mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 124g or 31 percent) and is thus easier to take along.
• More heavily discounted: Has been around for much longer (launched in January 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the P7800 is the clear winner of the match-up (15 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon P7800 and the Olympus XZ-1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the P7800 and the XZ-1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
2.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
3.		Canon G12	4/5	+	..	73/100	4.5/5	4.5/5	Sep 2010	US$ 499	ebay.com
4.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
5.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
6.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
7.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
8.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
9.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
10.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
11.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
12.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
13.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
14.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	US$ 499	ebay.com
15.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
16.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
17.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
