Nikon D500 vs Olympus TG-5
The Nikon D500 and the Olympus Tough TG-5 are two digital cameras that were officially introduced, respectively, in January 2016 and May 2017. The D500 is a DSLR, while the TG-5 is a fixed lens compact. The cameras are based on an APS-C (D500) and a 1/2.3-inch (TG-5) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Olympus provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D500 and the Olympus Tough TG-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

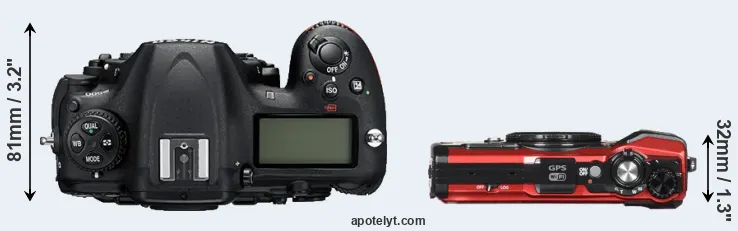

The physical size and weight of the Nikon D500 and the Olympus TG-5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The TG-5 can be obtained in two different colors (black, red), while the D500 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-5 is considerably smaller (56 percent) than the Nikon D500. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the D500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D500 and their specifications in the Nikon Lens Catalog.
Concerning battery life, the D500 gets 1240 shots out of its EN-EL15 battery, while the TG-5 can take 340 images on a single charge of its LI-92B power pack. The power pack in the TG-5 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|2.||Olympus TG-5||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449|
|3.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|4.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|5.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389|
|6.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|7.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|8.||Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|9.||Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|10.||Nikon D750||141 mm||113 mm||78 mm||750 g||1230||Y||Sep 2014||2,299|
|11.||Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|12.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|13.||Nikon D600||141 mm||113 mm||82 mm||850 g||900||Y||Sep 2012||2,099|
|14.||Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799|
|15.||Olympus TG-6||113 mm||66 mm||32 mm||253 g||340||Y||May 2019||449|
|16.||Olympus TG-4||112 mm||66 mm||31 mm||247 g||380||Y||Apr 2015||379|
|17.||Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TG-5 was launched at a lower price than the D500, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D500 features an APS-C sensor and the Olympus TG-5 a 1/2.3-inch sensor. The sensor area in the TG-5 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 5.6. The sensor in the D500 has a native 3:2 aspect ratio, while the one in the TG-5 offers a 4:3 aspect.
With 20.7MP, the D500 offers a higher resolution than the TG-5 (12MP), but the D500 nevertheless has larger individual pixels (pixel pitch of 4.22μm versus 1.53μm for the TG-5) due to its larger sensor. However, the TG-5 is a somewhat more recent model (by 1 year and 4 months) than the D500, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D500 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Nikon D500 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-1640000. The corresponding ISO settings for the Olympus Tough TG-5 are ISO 100 to ISO 12800 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|10.||Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|12.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|13.||Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-5 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Nikon D500 and Olympus TG-5 in connection with corresponding information for a sample of similar cameras.
One feature that is present on the D500, but is missing on the TG-5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Nikon D500 and the Olympus TG-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D500 writes its imaging data to SDHC or XQD cards, while the TG-5 uses SDXC cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the TG-5 only has one slot. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the TG-5 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D500 and Olympus Tough TG-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the D500 has a hotshoe, while the TG-5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Nikon D500 (unlike the TG-5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The D500 is a recent model that features in the current product line-up of Nikon. In contrast, the TG-5 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the TG-5 was succeeded by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So how do things add up? Is there a clear favorite between the Nikon D500 and the Olympus TG-5? Which camera is better? The listing below highlights the relative strengths of the two models.
Advantages of the Nikon D500:
- More detail: Offers more megapixels (20.7 vs 12MP) with a 34% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (1240 versus 340) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More heavily discounted: Has been on the market for longer (launched in January 2016).
Reasons to prefer the Olympus Tough TG-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Faster burst: Shoots at higher frequency (20 vs 10 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with an integrated lens, while the D500 requires a separate lens.
- More compact: Is smaller (113x66mm vs 147x115mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the D500).
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Was introduced somewhat (1 year and 4 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the D500 is the clear winner of the match-up (25 : 12 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D500 and the Olympus TG-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the D500 or the TG-5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D500||5/5||+ +||91/100||4.5/5||5/5||Jan 2016||1,999|
|2.||Olympus TG-5||..||+ +||..||4/5||4/5||May 2017||449|
|3.||Canon SX730||..||+||..||4/5||4/5||Apr 2017||399|
|4.||Nikon D7500||4.5/5||+ +||86/100||5/5||4.5/5||Apr 2017||1,299|
|5.||Nikon W300||..||+||..||4/5||4/5||May 2017||389|
|6.||Nikon D5600||4/5||..||79/100||4.5/5||4/5||Nov 2016||699|
|7.||Nikon D3400||4/5||+||76/100||4/5||4.5/5||Aug 2016||499|
|8.||Nikon D5500||5/5||+||79/100||4.5/5||4.5/5||Jan 2015||899|
|9.||Nikon D7200||4/5||+ +||84/100||4.5/5||4.5/5||Mar 2015||1,199|
|10.||Nikon D750||5/5||+ +||90/100||4.5/5||4.5/5||Sep 2014||2,299|
|11.||Nikon D7100||5/5||+ +||85/100||4.5/5||4.5/5||Feb 2013||1,199|
|12.||Nikon D610||4/5||+ +||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|13.||Nikon D600||4/5||+ +||87/100||5/5||4.5/5||Sep 2012||2,099|
|14.||Nikon D300S||5/5||+ +||82/100||4/5||4.5/5||Jul 2009||1,799|
|15.||Olympus TG-6||..||+ +||76/100||4/5||4/5||May 2019||449|
|16.||Olympus TG-4||..||+||79/100||4/5||4/5||Apr 2015||379|
|17.||Olympus XZ-1||4/5||..||74/100||4.5/5||4.5/5||Jan 2011||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Nikon D500 vs Olympus TG-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D500||Olympus TG-5|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Nikon F mount lenses||25-100mm f/2.0-4.9|
|Launch Date||January 2016||May 2017|
|Launch Price||USD 1,999||USD 449|
|Sensor Specs||Nikon D500||Olympus TG-5|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||23.5 x 15.7 mm||6.17 x 4.55 mm|
|Sensor Area||368.95 mm2||28.0735 mm2|
|Sensor Diagonal||28.3 mm||7.7 mm|
|Sensor Resolution||20.7 Megapixels||12 Megapixels|
|Image Resolution||5568 x 3712 pixels||4000 x 3000 pixels|
|Pixel Pitch||4.22 μm||1.53 μm|
|Pixel Density||5.60 MP/cm2||42.74 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||100 - 51,200 ISO||100 - 12,800 ISO|
|ISO Boost||50 - 1,640,000 ISO||no Enhancement|
|Image Processor||EXPEED 5||TruePic VIII|
|DXO Sensor Quality (score)||83||..|
|DXO Color Depth (bits)||24.0||..|
|DXO Dynamic Range (EV)||14.0||..|
|DXO Low Light (ISO)||1324||..|
|Screen Specs||Nikon D500||Olympus TG-5|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||2359k dots||460k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Nikon D500||Olympus TG-5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/2000s|
|Continuous Shooting||10 shutter flaps/s||20 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||SDXC or XQD cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-II||UHS-I|
|Connectivity Specs||Nikon D500||Olympus TG-5|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Nikon D500||Olympus TG-5|
|Environmental Sealing||Weathersealed body||Waterproof body (15m)|
|Battery Life (CIPA)||1240 shots per charge||340 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
147 x 115 x 81 mm
(5.8 x 4.5 x 3.2 in)
113 x 66 x 32 mm
(4.4 x 2.6 x 1.3 in)
|Camera Weight||860 g (30.3 oz)||250 g (8.8 oz)|
