Nikon D500 vs D750
The Nikon D500 and the Nikon D750 are two enthusiast cameras that were announced, respectively, in January 2016 and September 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D500) and a full frame (D750) sensor. The D500 has a resolution of 20.7 megapixels, whereas the D750 provides 24.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Nikon D500||Nikon D750|
|Digital single lens reflex||Digital single lens reflex|
|Nikon F mount lenses||Nikon F mount lenses|
|20.7 MP, APS-C Sensor||24.2 MP, Full Frame Sensor|
|4K/30p Video||1080/60p Video|
|ISO 100-51200 (50-1640000)||ISO 100-12800 (50-51200)|
|Optical viewfinder||Optical viewfinder|
|3.2" LCD, 2359k dots||3.2" LCD, 1229k dots|
|Tilting touchscreen||Tilting screen (not touch-sensitive)|
|10 shutter flaps per second||6 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|1240 shots per battery charge||1230 shots per battery charge|
|147 x 115 x 81 mm, 860 g||141 x 113 x 78 mm, 750 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D500 and the Nikon D750? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

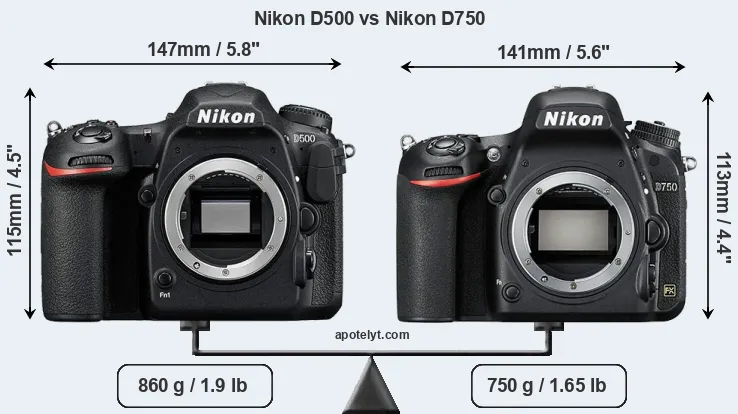

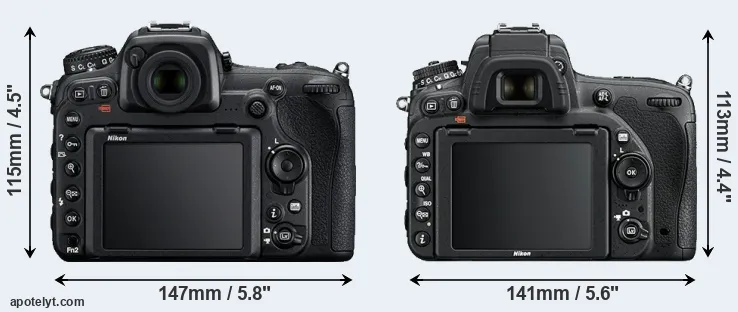

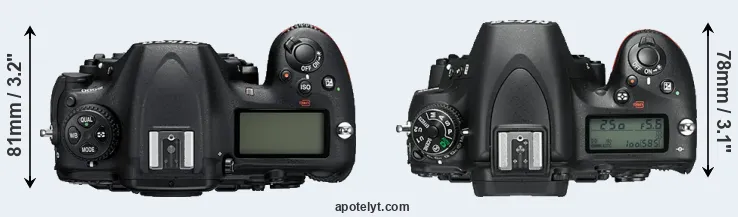

The physical size and weight of the Nikon D500 and the Nikon D750 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D750 is notably smaller (6 percent) than the Nikon D500. Moreover, the D750 is markedly lighter (13 percent) than the D500. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the D750) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (D500). You can compare the optics available in the Nikon Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Nikon D500»||5.8 in||4.5 in||3.2 in||30.3 oz||1240||Y||Jan 2016||1,999||Nikon D500|
|Nikon D750«||5.6 in||4.4 in||3.1 in||26.5 oz||1230||Y||Sep 2014||2,299||Nikon D750|
|Nikon D780« »||5.7 in||4.6 in||3.0 in||29.6 oz||2260||Y||Jan 2020||2,299||Nikon D780|
|Nikon D7500« »||5.4 in||4.1 in||2.9 in||25.4 oz||950||Y||Apr 2017||1,299||Nikon D7500|
|Nikon D5600« »||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699||Nikon D5600|
|Nikon D3400« »||4.9 in||3.9 in||3.0 in||15.7 oz||1200||n||Aug 2016||499||Nikon D3400|
|Nikon D5500« »||4.9 in||3.8 in||2.8 in||14.8 oz||820||n||Jan 2015||899||Nikon D5500|
|Nikon D7200« »||5.4 in||4.2 in||3.0 in||27.0 oz||1110||Y||Mar 2015||1,199||Nikon D7200|
|Nikon D7100« »||5.4 in||4.2 in||3.0 in||27.0 oz||950||Y||Feb 2013||1,199||Nikon D7100|
|Nikon Df« »||5.7 in||4.3 in||2.6 in||26.8 oz||1400||Y||Nov 2013||2,749||Nikon Df|
|Nikon D610« »||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Oct 2013||1,999||Nikon D610|
|Nikon D600« »||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Sep 2012||2,099||Nikon D600|
|Nikon D300S« »||5.8 in||4.5 in||3.2 in||33.1 oz||950||Y||Jul 2009||1,799||Nikon D300S|
|Nikon D700« »||5.8 in||4.8 in||3.0 in||37.9 oz||1000||Y||Jul 2008||2,999||Nikon D700|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D500 was launched at a somewhat lower price (by 13 percent) than the D750, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

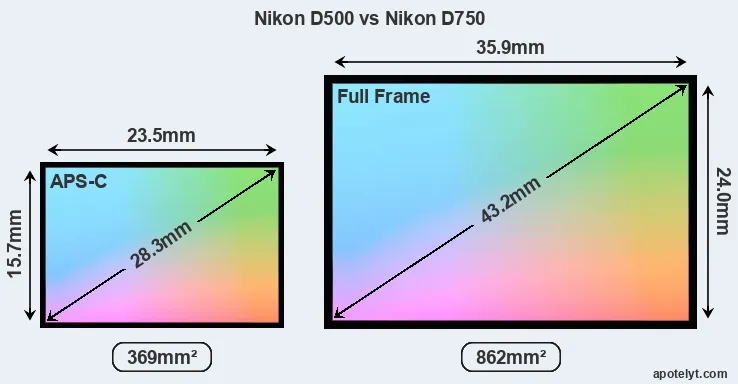

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D500 features an APS-C sensor and the Nikon D750 a full frame sensor. The sensor area in the D750 is 134 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the D500 uses a more advanced image processing engine (EXPEED 5) than the D750 (EXPEED 4), with benefits for noise reduction, color accuracy, and processing speed.

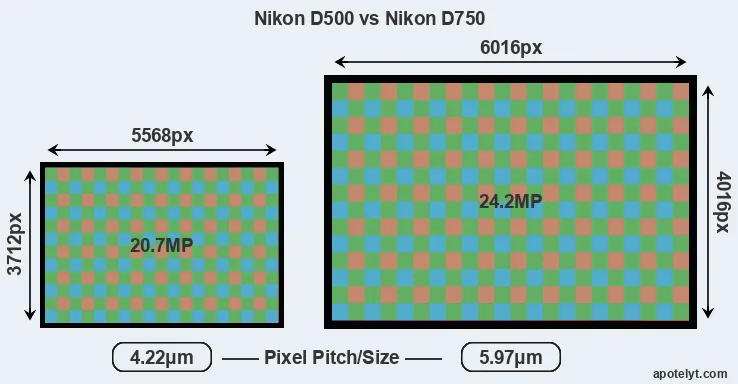

With 24.2MP, the D750 offers a higher resolution than the D500 (20.7MP), but the D750 nevertheless has larger individual pixels (pixel pitch of 5.97μm versus 4.22μm for the D500) due to its larger sensor. However, the D500 is a somewhat more recent model (by 1 year and 3 months) than the D750, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D750 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D750 for good quality output (200 dots per inch) amounts to 30.1 x 20.1 inch or 76.4 x 51 cm, for very good quality (250 dpi) 24.1 x 16.1 inch or 61.1 x 40.8 cm, and for excellent quality (300 dpi) 20.1 x 13.4 inch or 50.9 x 34 cm. The corresponding values for the Nikon D500 are 27.8 x 18.6 inch or 70.7 x 47.1 cm for good quality, 22.3 x 14.8 inch or 56.6 x 37.7 cm for very good quality, and 18.6 x 12.4 inch or 47.1 x 31.4 cm for excellent quality prints.
The Nikon D500 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-1640000. The corresponding ISO settings for the Nikon D750 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 50-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the D750 has a markedly higher DXO score than the D500 (overall score 10 points higher), which will translate into better image quality. The advantage is based on 0.8 bits higher color depth, 0.5 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Nikon D500||APS-C||20.7||5568||3712||4K/30p||24.0||14.0||1324||83||Nikon D500|
|Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93||Nikon D750|
|Nikon D780||Full Frame||24.3||6048||4024||4K/30p||..||..||..||..||Nikon D780|
|Nikon D7500||APS-C||20.7||5568||3712||4K/30p||24.3||14.0||1483||86||Nikon D7500|
|Nikon D5600||APS-C||24.0||6000||4000||1080/60p||24.1||14.0||1306||84||Nikon D5600|
|Nikon D3400||APS-C||24.0||6000||4000||1080/60p||24.8||13.9||1192||86||Nikon D3400|
|Nikon D5500||APS-C||24.0||6000||4000||1080/60p||24.1||14.0||1438||84||Nikon D5500|
|Nikon D7200||APS-C||24.0||6000||4000||1080/60p||24.5||14.6||1333||87||Nikon D7200|
|Nikon D7100||APS-C||24.0||6000||4000||1080/60p||24.2||13.7||1256||83||Nikon D7100|
|Nikon Df||Full Frame||16.2||4928||3280||none||24.6||13.1||3279||89||Nikon Df|
|Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94||Nikon D610|
|Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94||Nikon D600|
|Nikon D300S||APS-C||12.2||4288||2848||720/24p||22.5||12.2||787||70||Nikon D300S|
|Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80||Nikon D700|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D500 provides a higher video resolution than the D750. It can shoot video footage at 4K/30p, while the D750 is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. The D500 and the D750 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D750 has a higher magnification than the one of the D500 (0.70x vs 0.67x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D500 and Nikon D750 along with similar information for a selection of comparators.
|Nikon D500||optical||Y||3.2||2359||tilting||Y||1/8000s||10.0||n||n||Nikon D500|
|Nikon D750||optical||Y||3.2||1229||tilting||n||1/4000s||6.0||Y||n||Nikon D750|
|Nikon D780||optical||Y||3.2||2359||tilting||Y||1/8000s||12.0||n||n||Nikon D780|
|Nikon D7500||optical||Y||3.2||922||tilting||Y||1/8000s||8.0||Y||n||Nikon D7500|
|Nikon D5600||optical||n||3.2||1037||swivel||Y||1/4000s||5.0||Y||n||Nikon D5600|
|Nikon D3400||optical||n||3.0||921||fixed||n||1/4000s||5.0||Y||n||Nikon D3400|
|Nikon D5500||optical||n||3.2||1037||swivel||Y||1/4000s||5.0||Y||n||Nikon D5500|
|Nikon D7200||optical||Y||3.2||1229||fixed||n||1/8000s||6.0||Y||n||Nikon D7200|
|Nikon D7100||optical||Y||3.2||1229||fixed||n||1/8000s||6.0||Y||n||Nikon D7100|
|Nikon Df||optical||Y||3.2||921||fixed||n||1/4000s||5.5||n||n||Nikon Df|
|Nikon D610||optical||Y||3.2||921||fixed||n||1/4000s||6.0||Y||n||Nikon D610|
|Nikon D600||optical||Y||3.0||921||fixed||n||1/4000s||5.5||Y||n||Nikon D600|
|Nikon D300S||optical||Y||3.0||920||fixed||n||1/8000s||7.0||Y||n||Nikon D300S|
|Nikon D700||optical||Y||3.0||922||fixed||n||1/8000s||8.0||Y||n||Nikon D700|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D500 has a touchscreen, while the D750 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Nikon D500 and the Nikon D750 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D500 writes its imaging data to SDHC or XQD cards, while the D750 uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the D750 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D500 and Nikon D750 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Nikon D500||Y||stereo||mono||Y||Y||mini||3.0||Y||Y||Y||Nikon D500|
|Nikon D750||Y||stereo||mono||Y||Y||mini||2.0||Y||-||-||Nikon D750|
|Nikon D780||Y||stereo||mono||Y||Y||mini||3.1||Y||-||Y||Nikon D780|
|Nikon D7500||Y||stereo||mono||Y||Y||mini||2.0||Y||-||Y||Nikon D7500|
|Nikon D5600||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Nikon D5600|
|Nikon D3400||Y||mono||mono||-||-||mini||2.0||-||-||Y||Nikon D3400|
|Nikon D5500||Y||stereo||mono||Y||-||mini||2.0||Y||-||-||Nikon D5500|
|Nikon D7200||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Nikon D7200|
|Nikon D7100||Y||stereo||mono||Y||Y||mini||2.0||-||-||-||Nikon D7100|
|Nikon Df||Y||none||none||-||-||mini||2.0||-||-||-||Nikon Df|
|Nikon D610||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Nikon D610|
|Nikon D600||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Nikon D600|
|Nikon D300S||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Nikon D300S|
|Nikon D700||Y||none||none||-||-||mini||2.0||-||-||-||Nikon D700|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
The D500 is a recent model that features in the current product line-up of Nikon. In contrast, the D750 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the D750 was succeeded by the Nikon D780. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon website.
So what conclusions can be drawn? Is the Nikon D500 better than the Nikon D750 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Nikon D500:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better jpgs: Has a more modern image processing engine (EXPEED 5 vs EXPEED 4).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- More detailed LCD: Has a higher resolution rear screen (2359k vs 1229k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 6 flaps/sec) to capture the decisive moment.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More affordable: Was introduced into a lower priced segment (13 percent cheaper at launch).
- More modern: Is somewhat more recent (announced 1 year and 3 months after the D750).
Arguments in favor of the Nikon D750:
- More detail: Has more megapixels (24.2 vs 20.7MP), which boosts linear resolution by 8%.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Scores markedly higher (10 points) in the DXO overall evaluation.
- Better low-light sensitivity: Can shoot in dim conditions (1.2 stops ISO advantage).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.67x).
- Less heavy: Has a lower weight (by 110g or 13 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More heavily discounted: Has been on the market for longer (launched in September 2014).
If the number of relative strengths (bullet points above) is taken as a guide, the D500 is the clear winner of the match-up (13 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D500 and the Nikon D750 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the D500 or the D750 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D X Mark III vs Nikon D750
- Canon 5D Mark II vs Nikon D750
- Canon G16 vs Nikon D750
- Canon XTi vs Nikon D500
- Leica D-LUX 5 vs Nikon D500
- Leica D-LUX 6 vs Nikon D500
- Nikon D4S vs Nikon D500
- Nikon D500 vs Panasonic FT7
- Nikon D500 vs Sony H200
- Nikon D500 vs Sony RX100 VI
- Nikon D750 vs Nikon Z6
- Nikon D750 vs Panasonic GX9
Specifications: Nikon D500 vs Nikon D750
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D500||Nikon D750|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Nikon F mount lenses|
|Launch Date||January 2016||September 2014|
|Launch Price||USD 1999||USD 2299|
|Sensor Specs||Nikon D500||Nikon D750|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||23.5 x 15.7 mm||35.9 x 24.0 mm|
|Sensor Area||368.95 mm2||861.6 mm2|
|Sensor Diagonal||28.3 mm||43.2 mm|
|Sensor Resolution||20.7 Megapixels||24.2 Megapixels|
|Image Resolution||5568 x 3712 pixels||6016 x 4016 pixels|
|Pixel Pitch||4.22 μm||5.97 μm|
|Pixel Density||5.60 MP/cm2||2.80 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/60p Video|
|ISO Setting||100-51200 ISO||100-12800 ISO|
|ISO Boost||50-1640000 ISO||50-51200 ISO|
|Image Processor||EXPEED 5||EXPEED 4|
|DXO Sensor Quality (score)||83||93|
|DXO Color Depth (bits)||24.0||24.8|
|DXO Dynamic Range (EV)||14.0||14.5|
|DXO Low Light (ISO)||1324||2956|
|Screen Specs||Nikon D500||Nikon D750|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2 inch||3.2 inch|
|LCD Resolution||2359k dots||1229k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Nikon D500||Nikon D750|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||10 shutter flaps/s||6 shutter flaps/s|
|Shutter Life Expectancy||200 000 actuations||150 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC or XQD cards||SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|UHS card support||UHS-II||UHS-I|
|Connectivity Specs||Nikon D500||Nikon D750|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Nikon D500||Nikon D750|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1240 shots per charge||1230 shots per charge|
147 x 115 x 81 mm
(5.8 x 4.5 x 3.2 in)
141 x 113 x 78 mm
(5.6 x 4.4 x 3.1 in)
|Camera Weight||860 g (30.3 oz)||750 g (26.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
