Nikon D3S vs Olympus XZ-2

The Nikon D3S and the Olympus XZ-2 are two digital cameras that were officially introduced, respectively, in October 2009 and September 2012. The D3S is a DSLR, while the XZ-2 is a fixed lens compact. The cameras are based on a full frame (D3S) and a 1/1.7-inch (XZ-2) sensor. The Nikon has a resolution of 12.1 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D3S		Olympus XZ-2
Digital single lens reflex		Fixed lens compact camera
Nikon F mount lenses		28-112mm f/1.8-2.5
12.1 MP – Full Frame sensor		11.8 MP – 1/1.7" sensor
720/24p Video		1080/30p Video
ISO 200-12,800 (100 - 102,400)		ISO 100-12,800
Optical viewfinder		Viewfinder optional
3.0" LCD – 921k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
11 shutter flaps per second		5 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		not weather sealed
4200 shots per battery charge		340 shots per battery charge
160 x 157 x 88 mm, 1240 g		113 x 65 x 48 mm, 346 g

Check D3S offers at
ebay.com
Check XZ-2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3S and the Olympus XZ-2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

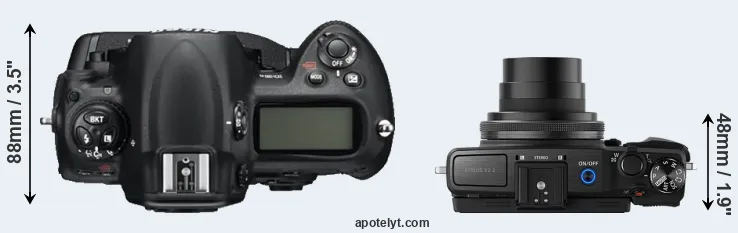

An illustration of the physical size and weight of the Nikon D3S and the Olympus XZ-2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-2 is considerably smaller (71 percent) than the Nikon D3S. It is worth mentioning in this context that the D3S is splash and dust resistant, while the XZ-2 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-2 has a lens built in, whereas the D3S is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D3S and their specifications in the Nikon Lens Catalog.

As can be seen in the images above, the D3S has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
2.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
3.		Canon 1D Mark III	156 mm	157 mm	80 mm	1155 g	2200	Y	Feb 2007	US$ 4 499	ebay.com
4.		Canon 1D Mark IV	156 mm	157 mm	80 mm	1230 g	1500	Y	Oct 2009	US$ 4 999	ebay.com
5.		Nikon D2Xs	158 mm	150 mm	86 mm	1252 g	3800	Y	Jun 2006	US$ 4 699	ebay.com
6.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	US$ 4 999	ebay.com
7.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	US$ 7 999	ebay.com
8.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	US$ 5 999	ebay.com
9.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	US$ 6 499	ebay.com
10.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
11.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	US$ 1 799	ebay.com
12.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	US$ 2 999	ebay.com
13.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
14.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
15.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
16.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
17.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XZ-2 was launched at a lower price than the D3S, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Nikon D3S features a full frame sensor and the Olympus XZ-2 a 1/1.7-inch sensor. The sensor area in the XZ-2 is 95 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 4.4. The sensor in the D3S has a native 3:2 aspect ratio, while the one in the XZ-2 offers a 4:3 aspect.

With 12.1MP, the D3S offers a slightly higher resolution than the XZ-2 (11.8MP), but the D3S nevertheless has larger individual pixels (pixel pitch of 8.43μm versus 1.91μm for the XZ-2) due to its larger sensor. However, the XZ-2 is a much more recent model (by 2 years and 11 months) than the D3S, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The Nikon D3S has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 100-102400. The corresponding ISO settings for the Olympus XZ-2 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the D3S provides substantially higher image quality than the XZ-2, with an overall score that is 33 points higher. This advantage is based on 3.1 bits higher color depth, 0.7 EV in additional dynamic range, and 3.9 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
2.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
3.		Canon 1D Mark III	APS-H	10.1	3888	2592	none	22.7	11.7	1078	71
4.		Canon 1D Mark IV	APS-H	16.0	4896	3264	1080/30p	22.8	12.0	1320	74
5.		Nikon D2Xs	APS-C	12.2	4288	2848	none	22.2	10.9	489	59
6.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
7.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
8.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
9.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
10.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
11.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
12.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
13.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
14.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
15.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
16.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
17.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the XZ-2 provides a better video resolution than the D3S. It can shoot movie footage at 1080/30p, while the Nikon is limited to 720/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D3S has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XZ-2 relies on live view and the rear LCD for framing. That said, the XZ-2 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Nikon D3S, the Olympus XZ-2, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
2.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
3.		Canon 1D Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	10.0/s	n	n
4.		Canon 1D Mark IV	optical	Y	3.0 / 920	fixed	n	1/8000s	10.0/s	n	n
5.		Nikon D2Xs	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	n	n
6.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
7.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
8.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
9.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
10.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
11.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
12.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
13.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
14.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
15.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
16.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
17.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D3S, but is missing on the XZ-2 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Nikon D3S and the Olympus XZ-2 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D3S writes its imaging data to Compact Flash cards, while the XZ-2 uses SDXC cards. The D3S features dual card slots, which can be very useful in case a memory card fails. In contrast, the XZ-2 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3S and Olympus XZ-2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 1D Mark III	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon 1D Mark IV	Y	stereo / -	Y	-	mini	2.0	-	-	-
5.		Nikon D2Xs	Y	- / -	-	-	-	2.0	-	-	-
6.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
7.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
8.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
9.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
10.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
11.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
17.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Nikon D3S (unlike the XZ-2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D3S and the XZ-2 have been discontinued, but can regularly be found used on ebay. The D3S was replaced by the Nikon D4, while the XZ-2 does not have a direct successor. Further information on the features and operation of the D3S and XZ-2 can be found, respectively, in the Nikon D3S Manual (free pdf) or the online Olympus XZ-2 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Nikon D3S and the Olympus XZ-2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Nikon D3S:

• Better image quality: Scores substantially higher (33 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (3.1 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (3.9 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (11 vs 5 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (4200 versus 340) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in October 2009).

Arguments in favor of the Olympus XZ-2:

• Better video: Provides higher definition movie capture (1080/30p vs 720/24p).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Ready to shoot: Comes with an integrated lens, while the D3S requires a separate lens.
• More compact: Is smaller (113x65mm vs 160x157mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the D3S).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 2 years and 11 months of technical progress since the D3S launch.

If the count of individual advantages (bullet points above) is taken as a guide, the D3S is the clear winner of the match-up (15 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D3S and the Olympus XZ-2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D3S or the XZ-2 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
2.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
3.		Canon 1D Mark III	..	..	..	..	..	..	Feb 2007	US$ 4 499	ebay.com
4.		Canon 1D Mark IV	5/5	..	..	89/100	..	..	Oct 2009	US$ 4 999	ebay.com
5.		Nikon D2Xs	..	..	..	..	..	..	Jun 2006	US$ 4 699	ebay.com
6.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	US$ 4 999	ebay.com
7.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	US$ 7 999	ebay.com
8.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	US$ 5 999	ebay.com
9.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	US$ 6 499	ebay.com
10.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
11.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	US$ 1 799	ebay.com
12.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	US$ 2 999	ebay.com
13.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
14.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
15.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
16.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
17.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
