Nikon D3400 vs D3S
The Nikon D3400 and the Nikon D3S are two digital cameras that were officially introduced, respectively, in August 2016 and October 2009. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D3400) and a full frame (D3S) sensor. The D3400 has a resolution of 24 megapixels, whereas the D3S provides 12.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3400 and the Nikon D3S? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

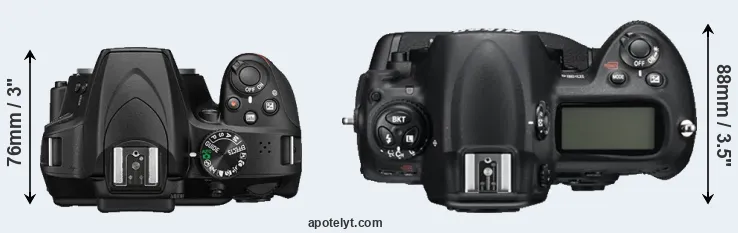

The physical size and weight of the Nikon D3400 and the Nikon D3S are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The D3400 can be obtained in two different colors (black, red), while the D3S is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3S is considerably larger (107 percent) than the Nikon D3400. Moreover, the D3S is substantially heavier (179 percent) than the D3400. It is noteworthy in this context that the D3S is splash and dust-proof, while the D3400 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the D3S) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (D3400). You can compare the optics available in the Nikon Lens Catalog.
Concerning battery life, the D3400 gets 1200 shots out of its EN-EL14a battery, while the D3S can take 4200 images on a single charge of its EN-EL4a power pack. As can be seen in the images above, the D3S has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D3400, there are third party battery grips available as optional accessories (see here on eBay).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|2.||Nikon D3S||160 mm||157 mm||88 mm||1240 g||4200||Y||Oct 2009||5,199|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|6.||Nikon D3500||124 mm||97 mm||70 mm||415 g||1550||n||Aug 2018||429|
|7.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|8.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|9.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|10.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899|
|11.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|12.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|13.||Nikon D4||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999|
|14.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|15.||Nikon D3X||160 mm||157 mm||88 mm||1260 g||4400||Y||Dec 2008||7,999|
|16.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|17.||Nikon D3||160 mm||157 mm||88 mm||1300 g||4300||Y||Aug 2007||4,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D3400 was launched at a markedly lower price (by 90 percent) than the D3S, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

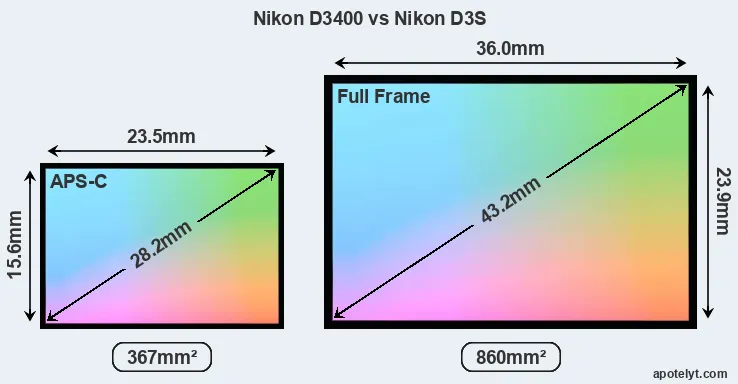

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D3400 features an APS-C sensor and the Nikon D3S a full frame sensor. The sensor area in the D3S is 134 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the D3400 uses a more advanced image processing engine (EXPEED 4) than the D3S (EXPEED), with benefits for noise reduction, color accuracy, and processing speed.

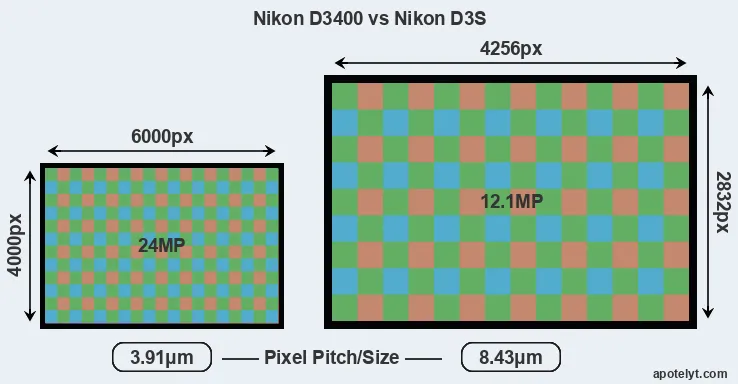

Despite having a smaller sensor, the Nikon D3400 offers a higher resolution of 24 megapixels, compared with 12.1 MP of the Nikon D3S. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 8.43μm for the D3S). However, it should be noted that the D3400 is much more recent (by 6 years and 10 months) than the D3S, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the D3400 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D3400 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3400 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D3S are 21.3 x 14.2 inches or 54.1 x 36 cm for good quality, 17 x 11.3 inches or 43.2 x 28.8 cm for very good quality, and 14.2 x 9.4 inches or 36 x 24 cm for excellent quality prints.
The Nikon D3400 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Nikon D3S are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 100-102400.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the D3400 has a notably higher overall DXO score than the D3S (overall score 4 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 1.3 bits higher color depth, 1.9 EV in additional dynamic range, and 1.4 stops of reduced low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|9.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|13.||Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|15.||Nikon D3X||Full Frame||24.4||6048||4032||none||24.7||13.7||1992||88|
|16.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|17.||Nikon D3||Full Frame||12.1||4256||2832||none||23.5||12.2||2290||81|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D3400 provides a higher video resolution than the D3S. It can shoot video footage at 1080/60p, while the D3S is limited to 720/24p.
Beyond body and sensor, cameras can and do differ across a range of features. The D3400 and the D3S are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D3S offers a wider field of view (100%) than the one in the D3400 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D3S has a higher magnification (0.70x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D3400, the Nikon D3S, and comparable cameras.
|1.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|2.||Nikon D3S||optical||Y||3.0 / 921||fixed||n||1/8000s||11.0||n||n|
|3.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|4.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|5.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1||Y||n|
|6.||Nikon D3500||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|7.||Nikon D7500||optical||Y||3.2 / 922||tilting||Y||1/8000s||8.0||Y||n|
|8.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|9.||Nikon D5||optical||Y||3.2 / 2359||fixed||Y||1/8000s||14.0||n||n|
|10.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|11.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|12.||Nikon D5300||optical||n||3.2 / 1037||swivel||n||1/4000s||5.0||Y||n|
|13.||Nikon D4||optical||Y||3.2 / 921||fixed||n||1/8000s||11.0||n||n|
|14.||Nikon D3200||optical||n||3.0 / 921||fixed||n||1/4000s||4.0||Y||n|
|15.||Nikon D3X||optical||Y||3.0 / 922||fixed||n||1/8000s||5.0||n||n|
|16.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0||Y||n|
|17.||Nikon D3||optical||Y||3.0 / 922||fixed||n||1/8000s||11.0||n||n|
One difference between the cameras concerns the presence of an on-board flash. The D3400 has one, while the D3S does not. While the built-in flash of the D3400 is not very powerful, it can at times be useful as a fill-in light.
The Nikon D3S has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D3400 writes its imaging data to SDXC cards, while the D3S uses Compact Flash cards. The D3S features dual card slots, which can be very useful in case a memory card fails. In contrast, the D3400 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3400 and Nikon D3S and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|2.||Nikon D3S||Y||stereo / -||-||-||mini||2.0||-||-||-|
|3.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|6.||Nikon D3500||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|7.||Nikon D7500||Y||stereo / mono||Y||Y||mini||2.0||Y||-||Y|
|8.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|9.||Nikon D5||Y||stereo / mono||Y||Y||mini||3.0||-||-||-|
|10.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|11.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|12.||Nikon D5300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|13.||Nikon D4||Y||mono / mono||Y||Y||micro||2.0||-||-||-|
|14.||Nikon D3200||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|15.||Nikon D3X||Y||- / -||-||-||mini||2.0||-||-||-|
|16.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
|17.||Nikon D3||Y||- / -||-||-||mini||2.0||-||-||-|
Studio photographers will appreciate that the Nikon D3S (unlike the D3400) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D3400 and the D3S have been discontinued, but can regularly be found used on eBay. The D3S was replaced by the Nikon D4, while the D3400 was followed by the Nikon D3500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon website.
So what is the bottom line? Is there a clear favorite between the Nikon D3400 and the Nikon D3S? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Nikon D3400:
- More detail: Offers more megapixels (24 vs 12.1MP) with a 41% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores markedly higher (4 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.3 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.9 EV of extra DR).
- Better jpgs: Has a more modern image processing engine (EXPEED 4 vs EXPEED).
- Better video: Provides higher definition movie capture (1080/60p vs 720/24p).
- More compact: Is smaller (124x98mm vs 160x157mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 795g or 64 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (90 percent cheaper at launch).
- More modern: Reflects 6 years and 10 months of technical progress since the D3S launch.
Arguments in favor of the Nikon D3S:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better low-light sensitivity: Can shoot in dim conditions (1.4 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.57x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (11 vs 5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Gets more shots (4200 versus 1200) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in October 2009).
If the count of relative strengths (bullet points above) is taken as a measure, the D3S comes out slightly ahead of the D3400 (14 : 13 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D3400 and the Nikon D3S place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D3400 or the D3S. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499|
|2.||Nikon D3S||5/5||..||..||89/100||4.5/5||5/5||Oct 2009||5,199|
|3.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499|
|6.||Nikon D3500||..||..||4/5||75/100||4/5||4.5/5||Aug 2018||429|
|7.||Nikon D7500||4.5/5||+ +||4.5/5||86/100||5/5||4.5/5||Apr 2017||1,299|
|8.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|9.||Nikon D5||..||..||4/5||89/100||4.5/5||5/5||Jan 2016||6,499|
|10.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899|
|11.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499|
|12.||Nikon D5300||4/5||+ +||..||79/100||4.5/5||4.5/5||Oct 2013||799|
|13.||Nikon D4||..||..||..||..||4.5/5||4.5/5||Jan 2012||5,999|
|14.||Nikon D3200||5/5||+ +||..||73/100||4.5/5||4.5/5||Apr 2012||599|
|15.||Nikon D3X||..||..||..||86/100||4/5||5/5||Dec 2008||7,999|
|16.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|17.||Nikon D3||..||..||..||+ +||5/5||4.5/5||Aug 2007||4,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon S120 vs Nikon D3S
- Leica Q Typ 116 vs Nikon D3400
- Nikon D3400 vs Nikon D5500
- Nikon D3400 vs Nikon Df
- Nikon D3400 vs Panasonic G10
- Nikon D3400 vs Sony RX1
- Nikon D3400 vs Sony RX1R
- Nikon D3S vs Panasonic FZ1000 II
- Nikon D3S vs Panasonic GF1
- Nikon D3S vs Panasonic LX15
- Nikon D3S vs Sony A6600
- Nikon D3S vs Sony A77
Specifications: Nikon D3400 vs Nikon D3S
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D3400||Nikon D3S|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Nikon F mount lenses|
|Launch Date||August 2016||October 2009|
|Launch Price||USD 499||USD 5,199|
|Sensor Specs||Nikon D3400||Nikon D3S|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||23.5 x 15.6 mm||36.0 x 23.9 mm|
|Sensor Area||366.6 mm2||860.4 mm2|
|Sensor Diagonal||28.2 mm||43.2 mm|
|Sensor Resolution||24 Megapixels||12.1 Megapixels|
|Image Resolution||6000 x 4000 pixels||4256 x 2832 pixels|
|Pixel Pitch||3.91 μm||8.43 μm|
|Pixel Density||6.55 MP/cm2||1.40 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||720/24p Video|
|ISO Setting||100 - 25,600 ISO||200 - 12,800 ISO|
|ISO Boost||no Enhancement||100 - 102,400 ISO|
|Image Processor||EXPEED 4||EXPEED|
|DXO Sensor Quality (score)||86||82|
|DXO Color Depth (bits)||24.8||23.5|
|DXO Dynamic Range (EV)||13.9||12.0|
|DXO Low Light (ISO)||1192||3253|
|Screen Specs||Nikon D3400||Nikon D3S|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||921k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Nikon D3400||Nikon D3S|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||11 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||300 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||CF cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Nikon D3400||Nikon D3S|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Nikon D3400||Nikon D3S|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||1200 shots per charge||4200 shots per charge|
124 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
160 x 157 x 88 mm
(6.3 x 6.2 x 3.5 in)
|Camera Weight||445 g (15.7 oz)||1240 g (43.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
