Nikon D3 versus Nikon D810

The Nikon D3 and the Nikon D810 are two professional cameras that were officially introduced, respectively, in August 2007 and June 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a full frame sensor. The D3 has a resolution of 12.1 megapixel, whereas the D810 provides 36.2 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Nikon D3 vs Nikon D810

An illustration of the physical size and weight of the Nikon D3 and the Nikon D810 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left side – the D3 – represents the basis for the calculations across all the size and weight measures).

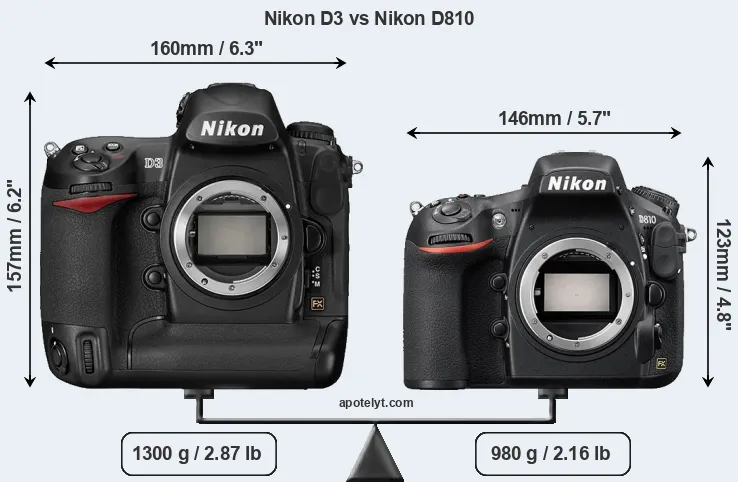

Compare Nikon D3 vs Nikon D810

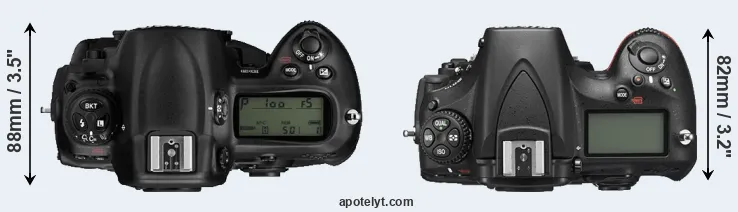

Compare D3 versus D810 top

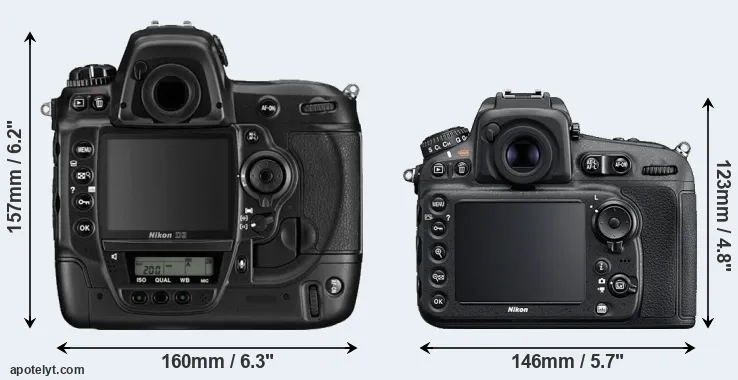

Compare D3 and D810 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D810 is notably smaller (29 percent) than the Nikon D3. Moreover, the D810 is markedly lighter (25 percent) than the D3. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can find an overview of suitable optics in the Nikon Lens Catalog.

Concerning battery life, the D3 gets 4300 shots out of its EN-EL4a battery, while the D810 can take 1200 images on a single charge of its EN-EL15 power pack. As can be seen in the images above, the D3 has a battery grip build in. This facilitates image-taking in portrait orientation and contributes to its long-lasting power supply. In order to provide similar functionality for the D810, Nikon provides the MB-D12 vertical grip as an optional accessory (see here on eBay).

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Nikon D3» 6.3 in 6.2 in 3.5 in 45.9 oz 4300 Y Aug 2007 4,999- i Nikon D3
Nikon D810« 5.7 in 4.8 in 3.2 in 34.6 oz 1200 Y Jun 2014 3,299- i Nikon D810
Canon 1D Mark III« » 6.1 in 6.2 in 3.1 in 40.7 oz 2200 Y Feb 2007 4,499- i Canon 1D Mark III
Nikon D850« » 5.7 in 4.9 in 3.1 in 35.5 oz 1840 Y Jul 2017 3,299 i i Nikon D850
Nikon D5« » 6.3 in 6.3 in 3.6 in 49.9 oz 3780 Y Jan 2016 6,499 i i Nikon D5
Nikon D4S« » 6.3 in 6.2 in 3.6 in 47.6 oz 3020 Y Feb 2014 6,499- i Nikon D4S
Nikon Df« » 5.7 in 4.3 in 2.6 in 26.8 oz 1400 Y Nov 2013 2,749 i i Nikon Df
Nikon D610« » 5.6 in 4.4 in 3.2 in 30.0 oz 900 Y Oct 2013 1,999 i i Nikon D610
Nikon D4« » 6.3 in 6.2 in 3.6 in 47.3 oz 2600 Y Jan 2012 5,999- i Nikon D4
Nikon D800« » 5.7 in 4.8 in 3.2 in 35.3 oz 900 Y Feb 2012 2,999- i Nikon D800
Nikon D800E« » 5.7 in 4.8 in 3.2 in 35.3 oz 900 Y Feb 2012 3,299- i Nikon D800E
Nikon D3S« » 6.3 in 6.2 in 3.5 in 43.7 oz 4200 Y Oct 2009 5,199- i Nikon D3S
Nikon D3X« » 6.3 in 6.2 in 3.5 in 44.4 oz 4400 Y Dec 2008 7,999- i Nikon D3X
Nikon D700« » 5.8 in 4.8 in 3.0 in 37.9 oz 1000 Y Jul 2008 2,999- i Nikon D700
Nikon D300« » 5.8 in 4.5 in 2.9 in 32.6 oz 1000 Y Aug 2007 1,799- i Nikon D300
Nikon D2Xs« » 6.2 in 5.9 in 3.4 in 44.2 oz 3800 Y Jun 2006 4,699- i Nikon D2Xs
Nikon D2X« » 6.2 in 5.9 in 3.4 in 44.2 oz 3800 Y Sep 2004 4,999- i Nikon D2X

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D810 was launched at a markedly lower price (by 34 percent) than the D3, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Nikon D3 vs Nikon D810

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the D810 uses a more advanced image processing engine (EXPEED 4) than the D3 (EXPEED), with benefits for noise reduction, color accuracy, and processing speed.

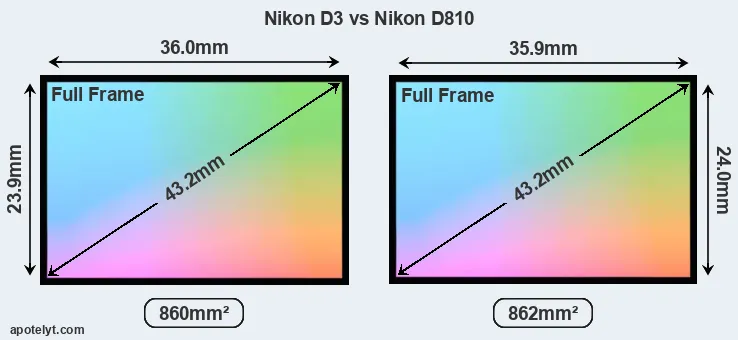

Nikon D3 and Nikon D810 sensor measures

With 36.2MP, the D810 offers a higher resolution than the D3 (12.1MP), but the D810 has smaller individual pixels (pixel pitch of 4.88μm versus 8.43μm for the D3). Yet, the D810 is a much more recent model (by 6 years and 10 months) than the D3, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D810 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

D3 versus D810 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the D810 offers substantially better image quality than the D3 (overall score 16 points higher). The advantage is based on 2.2 bits higher color depth, 2.6 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Nikon D3» Full Frame 12.1 4256 2832-23.512.2229081Nikon D3
Nikon D810« Full Frame 36.2 7360 49121080/60p25.714.8285397Nikon D810
Canon 1D Mark III« » APS-H 10.1 3888 2592-22.711.7107871Canon 1D Mark III
Nikon D850« » Full Frame 45.4 8256 55044K/30p26.414.82660100Nikon D850
Nikon D5« » Full Frame 20.7 5588 37124K/30p25.112.3234388Nikon D5
Nikon D4S« » Full Frame 16.2 4928 32801080/60p24.413.3307489Nikon D4S
Nikon Df« » Full Frame 16.2 4928 3280-24.613.1327989Nikon Df
Nikon D610« » Full Frame 24.2 6016 40161080/30p25.114.4292594Nikon D610
Nikon D4« » Full Frame 16.2 4928 32801080/30p24.713.1296589Nikon D4
Nikon D800« » Full Frame 36.2 7360 49121080/30p25.314.4285395Nikon D800
Nikon D800E« » Full Frame 36.2 7360 49121080/30p25.614.3297996Nikon D800E
Nikon D3S« » Full Frame 12.1 4256 2832720/24p23.512.0325382Nikon D3S
Nikon D3X« » Full Frame 24.4 6048 4032-24.713.7199288Nikon D3X
Nikon D700« » Full Frame 12.1 4256 2832-23.512.2230380Nikon D700
Nikon D300« » APS-C 12.2 4288 2848-22.112.067967Nikon D300
Nikon D2Xs« » APS-C 12.2 4288 2848-22.210.948959Nikon D2Xs
Nikon D2X« » APS-C 12.2 4288 2848-22.110.947659Nikon D2X

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D810 indeed provides for movie recording, while the D3 does not. The highest resolution format that the D810 can use is 1080/60p.



Feature comparison: Nikon D3 vs Nikon D810

Apart from body and sensor, cameras can and do differ across a range of features. The D3 and the D810 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The table below summarizes some of the other core capabilities of the Nikon D3 and Nikon D810 in connection with corresponding information for a sample of similar cameras. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec))
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Nikon D3»optical Y 3.0 922 fixed n 8000 11.0 n n Nikon D3
Nikon D810«optical Y 3.2 1229 fixed n 8000 5.0 Y n Nikon D810
Canon 1D Mark III« »optical Y 3.0 230 fixed n 8000 10.0 n n Canon 1D Mark III
Nikon D850« »optical Y 3.2 2359 tilting Y 8000 9.0 n n Nikon D850
Nikon D5« »optical Y 3.2 2359 fixed Y 8000 14.0 n n Nikon D5
Nikon D4S« »optical Y 3.2 921 fixed n 8000 11.0 n n Nikon D4S
Nikon Df« »optical Y 3.2 921 fixed n 4000 5.5 n n Nikon Df
Nikon D610« »optical Y 3.2 921 fixed n 4000 6.0 Y n Nikon D610
Nikon D4« »optical Y 3.2 921 fixed n 8000 11.0 n n Nikon D4
Nikon D800« »optical Y 3.2 921 fixed n 8000 4.0 Y n Nikon D800
Nikon D800E« »optical Y 3.2 921 fixed n 8000 4.0 Y n Nikon D800E
Nikon D3S« »optical Y 3.0 921 fixed n 8000 11.0 n n Nikon D3S
Nikon D3X« »optical Y 3.0 922 fixed n 8000 5.0 n n Nikon D3X
Nikon D700« »optical Y 3.0 922 fixed n 8000 8.0 Y n Nikon D700
Nikon D300« »optical Y 3.0 922 fixed n 8000 6.0 Y n Nikon D300
Nikon D2Xs« »optical Y 2.5 230 fixed n 8000 5.0 n n Nikon D2Xs
Nikon D2X« »optical Y 2.5 235 fixed n 8000 5.0 n n Nikon D2X

One difference between the cameras concerns the presence of an on-board flash. The D810 has one, while the D3 does not. While the build-in flash of the D810 is not very powerful, it can at times be useful as a fill-in light.

Both the D3 and the D810 have been discontinued, but can regularly be found used on eBay. The D3 was replaced by the Nikon D4, while the D810 was followed by the Nikon D850.

Review summary: Nikon D3 vs Nikon D810

So what conclusions can be drawn? Which of the two cameras – the Nikon D3 or the Nikon D810 – has the upper hand? A synthesis of the relative strong points of each of the models is listed below.


Reasons to prefer the Nikon D3:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Faster burst: Shoots at higher frequency (11 vs 5 flaps/sec) to capture the decisive moment.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (4300 versus 1200) on a single battery charge.
  • More heavily discounted: Has been available for much longer (launched in August 2007).


Advantages of the Nikon D810:

  • More detail: Has more megapixels (36.2 vs 12.1MP), which boosts linear resolution by 73%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (16 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2.2 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (2.6 EV of extra DR).
  • Better jpgs: Has a more modern image processing engine (EXPEED 4 vs EXPEED).
  • Broader imaging potential: Can capture not only stills but also 1080/60p video.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1229k vs 922k dots).
  • More compact: Is smaller (146x123mm vs 160x157mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 320g or 25 percent) and is thus easier to take along.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • More affordable: Was introduced into a lower priced category (34 percent cheaper at launch).
  • More modern: Reflects 6 years and 10 months of technical progress since the D3 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the D810 is the clear winner of the contest (14 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

D3 05:14 D810

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the D3 or the D810. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased. This is where reviews by experts come in. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The detailed reviews can be accessed by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Nikon D3»-HiRec5/5rev4.5/5 Aug 2007 4,999- i Nikon D3
Nikon D810«-86/1005/54.5/54.5/5 Jun 2014 3,299- i Nikon D810
Canon 1D Mark III« »---rev- Feb 2007 4,499- i Canon 1D Mark III
Nikon D850« »HiRec89/1004.5/55/55/5 Jul 2017 3,299 i i Nikon D850
Nikon D5« »-89/1004.5/55/55/5 Jan 2016 6,499 i i Nikon D5
Nikon D4S« »--4.5/55/54.5/5 Feb 2014 6,499- i Nikon D4S
Nikon Df« »-81/1004/54/54/5 Nov 2013 2,749 i i Nikon Df
Nikon D610« »HiRec87/1004.5/54.5/54.5/5 Oct 2013 1,999 i i Nikon D610
Nikon D4« »--4.5/5-4.5/5 Jan 2012 5,999- i Nikon D4
Nikon D800« »HiRec82/1005/55/55/5 Feb 2012 2,999- i Nikon D800
Nikon D800E« »-84/1005/54.5/55/5 Feb 2012 3,299- i Nikon D800E
Nikon D3S« »-89/1004.5/55/55/5 Oct 2009 5,199- i Nikon D3S
Nikon D3X« »-86/1004/55/55/5 Dec 2008 7,999- i Nikon D3X
Nikon D700« »89/100HiRec4.5/55/54.5/5 Jul 2008 2,999- i Nikon D700
Nikon D300« »HiRecHiRec5/5rev4.5/5 Aug 2007 1,799- i Nikon D300
Nikon D2Xs« »---rev- Jun 2006 4,699- i Nikon D2Xs
Nikon D2X« »-HiRec-rev- Sep 2004 4,999- i Nikon D2X

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
