Nikon D2X vs D3300
The Nikon D2X and the Nikon D3300 are two digital cameras that were officially introduced, respectively, in September 2004 and January 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The D2X has a resolution of 12.2 megapixels, whereas the D3300 provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D2X and the Nikon D3300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

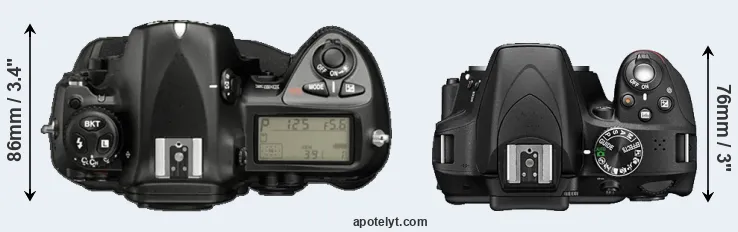

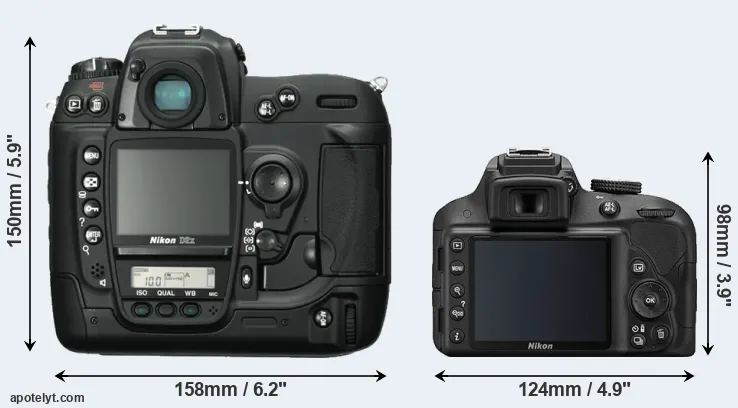

The physical size and weight of the Nikon D2X and the Nikon D3300 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The D3300 can be obtained in three different colors (black, grey, red), while the D2X is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3300 is considerably smaller (49 percent) than the Nikon D2X. Moreover, the D3300 is substantially lighter (66 percent) than the D2X. It is worth mentioning in this context that the D2X is splash and dust resistant, while the D3300 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Nikon Lens Catalog.
Concerning battery life, the D2X gets 3800 shots out of its EN-EL4a battery, while the D3300 can take 700 images on a single charge of its EN-EL14a power pack. As can be seen in the images above, the D2X has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D3300, there are third party battery grips available as optional accessories (see here on ebay).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Nikon D2X||158 mm||150 mm||86 mm||1252 g||3800||Y||Sep 2004||4,999||ebay.com|
|2.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499||ebay.com|
|3.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|4.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499||ebay.com|
|5.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899||ebay.com|
|6.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799||ebay.com|
|7.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599||ebay.com|
|8.||Nikon D3S||160 mm||157 mm||88 mm||1240 g||4200||Y||Oct 2009||5,199||ebay.com|
|9.||Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799||ebay.com|
|10.||Nikon D3||160 mm||157 mm||88 mm||1300 g||4300||Y||Aug 2007||4,999||ebay.com|
|11.||Nikon D300||147 mm||114 mm||74 mm||925 g||1000||Y||Aug 2007||1,799||ebay.com|
|12.||Nikon D2Xs||158 mm||150 mm||86 mm||1252 g||3800||Y||Jun 2006||4,699||ebay.com|
|13.||Nikon D200||147 mm||113 mm||74 mm||920 g||400||Y||Nov 2005||1,699||ebay.com|
|14.||Nikon D2H||158 mm||150 mm||86 mm||1070 g||2900||Y||Jul 2003||3,499||ebay.com|
|15.||Nikon D1H||157 mm||153 mm||85 mm||1100 g||1200||Y||Feb 2001||4,499||ebay.com|
|16.||Nikon D1X||157 mm||153 mm||85 mm||1100 g||1200||Y||Feb 2001||5,999||ebay.com|
|17.||Nikon D1||157 mm||153 mm||85 mm||1100 g||..||Y||Jun 1999||5,499||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D3300 was launched at a markedly lower price (by 90 percent) than the D2X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

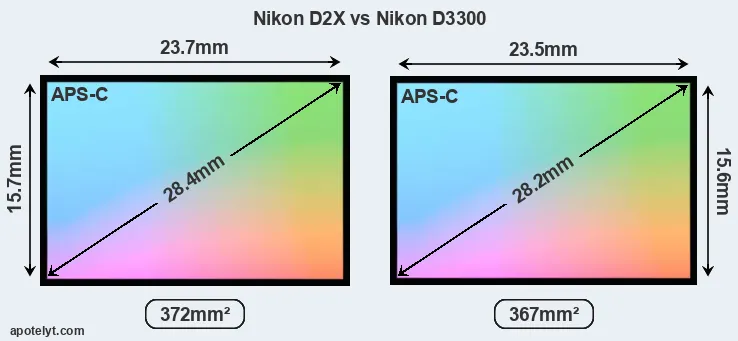

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D3300 is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a slightly smaller sensor, the D3300 offers a higher resolution of 24 megapixels, compared with 12.2 MP of the D2X. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 5.52μm for the D2X). However, it should be noted that the D3300 is much more recent (by 9 years and 3 months) than the D2X, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the D3300 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D3300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3300 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D2X are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.
The Nikon D2X has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-3200. The corresponding ISO settings for the Nikon D3300 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the D3300 offers substantially better image quality than the D2X (overall score 23 points higher). The advantage is based on 2.2 bits higher color depth, 1.9 EV in additional dynamic range, and 1.5 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|8.||Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|10.||Nikon D3||Full Frame||12.1||4256||2832||none||23.5||12.2||2290||81|
Many modern cameras are not only capable of taking still images, but can also record movies. The D3300 indeed provides for movie recording, while the D2X does not. The highest resolution format that the D3300 can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. The D2X and the D3300 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D2X offers a wider field of view (100%) than the one in the D3300 (95%), so that a larger proportion of the captured image is visible in the finder. The following table reports on some other key feature differences and similarities of the Nikon D2X, the Nikon D3300, and comparable cameras.
|1.||Nikon D2X||optical||Y||2.5 / 235||fixed||n||1/8000s||5.0/s||n||n|
|2.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|3.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|4.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|5.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|6.||Nikon D5300||optical||n||3.2 / 1037||swivel||n||1/4000s||5.0/s||Y||n|
|7.||Nikon D3200||optical||n||3.0 / 921||fixed||n||1/4000s||4.0/s||Y||n|
|8.||Nikon D3S||optical||Y||3.0 / 921||fixed||n||1/8000s||11.0/s||n||n|
|9.||Nikon D300S||optical||Y||3.0 / 920||fixed||n||1/8000s||7.0/s||Y||n|
|10.||Nikon D3||optical||Y||3.0 / 922||fixed||n||1/8000s||11.0/s||n||n|
|11.||Nikon D300||optical||Y||3.0 / 922||fixed||n||1/8000s||6.0/s||Y||n|
|12.||Nikon D2Xs||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||n||n|
|13.||Nikon D200||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||Y||n|
|14.||Nikon D2H||optical||Y||2.5 / 211||fixed||n||1/8000s||8.0/s||n||n|
|15.||Nikon D1H||optical||Y||2.0 / 120||fixed||n||1/16000s||5.0/s||n||n|
|16.||Nikon D1X||optical||Y||2.0 / 120||fixed||n||1/16000s||3.0/s||n||n|
|17.||Nikon D1||optical||Y||2.0 / 120||fixed||n||1/16000s||1.5/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the D2X, but is missing on the D3300 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The D2X writes its imaging data to Compact Flash cards, while the D3300 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D2X and Nikon D3300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Nikon D2X||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|3.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|5.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|6.||Nikon D5300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|7.||Nikon D3200||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Nikon D3S||Y||stereo / -||-||-||mini||2.0||-||-||-|
|9.||Nikon D300S||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Nikon D3||Y||- / -||-||-||mini||2.0||-||-||-|
|11.||Nikon D300||Y||- / -||-||-||mini||2.0||-||-||-|
|12.||Nikon D2Xs||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Nikon D200||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Nikon D2H||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Nikon D1H||Y||- / -||-||-||-||FW||-||-||-|
|16.||Nikon D1X||Y||- / -||-||-||-||FW||-||-||-|
|17.||Nikon D1||Y||- / -||-||-||-||FW||-||-||-|
Studio photographers will appreciate that the Nikon D2X (unlike the D3300) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D2X and the D3300 have been discontinued, but can regularly be found used on ebay. The D2X was replaced by the Nikon D2Xs, while the D3300 was followed by the Nikon D3400. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon website.
So how do things add up? Is the Nikon D2X better than the Nikon D3300 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Nikon D2X:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (3800 versus 700) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2004).
Reasons to prefer the Nikon D3300:
- More detail: Has more megapixels (24 vs 12.2MP), which boosts linear resolution by 40%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (23 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.2 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.9 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.5 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 235k dots).
- More compact: Is smaller (124x98mm vs 158x150mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 822g or 66 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (90 percent cheaper at launch).
- More modern: Reflects 9 years and 3 months of technical progress since the D2X launch.
If the count of relative strengths (bullet points above) is taken as a measure, the D3300 is the clear winner of the contest (14 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D2X and the Nikon D3300 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D2X or the D3300. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D2X||..||..||..||+ +||..||..||Sep 2004||4,999||ebay.com|
|2.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499||ebay.com|
|3.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|4.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499||ebay.com|
|5.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899||ebay.com|
|6.||Nikon D5300||4/5||+ +||..||79/100||4.5/5||4.5/5||Oct 2013||799||ebay.com|
|7.||Nikon D3200||5/5||+ +||..||73/100||4.5/5||4.5/5||Apr 2012||599||ebay.com|
|8.||Nikon D3S||5/5||..||..||89/100||4.5/5||5/5||Oct 2009||5,199||ebay.com|
|9.||Nikon D300S||5/5||+ +||..||82/100||4/5||4.5/5||Jul 2009||1,799||ebay.com|
|10.||Nikon D3||..||..||..||+ +||5/5||4.5/5||Aug 2007||4,999||ebay.com|
|11.||Nikon D300||..||+ +||..||+ +||5/5||4.5/5||Aug 2007||1,799||ebay.com|
|12.||Nikon D2Xs||..||..||..||..||..||..||Jun 2006||4,699||ebay.com|
|13.||Nikon D200||..||+ +||..||+ +||o||..||Nov 2005||1,699||ebay.com|
|14.||Nikon D2H||..||..||..||+ +||..||..||Jul 2003||3,499||ebay.com|
|15.||Nikon D1H||..||..||..||+ +||..||..||Feb 2001||4,499||ebay.com|
|16.||Nikon D1X||..||..||..||+ +||..||..||Feb 2001||5,999||ebay.com|
|17.||Nikon D1||..||..||..||+ +||..||..||Jun 1999||5,499||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon T6s vs Nikon D3300
- Fujifilm GFX 100S vs Nikon D2X
- Fujifilm X-H1 vs Nikon D2X
- Fujifilm X-Pro3 vs Nikon D3300
- Fujifilm X10 vs Nikon D2X
- Leica S Typ 006 vs Nikon D3300
- Leica TL vs Nikon D3300
- Nikon 1 V2 vs Nikon D2X
- Nikon D2X vs Panasonic ZS100
- Nikon D2X vs Ricoh WG-6
- Nikon D3300 vs Nikon D5100
- Nikon D3300 vs Olympus PEN-F
Specifications: Nikon D2X vs Nikon D3300
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D2X||Nikon D3300|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Nikon F mount lenses|
|Launch Date||September 2004||January 2014|
|Launch Price||USD 4,999||USD 499|
|Sensor Specs||Nikon D2X||Nikon D3300|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||23.7 x 15.7 mm||23.5 x 15.6 mm|
|Sensor Area||372.09 mm2||366.6 mm2|
|Sensor Diagonal||28.4 mm||28.2 mm|
|Sensor Resolution||12.2 Megapixels||24 Megapixels|
|Image Resolution||4288 x 2848 pixels||6000 x 4000 pixels|
|Pixel Pitch||5.52 μm||3.91 μm|
|Pixel Density||3.28 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 800 ISO||100 - 12,800 ISO|
|ISO Boost||100 - 3,200 ISO||100 - 25,600 ISO|
|DXO Sensor Quality (score)||59||82|
|DXO Color Depth (bits)||22.1||24.3|
|DXO Dynamic Range (EV)||10.9||12.8|
|DXO Low Light (ISO)||476||1385|
|Screen Specs||Nikon D2X||Nikon D3300|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||235k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Nikon D2X||Nikon D3300|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||150 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Nikon D2X||Nikon D3300|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Nikon D2X||Nikon D3300|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||3800 shots per charge||700 shots per charge|
158 x 150 x 86 mm
(6.2 x 5.9 x 3.4 in)
124 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
|Camera Weight||1252 g (44.2 oz)||430 g (15.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
